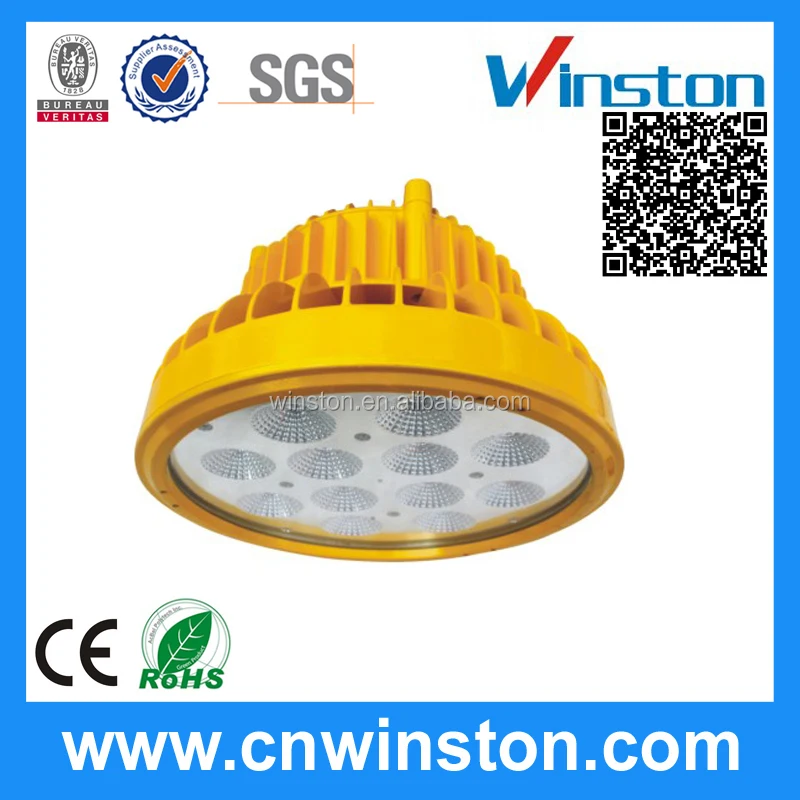

IP66 LED Platform Light Explosion proof Lighting Fixture Used for Oilfield Hazardous Area Flameproof Lights

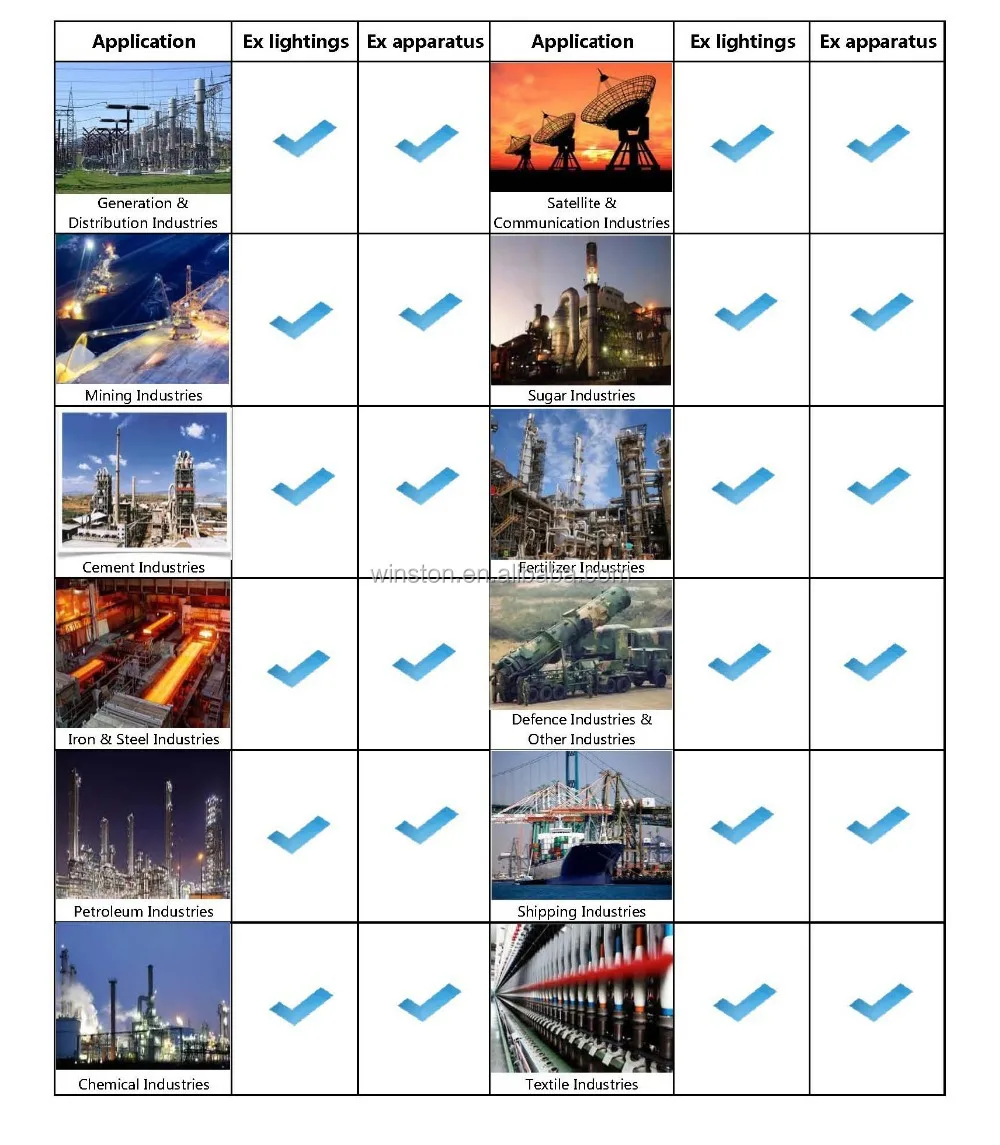

The Field of Application: In electrical engineering, a hazardous location (sometimes abbreviated to HAZLOC) is defined as a place where concentration of flammable gases, vapors or dusts occur. Electrical equipment that must be installed in such locations is especially designed and tested to ensure it does not initiate an explosion, due to arcing contacts or high surface temperature of equipment.

Gas divisions or zone

      In an industrial plant such as a refinery or chemical process plant, handling of large quantities of flammable liquids and gases creates a risk of leaks. In some cases the gas, ignitable vapor or dust is present all the time or for long periods. Other areas would have a dangerous concentration of flammable substances only during process upsets, equipment deterioration between maintenance periods, or during an incident. Refineries and chemical plants are then divided into areas of risk of release of gas, vapor or dust known as divisions or zones.

Non-Hazardous Area

An area such as a residence or office would be classed as Non Hazardous (safe area), where the only risk of a release of explosive or flammable gas would be such things as the propellant in an aerosol spray. The only explosive or flammable liquid would be paint and brush cleaner. These are classed as very low risk of causing an explosion and are more of a fire risk (although gas explosions in residential buildings do occur). Non hazardous areas on chemical and other plant are present where it is absolutely certain that the hazardous gas is diluted to a concentration below 25% of its lower flammability limit (or lower explosive limit (LEL)).

Division 2 or Zone 2 area

This is a step up from the safe area. In this zone the gas, vapor or mist would only be present under abnormal conditions (most often leaks under abnormal conditions). As a general guide for Zone 2, unwanted substances should only be present under 10 hours/year or 0–0.1% of the time.

Division 1 or Zone 1 area

Gas, vapor or mist will be present or expected to be present for long periods of time under normal operating conditions. As a guide for Zone 1, this can be defined as 10–1000 hours/year or 0.1–10% of the time.

Zone 0 area

Gas or vapor is present all of the time. An example of this would be the vapor space above the liquid in the top of a tank or drum. The ANSI/. classification method consider this environment a Division 1 area. As a guide for Zone 0, this can be defined as over 1000 hours/year or >10% of the time.

Equipment protection level

In recent years also the Equipment Protection Level (EPL) is specified for several kinds of protection. The required Protection level is linked to the intended use in the zones described below:

  * The light distribution and its mounting types are especially designed for the platform.

 * It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
 * The housing is designed to dissipate heat, which increase the efficiency and the lifespan of the LED, so that to ensure the 100,000 hours led lifespan.
 * Supplied with the world top ranking Taiwan Meanwell LED driver, ensure the lamp of high performance, more efficient.
 * The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
 * 18~43VAC or 18~55VDC is optional for 25W and 40Was customer's requirement.

MOQ of our explosion proof lights

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

What is the payment terms?

We accept T/T, L/C, WESTERN UNION, PAYPAL, CASH.

Why choose us?

1. Guarantee of High Quality

    Certification of CE, ROHS, CCC, ISO9001

    Strict quality controller throughout the production process

    Purchase of material

    Finished products test and overall check

    Reliable checking

2. Customization of Production

    We can make the required products according to customer's requirement or drawings

3. Reliable Team

    Excellent technical team, waiting for solving your questions.

    Paying attention to your requirements and production lead time.

    Professional recommendation for you.

Guarantee period for our explosion proof lights

2-Years afer being sold.
