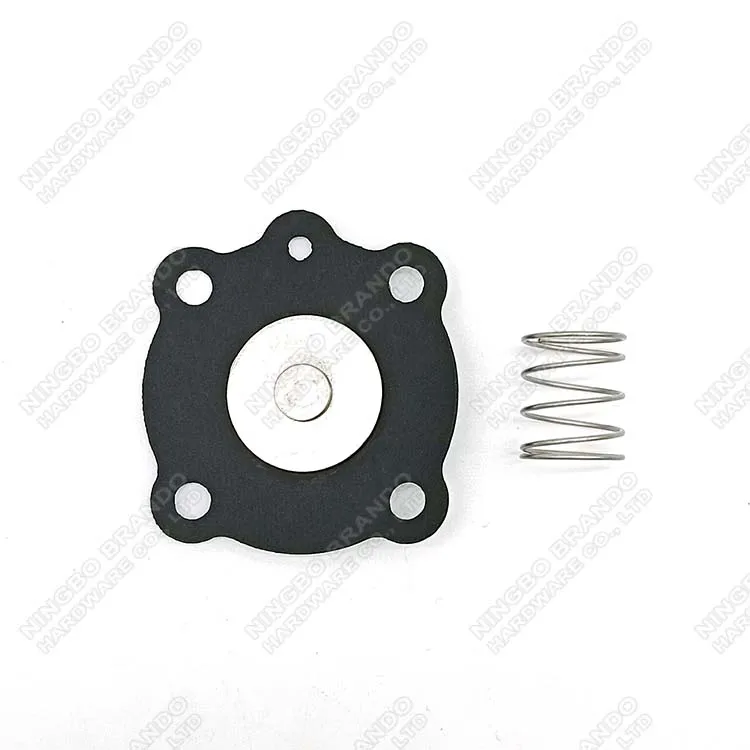

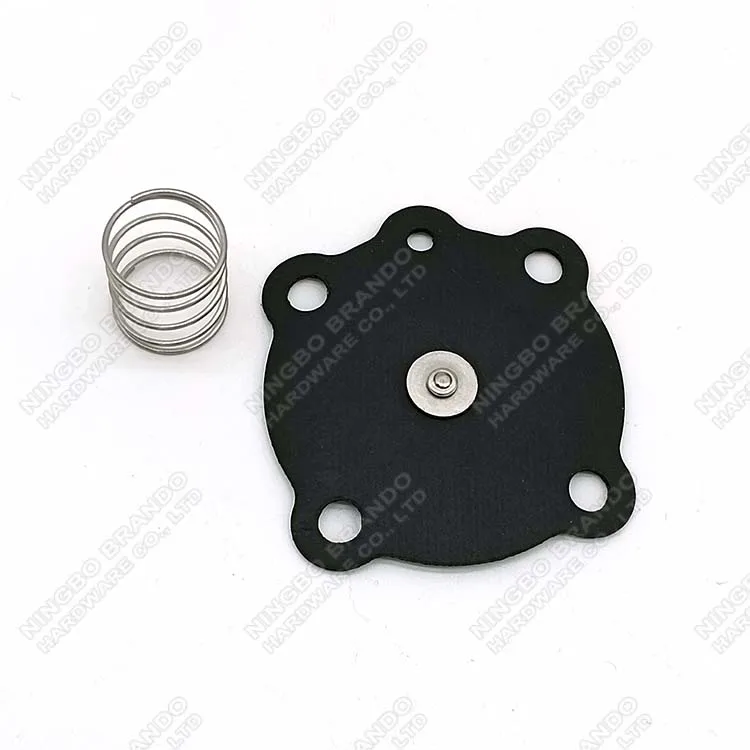

Pulse Jet Valve NBR FKM Secondary Diaphragm Repair Kit For All Double Diaphragm Pulse Valves Membrane

Product Overview

Description

 Product Description



The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ

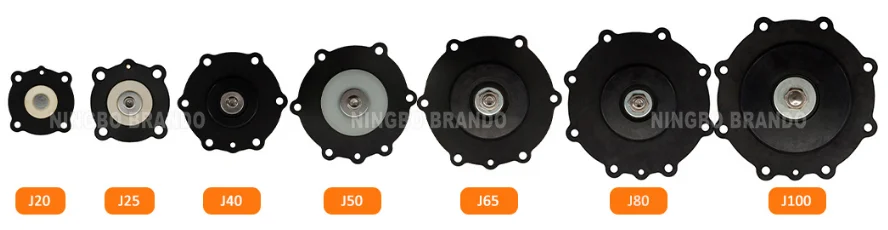

Diaphragm Model	Port Size	Pulse Valve Model	Diaphragm Material
JTY	Secondary diaphragm	All Double Diaphragms Pulse Valve	NBR, FKM
J20	3/4 ''	JICI20, JICR20, JISI20, JISR20
J25	1 ''	JICI25, JICR25, JISI25, JISR25
J40	1-1/2 ''	JICI40, JICR40, JISI40, JISR40, JIFI40, JIFR40, JIHI40, JIHR40
J50	2 ''	JISI50, JISR50, JIFI50, JIFR50, JIHI50, JIHR50
J65	2-1/2 ''	JISI65, JISR65, JIFI65, JIFR65, JIHI65, JIHR65
J80	3 ''	JISI80, JISR80, JIHI80, JIHR80
J100	4 ''	JIHI100, JIHR100

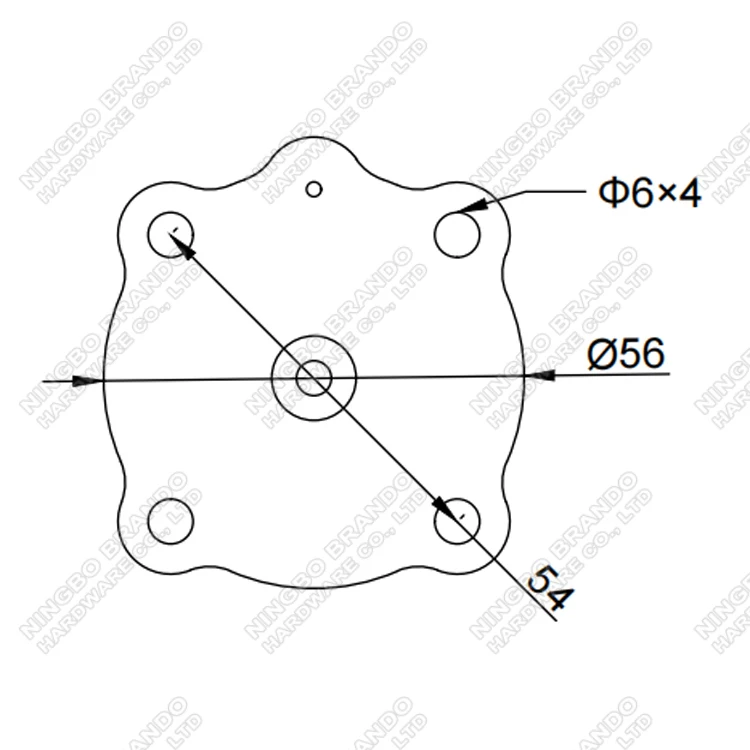

 Dimension



JTY







 More Diaphragms

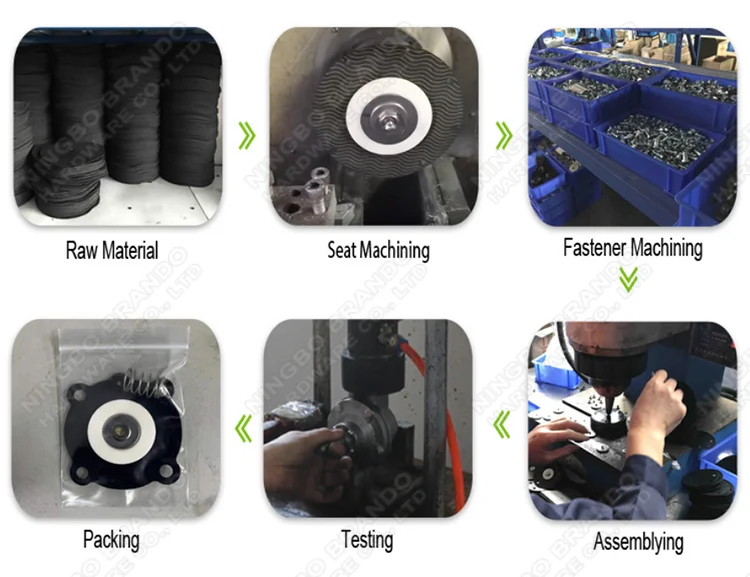

 Production Process
