Construction Materials 2.9m 3.9m 5.9m Concrete Formwork Lvl Timber Doka H20 Wooden Beams
- Category: >>>
- Supplier: Weifang Sheng Geheng Imp. & Exp. Co. Ltd.
Share on (1601227550009):
Product Overview
Description
Production Description

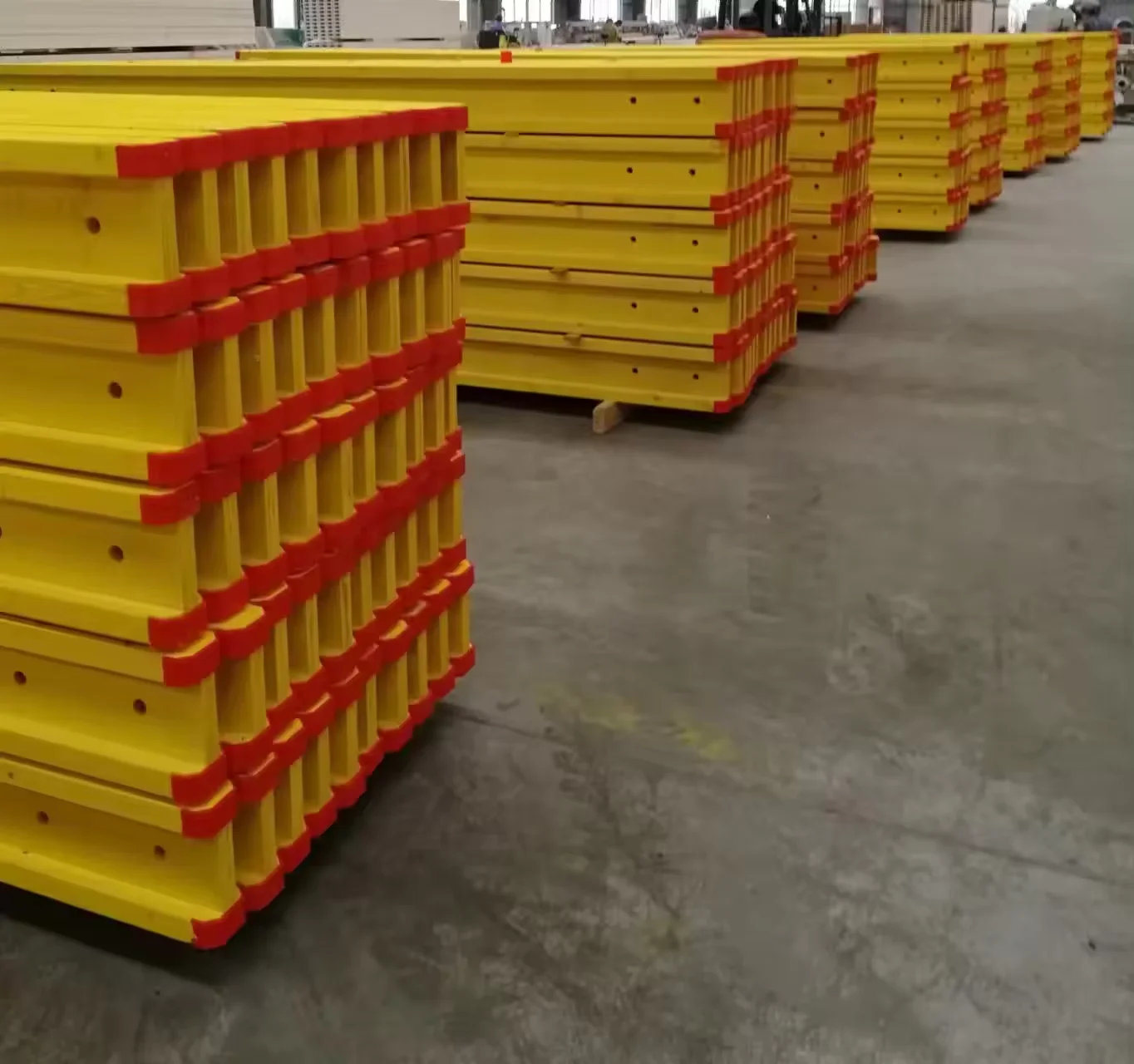

Construction Materials 2.9m 3.9m 5.9m Concrete Formwork Lvl Timber Doka H20 Wooden Beams

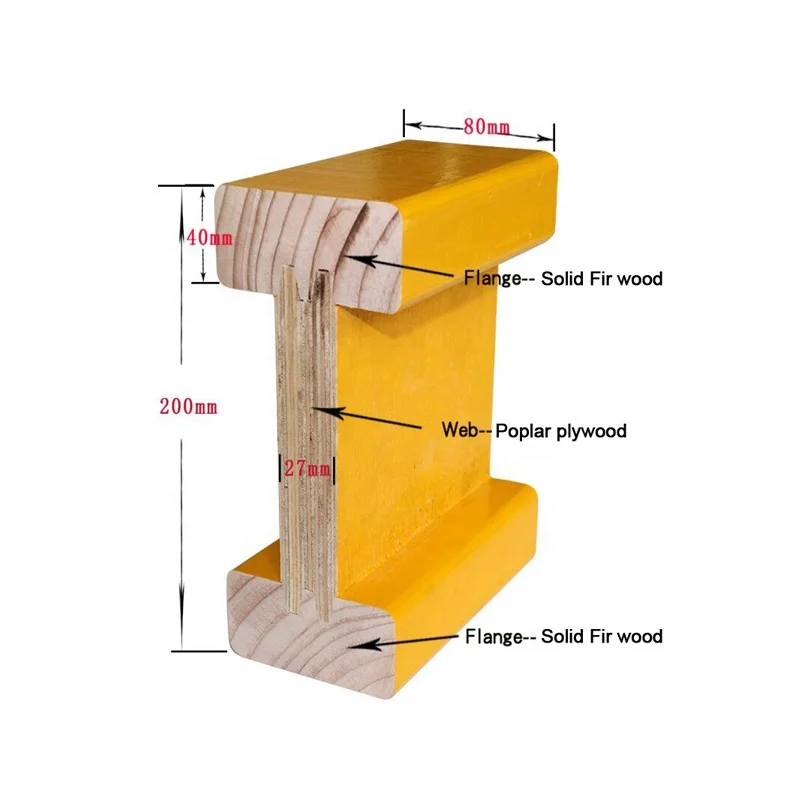

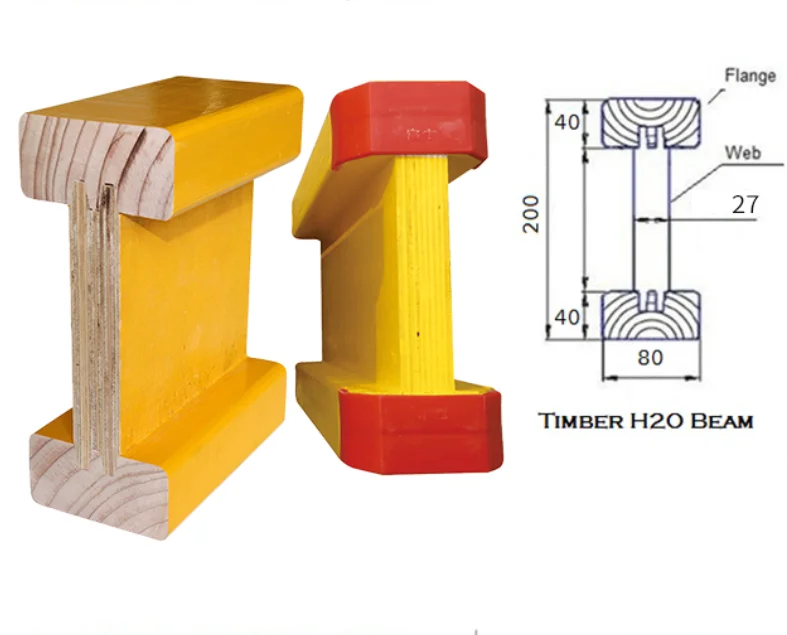

Product Name | H20 Timber Beam |
Web Thickness | 27mm |
Height | 200mm |
Flange Size | 40mm(Flange Thickness)*80mm(Flange Width) |
Material | ● Flange: Solid Fir wood |
● WEB: Poplar LVL or OSB | |
Length | 1.8-5.9m(1.8m, 2.9m, 3.0m, 3.3m, 3.9m, 4.9m, 5.9m or upon request) |
Usage | Concrete Construction Support |
Color | Yellow ,Red, Blue etc.(Upon request) |
Surface | Coated By Antiseptic And Waterproof Yellow Painting |
Perm Bending Moment | 5KN.M |
Perm Shear Force | 11.2KN |
Modulus of elasticity | E10200N/mm² |
Glue | Phenolic WBP/Waterproof |
MOQ | 1*20'FCL |
Moisture | 12%-14% |
Delivery Time | Within 15 days after receiving deposit or original L/C at sight,Urgent orders to be negotiated |
Payment Terms | T/T or L/C at sight |
Port Of Shipment | Qingdao or Lian yungang Port |
Customized | OEM/ODM as well as Building Materials Sourcing Service are available. |
Product Details

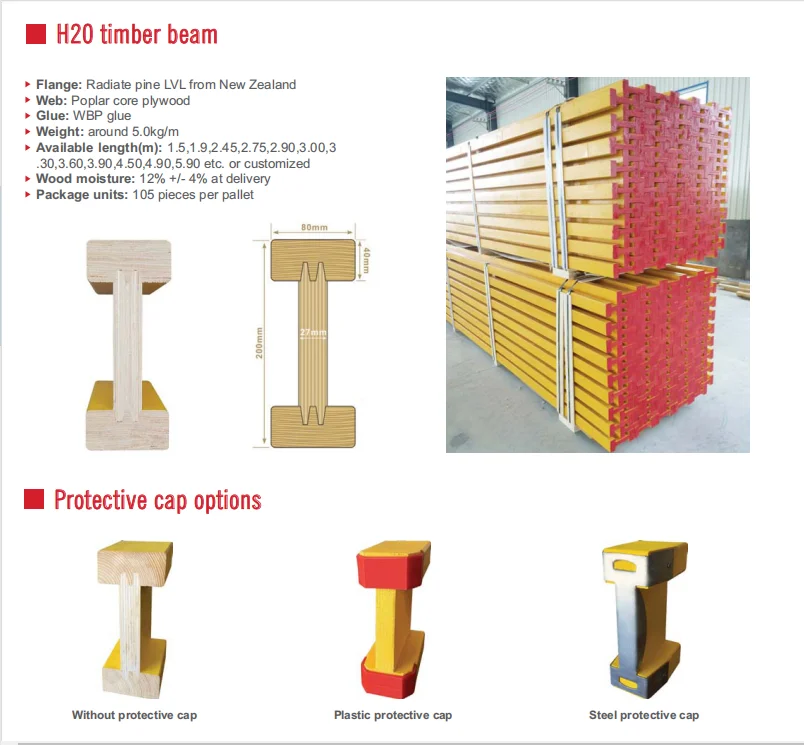

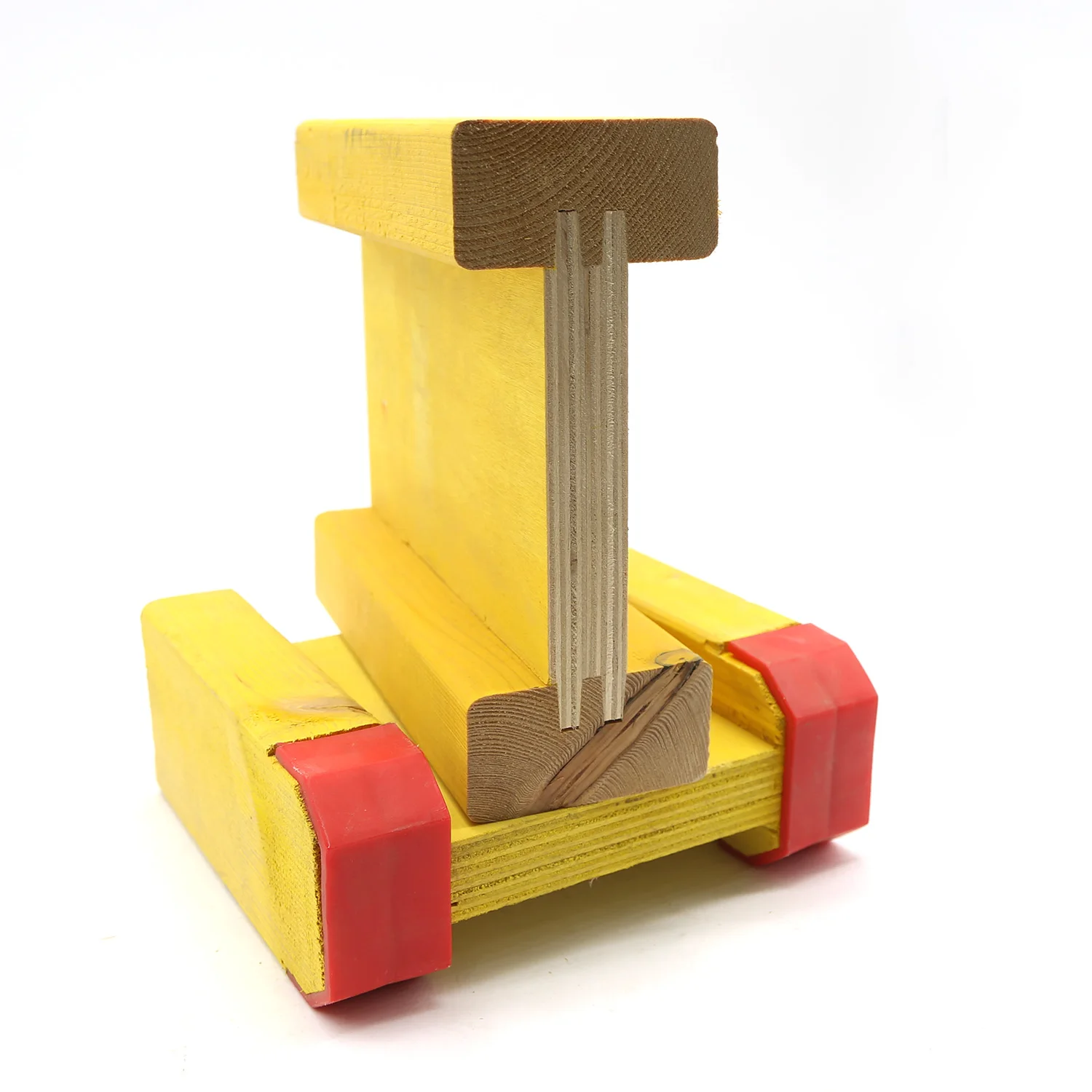

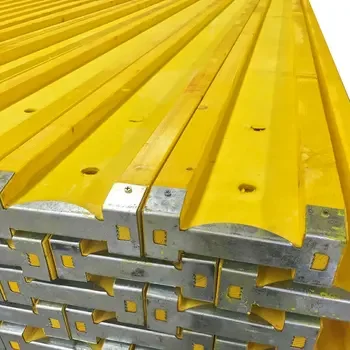

H20 TIMBER BEAMS

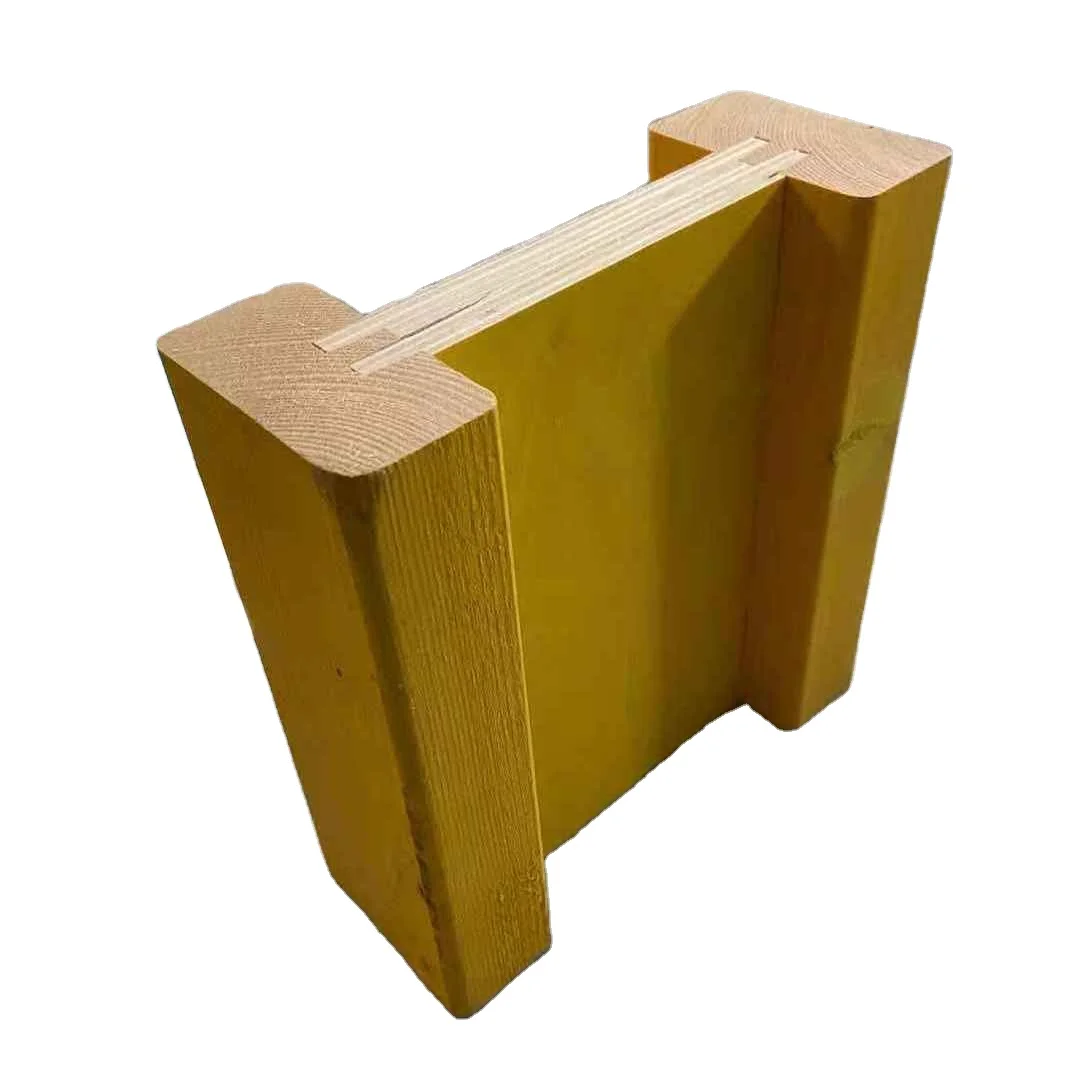

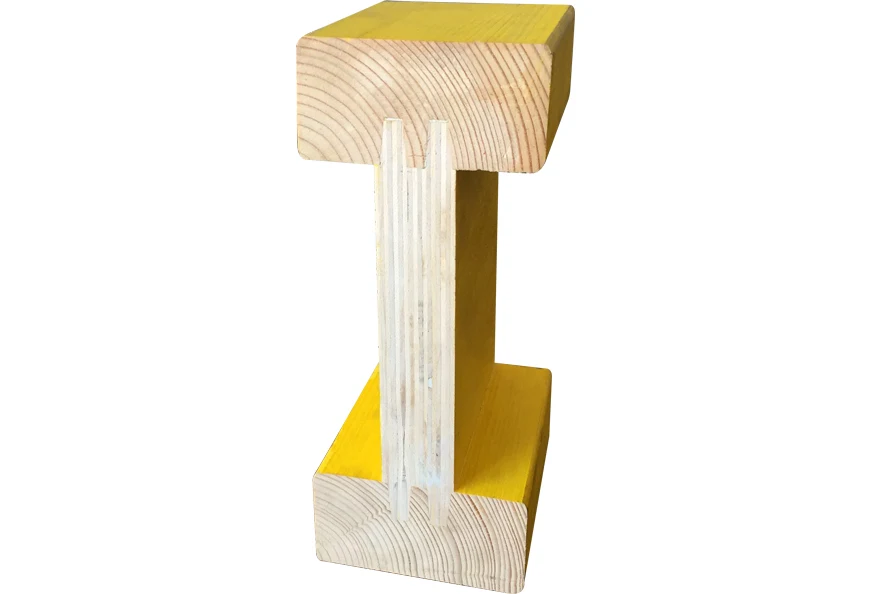

H20 Timber Beam is a lightweight structural member with solid wood as the flange and multi-ply as the web, bonded with weather-resistant adhesive to form an I-beam cross-section, and coated with anticorrosive and waterproof painting.
PRODUCT INTRODUCTION | ||
Flange | High quantity spruce with high stability | |
Web | Plywood with high durability and high load bearing capacit | |

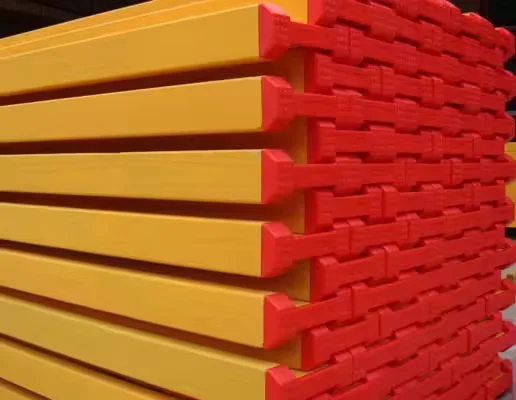

Beam ends protection | Protect from moisture and UV;reduce damage;increase service life | |
Special surface treatment | Wood beam surface with paint formulations soaking treatment which is not easy to fall of,water resistance,acid and alkali,etc. | |
CHARACTERISTICS | ||
✔ Light weight | ||
✔ High Stiffness | ||
✔ Line is good,not easy to deformation | ||
✔ Acud alkaline | ||
✔ Low cast | ||
STRUCTURES

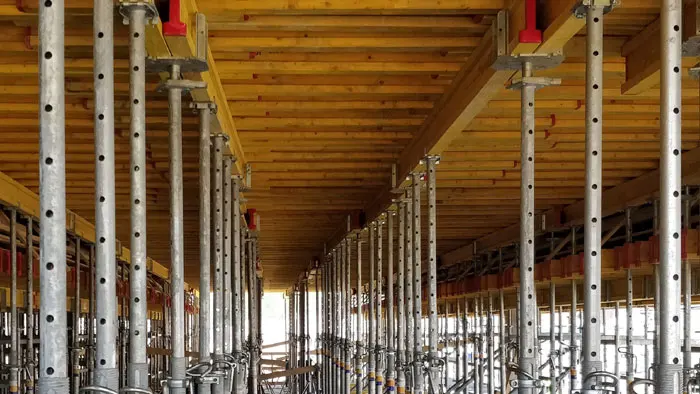

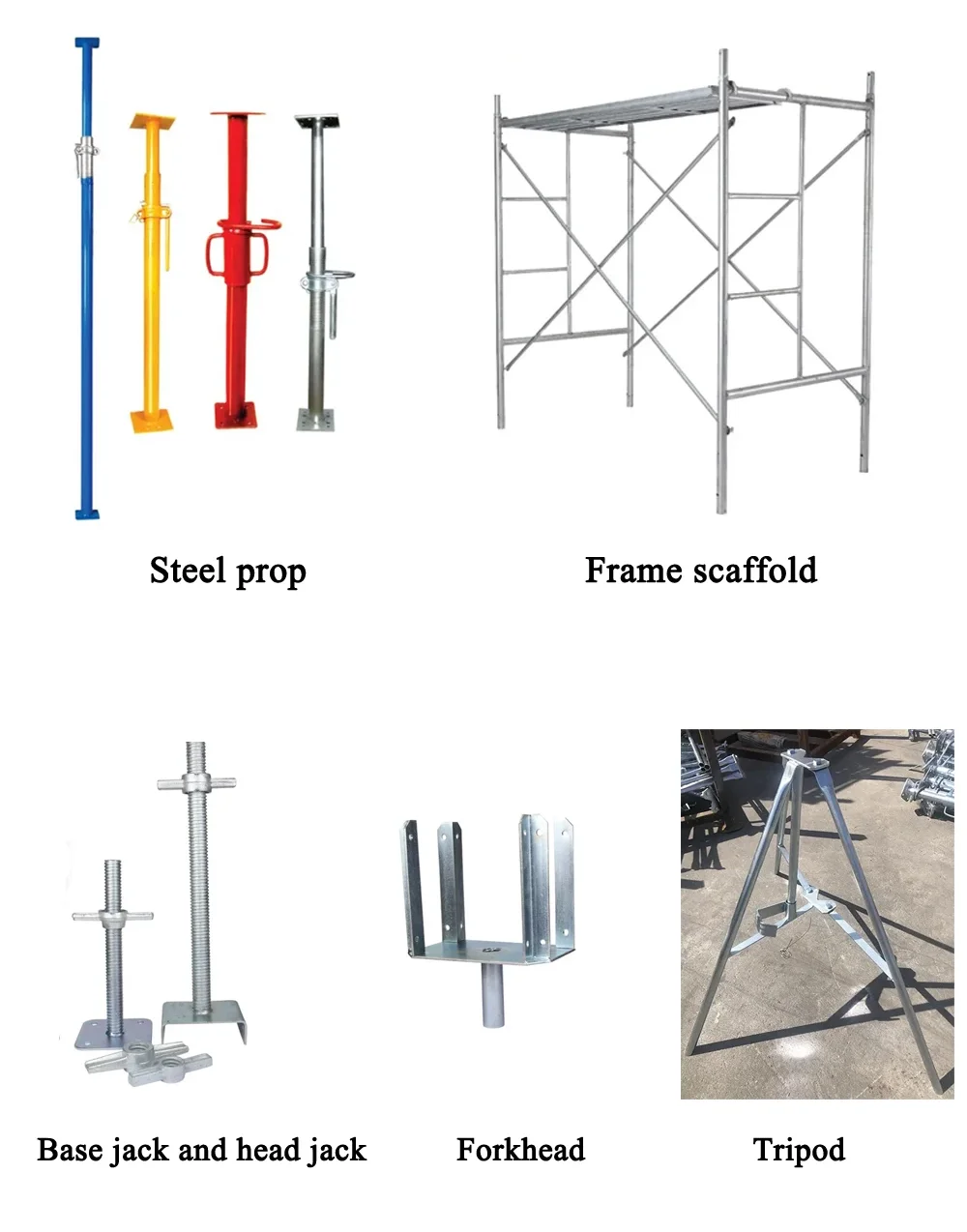

Steel Support Series
Include Steel Prop, Frame Scaffold, Base Jack&Head Jack, Forkhead and Tripod etc.

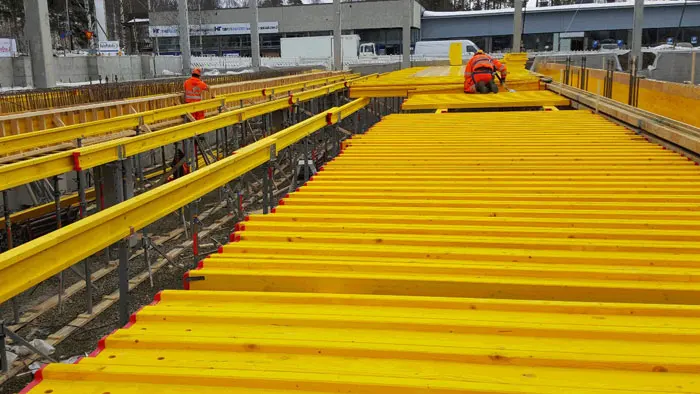

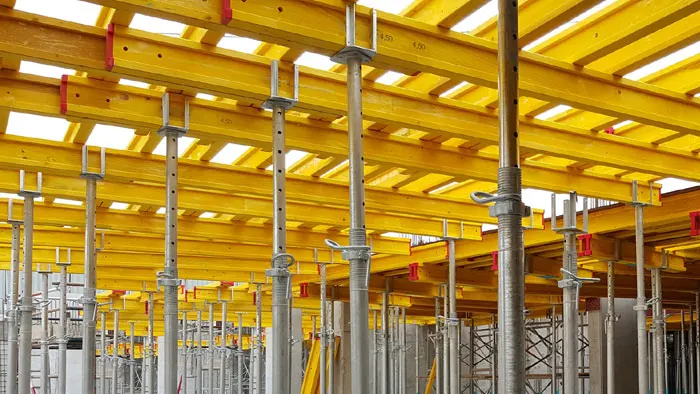

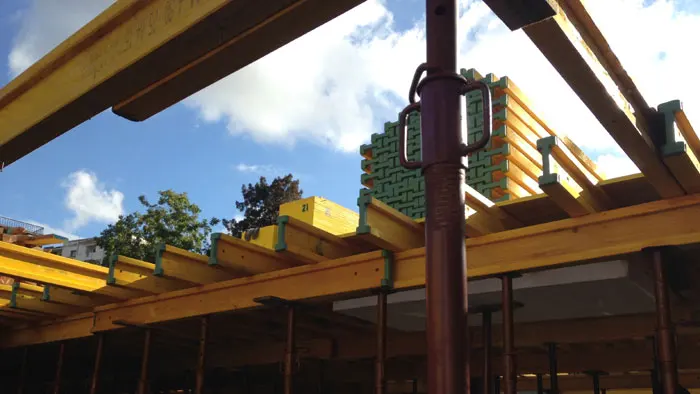

APPLICATIONS
Mainly used in reinforced concrete structural formwork project with multi-layer plate, support supporting supporting use
RELEVANT PRODUCTS
We also have some related products for construction

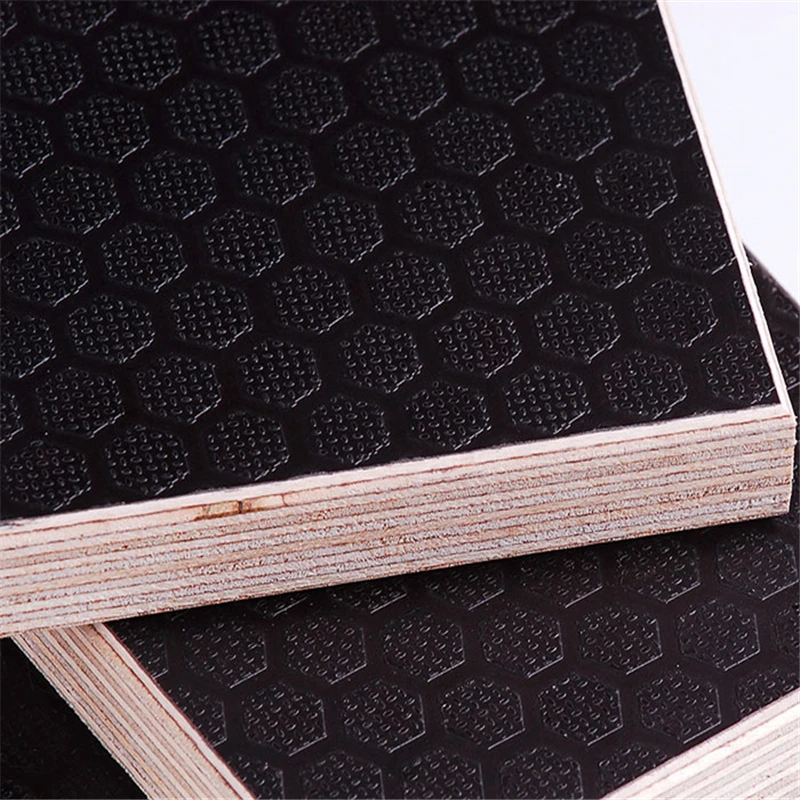

FILM FACED PLYWOOD

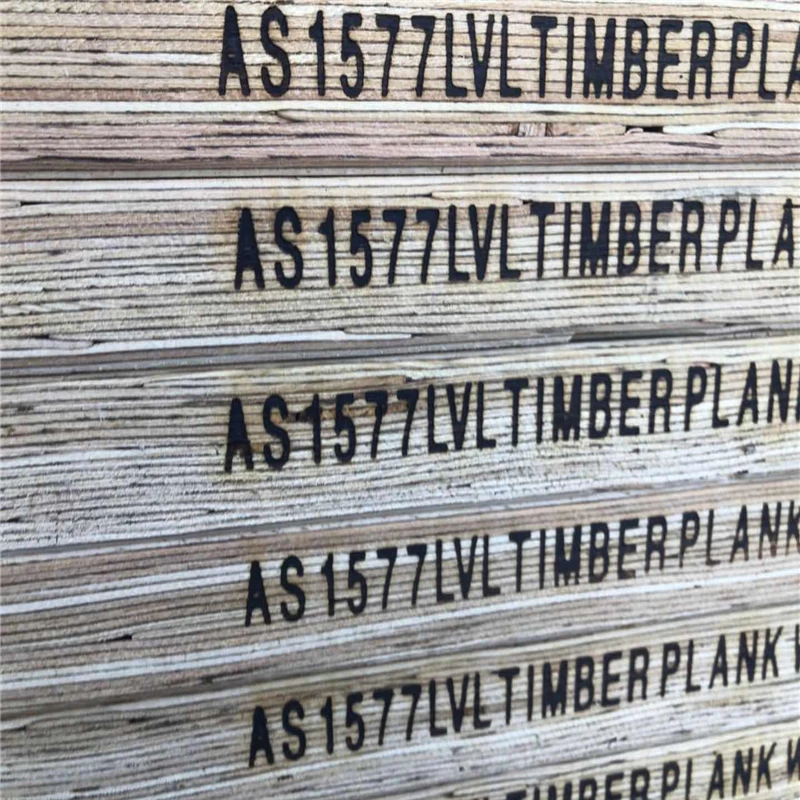

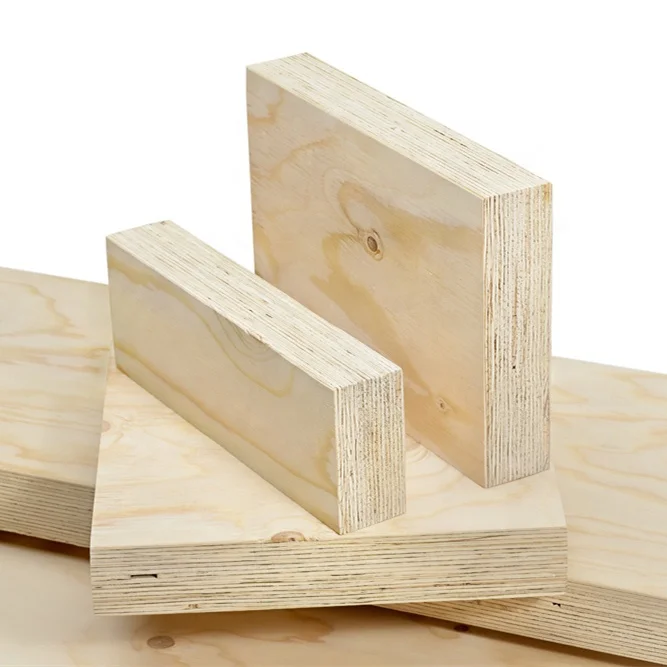

LVL(LAMINATED LUMBER BEAM)

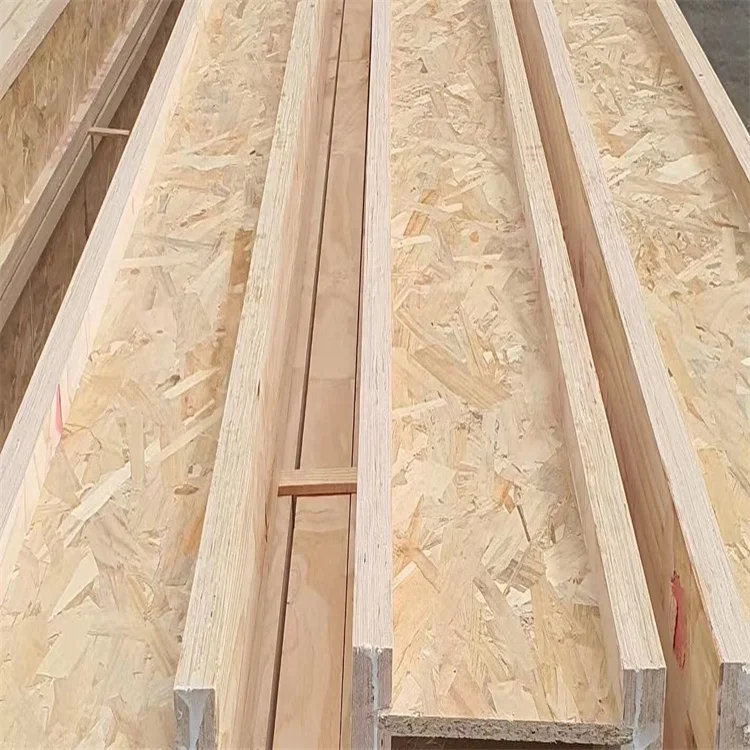

I JOIST BEAM
LVL SCAFFOLDIND FLANKS
Company Profile
Weifang Sheng Geheng Imp. & Exp. Co.,Ltd is located in Weifangcity,Shandong P.R. of China, near Qingdao & Weifang Port, enjoying convenient transportation access.
We has specialized in exporting wood products & steel products for more than 5 years. Our wood products mainly include top grade FILM FACED PLYWOOD, COMMERCIAL PLYWOOD, FINGER JOINT BOARD, OSB, MDF, DOOR SKIN, veneered & laminated PANELS etc.
And our steel products mainly include Square Bar, Deformed steel bar, Hot rolled steel round bar, cold rolled steel coil,Prepainted galvanized steel coil, PPGI, Corrugated steel sheets etc .
Our products are widely used in office, household and construction fields. Depending on excellent quality and after-sales control service,we have gained good reputation from clients all over the world ,especially, USA,Germany,Australia,the Middle East and Africa and more.
We has specialized in exporting wood products & steel products for more than 5 years. Our wood products mainly include top grade FILM FACED PLYWOOD, COMMERCIAL PLYWOOD, FINGER JOINT BOARD, OSB, MDF, DOOR SKIN, veneered & laminated PANELS etc.
And our steel products mainly include Square Bar, Deformed steel bar, Hot rolled steel round bar, cold rolled steel coil,Prepainted galvanized steel coil, PPGI, Corrugated steel sheets etc .
Our products are widely used in office, household and construction fields. Depending on excellent quality and after-sales control service,we have gained good reputation from clients all over the world ,especially, USA,Germany,Australia,the Middle East and Africa and more.

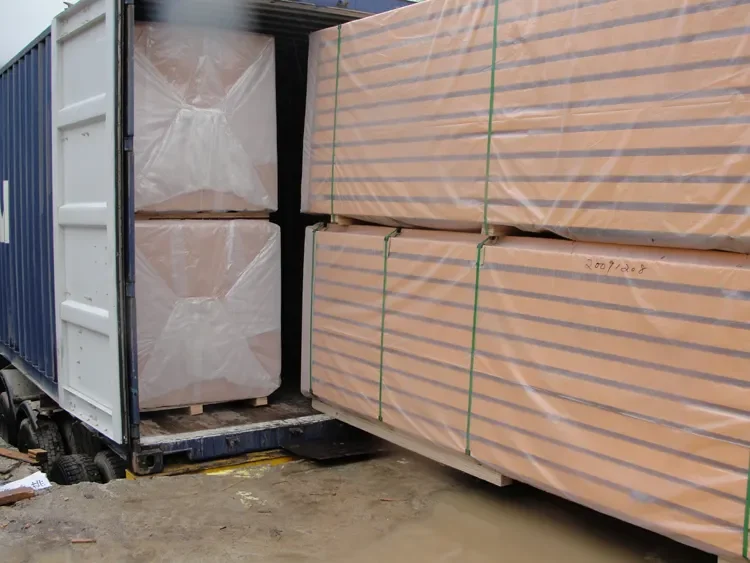

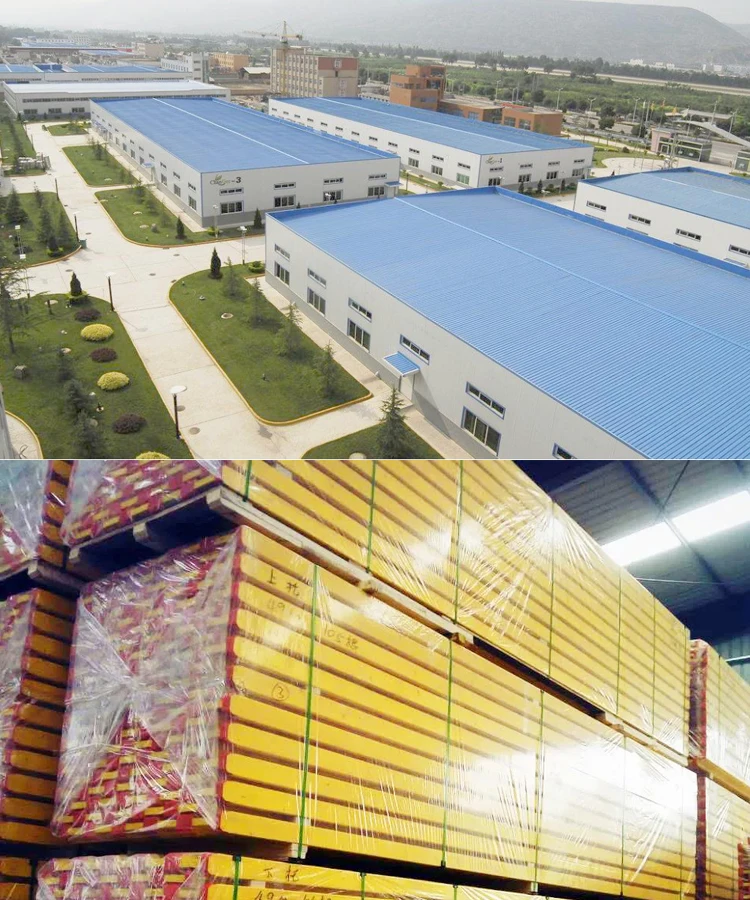

Packing& Shipping Production Process
Inner Packing | 0.2mm plastic bag |
Outer Packing | Bottom in pallets, covered with plastic film,around is carton or plywood, strenghthen by steel or iron 3*6 |
Quantity | 20GP : 8 Pallets/21M3 |
Quantity | 40GP : 16 Pallets/42M3 |
40HQ : 18 Pallets/53M3 | |
MOQ | 1*20GP |
* Our factory production line also produces PLYWOOD, MDF, OSB, CHIPBOAD, FINGER JOINT BOARD, LVL, BLOCK BOARD etc.
* All of our products support customization. If you need other products in your area, feel free to contact online service!
* The attached link below is our homepage, click to view the product category and choose the product you are interested!
* All of our products support customization. If you need other products in your area, feel free to contact online service!
* The attached link below is our homepage, click to view the product category and choose the product you are interested!

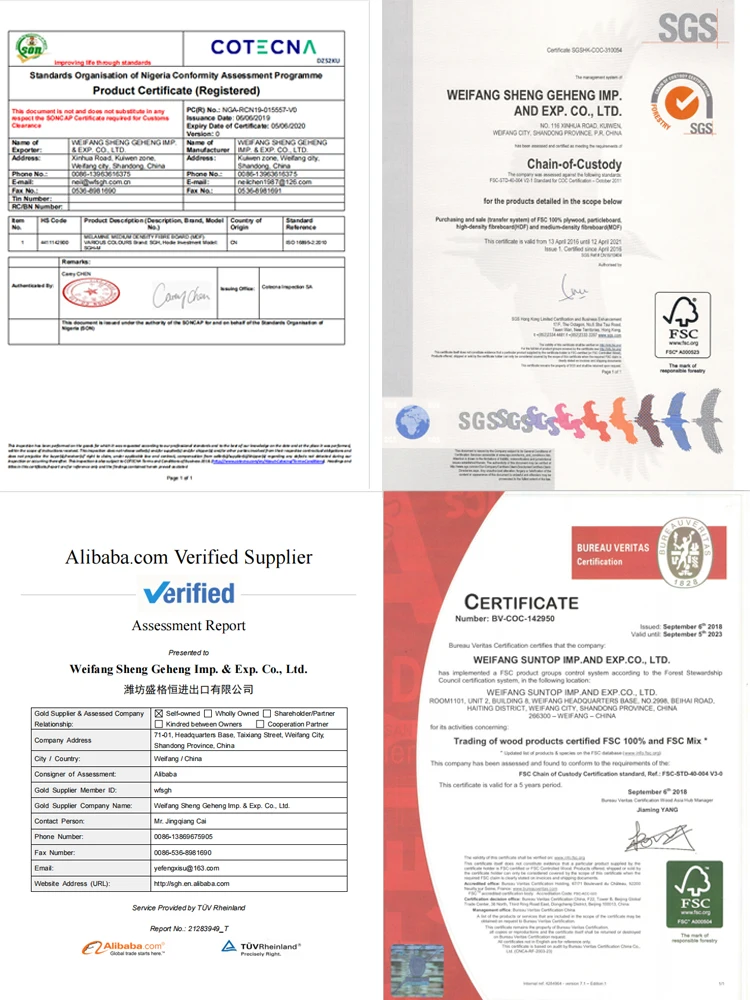

Certifications
