MP PP Plastic Mini Magnetic Drive Pump


Magnetic drive micro pump is running even the shaft and impeller, respectively, equipped with magnetic coupling and the mutual attraction, with no conventional mechanical seal, which is completely sealed.
Motor torque by rotating active magnetic and gravitational magnetic follower driven operation. Nowadays, magnetic drive pump used great disadvantage is the lack of fluid is absolutely no circumstances will be running machine or damage, it caused users unnecessary trouble and annoyance. But "Haihe Pumps" magnetic drive pumps do not have to worry about above case. It selects a special formula specifically designed for ceramic bearings, with very strong resistance to abrasion and corrosion resistance to the advanced performance and quality to ensure absolute safety.
Magnetic drive circulation pump adopt seal-free design, completely avoid the traditional mechanical pump seal leak the existence of liquid after the pollution caused by corrosion of the defects, industrial equipment is the most ideal liquid pump.

Specification
Flow Range: 8 ~ 330L/min
Head Range: 1 ~ 18m

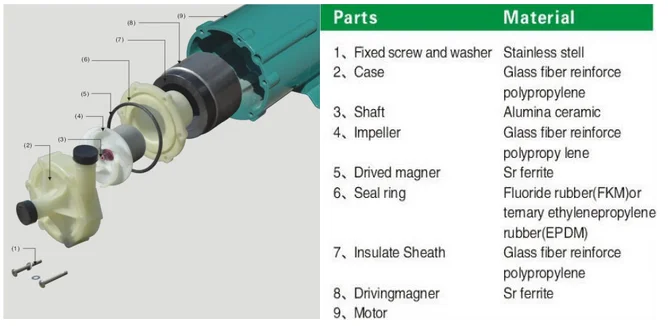

Main materials: GFRPP
Power range: 3 ~ 2200W
Liquid temperature range: 0 ~ 80 degree

Application
This pump can transport acid, alkali, salt, oil, beverages and other media, are widely used in chemical, petrochemical, fine chemicals, dyes chemical industry, environmental protection, water treatment, medicine, food and other departments


MP-20RX Mini Magnetic Drive Pump Technical Specifications
Model
MP-20RX
Tube Interface Inlet
26mm
Tube Interface Outlet
26mm
Max. Capacity
46L/min(50Hz); 52L/min(60Hz)
Max.Head
1.8M(50Hz); 2.5M(60Hz)
Standard Capacity
30L/min(50Hz); 40L/min(60Hz)
Standard Head
1m
Specific Gravity
<1.3
Medium Temperature
0℃-100℃

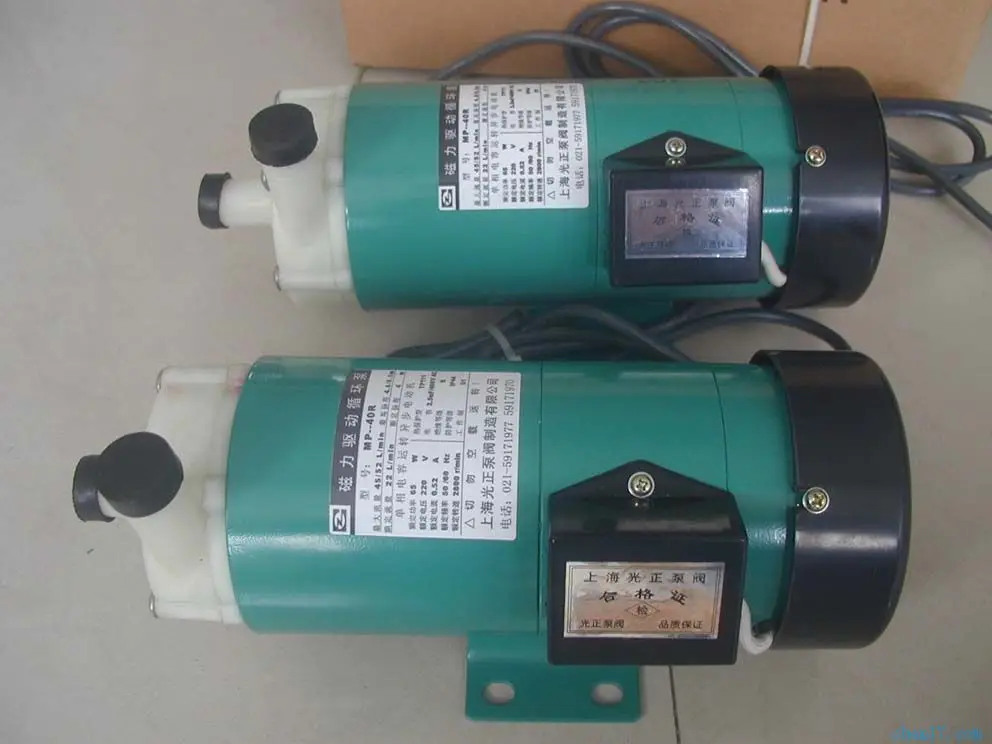

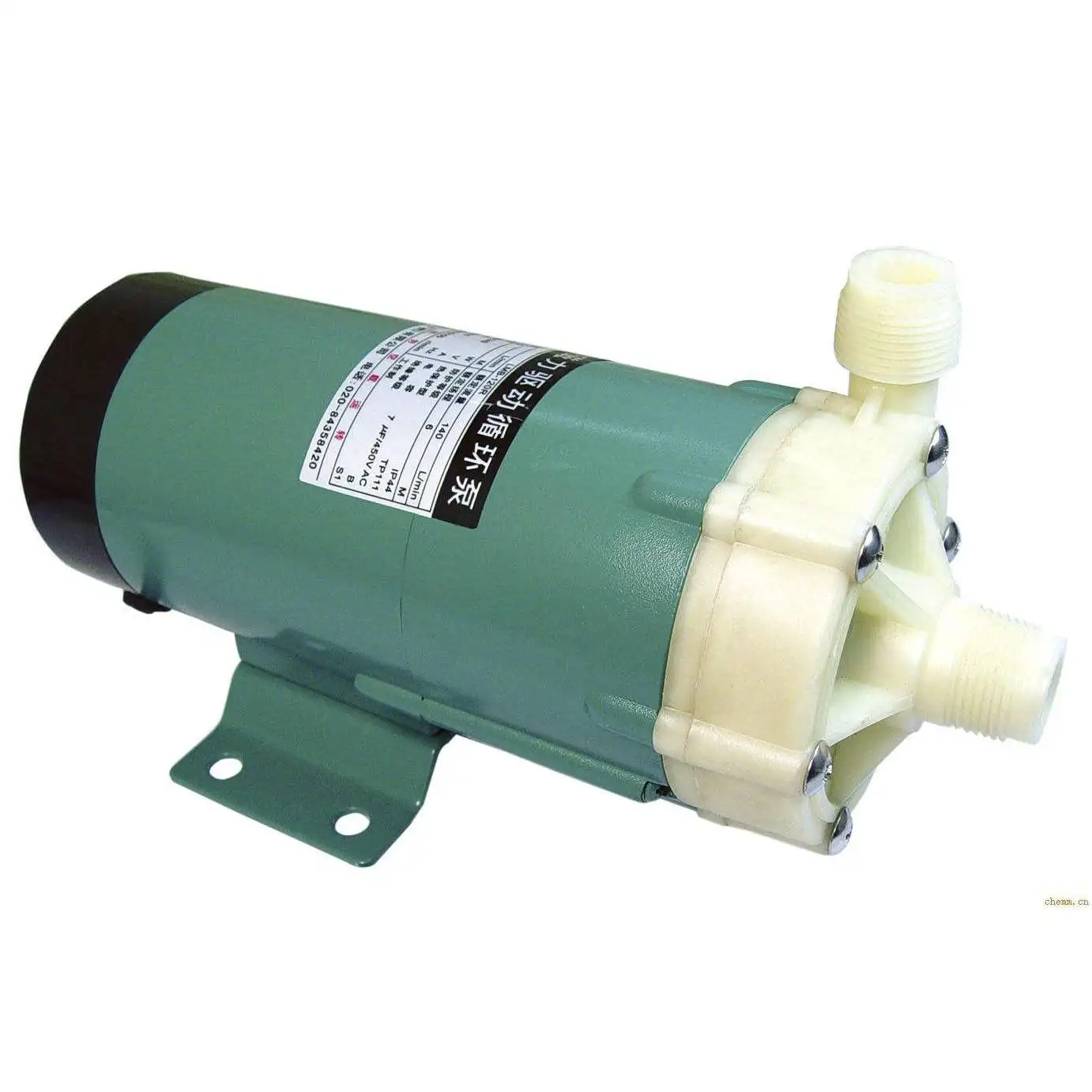

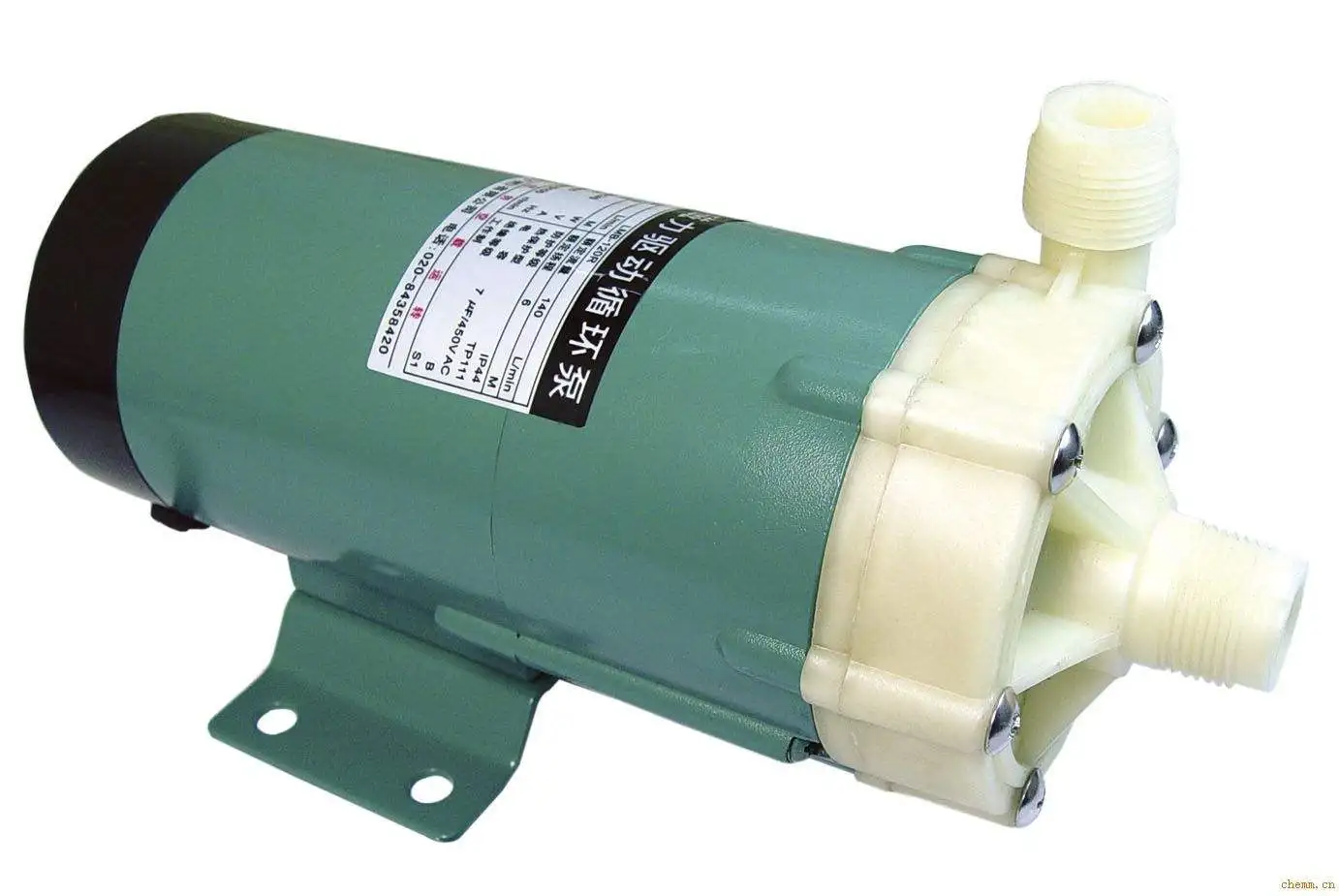

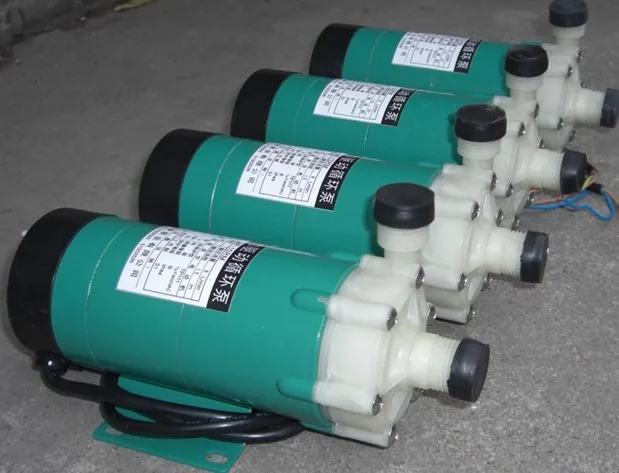

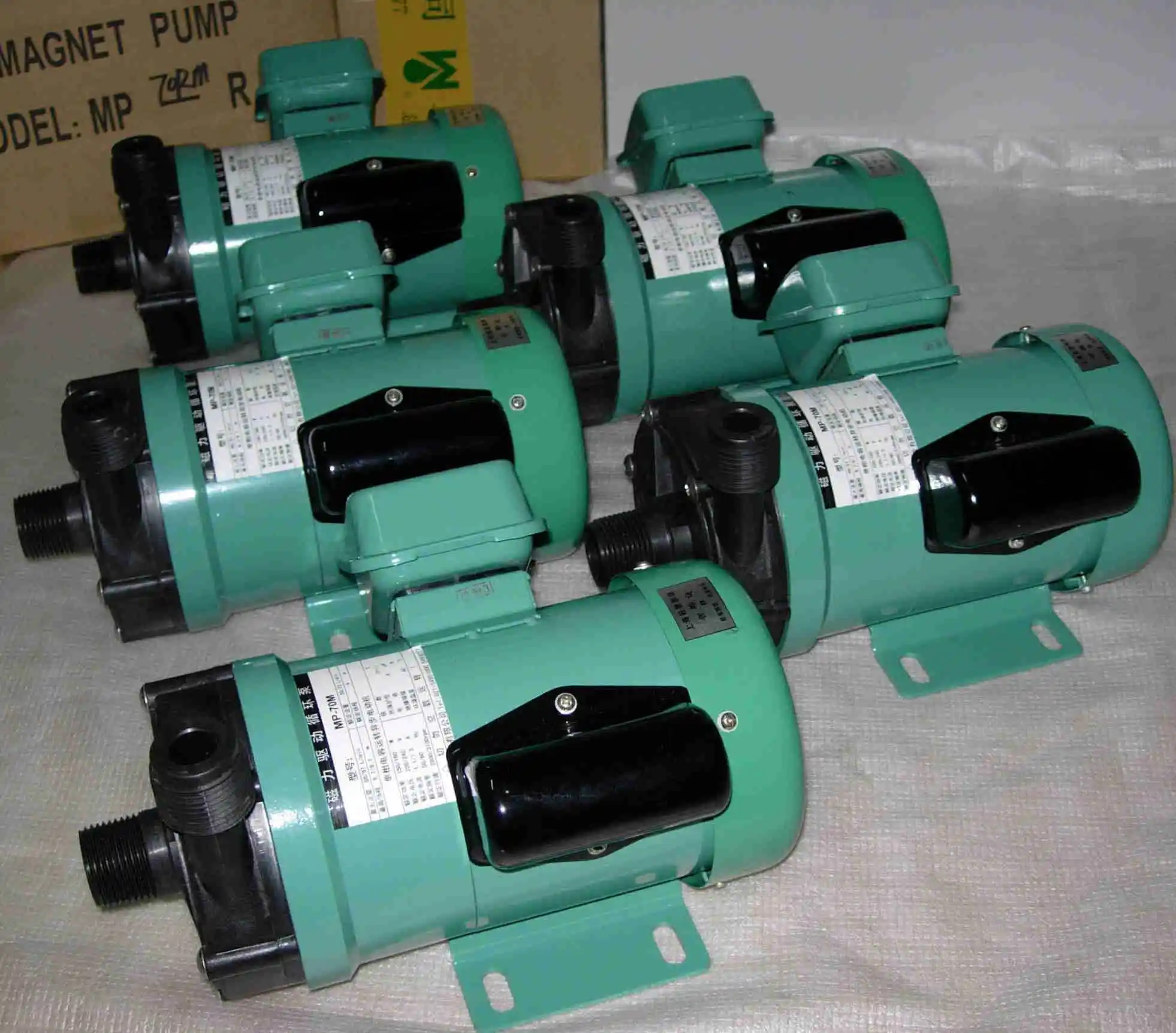

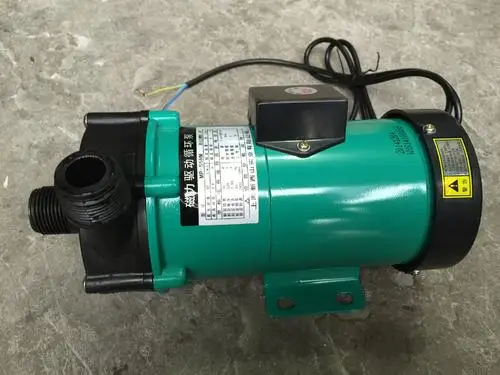

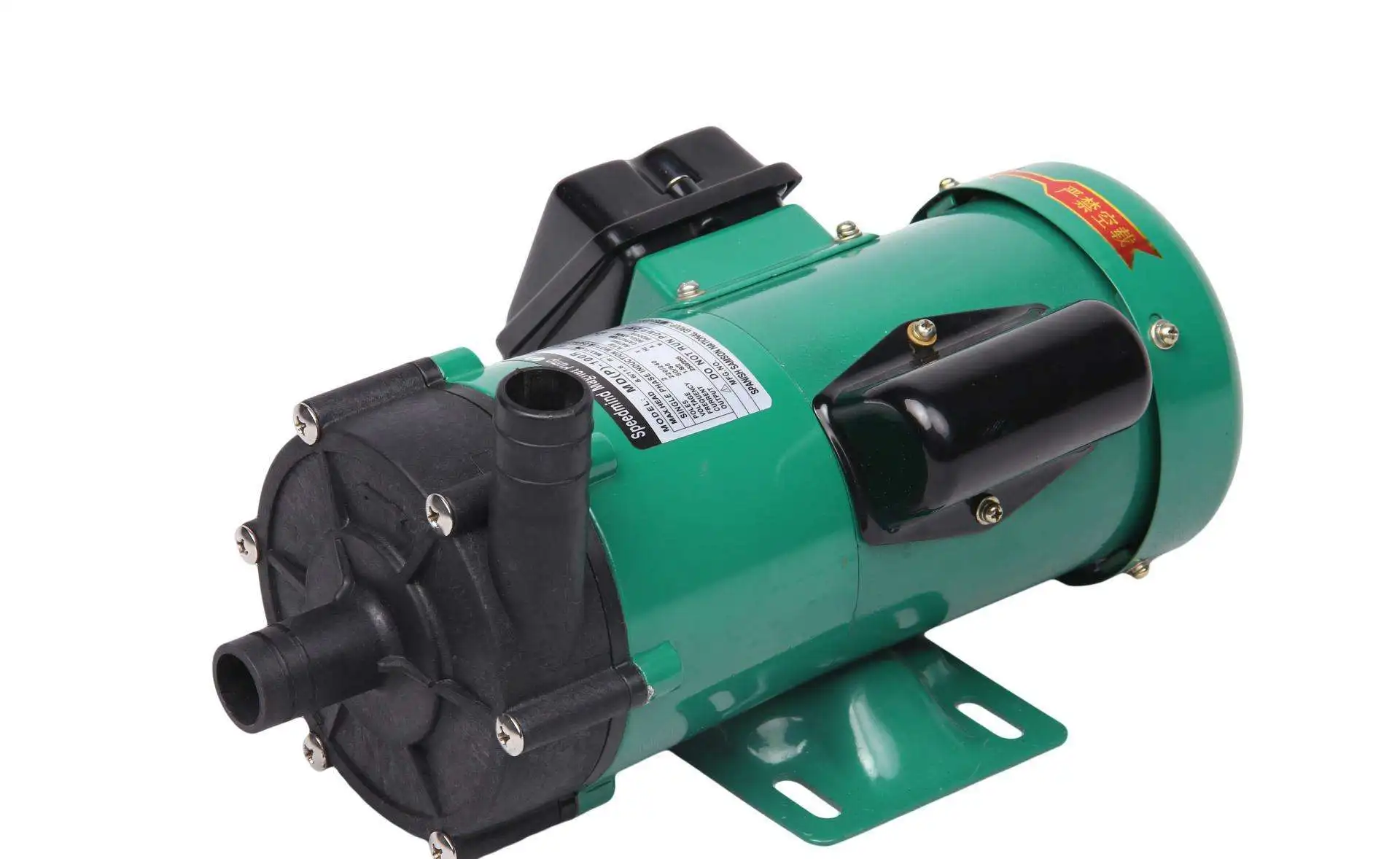

Products Show






Packing & Delivery


Packing Details  : One pump in One plywood case

Delivery Details : 30 days after order confirmation



Standard Plywood Case or Carton

Standard package without original wood, no fumigation needed.
