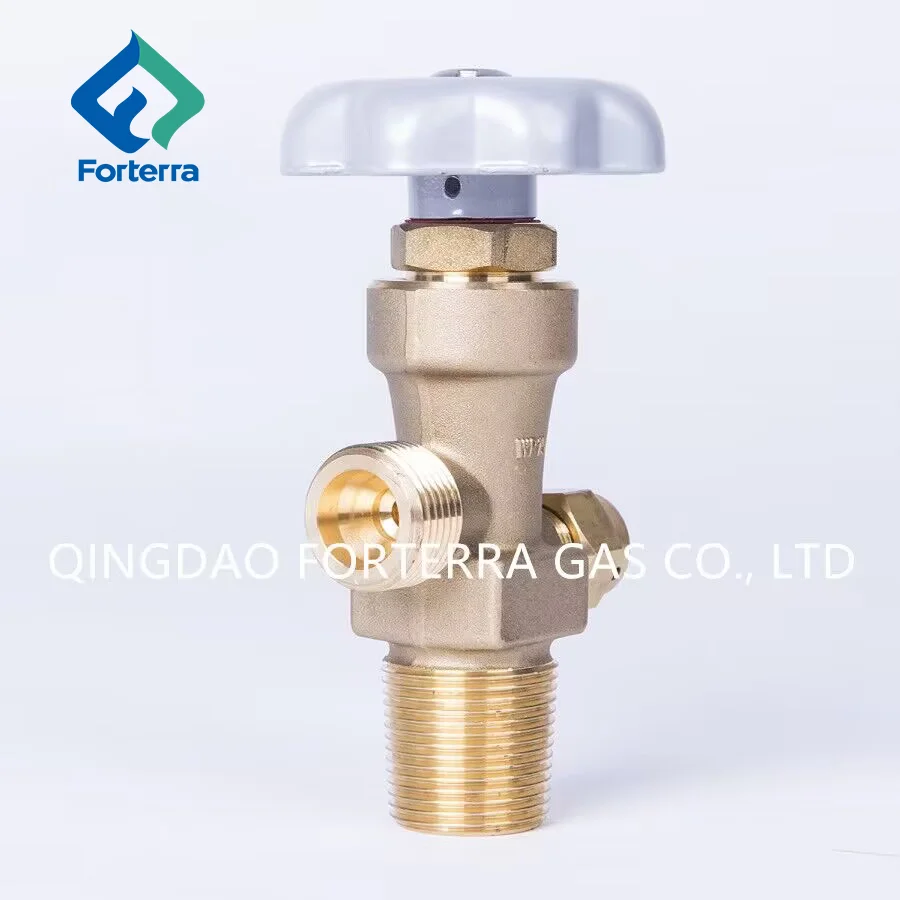

Industry Argon Gas Brass CGA580 Valve CO2 Oxygen Nitrogen Gas Cylinder Valve 2900 Psi Low Price CGA540 Valve
- Category: >>>
- Supplier: Qingdao Forterra Gas Co. Ltd.
Share on (1601227777484):
Product Overview
Description

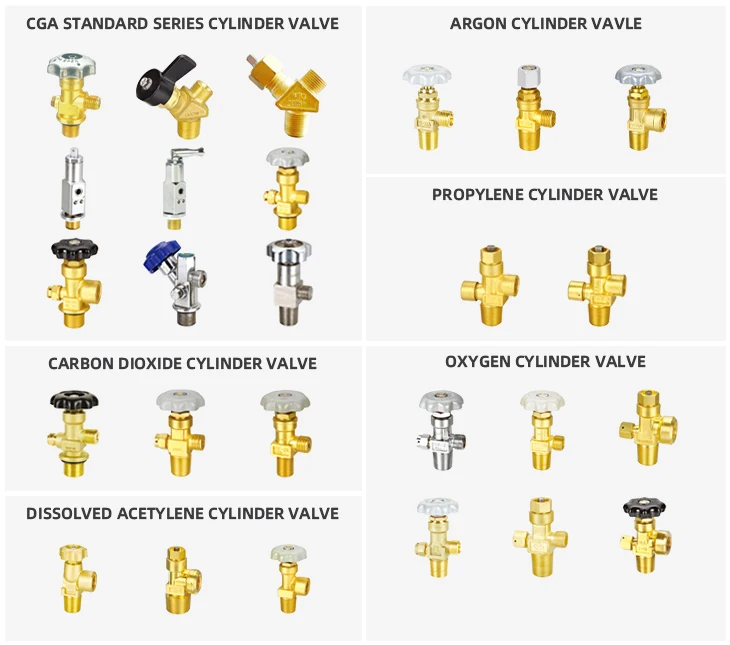

Our gas cylinder valve product line involve follow products:
Oxygen Cylinder Valve

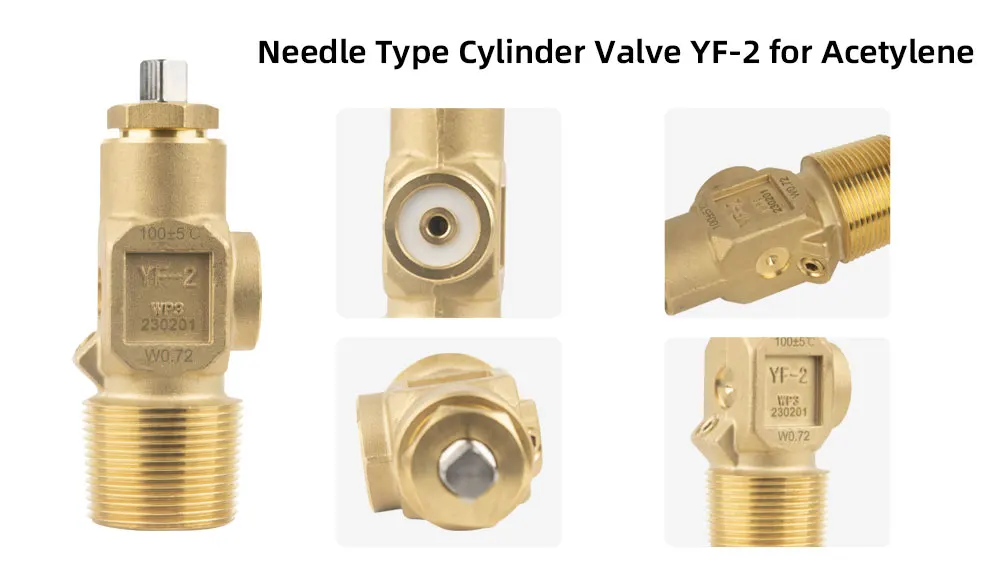

Acetylene Cylinder Valve
Carbon dioxide/Hydrogen/Chlorine/Ammonia/Helium/Argon/ Frezon Cylinder Valve
CGA Series Cylinder Valve
Nature Gas Cylinder Valve
SCBA Cylinder Valve
Gas Pipe Valve
Medical Oxygen Gas Regulator
Industrial Oxygen Gas Regulator
Gas Decompressor
Central Gas Supply Series
Oxygen Cylinder Valve
Acetylene Cylinder Valve
Carbon dioxide/Hydrogen/Chlorine/Ammonia/Helium/Argon/ Frezon Cylinder Valve
CGA Series Cylinder Valve
Nature Gas Cylinder Valve
SCBA Cylinder Valve
Gas Pipe Valve
Medical Oxygen Gas Regulator
Industrial Oxygen Gas Regulator
Gas Decompressor
Central Gas Supply Series

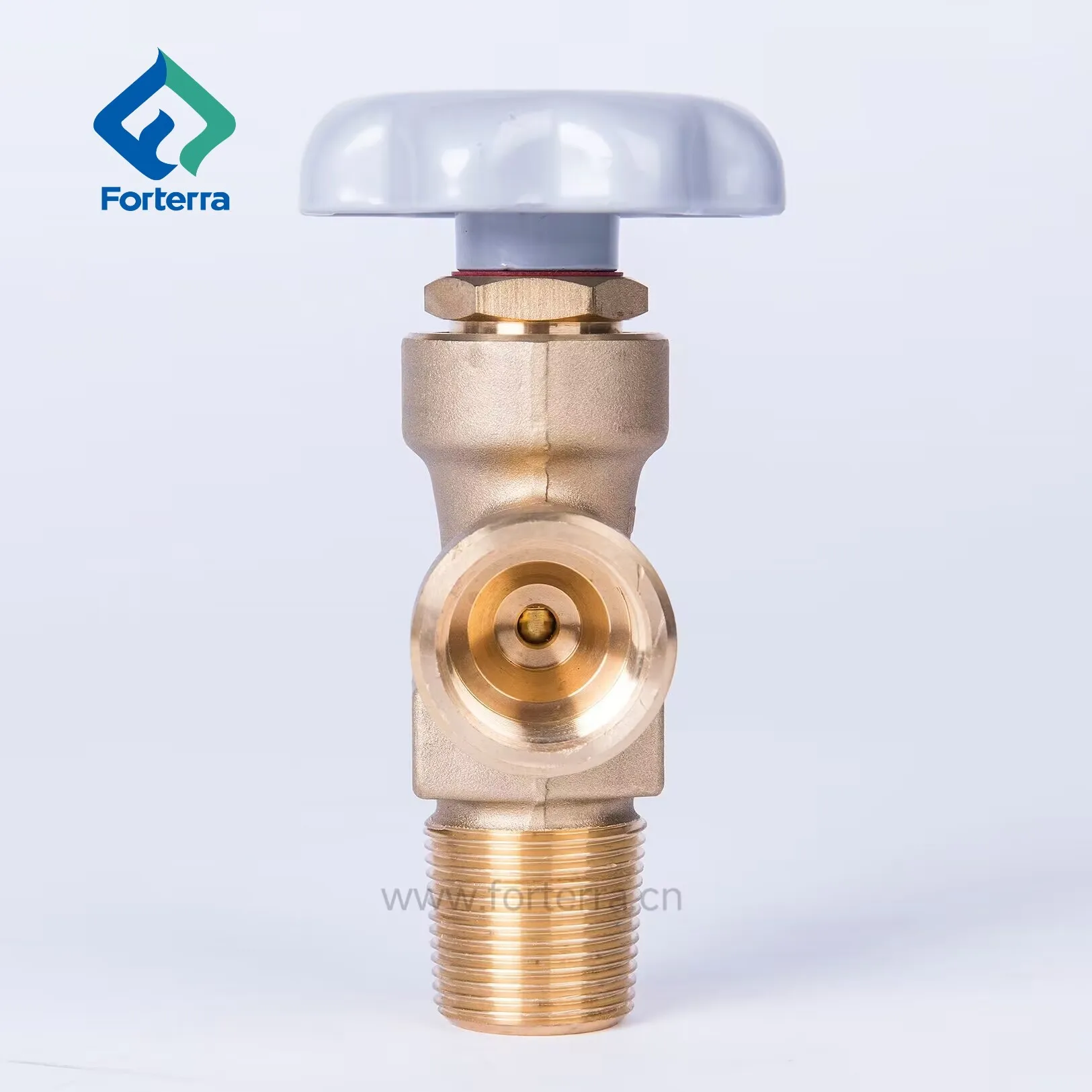

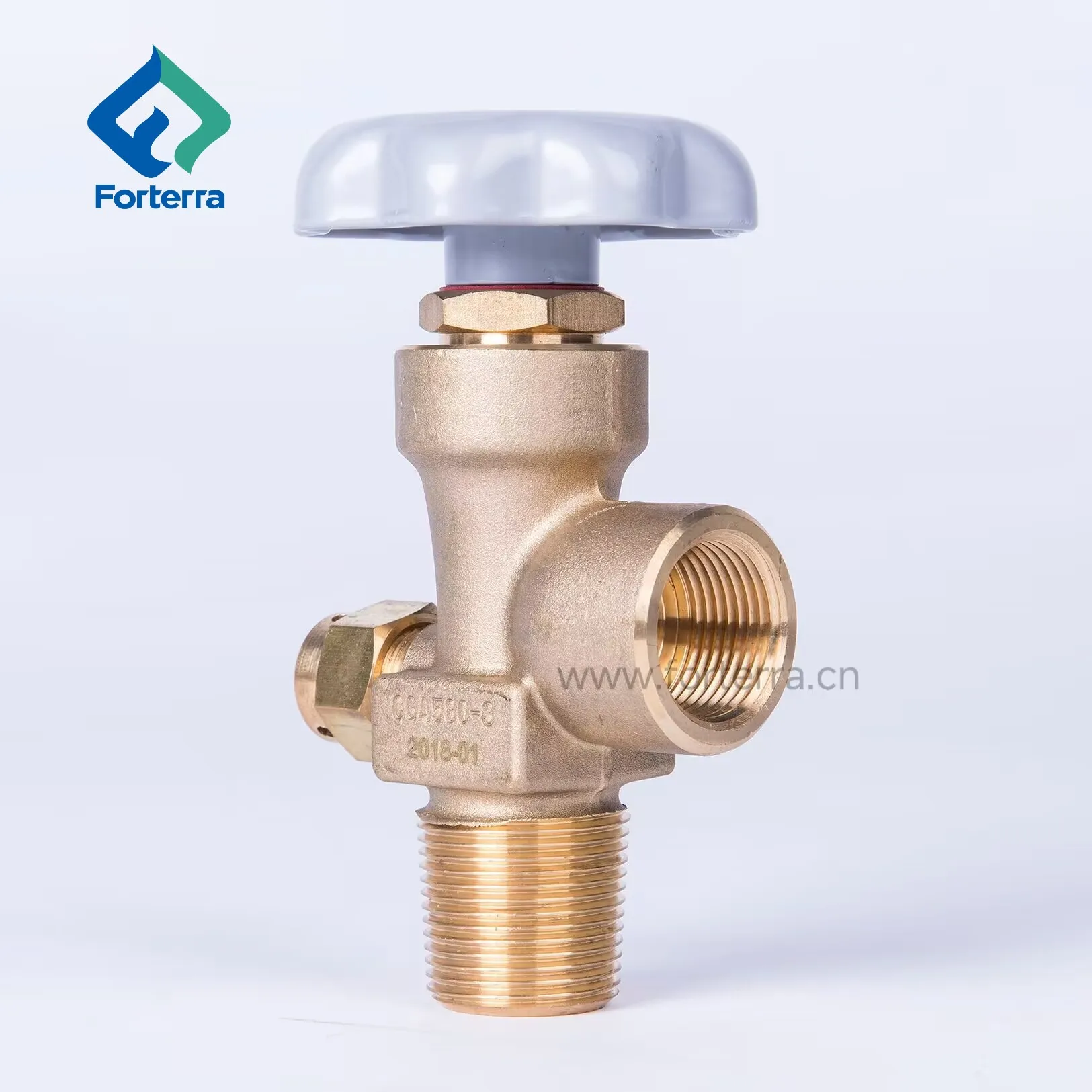

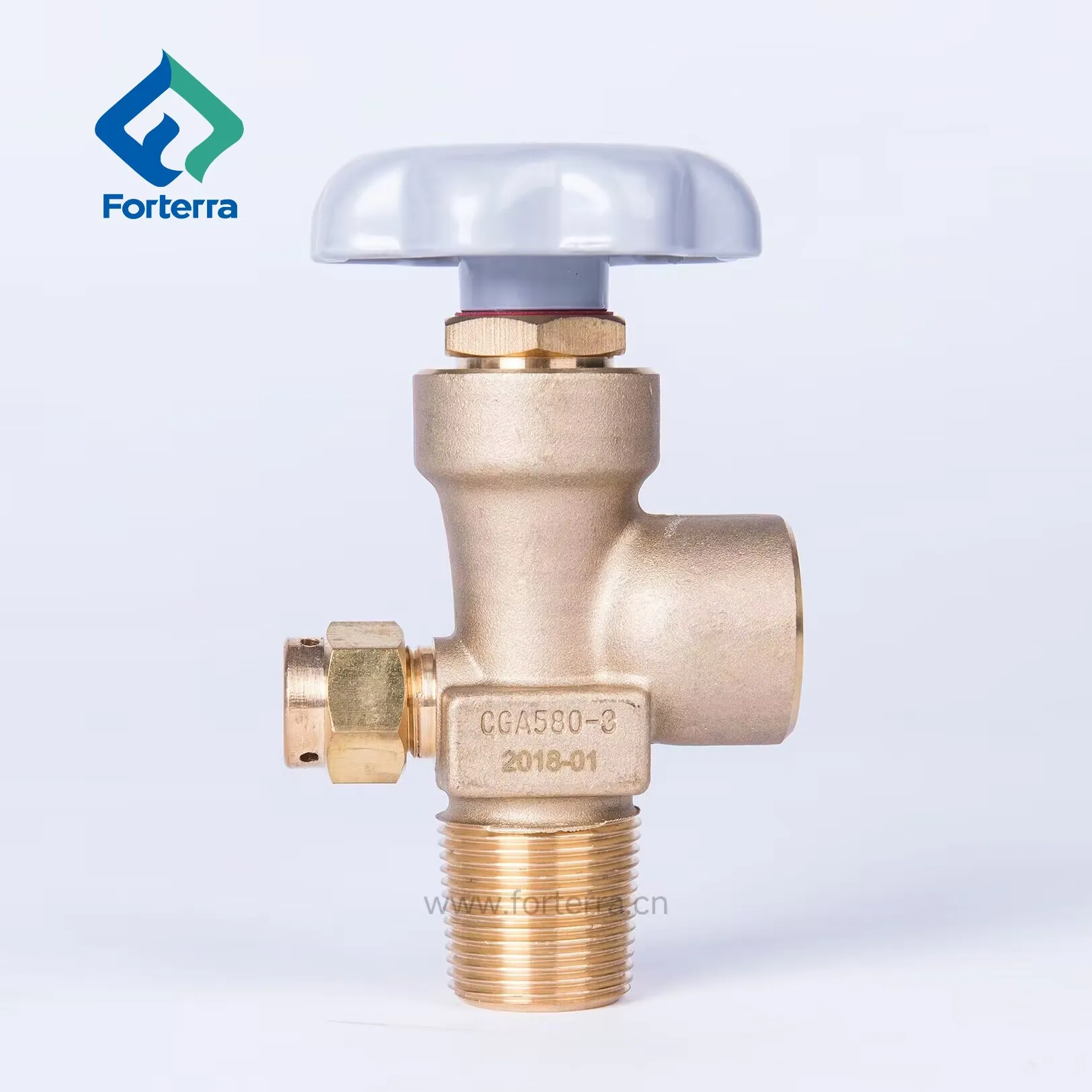

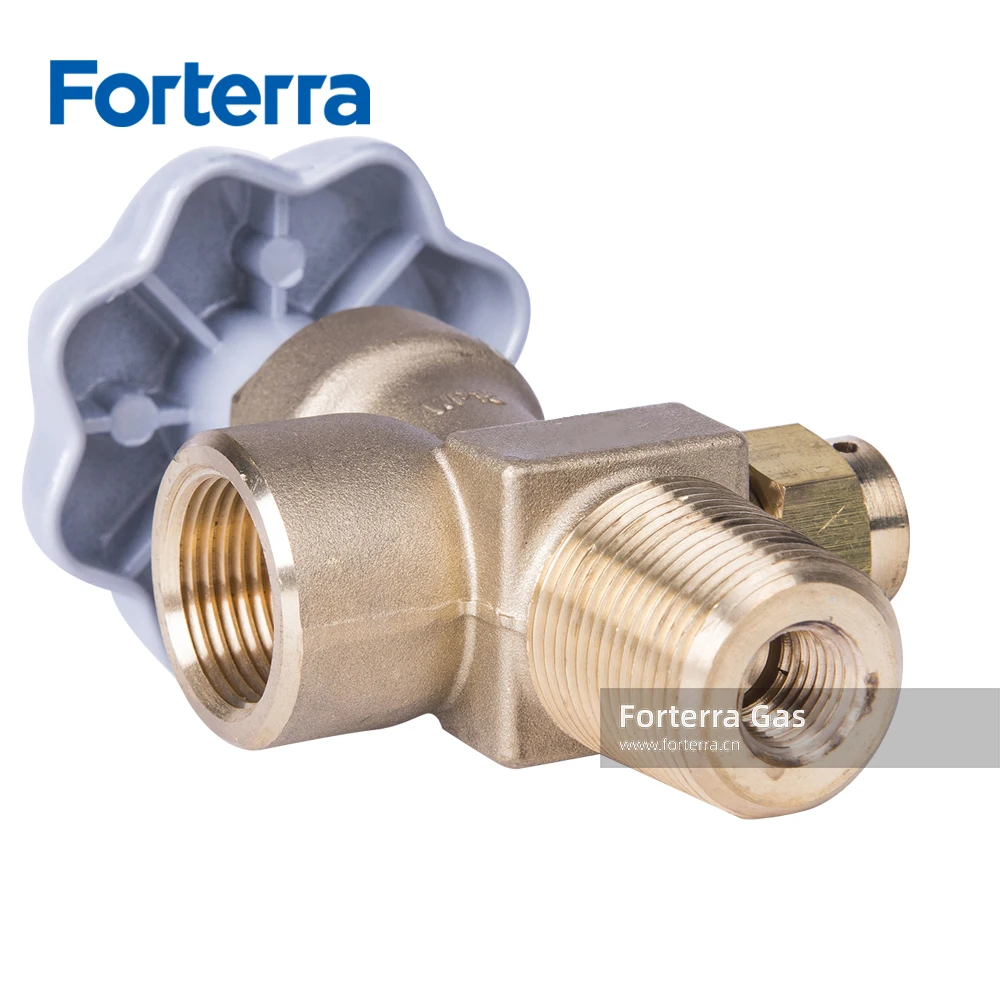

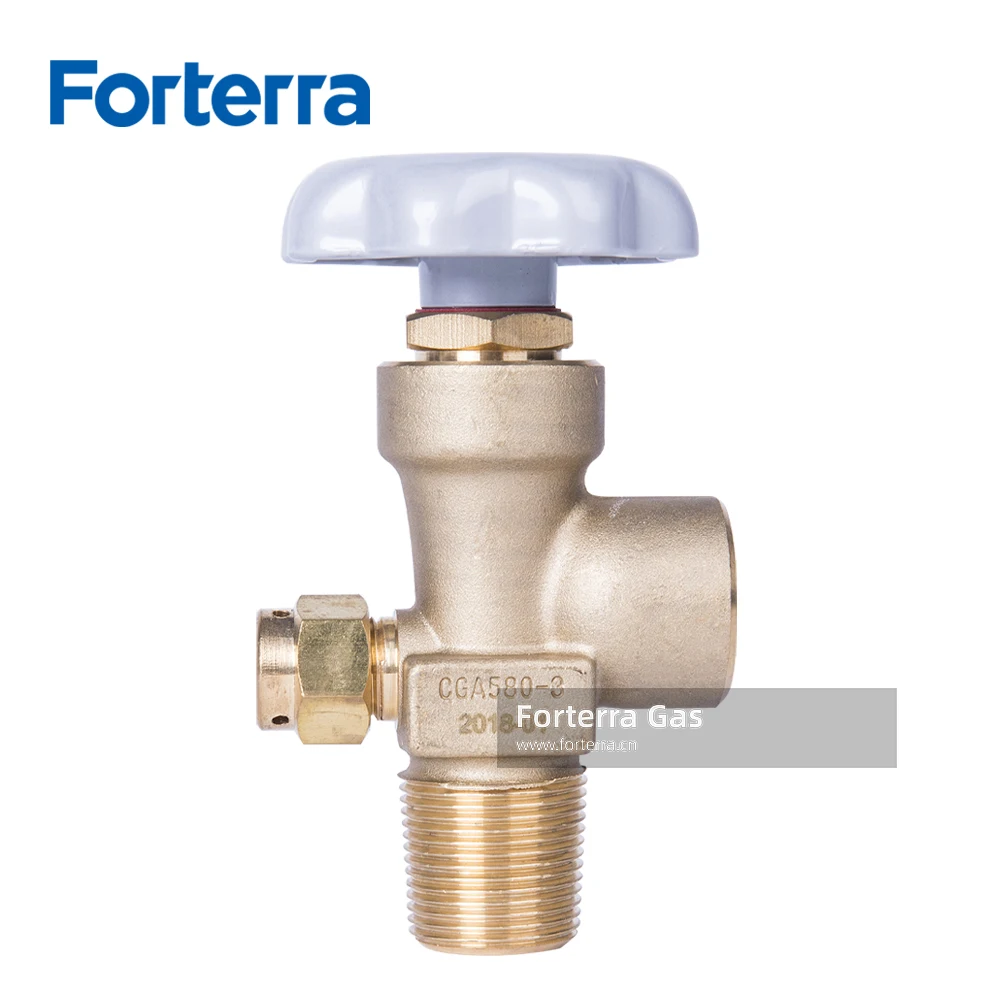

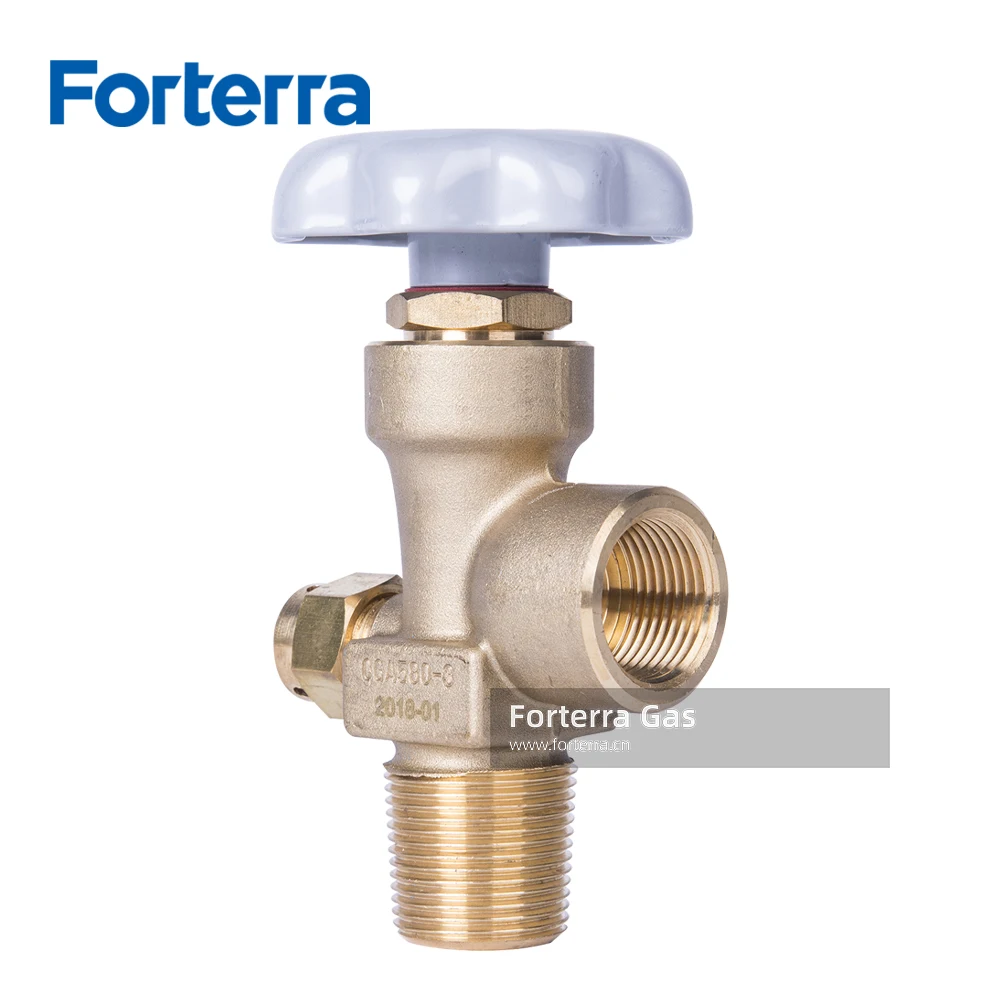

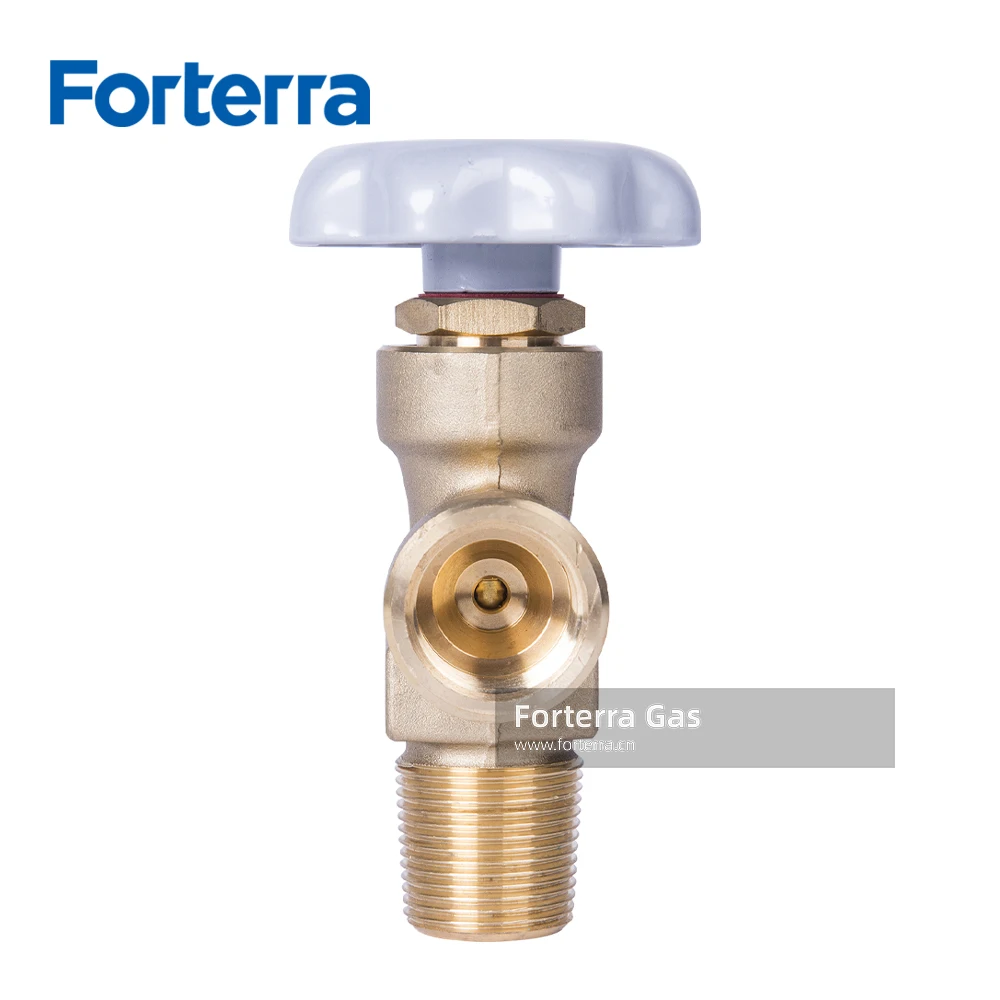

Product name | CGA580-3 valve |
Working pressure | 2.5Mpa |
Valve model | CGA580-3 |
Material | Brass |
Outlet Thread | M22×1.5-LH |
Application | Industrial/Chemical/Medical |
Safety Device Pressure | 3±0.4Mpa |
Inlet Thread | PZ27.8 |
Diameter | 7mm |
Our Services:
* High quality and security gas cylinders valves;
* Competitive unit price in the market;
* Fast delivery and after-sale services
* Samples welcome for customers evaluation.
* OEM/ODM service. LOGO design and Printing
* Competitive unit price in the market;
* Fast delivery and after-sale services
* Samples welcome for customers evaluation.
* OEM/ODM service. LOGO design and Printing

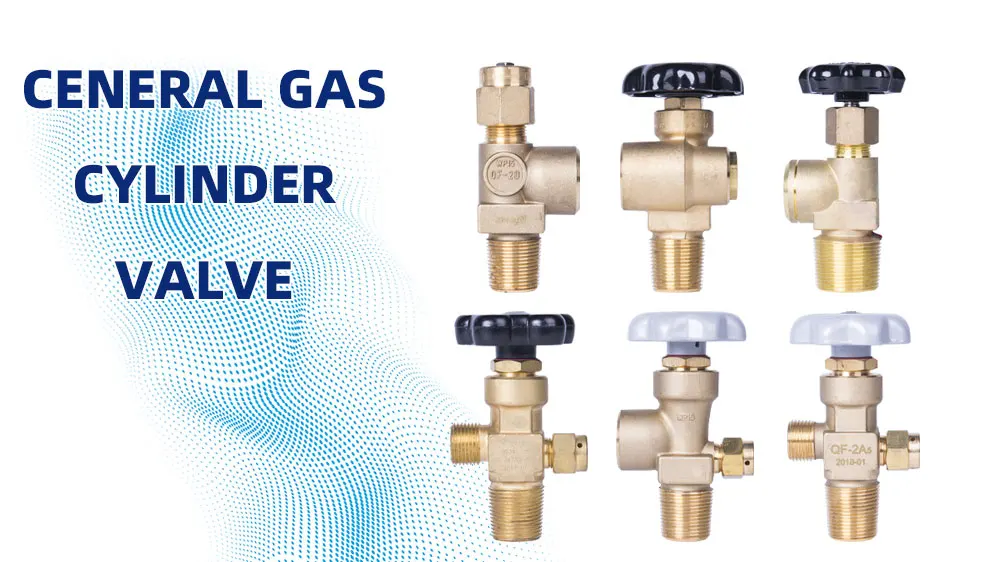

Normal Valve: | ||||||||||||||
Type | WP(Mpa) | DN(mm) | Medium | Outlet Thread | Inlet Thread | Safety Device | Matieral | |||||||
QF-2 | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
QF-2G | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
QF-7B | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
QF-7D2 | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
QF-6A | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
CGA320 | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8, 3/4-14NGT | 18-22.5Mpa | Brass | |||||||

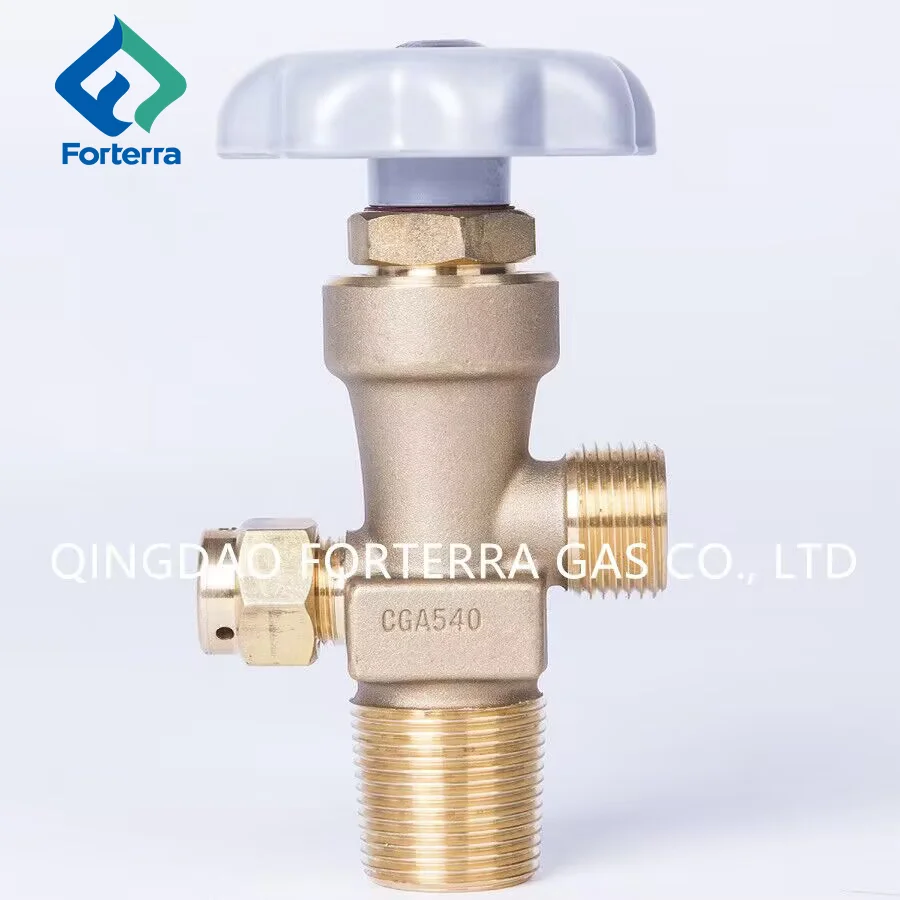

CGA540 | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8, 3/4-14NGT | 18-22.5Mpa | Brass | |||||||
CGA580 | 15/20 | 4 | 02,N2,Air | G5/8 | PZ27.8, 3/4-14NGT | 18-22.5Mpa | Brass | |||||||
CGA870 | 15/20 | 2.5 | 02,N2,Air | CGA870 | PZ27.8/PZ19.2 | 18.8-23Mpa 10015C | Brass | |||||||
ITALIA | 15/20 | 4 | 02,N2,Air, He | G5/8 | PZ27.8 | 18-22.5Mpa | Brass | |||||||
Type | Name | Suitable Medium | PN(Mpa) | DN(mm) | Outlet Thread | Inlet Thread | Pressure of safety device |
BWF-1 | Propane Cylinder Valve | C3H8 | PN:15 WP:2.2 | 7 | M22X1.5-6H-LH | PZ27.8 | 3±0.4Mpa |
PX-32A | Argon Cylinder Valve | Ar | 15 | 4 | G5/8 | PZ27.8 | |
PX-32D | Argon Cylinder Valve | Ar | 15 | 4 | W21.8*1/14-LH | PZ27.8 | |
QF-2A | Carbon dioxide Cylinder Valve | CO2 | 15 | 7 | G5/8 | PZ27.8 | 21±1.5Mpa |
QF-10 | Chlorine Cylinder Valve | Cl | 2 | 6 | G3/4 | PZ27.8 | |
QF-11 | Ammonia Cylinder Valve | NH3 | 2.9 | 6 | G1/2 | PZ27.8 | |
QF-11C | Mixed Gas Cylinder Valve | NH3+N2 | 3 | 6 | G1/2 | PZ27.8 | |
QF-13 | Freon Cylinder Valve | Freon | 3 | 6 | G3/4 | PZ27.8 | |
QF-13A | Freon Cylinder Valve | Freon | 12.5 | 4 | G3/4 | PZ27.8 | |
QF-13F | Freon Cylinder Valve | Freon | 3 | Gas:4 Liquid:6 | Gas:M20*1.5 Liquid:W26*14 Teech/Inch | PZ27.8 | 70ºC±2ºC |
QF-30 | Hydrogen Cylinder Valve | H2 | 15 | 4 | W21.8*1/14-LH | PZ27.8 | |
QF-30A | Hydrogen Cylinder Valve | H2 | 15 | 4 | W21.8*1/14-LH | PZ27.8 | |
QF-35 | Carbon dioxide Cylinder Valve | CO2 | 15 | 4 | CGA320 | UNF1.125-12 | 21±1.5Mpa |
QF-90A | High Purified Gas Cylinder Valve | High Purified Gas | 15 | 4 | G5/8 | PZ27.8 |
Gas cylinders usually have a stop angle valve at one end, and the cylinder is usually oriented so the valve is on top. During
storage, transportation, and handling when the gas is not in use, a cap may be screwed over the protruding valve to protect it from damage or breaking off in case the cylinder were to fall over. Instead of a cap, cylinders sometimes have a protective collar or neck ring around the valve assembly.
In the United States, valve connections are sometimes referred to as CGA connections, since the Compressed Gas Association (CGA) publishes guidelines on what connections to use for what gasses. For example, an argon cylinder has a "CGA 580" connection on the valve. High purity gases sometimes use CGA-DISS ("Diameter Index Safety System") connections.
storage, transportation, and handling when the gas is not in use, a cap may be screwed over the protruding valve to protect it from damage or breaking off in case the cylinder were to fall over. Instead of a cap, cylinders sometimes have a protective collar or neck ring around the valve assembly.
In the United States, valve connections are sometimes referred to as CGA connections, since the Compressed Gas Association (CGA) publishes guidelines on what connections to use for what gasses. For example, an argon cylinder has a "CGA 580" connection on the valve. High purity gases sometimes use CGA-DISS ("Diameter Index Safety System") connections.

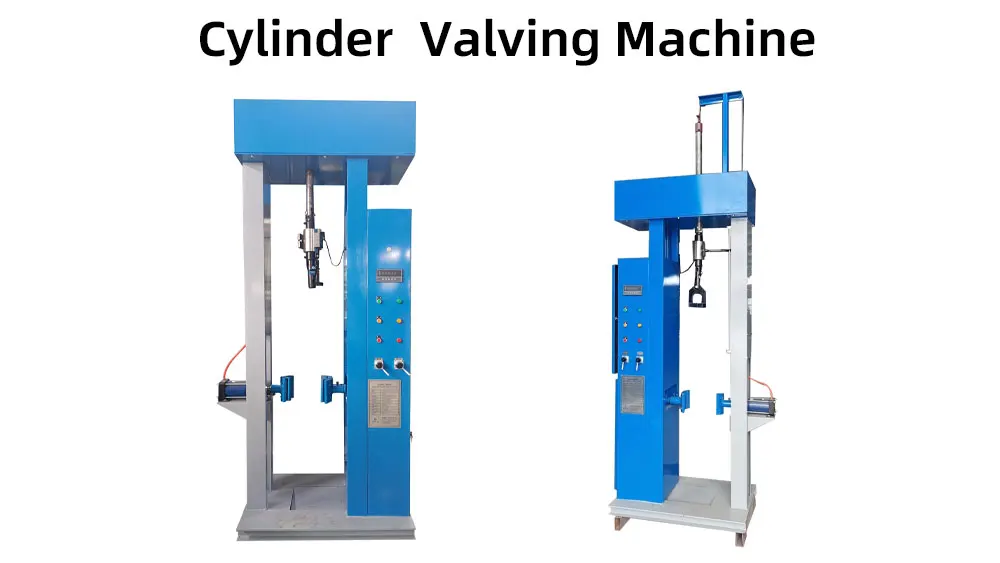

APPLICATION:
To remove and insert valves into seamless gas cylinders, welded gas cylinders and fire extinguishers.
Advantage:
High accuracy and efficiency.
Advanced equipment, safe to use and reliable in operation.
Minimum requirement of machine maintenance.
Simple movement, save time and effort.
Model | Max Cylinder Height(mm) | Max Cylinder Dia.(mm) | Max Torque(N.M) | Power Voltage |
FMZX-1500 | 1500 | 250 | 300 | Customizable |
FMZX-1650 | 1650 | 267 | 500 | Customizable |
FMZX-1850 | 1850 | 406 | 2500 | Customizable |
Forterra Gas is a leading industrial gases and cylinders supplier in Shandong province,China. We supply a wide portfolio of Industrial gases, gas & safety equipment, solutions & services for gas applications across most industries, including Argon Gas, Oxygen Gas, Acetylene Gas, Helium Gas,Hydrogen Gas, Nitrogen Gas,Carbon Dioxide,Propane, Mixed Gas etc.
Our Pressure Vessel factory is one of the largest manufacturer of seamless high pressure cylinders. The company's advanced and sophisticated production process, state of the art equipment and stringent quality routines secure strong and safe cylinders with a long life time. Forterra is trusted for its high standards and commitment to an excellent and stable quality by many industrial gas companies, as evidenced by exporting high pressure cylinders to more than 75 countries. We manufactures seamless high pressure cylinder with outside diameter ranging from 100 to 325mm and with a maximum working pressure of 300bar.
Forterra Gas is also a designer, manufacturer, supplier and installer of industrial gases production systems, including air separation plants, oxygen plants, acetylene plants, vaporizers, cryogenic liquid pumps,cryogenic liquid storage tanks etc, including associated engineering, construction, installation, training, start-up and maintenance services.
Our Pressure Vessel factory is one of the largest manufacturer of seamless high pressure cylinders. The company's advanced and sophisticated production process, state of the art equipment and stringent quality routines secure strong and safe cylinders with a long life time. Forterra is trusted for its high standards and commitment to an excellent and stable quality by many industrial gas companies, as evidenced by exporting high pressure cylinders to more than 75 countries. We manufactures seamless high pressure cylinder with outside diameter ranging from 100 to 325mm and with a maximum working pressure of 300bar.
Forterra Gas is also a designer, manufacturer, supplier and installer of industrial gases production systems, including air separation plants, oxygen plants, acetylene plants, vaporizers, cryogenic liquid pumps,cryogenic liquid storage tanks etc, including associated engineering, construction, installation, training, start-up and maintenance services.
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
