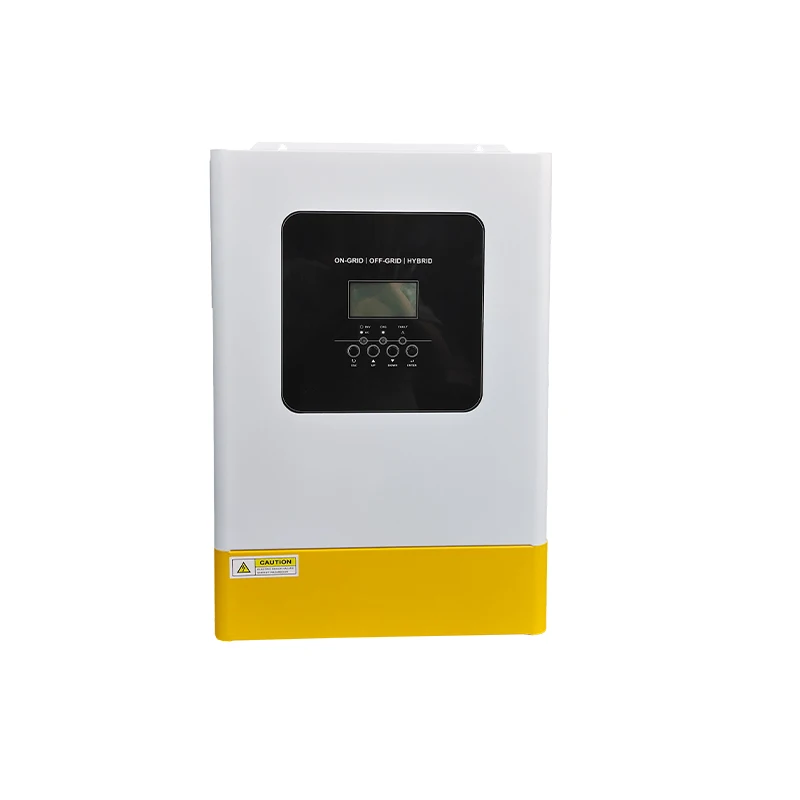

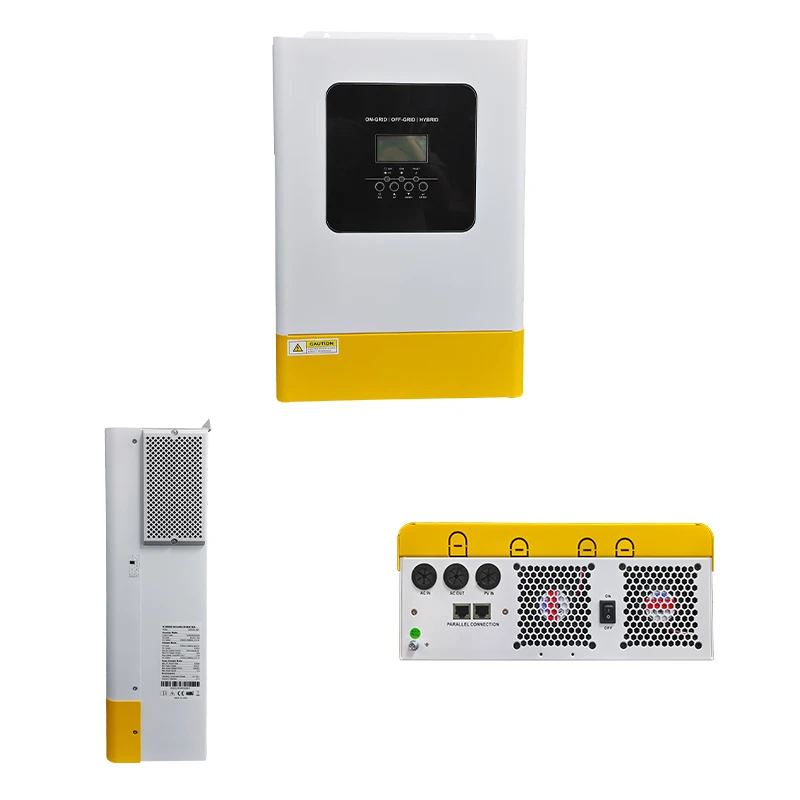

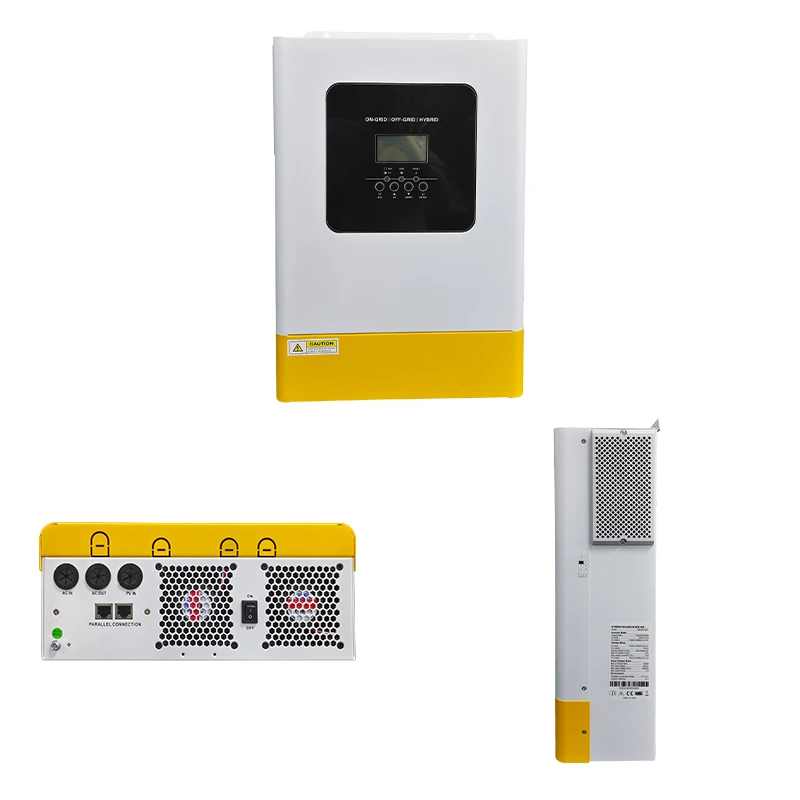

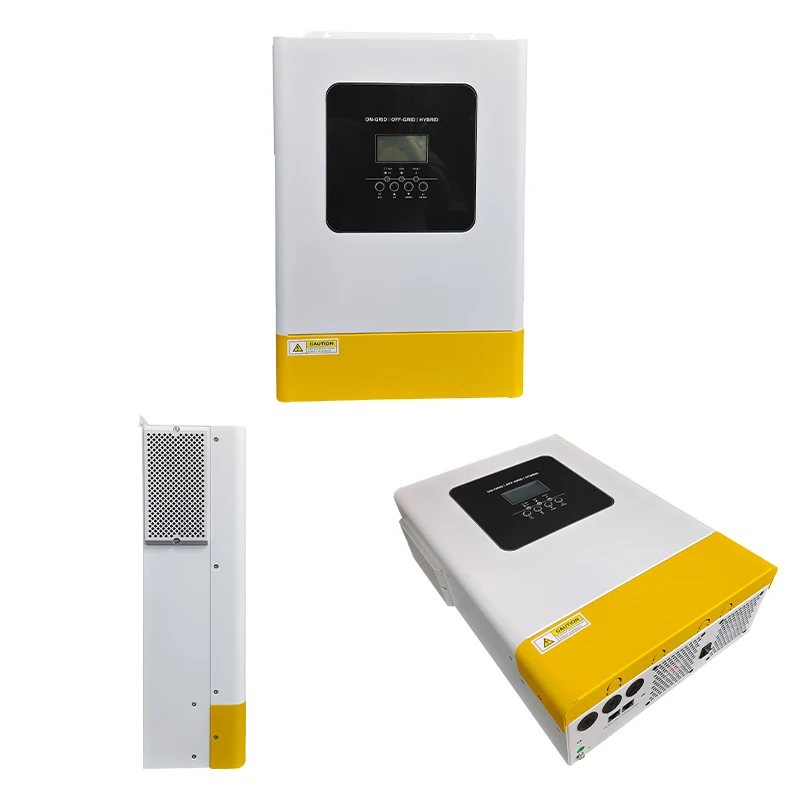

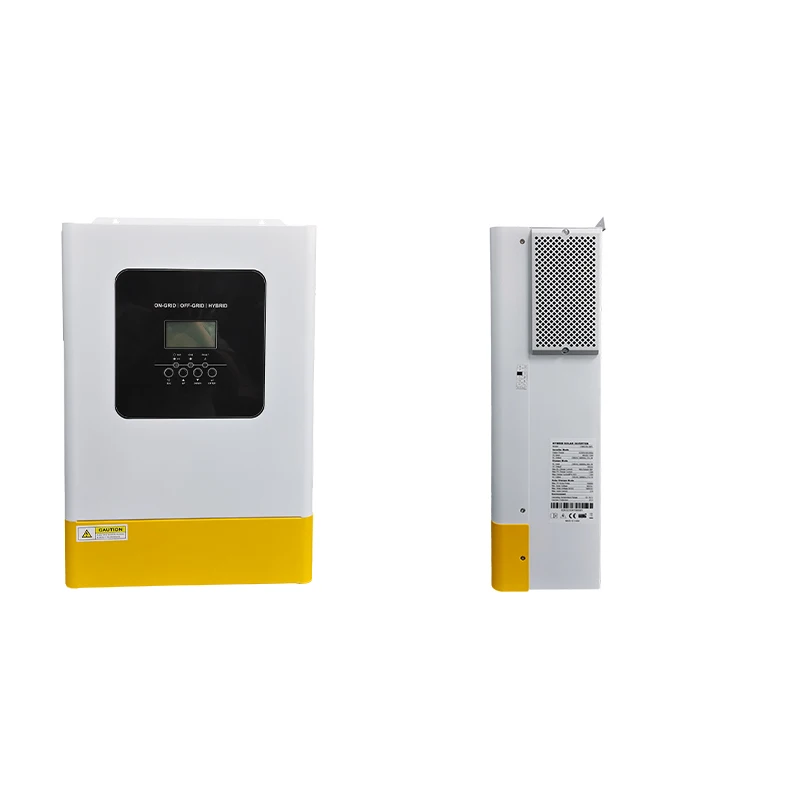

6.2kw Solar Hybrid Inverter on off grid Inverter 6.2kw 6.2kva Mppt Solar Inverter Pure Sine Wave
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.
Share on (1601227876372):
Product Overview
Description
Product Description
KEY STRENGTHS
✿ Output power factor 1.0✿ WiFi remote monitoring optional
✿ High PV input voltage range 500Vdc Max
✿ Built-in MPPTsolar controller 100/120A
✿ Detachable dust cover for harsh environment
✿ User-adjustable charging current and voltage
✿ Direct Plug WlFl Dongle Supported
✿ Self-consumption and Feed-in to the grid
✿ Parallel operation up to 12 units in 1phase or 3phase
✿ Programmable supply priority for PV, Battery or Grid
✿ Backflow prevention via external CT sensor and grid connection function
✿ Programmable multiple operation modes:Grid-tie,off-grid and grid-tie with backup
✿ EQ function to optimize battery performance and extend lifecycle
About this product
❀ Waveform Pure sine wave
❀ 120-500V Wide PV input
❀ Working without batteries in sun day
❀ Support Generator Connection
❀ Support Max 12 units Parallel
❀ Feed-in to the Grid
❀ WlFl remote monitoring
Specification
MODEL | 5500-48PL | 6200-48PL | ||
Grid-tie Operation | ||||
PV INPUT (DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 150VDC/120VDC | |||
MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | ||
Number of MPP Trackers/ Maximum Input Current | 1/18A | 1/27A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Voltage Range | 170-280VAC or 90-280VAC | |||
Nominal Output Current | 22A | 27A | ||
Power Factor | 0.6~1 (inductive or capacitive) | |||
Maximum Conversion Efficiency (DC/AC) | 94% | |||
Off-grid Operation | ||||
AC INPUT | ||||
AC Start-up Voltage / Auto Restart Voltage | 100Vac/90Vac | |||
Acceptable Input Voltage Range | 170-280VAC or 90-280VAC | |||
Maximum AC Input Current | 40A | |||
PV INPUT (DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 60VDC~500VDC | |||
Number of MPP Trackers/ Maximum Input Current | 1/18A | 1/27A | ||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure Sine wave | |||
Efficiency (DC to AC) | 94% | |||
Hybrid Operation | ||||
PV INPUT (DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 150VDC/120VDC | |||
MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/18A | 1/27A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Voltage Range | 170-280VAC or 90-280VAC | |||
Nominal Output Current | 22A | 27A | ||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 100Vac/90Vac | |||
Acceptable input Voltage Range | 170-280VAC or 90-280VAC | |||
Maximum AC input Current | 40A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 48VDC | |||
Efficiency (DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Nominal DC Voltage | 48VDC | |||
Maximum Solar Charging Current | 100A | 120A | ||
Maximum AC Charging Current | 80A | |||
Maximum Charging Current | 100A | 120A | ||
Company Profile
FAQ
✿Are you manufacturer or trading company?
We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
✿Do you accept small orders?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
✿How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
✿What can we provide?
We provide solar panel,solar inverter,solar battery,solar energy system.
We provide after-sales guarantee service, pre-sale free customized solar system solutions.
We provide OEM/ODM service.You can customize the product color and package with your own brand.
✿How about your delivery time?
Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities.
✿What's your warranty?
All our products will be 100% test before shipment. Minimum 2 years warranty.
✿What kind of certificates your products have?
CE,FCC,ROHS,PSE,MSDS.
✿What is the payment method?
We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
We are manufacturer with more than 10 years experience and can control the production of goods quality and delivery time.
✿Do you accept small orders?
Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
✿How about the price? Can you make it cheaper?
We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
✿What can we provide?
We provide solar panel,solar inverter,solar battery,solar energy system.
We provide after-sales guarantee service, pre-sale free customized solar system solutions.
We provide OEM/ODM service.You can customize the product color and package with your own brand.
✿How about your delivery time?
Generally,our stock products would be shipped in 1-3 days after payment re-ceived. finally depends on order quantities.
✿What's your warranty?
All our products will be 100% test before shipment. Minimum 2 years warranty.
✿What kind of certificates your products have?
CE,FCC,ROHS,PSE,MSDS.
✿What is the payment method?
We accept payment by T/T, Credit card, Alibaba platform, Western Union and etc.
