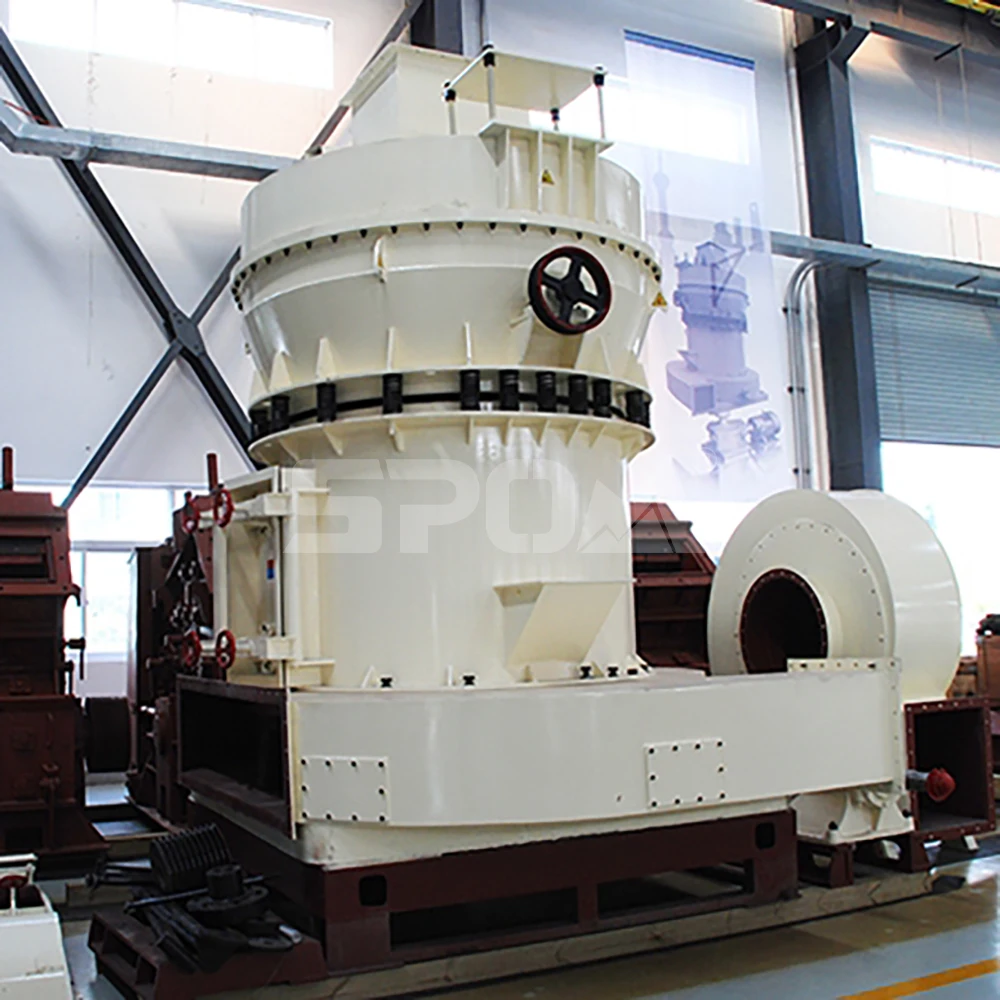

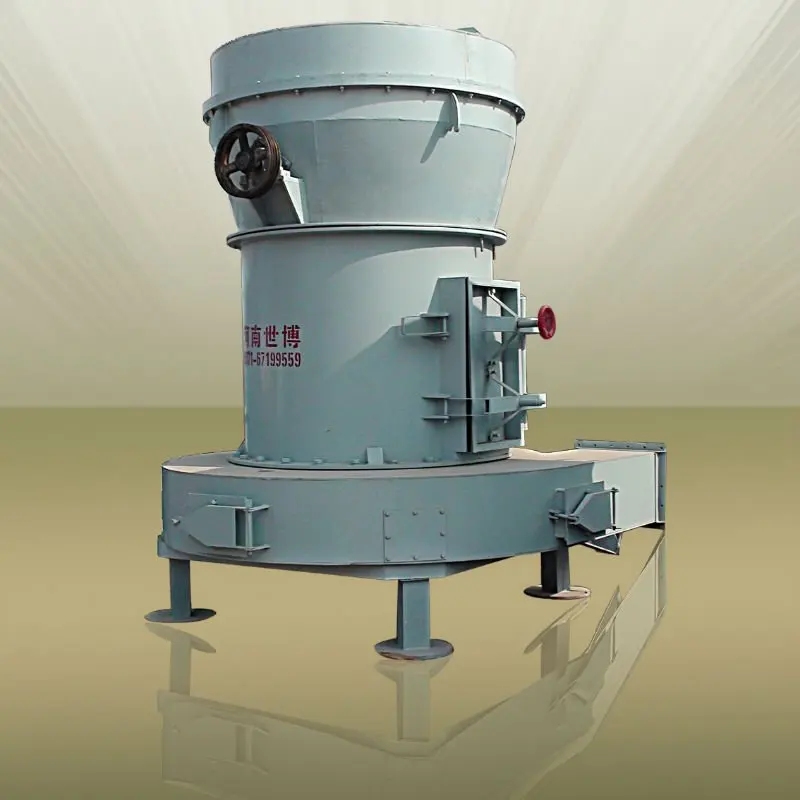

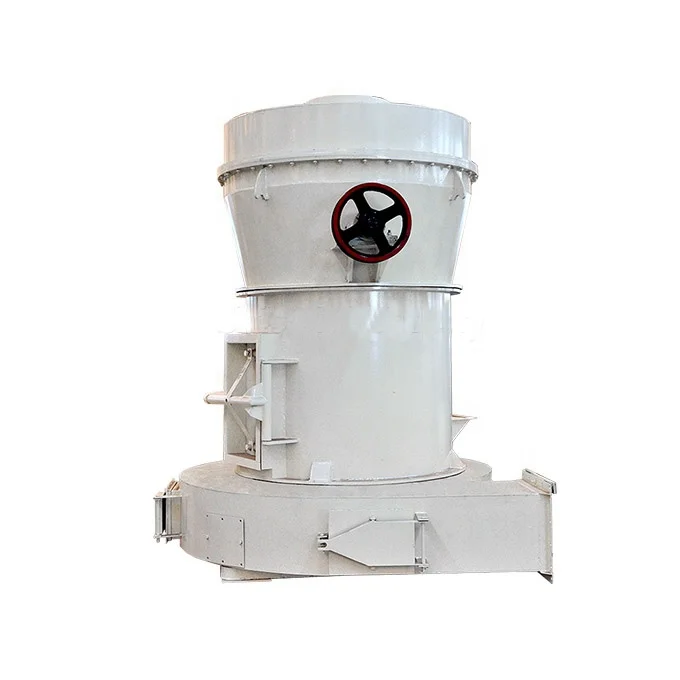

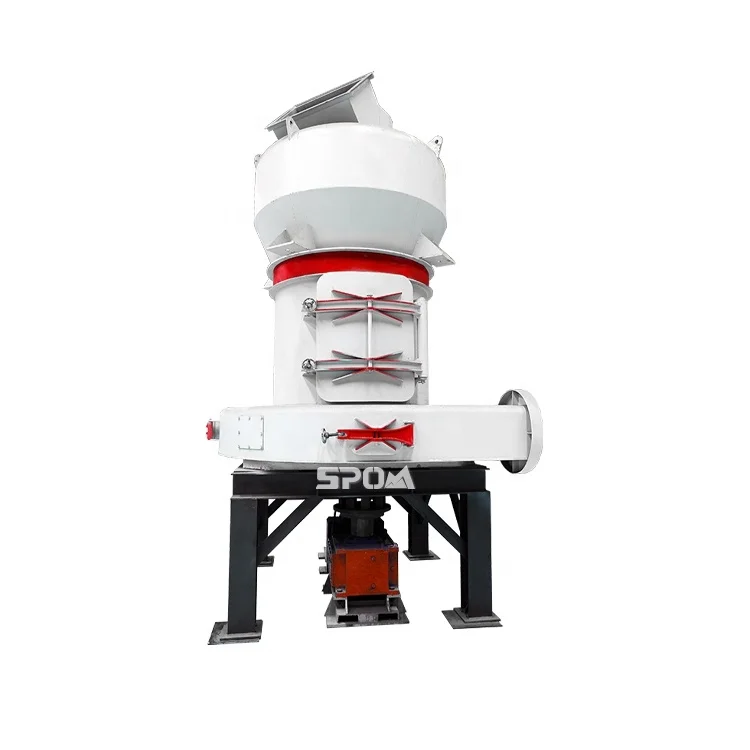

SHIBO high quality Vertical Roller Mill machine Powder Grinding Raymond mill for Calcium Carbonate
- Category: >>>
- Supplier: Henan Shibo Mechanical Engineering Co. Ltd.
Share on (1601228066928):
Product Overview
Description
Calcium Carbonate CaCo3 Limestone Bentonite Powder Raymond Mill
Raymond Mill is an air-swept vertical ring-roll mill with an integral classification system that simultaneously dries,pulverizes and classifies a number of different types of products including limestone, clay, minerals and others. The finished powder size can be adjusted between 30 and 425 mesh (0.613mm-0.044mm). We have 3 roller Raymond mill, 4 roller Raymond mill, 5 roller Raymond mill, etc. for choice.
Product Paramenters
Model | ZRM100 | ZRM130 | ZRM160 |
Rollers | 4 | 5 | 6 |
Roller Diameter×Height (mm） | Ф310×170 | Ф410×210 | Ф440×270 |
Ring Diameter×Height (mm) | Ф950×170 | Ф1280×210 | Ф1600×270 |
Rotate speed of central shaft（r/min) | 130 | 103 | 82 |
Max. feeding size（mm） | <25 | <30 | <35 |
Fineness of final product (mm) | 1.6—0.045 (Fine powder up to 0.038) | 1.6—0.045 (Fine powder up to 0.038) | 1.6—0.045 (Fine powder up to 0.038) |
Capacity（t/h） | 3.0-8.0 | 6.0-11.0 | 9.0-22.0 |
Overall Dimension (mm) | 7100x5900x7900 | 9200×7250×9700 | 12550×5700×8355 |
Host motor model | Y225S-4 | Y280S-4 | Y315M-4 |
Power of main frame (kw) | 37 | 75 | 132 |
Motor model of powder separator | YCT200-4A | YCT200-4B | YCT250-4A |
Power of powder separator | 5.5 | 7.5 | 18.5 |
Motor model of induced draft fan | Y225S-4 | Y280S-4 | Y315M-4/Y315L1-4 |
Motor power of Induced draft fan | 37 | 75 | 132/160 |
Model of electromagnetic vibrating feeder | GZ2F | GZ3F | GZ3F |
Power of electromagnetic vibrating feeder (kw) | 0.15 | 0.2 | 0.2 |
Product Description
Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
RAYMOND MILL ZTM EUROPEAN MILL
Small Model Raymond Mill Delivered to UK
Configuration of Complete Powder Grinding Plant
1. Crusher to break large stones into smaller ones;
2. Suitable particles to be transferred to Raymond mill;
2. Suitable particles to be transferred to Raymond mill;
3. Finished products, after being ground in the Raymond mill and separated by the classifier. Dust removing system should be equipped, to avoid pollution;
4. Storage of finished products for packaging;
4. Storage of finished products for packaging;
Details Images
The complete set powder grinding plant normally including the following part :
Electromagnetic vibrating feeder
Used to feed the crushed material into raymond mill evenly
When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring
Feeding Inlet of raymond mill
Grinding ring and grinding roller.
Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection.
The required fine powder is transported through an air tube to a cyclone collector, separated and collected, and discharged as a finished product.
Complete powder grinding plant layout :
Packing and delivery
The machine is nude packing , motor and other accessories are packing in wooden box

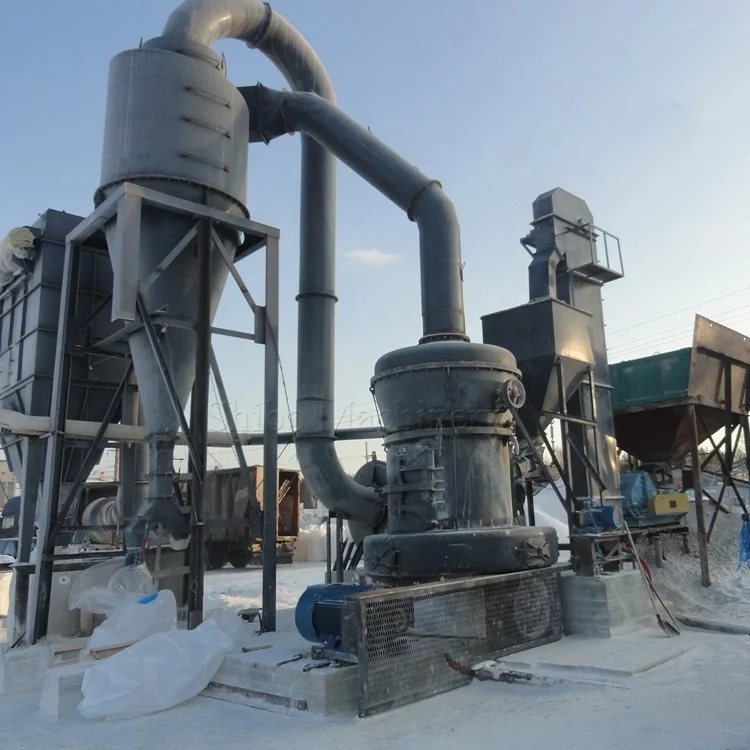

Working site
Project information:
Material: Dolomite
Max feeding size: 430mm
Output size: 325mesh
Capacity: 10 ton per hour
This is a complete stone crushing and grinding production line .
Main equipment: vibrating feeder, jaw crusher, cone crusher, vibrating screen, raymond mill, belt coneyor etc.
Main equipment: vibrating feeder, jaw crusher, cone crusher, vibrating screen, raymond mill, belt coneyor etc.
Company Profile
As a leading global manufacturer of crushing, grinding and mining equipments, Henan Shibo Mechinical Engineering Co. Ltd. (SPOM) offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.
Customer Photos
After more than 30 years development, now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the impact crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
