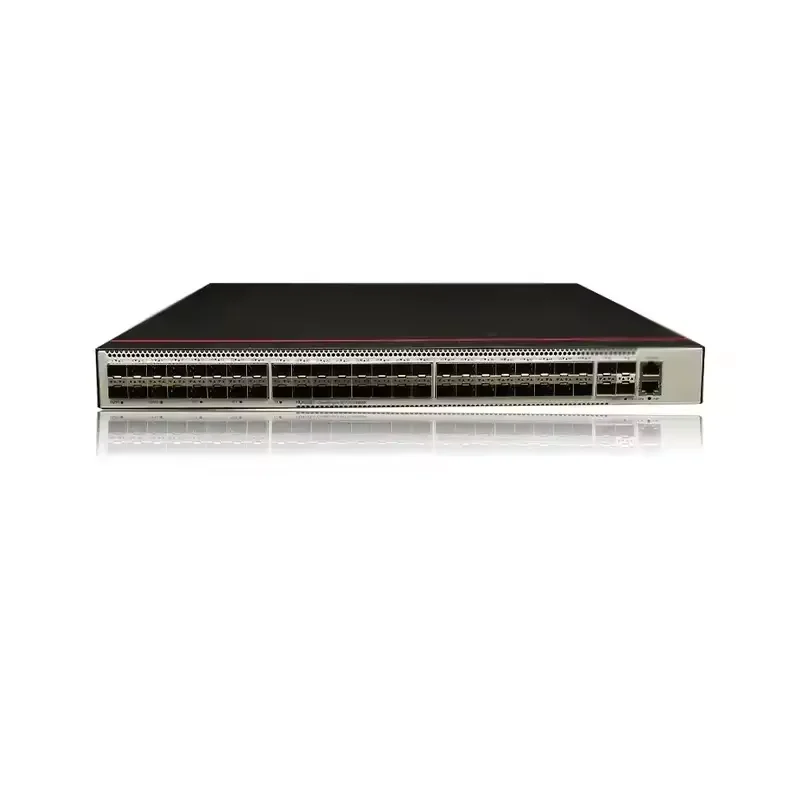

98011806 S5731S S48S4X A(48*GE SFP ports, 4*10GE SFP ports, with AC power supply) access switch
98011806 S5731S-S48S4X-A(48*GE SFP ports, 4*10GE SFP+ ports, with AC power supply) access switch

98011806 S5731S S48S4X A(48*GE SFP ports, 4*10GE SFP ports, with AC power supply) access switch

Share on (1601228163525):


Price:

Quantity:


Product Overview

Description



Product Description










CloudEngine S5731S-S series switches are standard gigabit access switches developed by  for the distribution market. They can provide full gigabit port access and fixed gigabit uplink ports.



CloudEngine S5731S-S series switches are the latest generation gigabit access switches introduced by Hua wei. Based on Huawei unified VRP software platform, CloudEngine S5731S-S series switches have enhanced Layer 3 features, simple operation and maintenance, intelligent iStack stacking, flexible Ethernet networking, mature IPv6 features, etc. Widely used in medical, retail, mining, Internet and other industries.




Intelligent stacking

Minimalist network operation and maintenance

Integrated security capability







































Item


Details


Description


S5731S-S48S4X Bundle(48*GE SFP ports, 4*10GE SFP+ ports, with AC power supply)


Part Number


98011806


Model


S5731S-S48S4X-A


First supported version


V200R021C01







Details Images







Specification






















































































































Item


Specification


Dimensions without packaging (H x W x D) [mm(in.)]


Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)


Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)


Dimensions with packaging (H x W x D) [mm(in.)]


185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)


Chassis height [U]


1 U


Weight without packaging [kg(lb)]


5.9 kg (13.01 lb)


Weight with packaging [kg(lb)]


8.43 kg (18.58 lb)


Typical power consumption [W]


93.69 W


Typical heat dissipation [BTU/hour]


319.68 BTU/hour


Maximum power consumption [W]


128.89 W (150 W AC or 180 W DC)


141.96 W (600 W AC)


Maximum heat dissipation [BTU/hour]


439.79 (150 W AC or 180 W DC)


484.38 (600 W AC)


MTBF [year]


64.97 year


MTTR [hour]


2 hour


Availability


>0.99999


Noise at normal temperature (acoustic power) [dB(A)]


45.47 dB(A)


Noise at normal temperature (acoustic pressure) [dB(A)]


31.79 dB(A)


Number of card slots


0


Number of power slots


2


Number of fans modules


3


Redundant power supply


1+1


Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and
power modules that use air cooling cannot be used together.


Long-term operating temperature [°C(°F)]


-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)


Short-term operating temperature [°C(°F)]


-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)


Restriction on the operating temperature variation rate [°C(°F)]


When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.).


The device can work for a short period of time when the operating temperature is beyond the normal range, but the following
conditions must be met:


The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.


The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
