200 type corrugated pipe forming machine Construction Prestressing Machinery Stainless steel round pipe screwing machine
- Category: >>>
- Supplier: Jining Qingke Machinery Co. Ltd.
Share on (1601228185239):
Product Overview
Description
Product Description

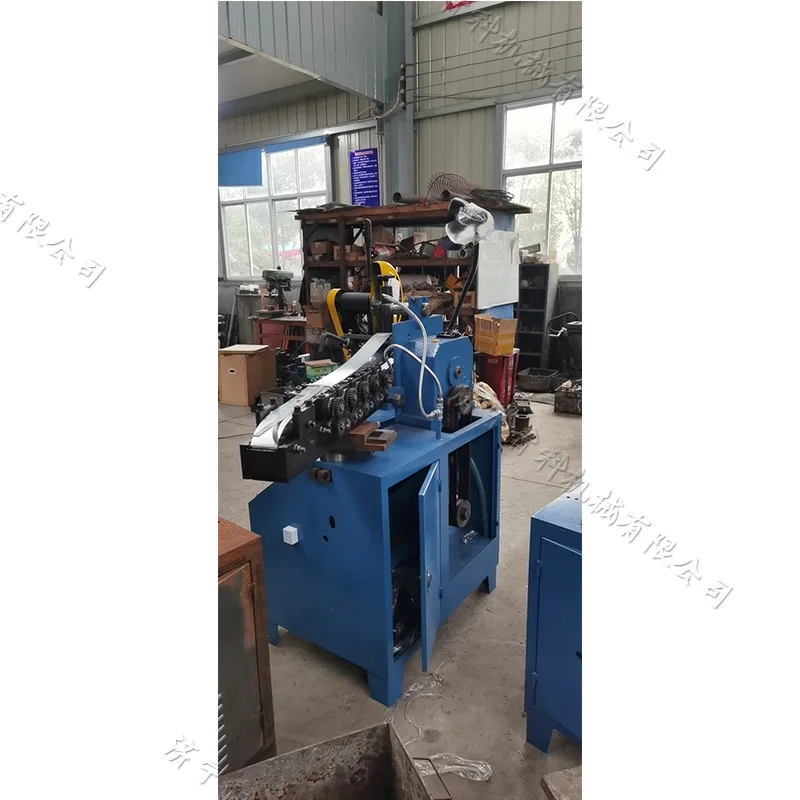

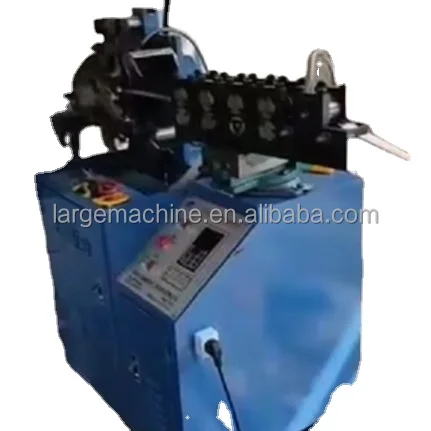

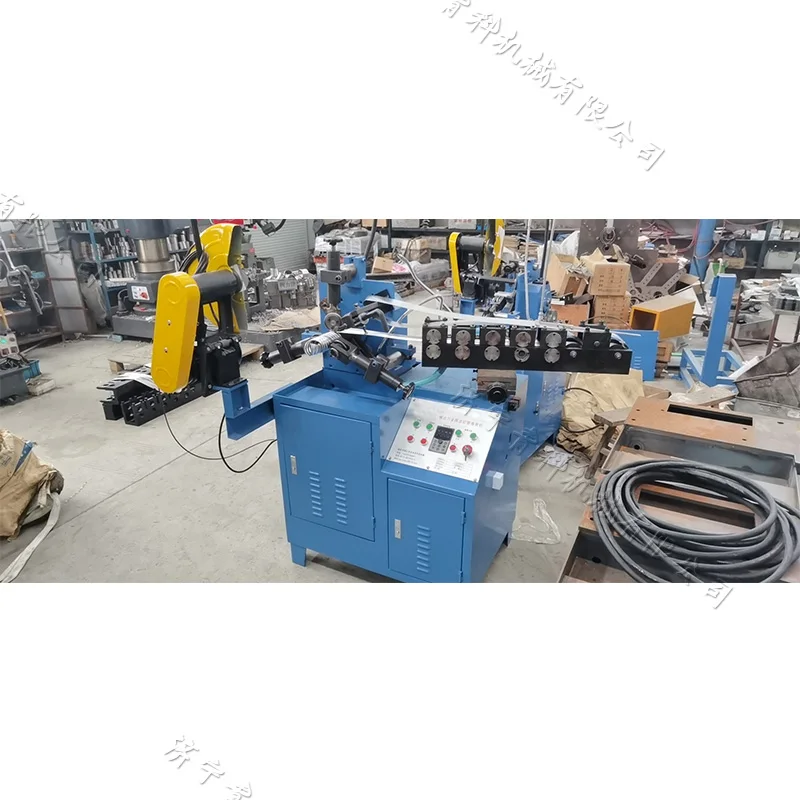

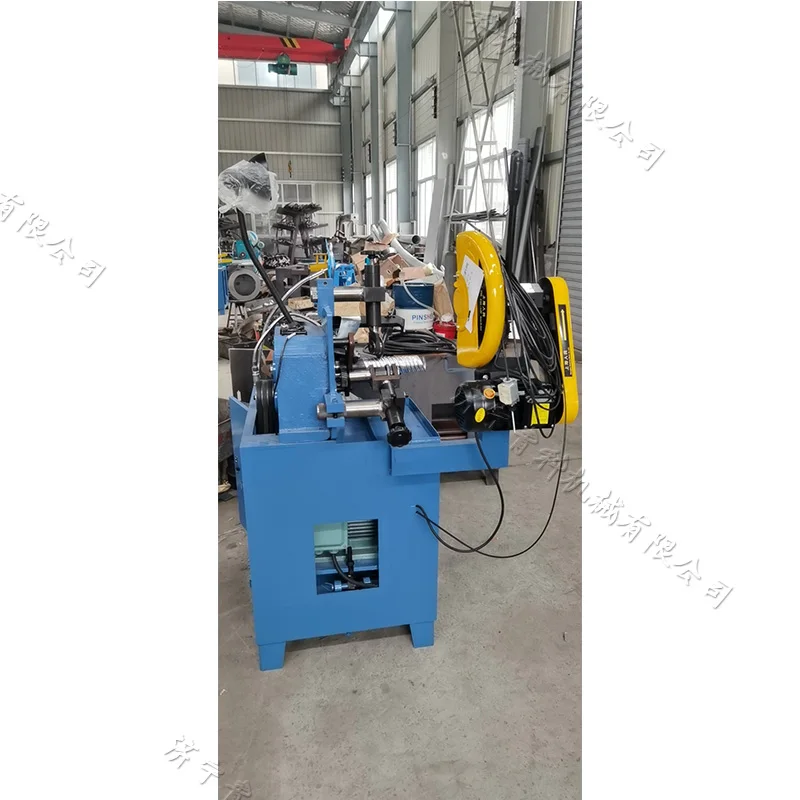

200 type corrugated pipe forming machine Construction Prestressing Machinery Stainless steel round pipe screwing machine

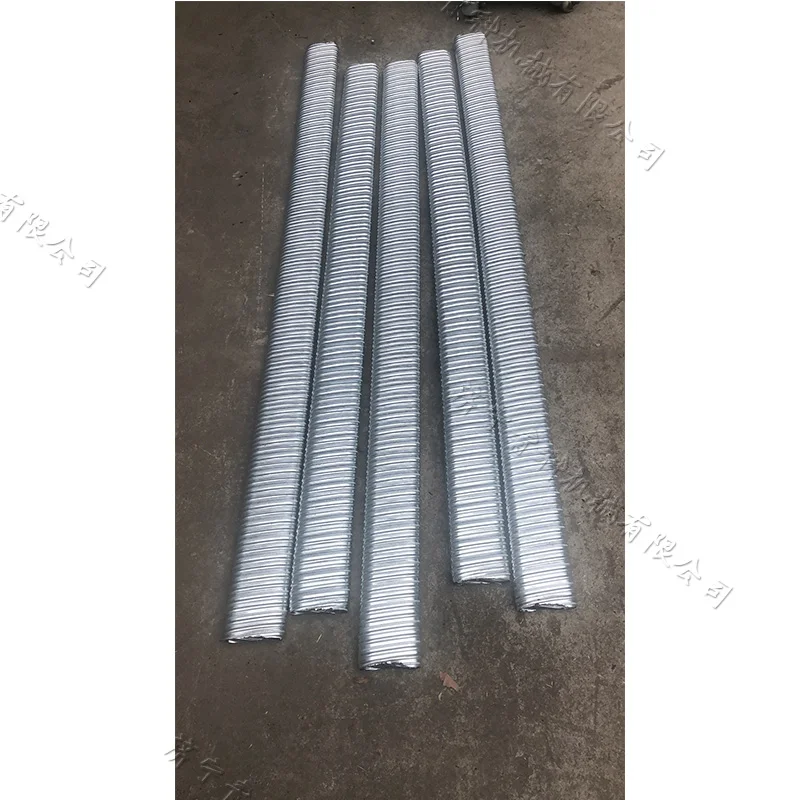

Model YJG200 Pipe Rolling Machine is a spiral corrugated pipe rolling machine used to roll up spiral corrugated pipes made into reserved apertures for bridge and building prestressing construction. This machine has compact structure, small volume and light weight. It is easy to work in indoor and field construction sites: it has a wide range of adaptability and high production efficiency, and can meet the needs of engineering use. The spiral corrugated pipe rolled has anti-seepage, pressure resistance, high strength, good flexibility, in line with the quality of engineering construction.
YJG200 type coiling machine, its steel belt corrugated pressing form, spiral corrugated pipe molding principle is the same as the VSL system in the spiral pipe machine, and the domestic products of the same type compared to a certain advanced level.
YJG200 type coiling machine, its steel belt corrugated pressing form, spiral corrugated pipe molding principle is the same as the VSL system in the spiral pipe machine, and the domestic products of the same type compared to a certain advanced level.
Product Paramenters
Width of steel belt | 78mm |
Thickness of steel belt | 0.2-0.45mm |
Pipe diameter | φ40~φ180mm |
Pipe pitch | 64mm |
Seam form | Double-locked link |
Main motor model | Y112M-15 |
Main motor power | 15kw |
Main motor speed | 1440r/min |
Cutting motor model | Y90L-2 |
Cutting motor power | 2.2kw |
Cutting motor speed | 2840r/min |
Lubrication cooling electric oil pump model | DB-12A |
Lubrication and cooling electric oil pump power | 80W |
Lubrication and cooling electric oil pump flow | 12L/min |
Voltage | 380V |
Machine weight | 800Kg |
Overall Dimension | 1800*1300*1600 |
Coiling speed | 0-30m/min |
Details Images
Company Profile
Jining Qingke Machinery Co., Ltd. was founded on 29 July 2015 with a registered capital of 5 million. This is our new branch. Our factory has a history of 6 years. We have CNC machining centre, CNC lathe, boring machine and milling machine.
Main Products: square steel undercutting machine, bending machine, straightening machine, steel arc bending machine, floor polishing machine, terrazzo machine, solar water pump, garden machinery (including shovels and lawnmowers), construction machinery and accessories, road marking and mining equipment, mining tools and so on. Our products have been exported to more than 20 countries in Europe, Russia, South America, Africa and Middle East. We sincerely hope to have the opportunity to co-operate with you.
Main Products: square steel undercutting machine, bending machine, straightening machine, steel arc bending machine, floor polishing machine, terrazzo machine, solar water pump, garden machinery (including shovels and lawnmowers), construction machinery and accessories, road marking and mining equipment, mining tools and so on. Our products have been exported to more than 20 countries in Europe, Russia, South America, Africa and Middle East. We sincerely hope to have the opportunity to co-operate with you.
Why Choose Us
Our Services
1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Povide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Povide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
