Power Line Communication Smart LED Lighting Outdoor Controller Remote Dim For Smartcity Smartpole

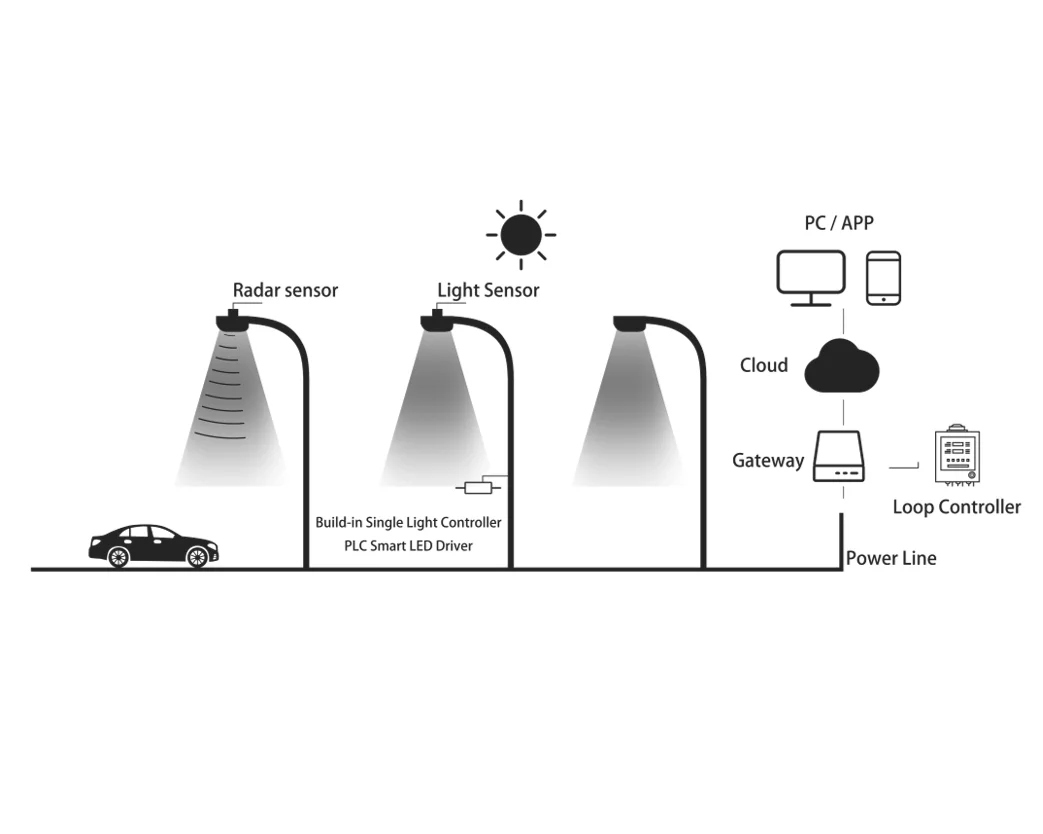

High Speed Power Line Communication Technology (HPLC) is a type of communication using power line in which modulated radio-frequency signals are transmitted. It's suitable for large-scale and industrial grade smart lighting projects:

• No additional rewiring required. Signal transfer though the existing power line.


• Fast connecting. Networking after the power on.


• Long communication distance. 2km point-to-point distance.


• 1 gateway controls 499 devices.

It combines the flexibility of wireless solutions with the stability of wired solutions!

Suitable for both indoor and outdoor smart lighting projects.

A lamp controller linked with an LED driver, communicates by High-Speed Power Line Communication (HPLC). Remotely turn ON/OFF, dimming (0-10V/PWM), data collection, 90-264VAC, 2W, IP66, lightning protection.

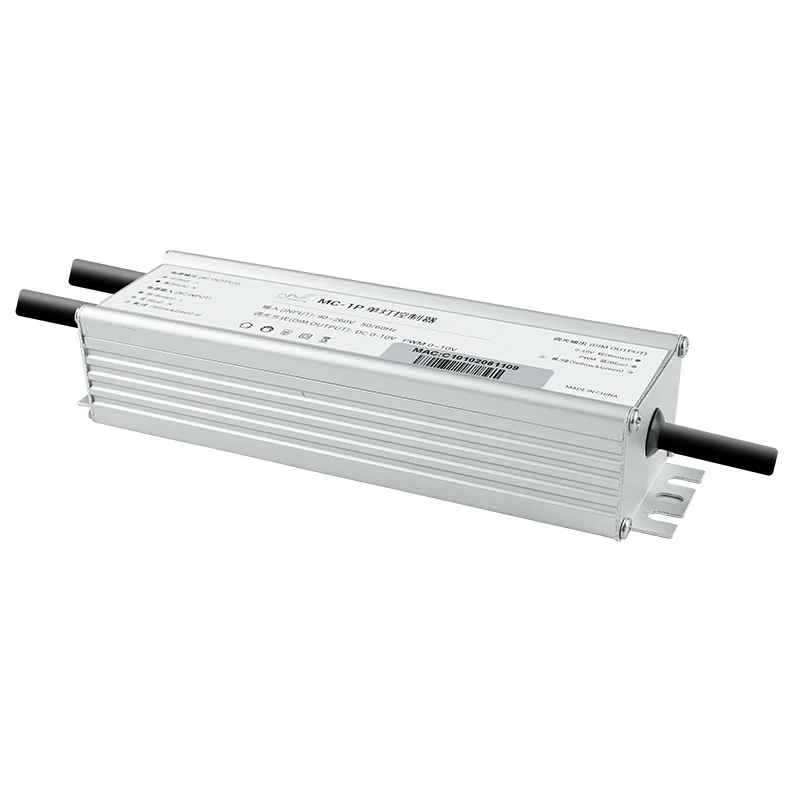

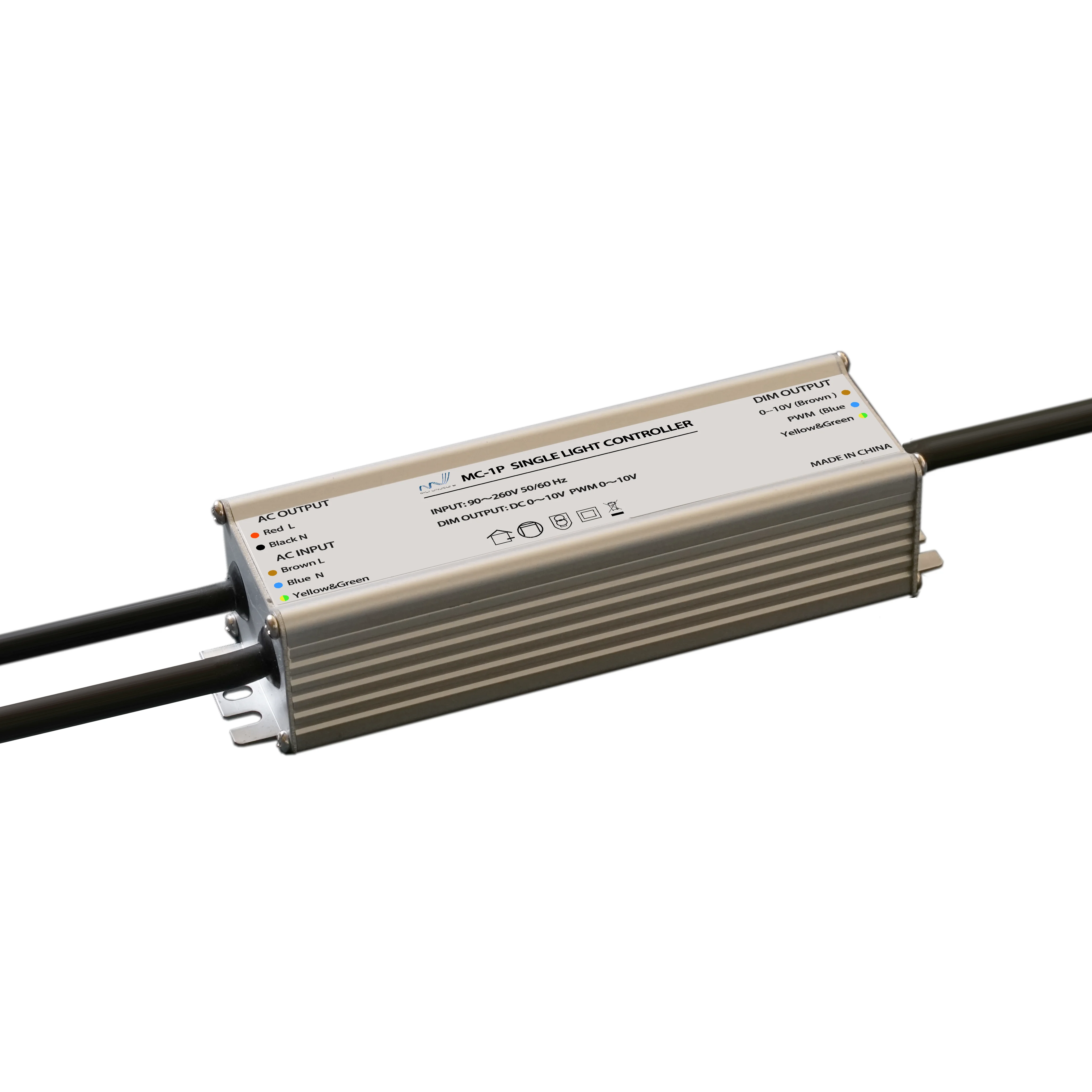

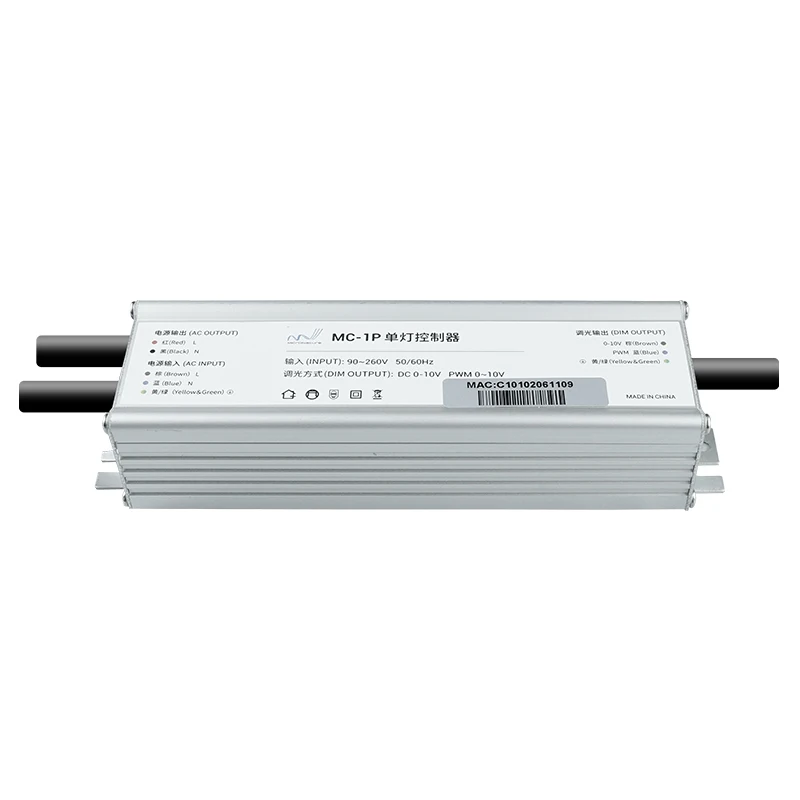

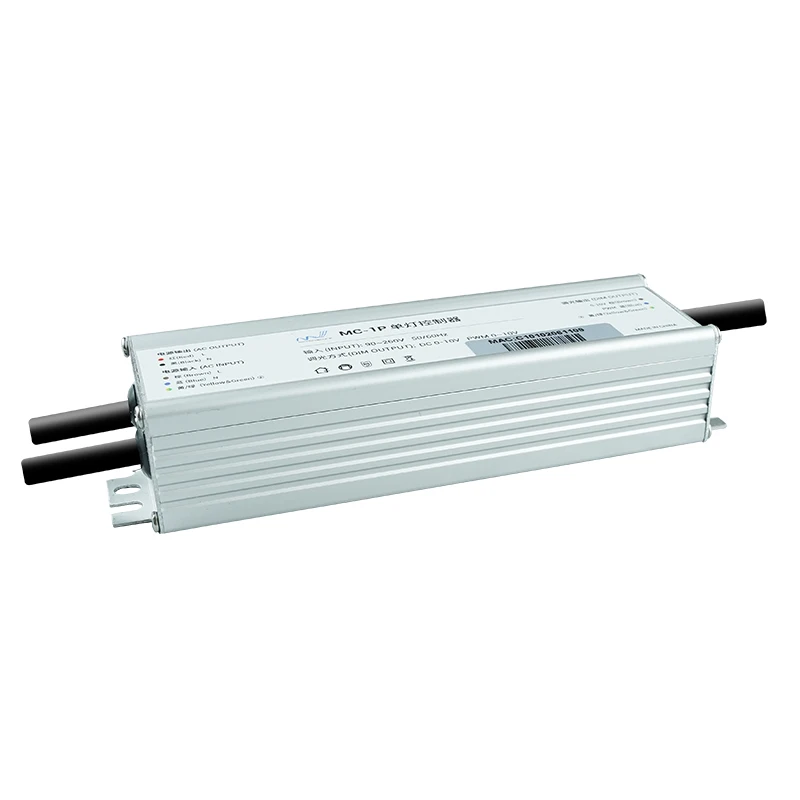

The MC-1P Single Light Controller adopts broadband power line communication technology, which uses the existing power lines to realize communication without additional wiring, and reduces the construction cost. The communication speed is fast, and the peak rate at the physical layer can reach 0.507Mbit/s.

MC-1P single light controller uses power line communication to collect data and report input current, voltage, active power, energy, power factor, temperature, on/off light status and so on. It uses Orthogonal Frequency Division Multiplexing (OFDM) modulation technology with strong anti-interference ability. Automatic fast networking is supported. A maximum of 15 level trunks are supported over a long distance.

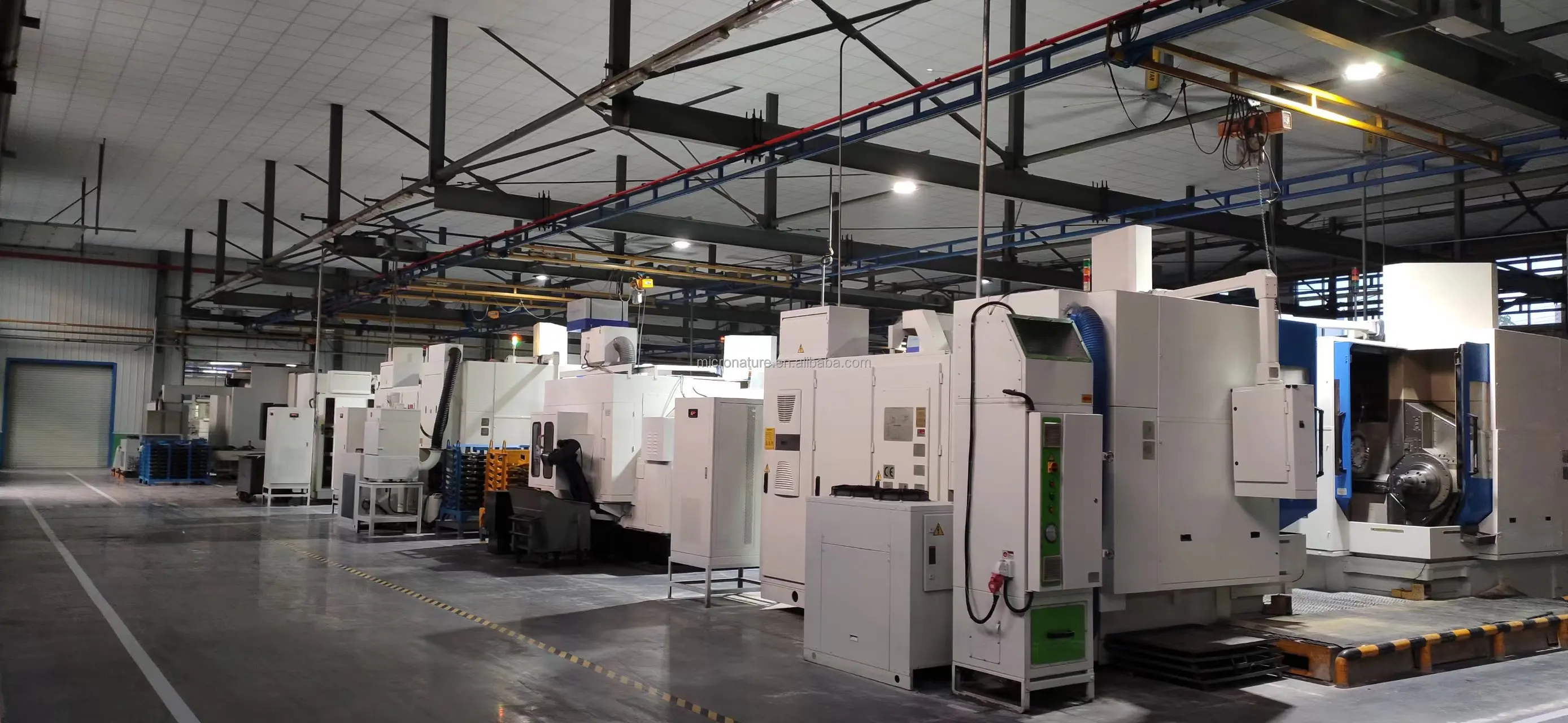

Established in 2015, Shenzhen MicroNature Innovation Technology Co., Ltd. collaborates with renowned domestic research institutions and operates as a national high-tech enterprise engaged in design R&D, manufacturing and marketing.With cutting-edge HPLC communication technology, an open SAAS light control system, a full range of intelligent hardware, and extensive project implementation experience, Micronature has operations all over the world, helping integrators, engineering firms, lighting suppliers, and power suppliers to realize lighting intelligence.

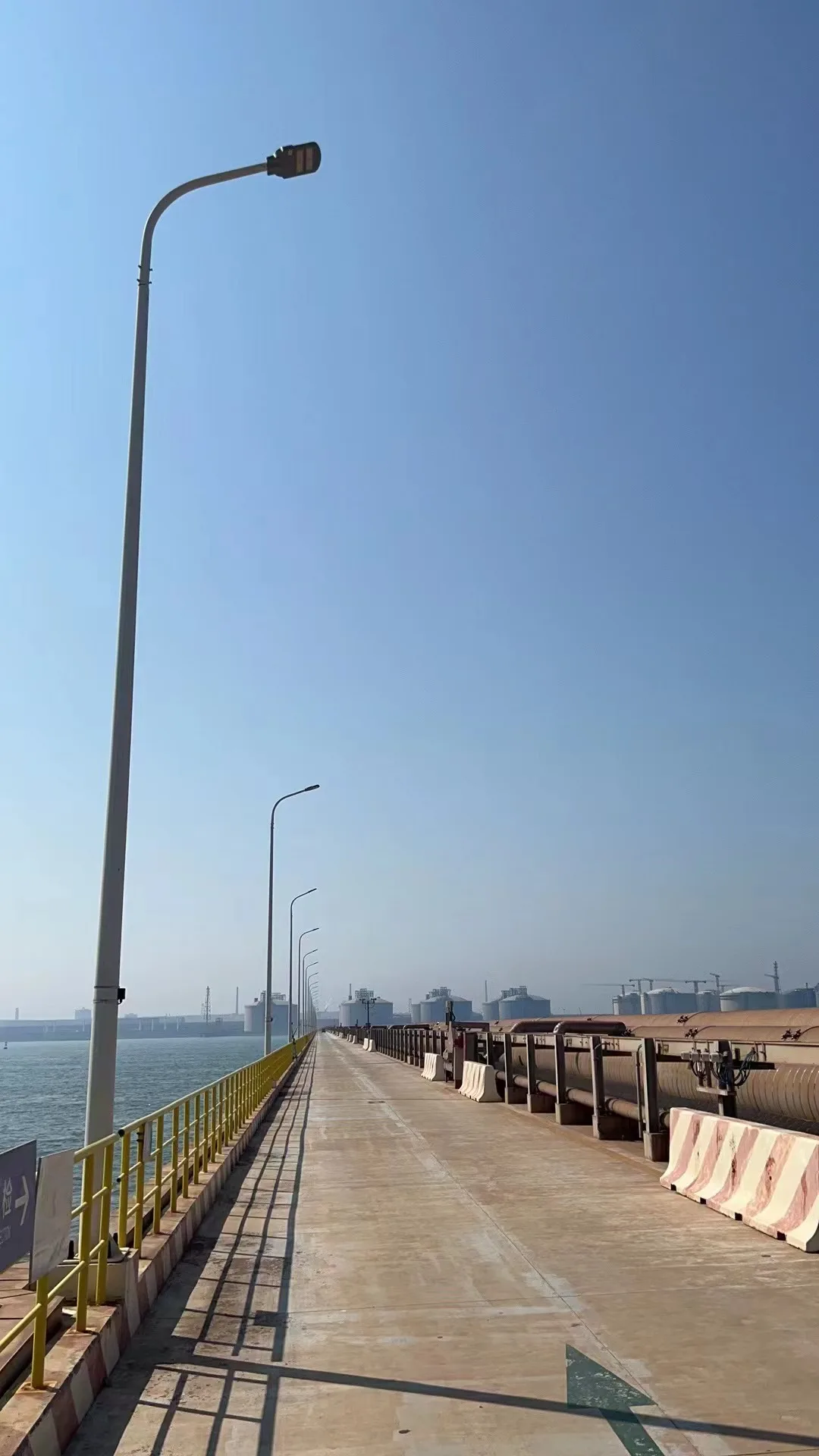

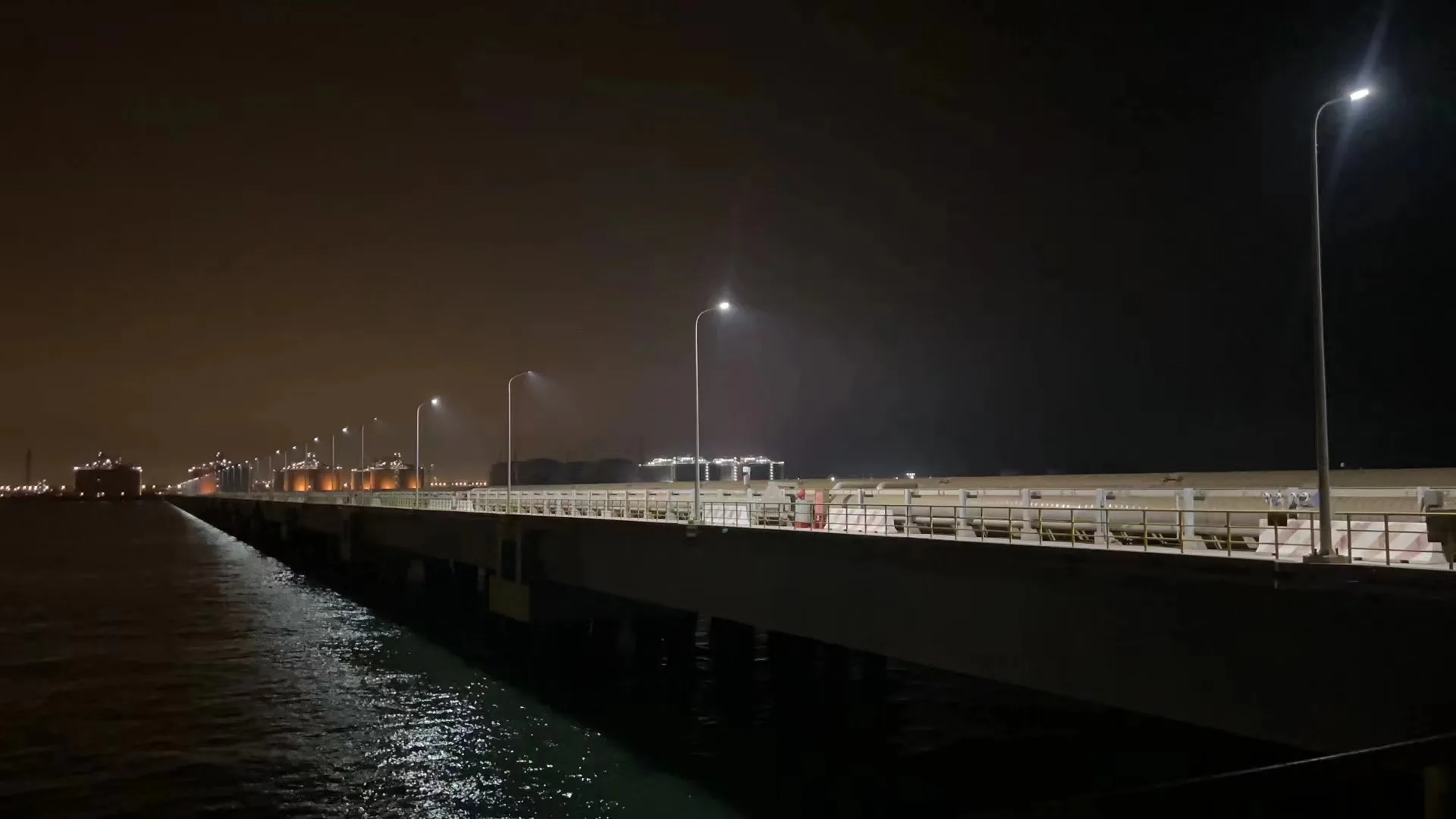

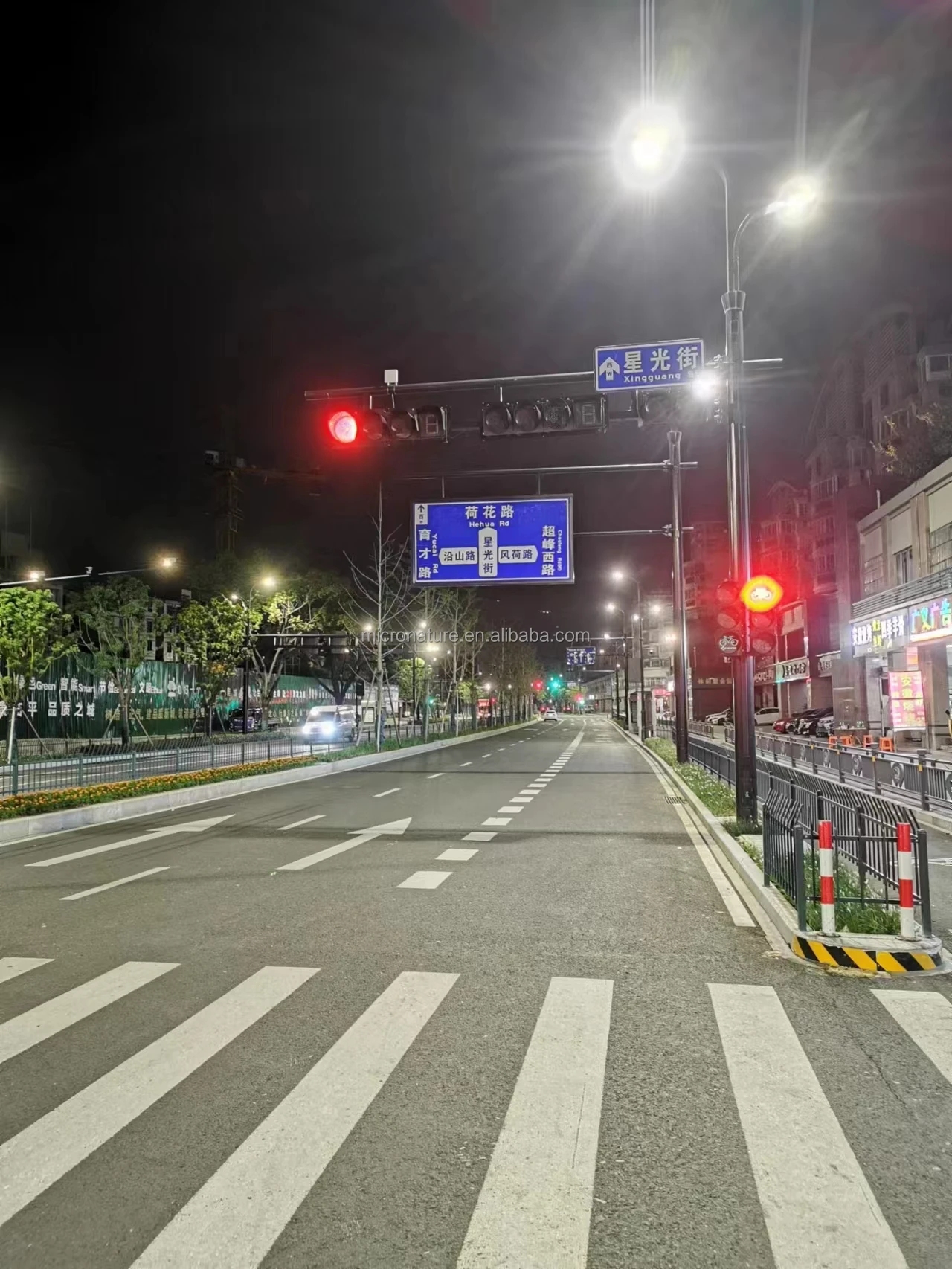

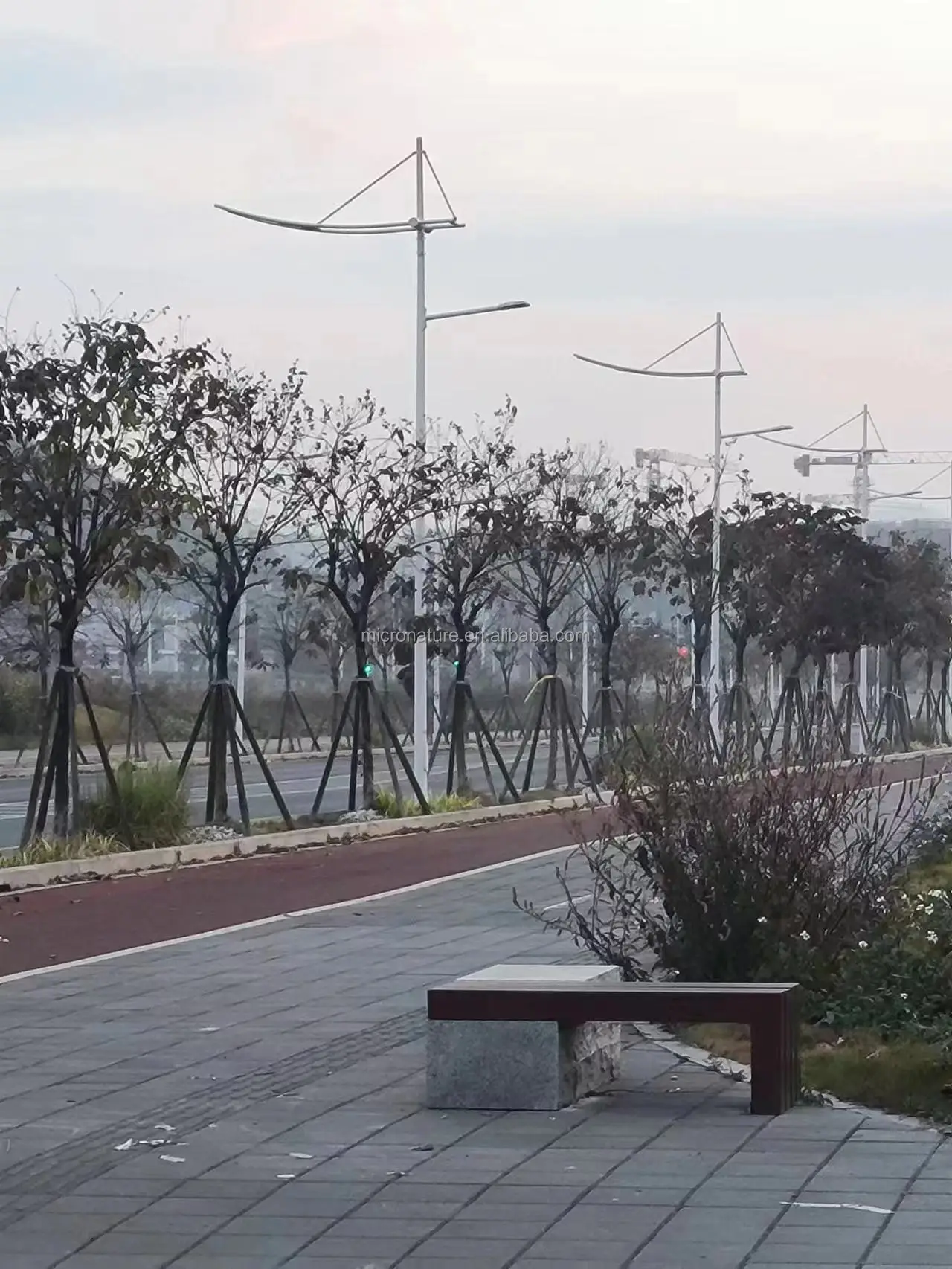

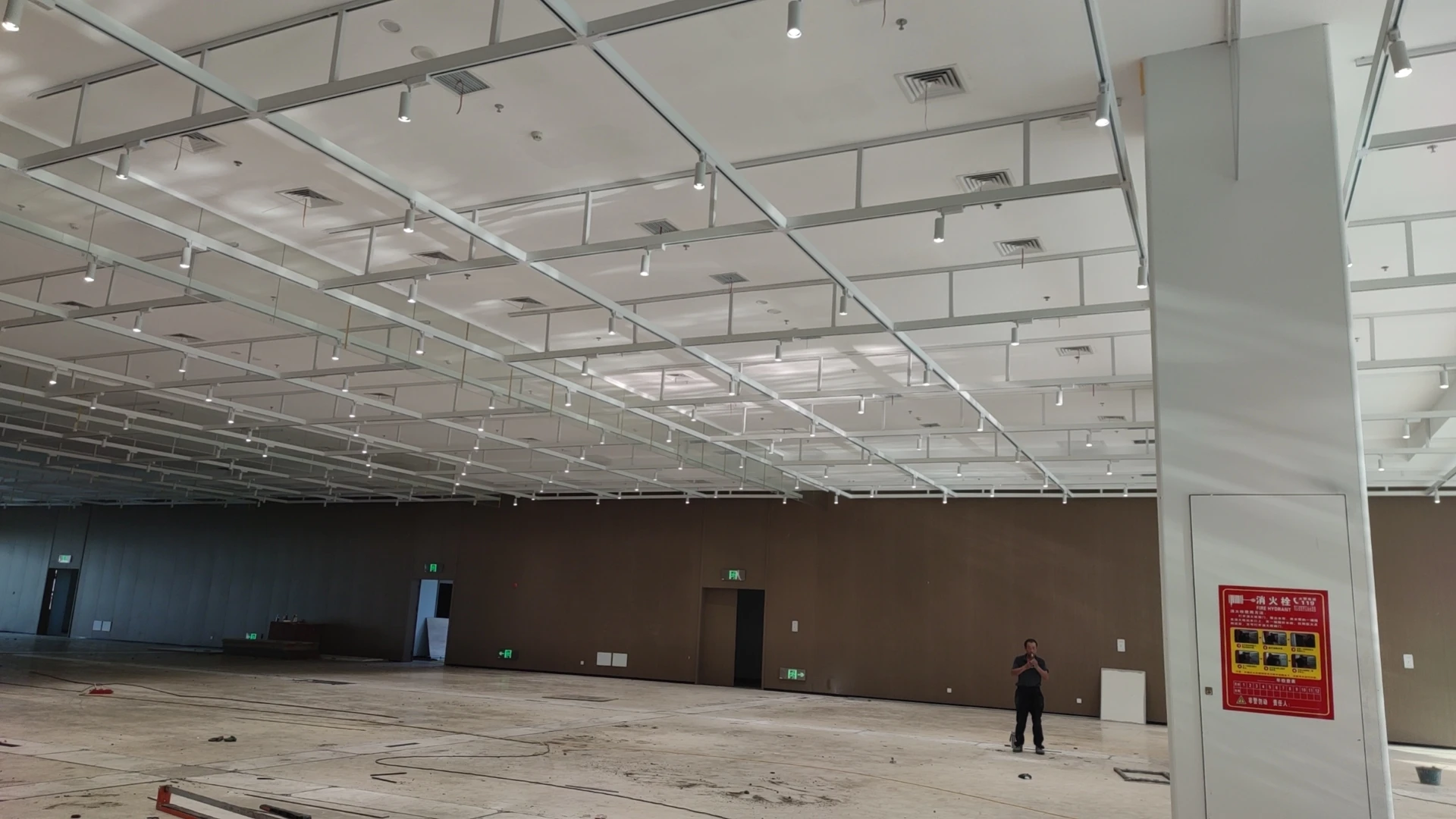

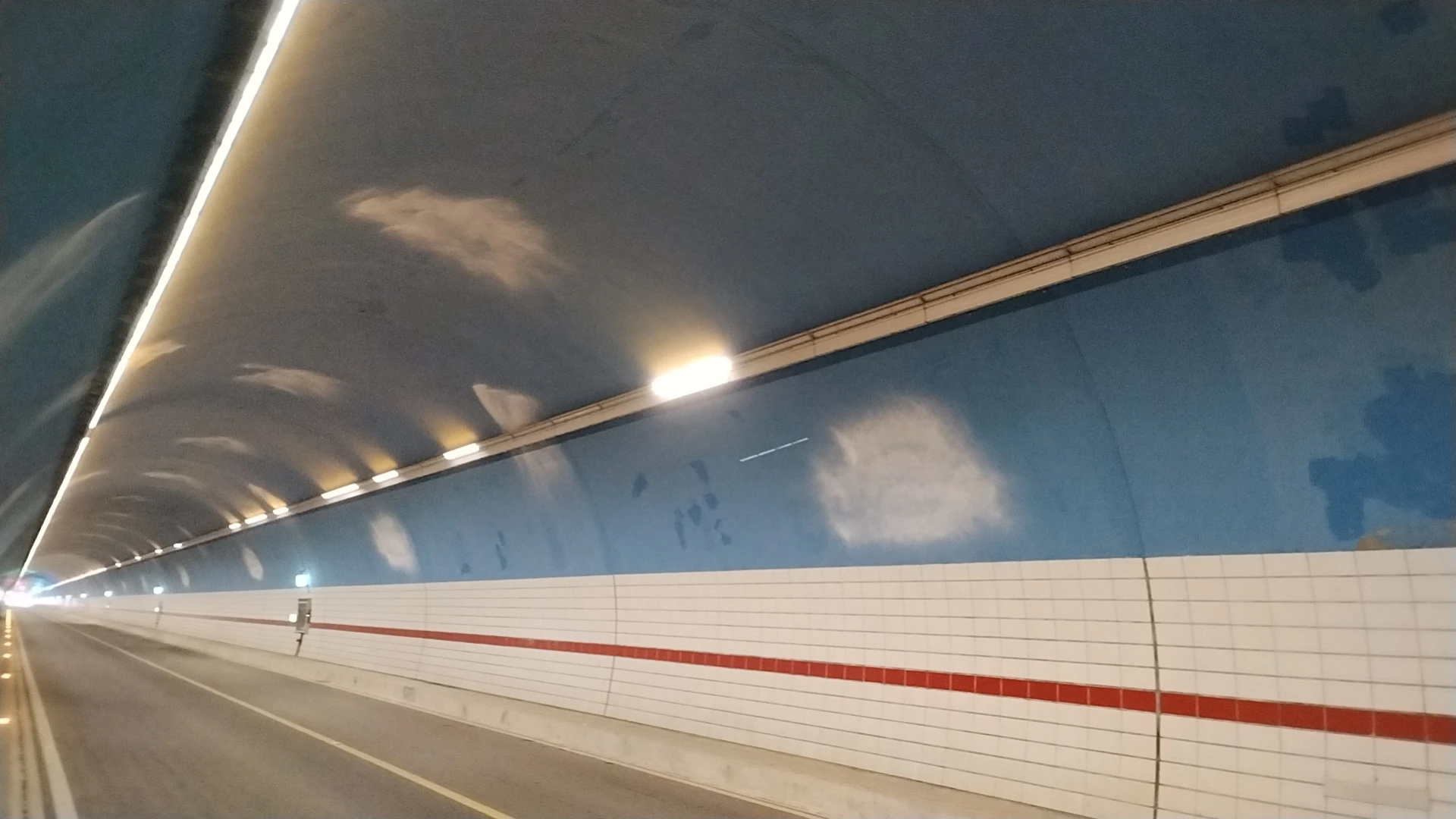

We have a professional program team and rich experience in smart lighting/lighting retrofit projects, including all kinds of factories / streetlights / tunnels / courtyards / ports / parks.

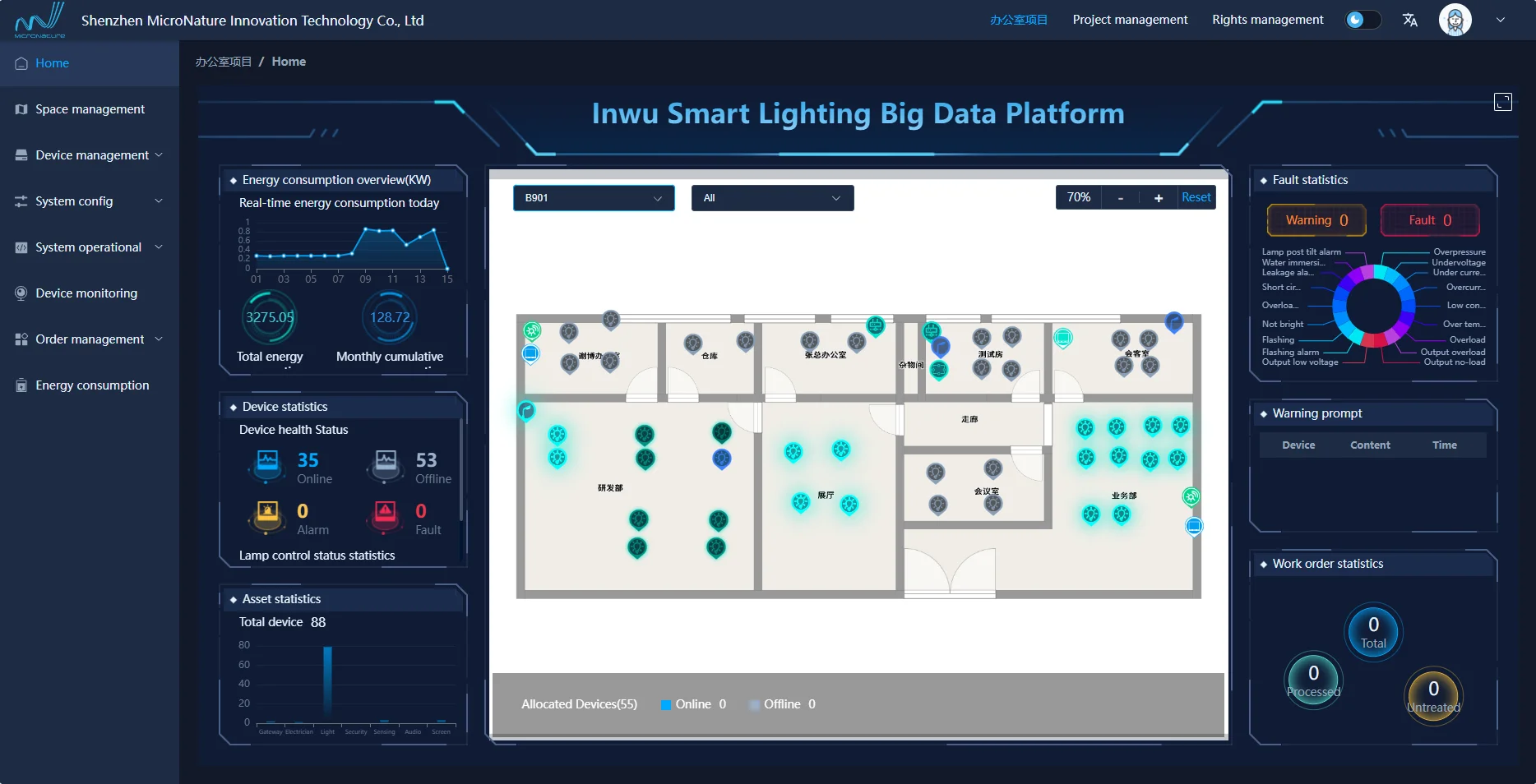

Perfect Smart Lighting Usage Experience

• Remote, flexible lighting control


• Real-time energy consumption


• Devices health monitoring


• Warning notifications


• Faults statistics

Flexible And Friendly Cooperation Mode

• Private cloud development


• Language Customization


• API,UI,Modbus,MQTT integration


• Co-management of multiple projects


• Sub-account-privilege management


• Professional technological support and service

Q1: What is the expected lifespan or durability of the product?

A: Our product has an expected lifespan of 5 years and is designed to withstand heavy use in industrial environments.

Q2: What if I don't understand how HPLC IoT works?

A: We provide free online technology training and free project proposal. If there's any smart lighting projects, feel free to contact us

Tel:+86 13902945370

Web:www.micronature.cn

Q3: What is your company's experience and reputation in the industry?

A: Our company has been in business for 9 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

Q4: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD.
