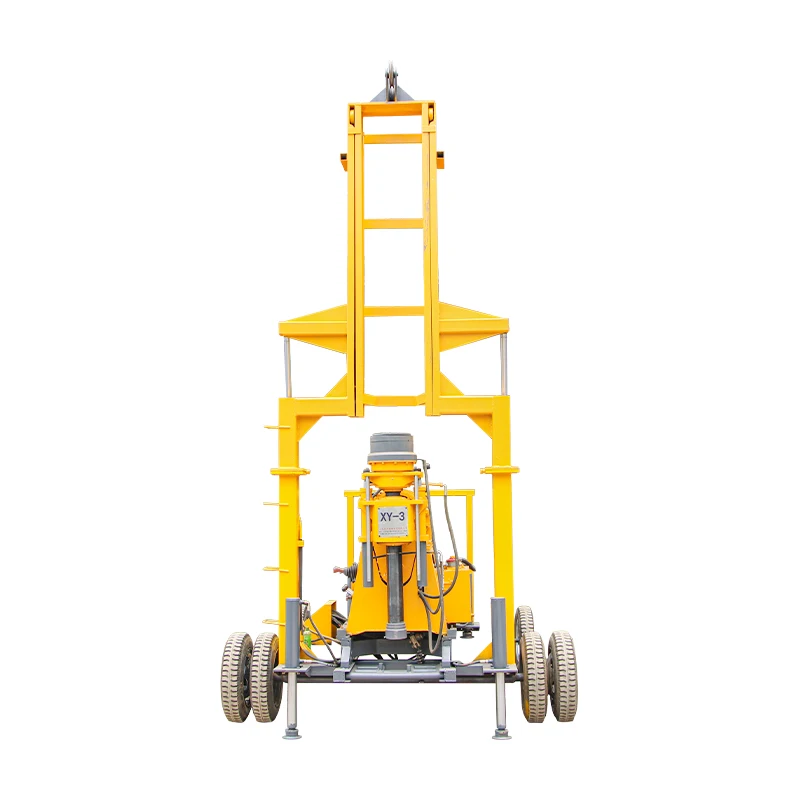

Rock coring mine diamond core drilling rig geotechnical drill rig machine
- Category: >>>
- Supplier: Shandong Huayao Construction Machinery Co. Ltd.
Share on (1601228327115):
Product Overview
Description
Rock coring mine diamond core drilling rig geotechnical drill rig machine
Product Information

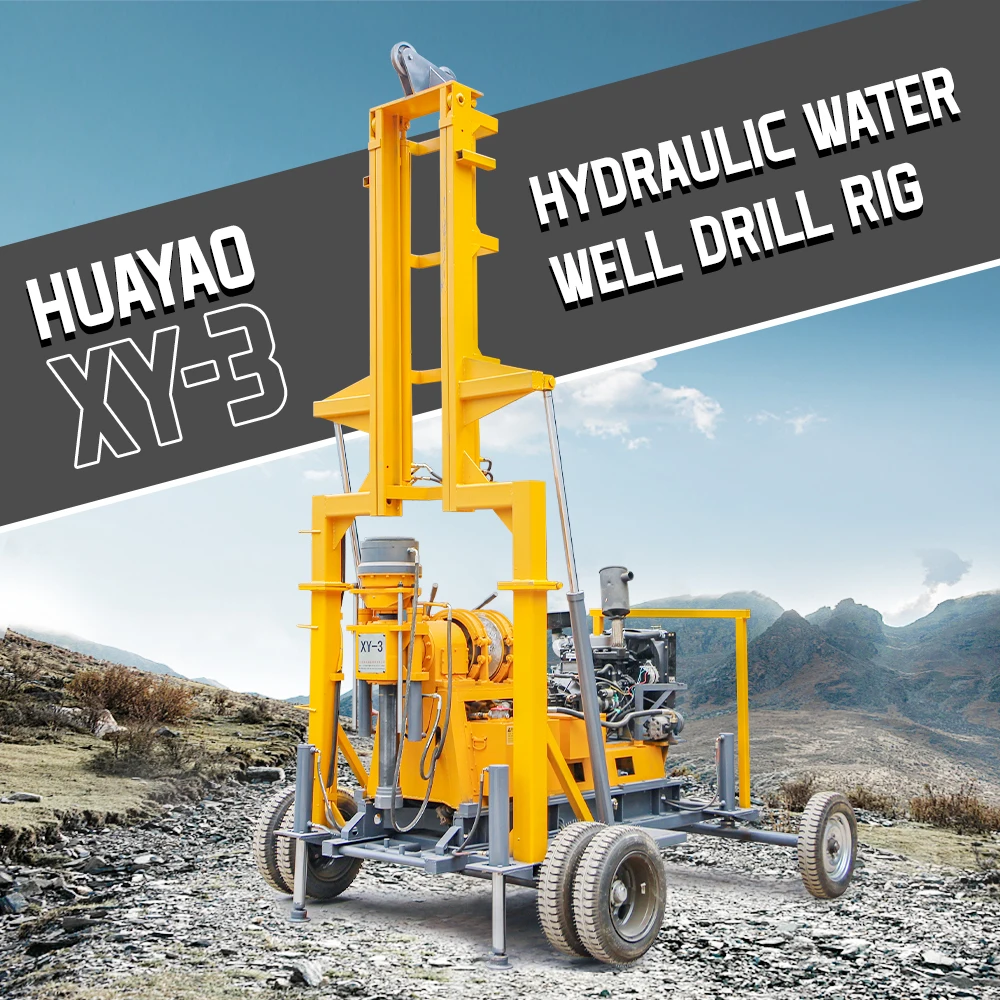

Hydraulic water well drilling rig drilling efficiency: 10-20M/hour of soil mixed stone
1. XY-3 hydraulic drilling rig is mainly used for drilling deep water wells, geological exploration, etc
2. Various holes for concrete structures, river embankments, roadbed grouting holes, drilling and direct grouting, civil water wells, and ground temperature central air conditioning.
1. XY-3 hydraulic drilling rig is mainly used for drilling deep water wells, geological exploration, etc
2. Various holes for concrete structures, river embankments, roadbed grouting holes, drilling and direct grouting, civil water wells, and ground temperature central air conditioning.
Specification
water well drilling machine | ||||
Machine specification | Model(configuration moving slipway) | XY-3 | ||
Drilling depth(m) | 100m | |||
drill angle (°) | 75-90 | |||
open hole dia. (mm) | 400(Soil), 200(Rocks) | |||
Drill rod dia. (mm) | 75-300 | |||
Diesel Engine Model | ZS1105 (18HP) | |||
Weight without engine (kg) | 880/970 | |||
Machine Dimension L*W*H (m) | 1640*850*1340mm | |||
Rated Power | 13.3KW | |||
Spindle | speed (r/min) | 2200r/min | ||
Stroke (mm) | 450 | |||
Winch | Single rope lift force (kg) | 2500 | ||
Single rope lift speed (m/s) | 0. 12-0. 95 | |||
Rope dia. (mm) | φ12.5 | |||
Rope capacity(m) | 35 | |||
Drill Mast | Rated load (ton) | 18 | ||
Height (m) | 6.5 | |||
Mud pump | Flow (L/Min) | 145 | ||
Max. pressure (MPa) | 2 | |||
back and forth times/min | 93 | |||
Hose | Inlet hose dia. (mm) | 51 | ||
Outlet hose dia. (mm) | 32 | |||

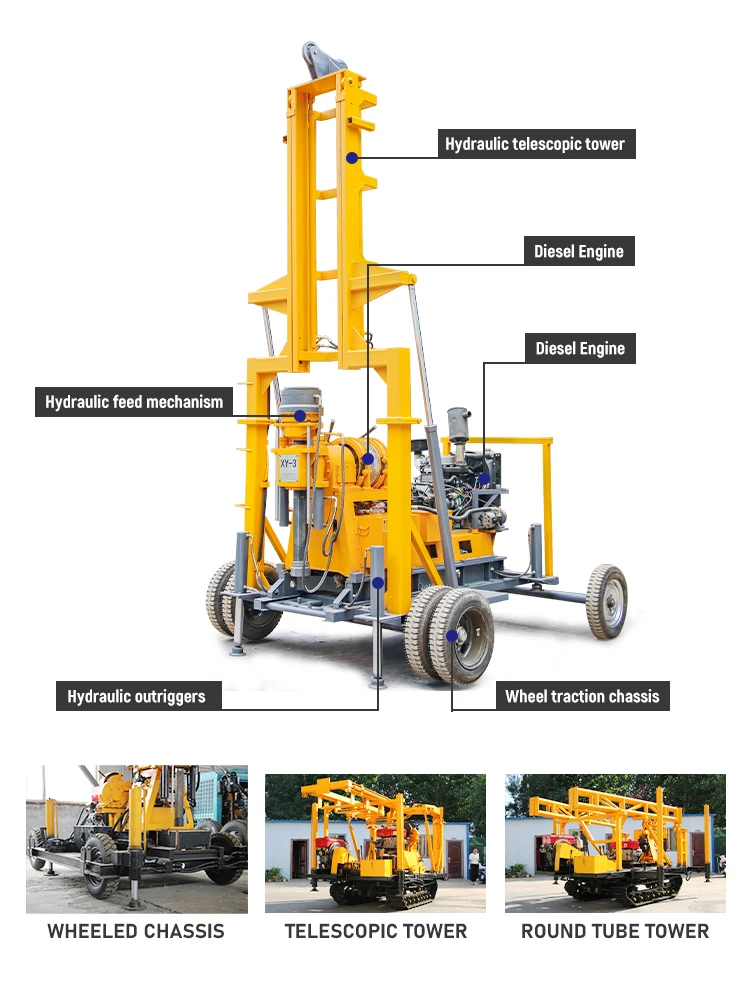

borehole water well drilling machine Appliance :

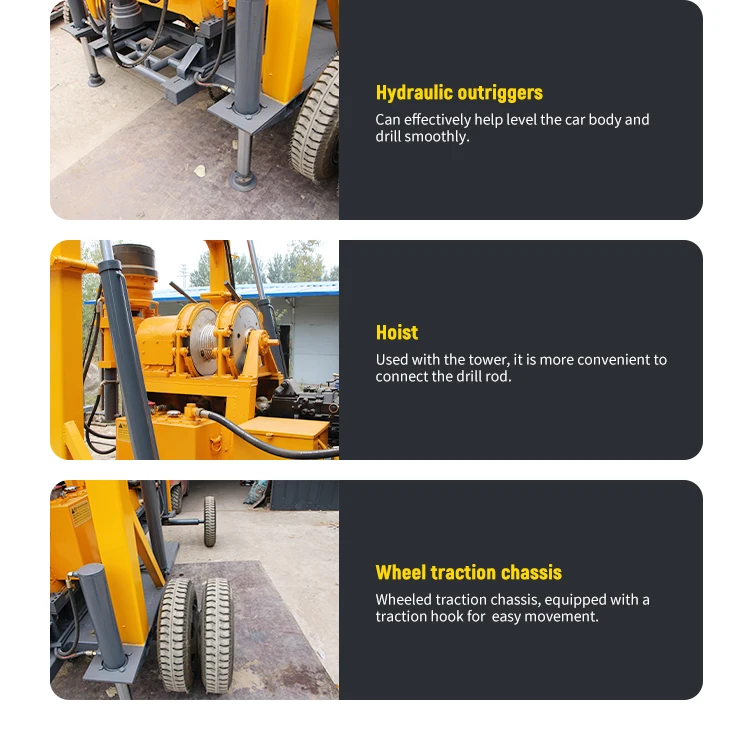

a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel
layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque,easy
operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
a. Keeping bracket is installed on the hoist to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel
layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque,easy
operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

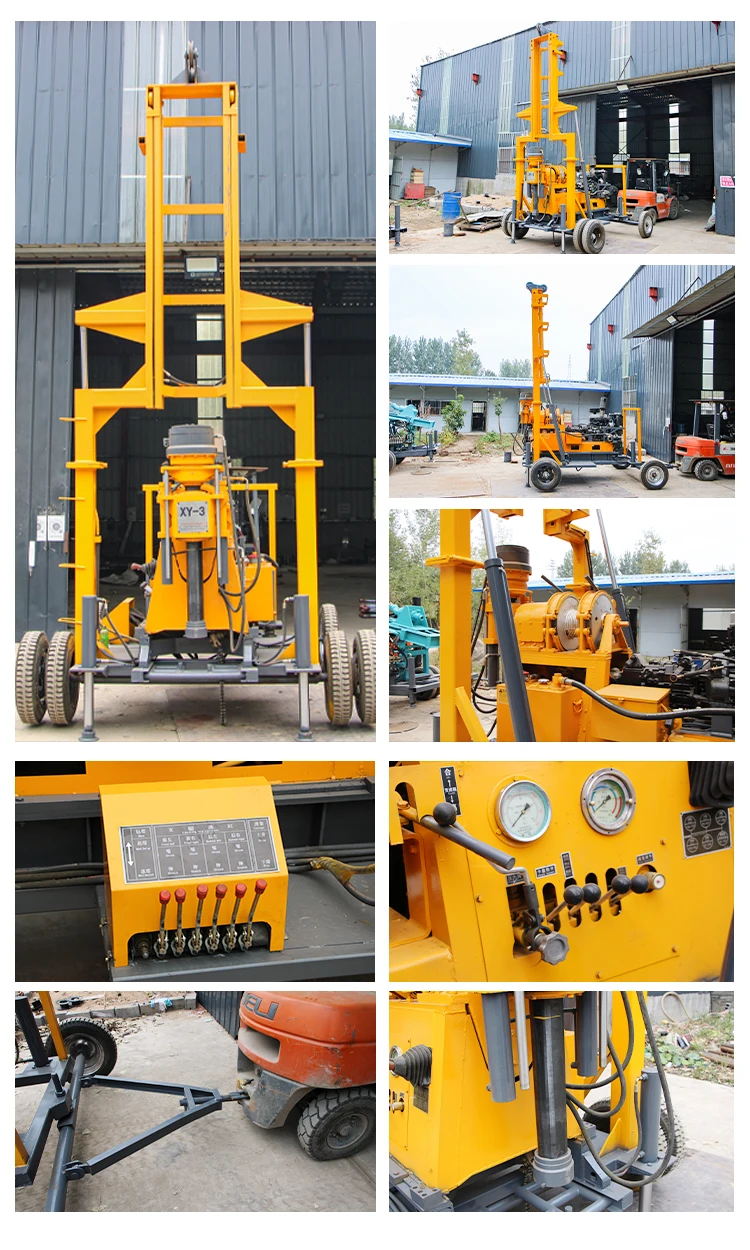

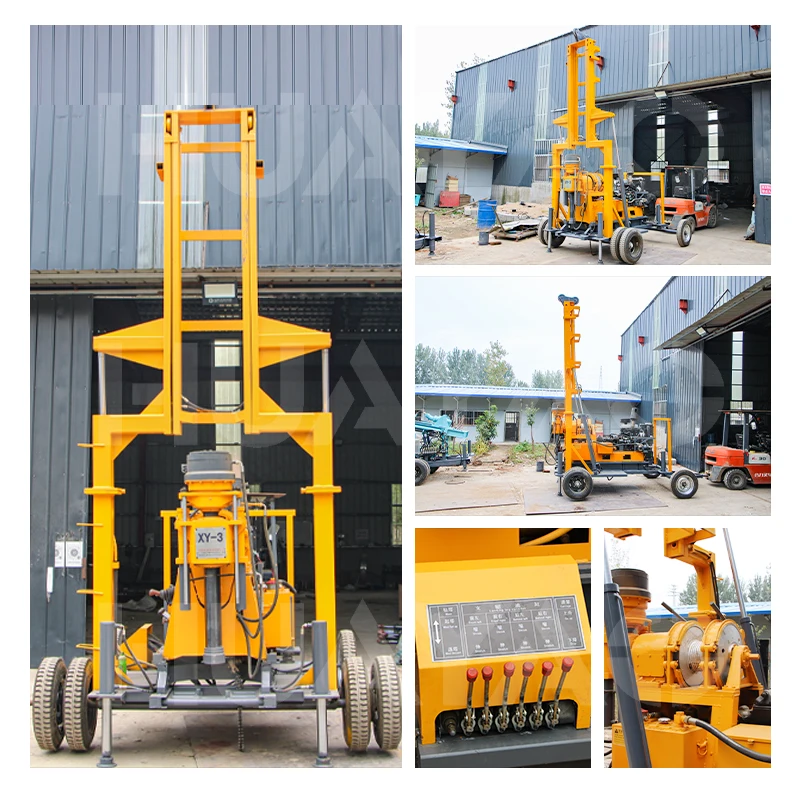

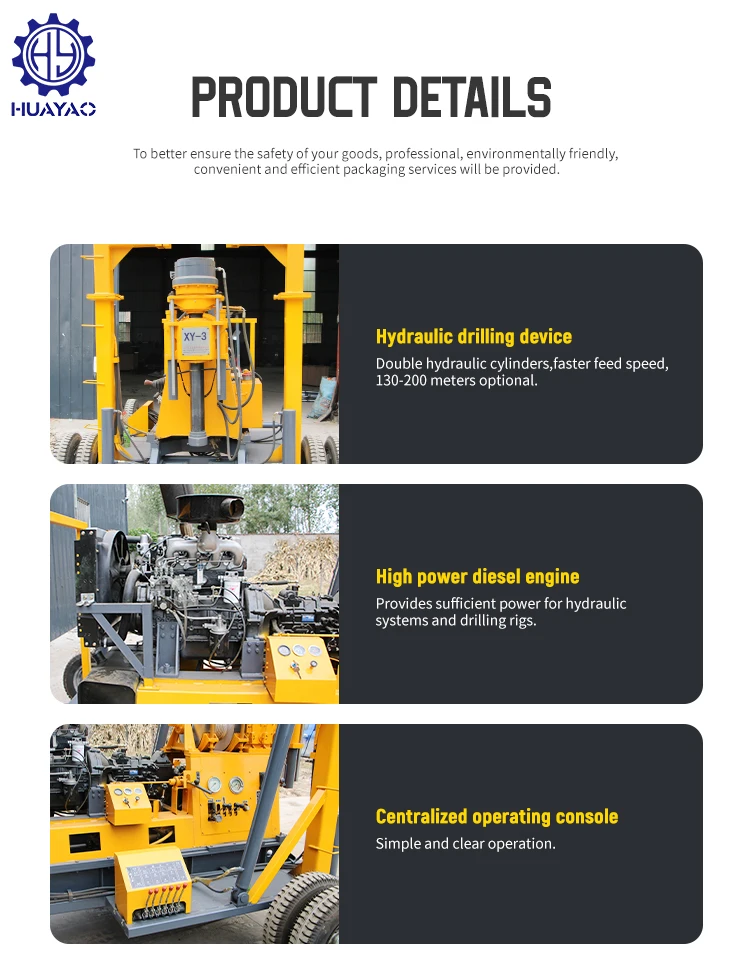

Product details
Customer Feedback
Factory View
FAQ
1.Are you manufacture?
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
