Factory Price Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Making Machine Fish Feed Production Line

Share on (1601228411577):


Price:

Quantity:


Product Overview

Description



Product Description

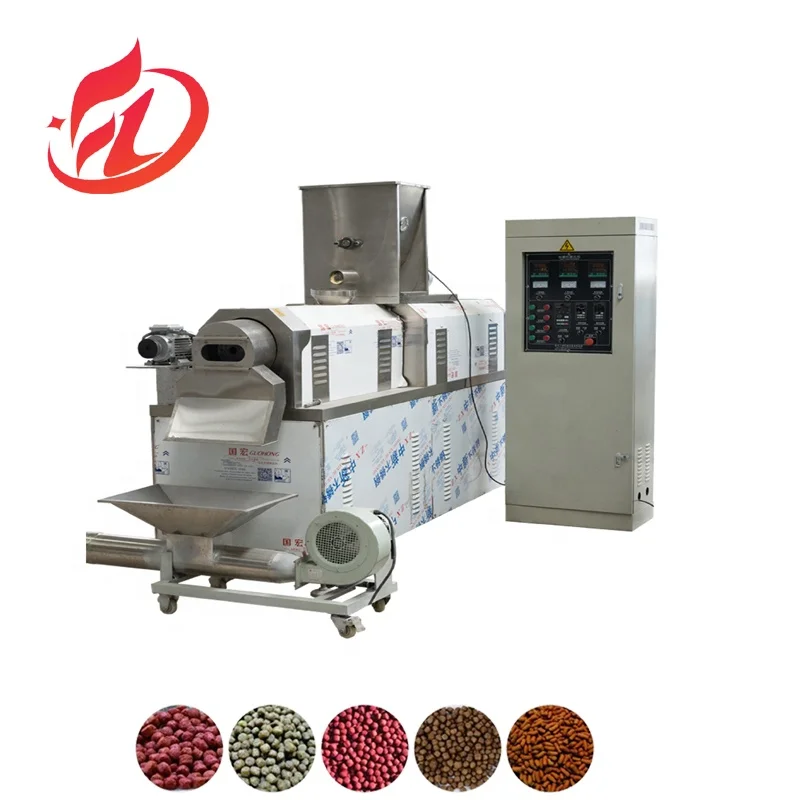

1.Description of Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Line:


  The fishing float making machinery and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc.

According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1.2-12 mm by adjusting temperature, moisture, formulation and changing moulds.


Our fishing float making machinery also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.

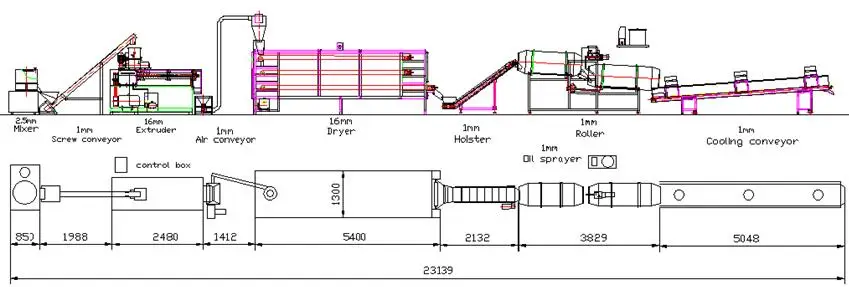

2.Fish feed manufacturing machine Flow chart:
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed production line.


Factory Price Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Making Machine Fish Feed Production Line





3.Feature details of fish feed manufacturing machine:


1). The fish feed pellets can float on water for over 20 hours.And sinking and floating aqua-feed pellets both can be made just by adjusting the feed formulation.





2). Pellet diameter is 0.9mm-15mm by changing the mold.





3).The cutter can cutting the pellets into different length.





4)The feeding speed,cutting speed,temperature all can be adjusted.






4.Technical Parameter





































ModelFLD-SLG65FLD-SLG70FLD-SLG75FLD-SLG85FLD-SLG95
Installed power76kw95kw140kw178kw280kw
Production Capacity120-150kg/h200-260kg/h300-400kg/h400-600kg/h1.0-2.0 T/H
Size MM1600*1800*20001800*2000*22002000*2000*22002500*2600*30003000*3200*3500




5.Raw materials:

wheat/ corn flour,rice flour,bean flour,wheat bran, fish meal, born powder, animal oil,fresh fish/meat,vegetable,fruit and so on



Factory Price Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Making Machine Fish Feed Production Line

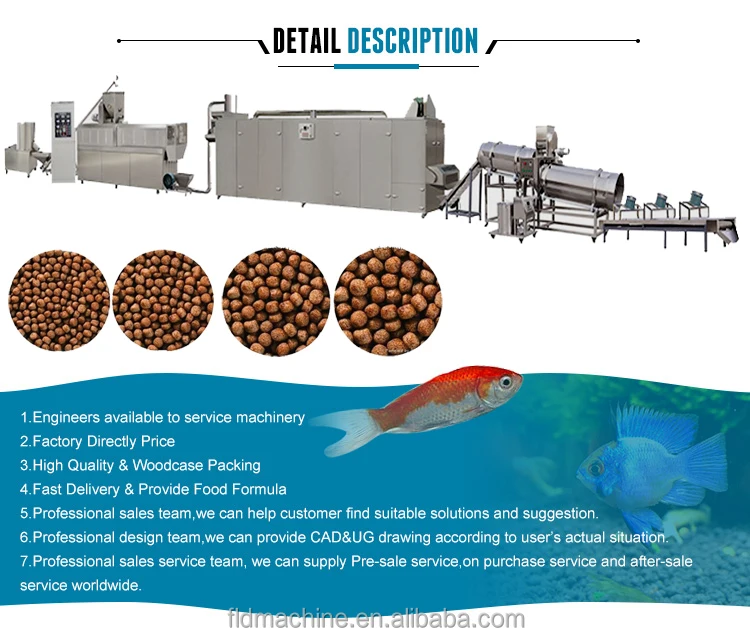

6.Product Details:

(Miller--meat and bone crusher and broken machine)--Mixer--screw conveyor--Twin screw extruder--air conveyor--Multi-layer dryer/oven--elevator--flavouring roller--oil sprayor--cooling conveyor--(air conveyor--packaging machine)

Factory Price Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Making Machine Fish Feed Production Line



































Mini floting fish food machine

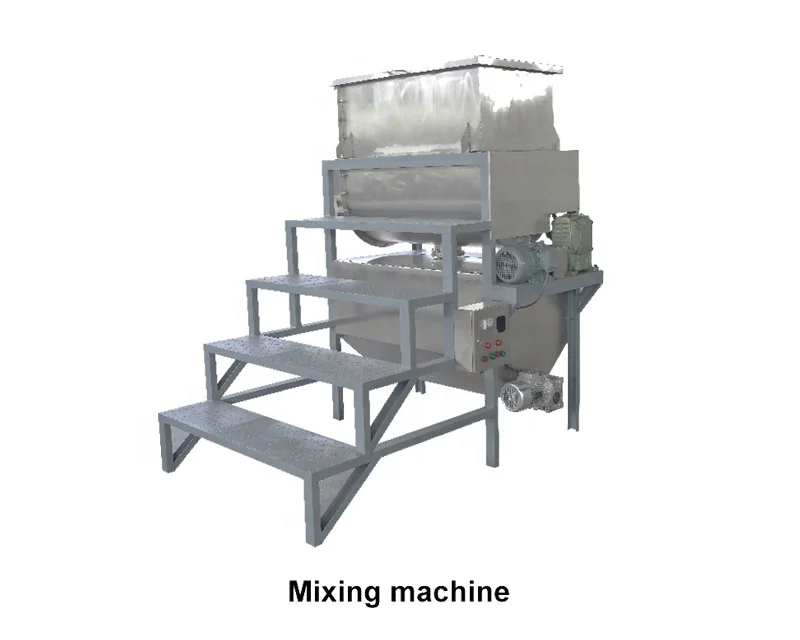

Raw material mixer


Application:mix the raw materials, fast speed, no leakage.


Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.


Material:stainless steel


Power:3kw, 4kw, 7.5kw


Floating Fish Feed Pellet Processing Machine

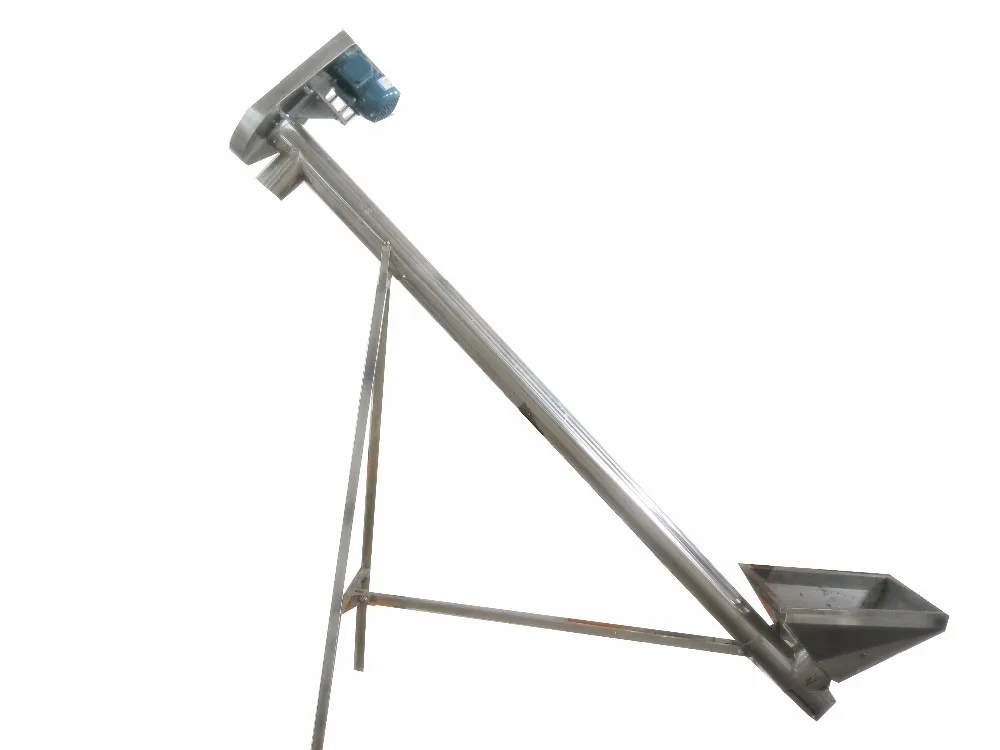

Screw feeder


Application:convey the


Power :1.5kw


Capacity:equipment with the output


Dimension:4000*590mm

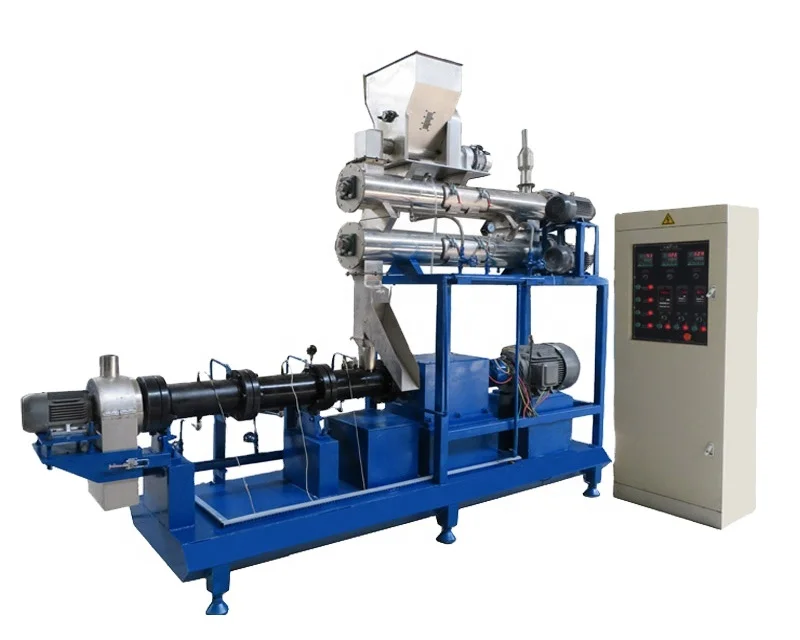

Steam flaoting fish food machine.jpg

Steam Twin screw Fish food extruder


Application:To make the raw materials  into required shape and size


Capacity:200-400kg/h(SLG70-W)


Power:30kw, 37kw


Working Principle: It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system.


Floating Fish Feed Pellet Extruder Making Machine

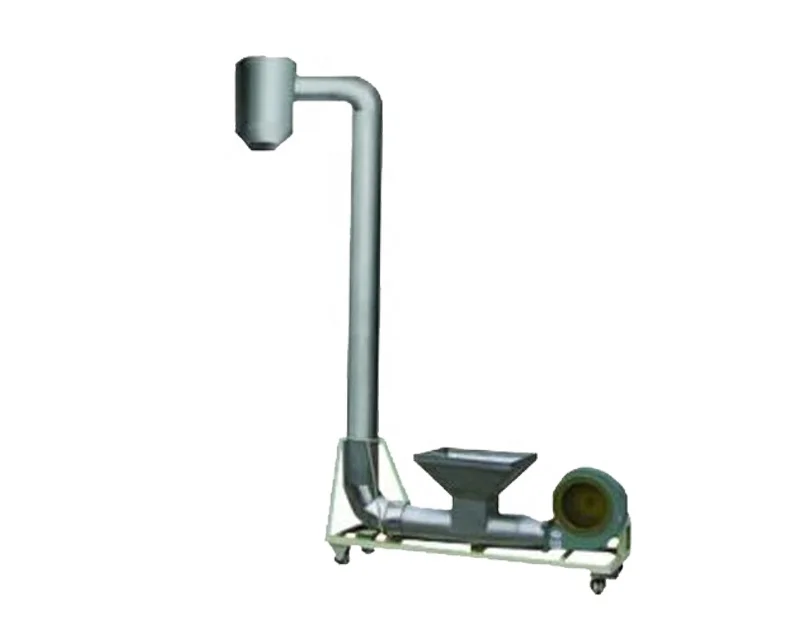

Air converyer


Application:convey the shaped material to dryer oven


Power:0.75,1.1,2.2kw(accorging to capacity)


Capacity:100-150kg/h,220-250kg/h,800-1200kg/h


Material:stainless steel


Floating Fish Feed Pellet Processing Machine

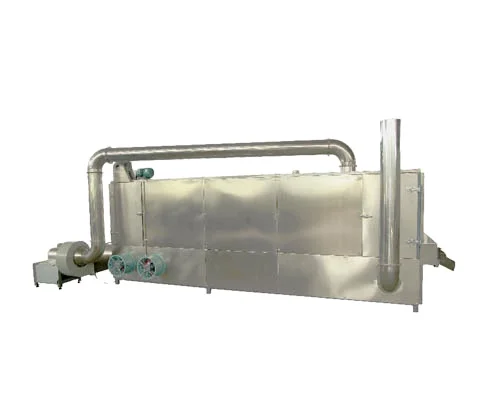

Dryer


Heating type:electrical, steam, gas fired, diesel fired heating type


Capacity:100kg/h to 10 ton/h


Material:stainless steel, carbon steel


Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system,
conmbustion system, dehumidifier system, sheet metal insulation system and controlling system.


Floating Fish Feed Pellet Extruder Making Machine

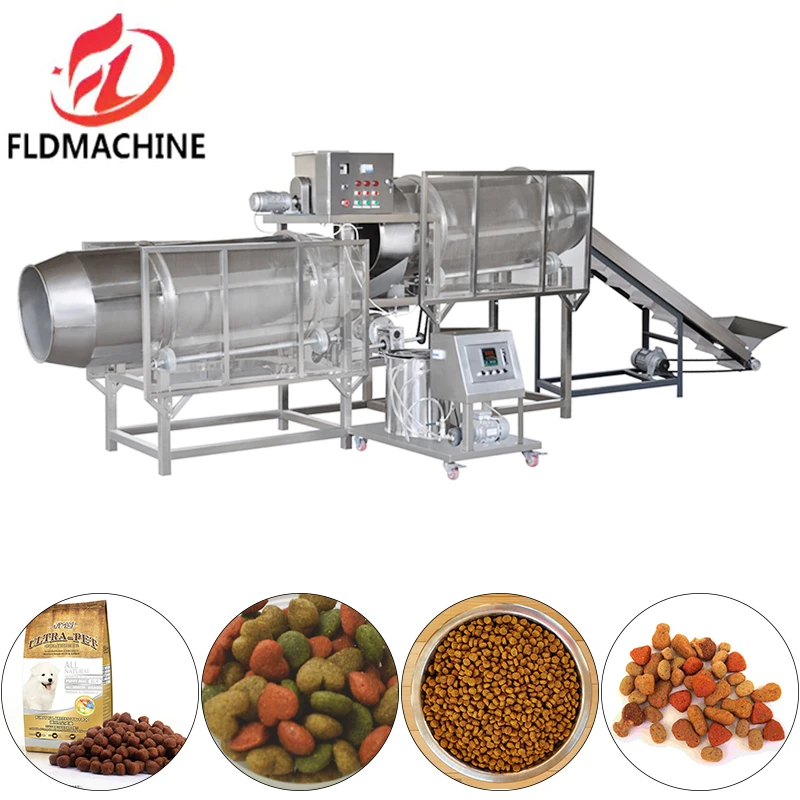

Flavoring machine


Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil.


Power:0.75kw


Type:single drum or double drum


Capacity:100kg/h to 500 kg/h


Material:Stainless steel


Floating Fish Feed Pellet Extruder Making Machine

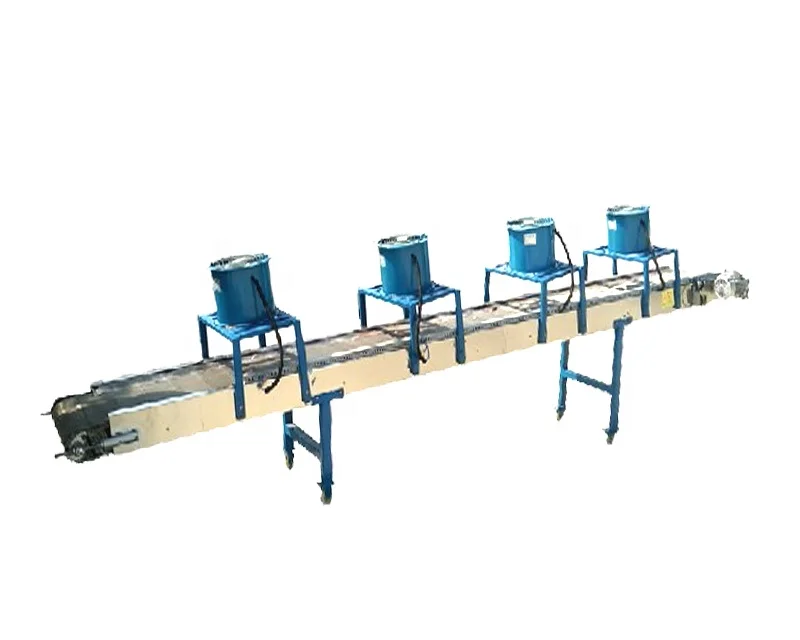

Cooling equipment


Application:used to cool the final pet food and transfer pet food  to packing machine


Power0.75kw, 1.6kw


Capacity:100-1200kg/h


Material:stainless steel(backplate)


Remarks:Optional equipment









Contact us












Our Services


Pre-sale service:


24 hours online service .


Configue the machines as your output or request.


In sale service:


Strictly supervise the manufature of the machines


Convey the manufature information to you in time.


After sale service:


1 year warranty for the machines.


Overseas installation and train the first-line operators.


For any questions, professional technicians will solve for you timely.








Company Information


Factory Price Pet Dog Food Processing Plant Floating Fish Feed Pellet Extruder Making Machine Fish Feed Production Line


Floating Fish Feed Pellet Processing Machine


Jinan FLD Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
   We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.


 Floating Fish Feed Pellet Processing Machine


If you have any questions about the Mini floting fish food machine, please don't hesitate to contact with us. We are looking forward to your inquiry and make a long business relationship with you in the future!
