Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine
Brining and Seasoning Industrial Meat Tumbler Rolling Machine

Brining and Seasoning Industrial Meat Tumbler Rolling Machine

Share on (1601228413270):


Price:

Quantity:


Product Overview

Description



About our company




Products Description

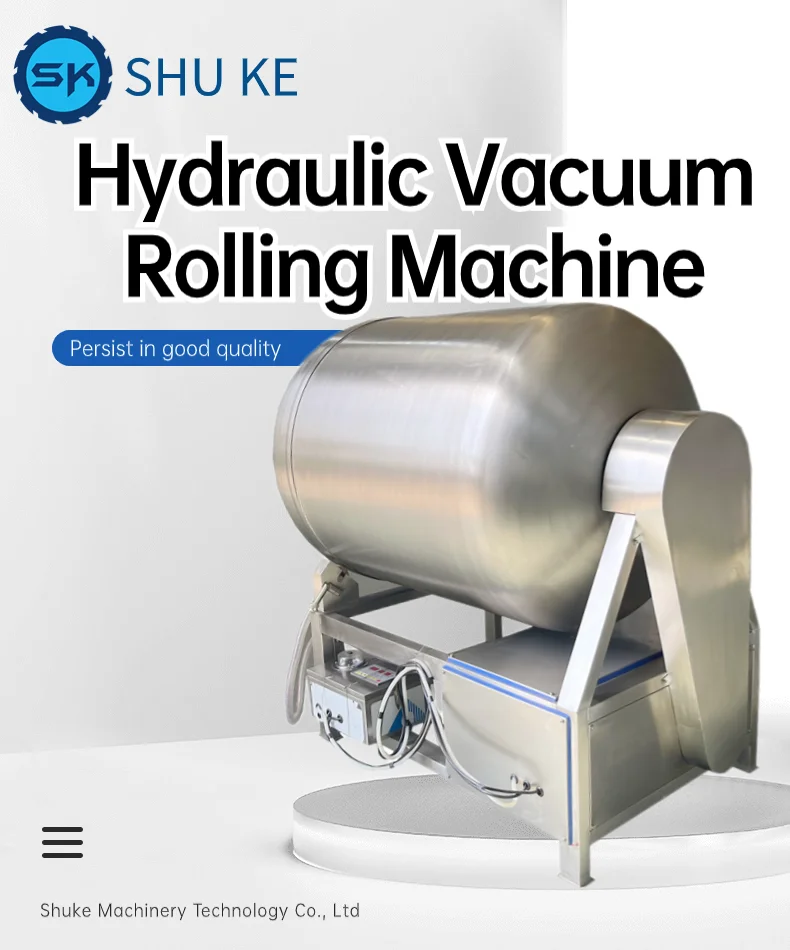

Product Introduction
The hydraulic rolling machine adopts a rotating bracket and horizontal hydraulic tilting rolling. Compared to the ordinary rolling and kneading machine series, it has greater loading capacity and more convenient unloading performance.
Scope of application
Used for pickling and processing meat products such as Chinese and Western style sauce braised dishes, ham, bacon, grilled meat, sausages, snacks, poultry, and seafood such as shrimp.

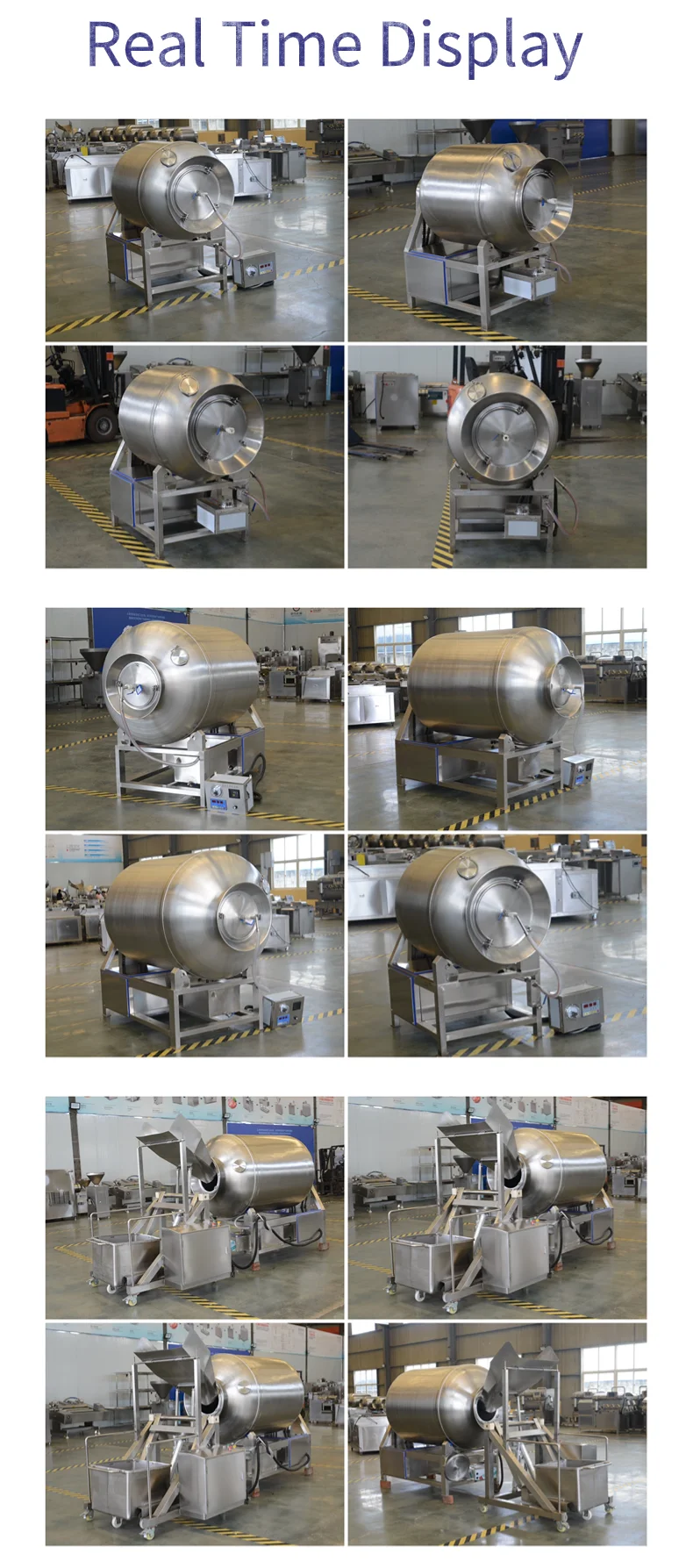

Details Images

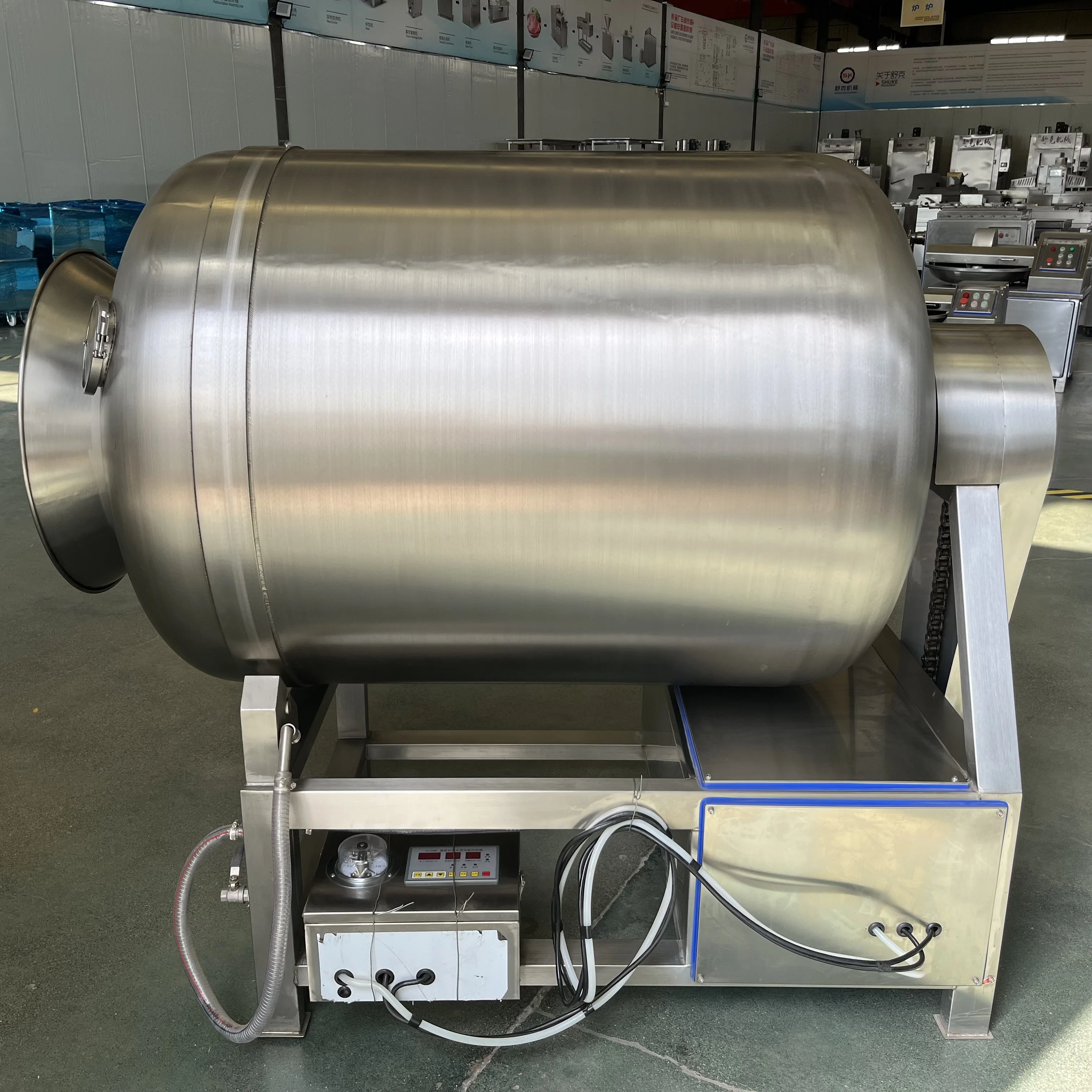

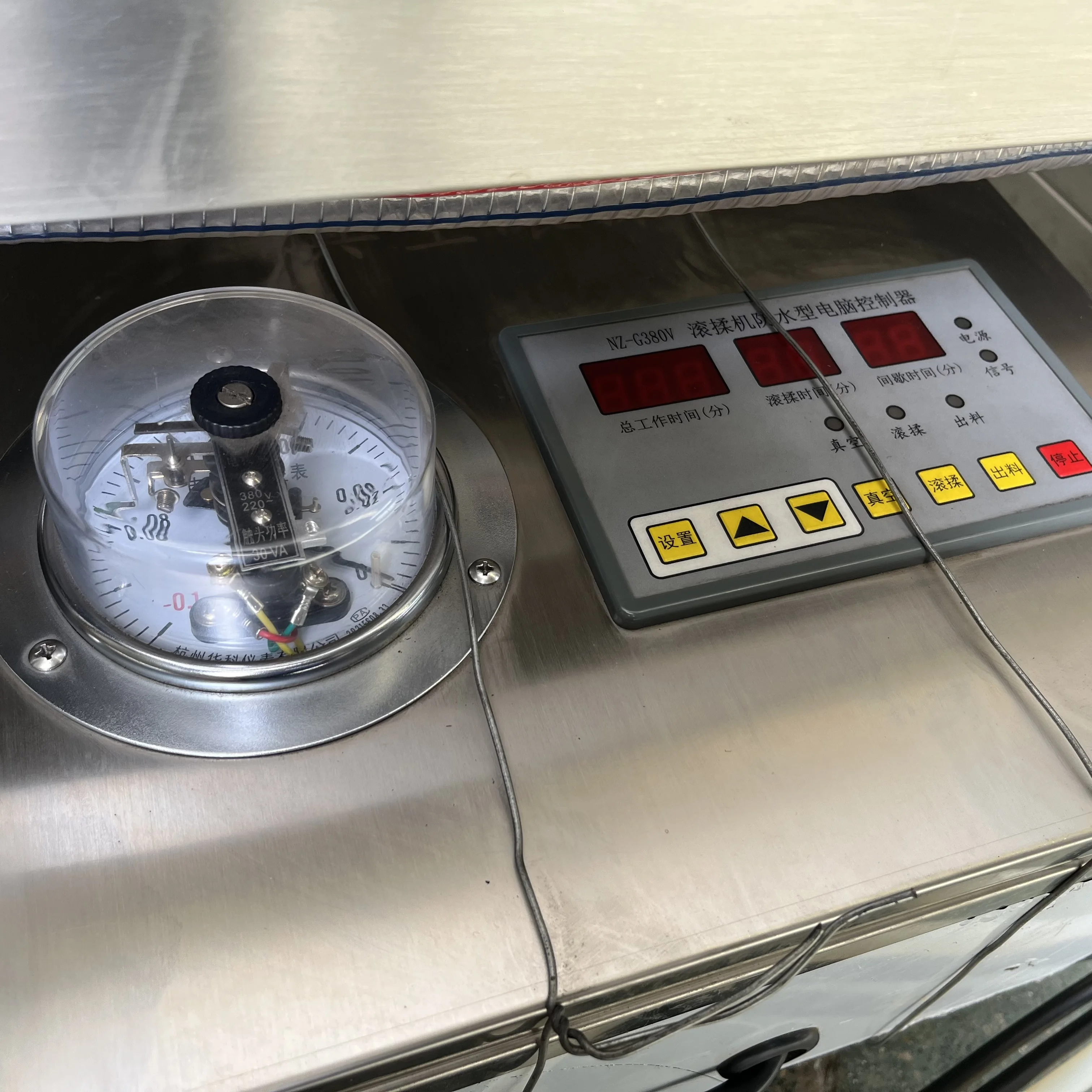

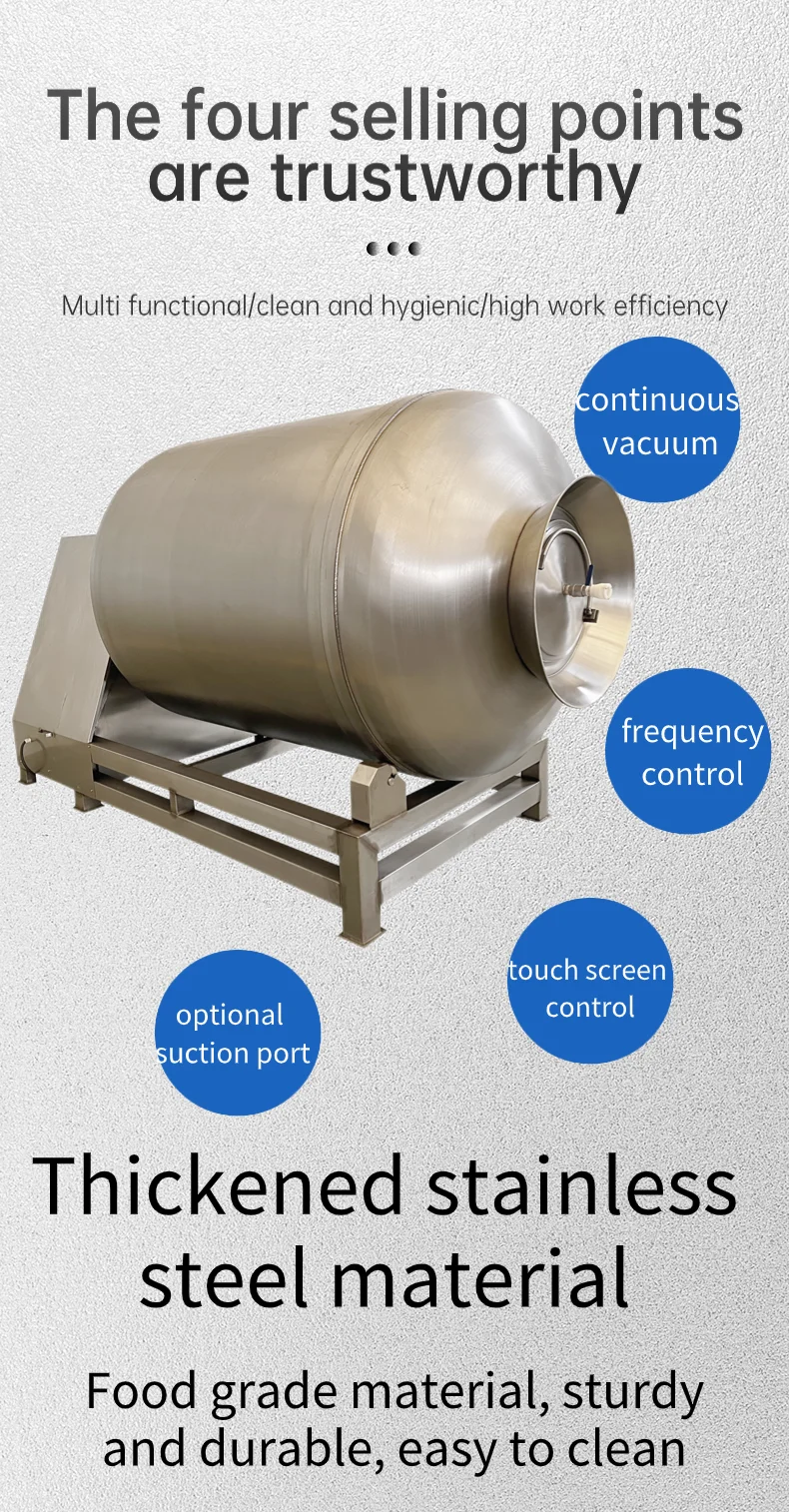

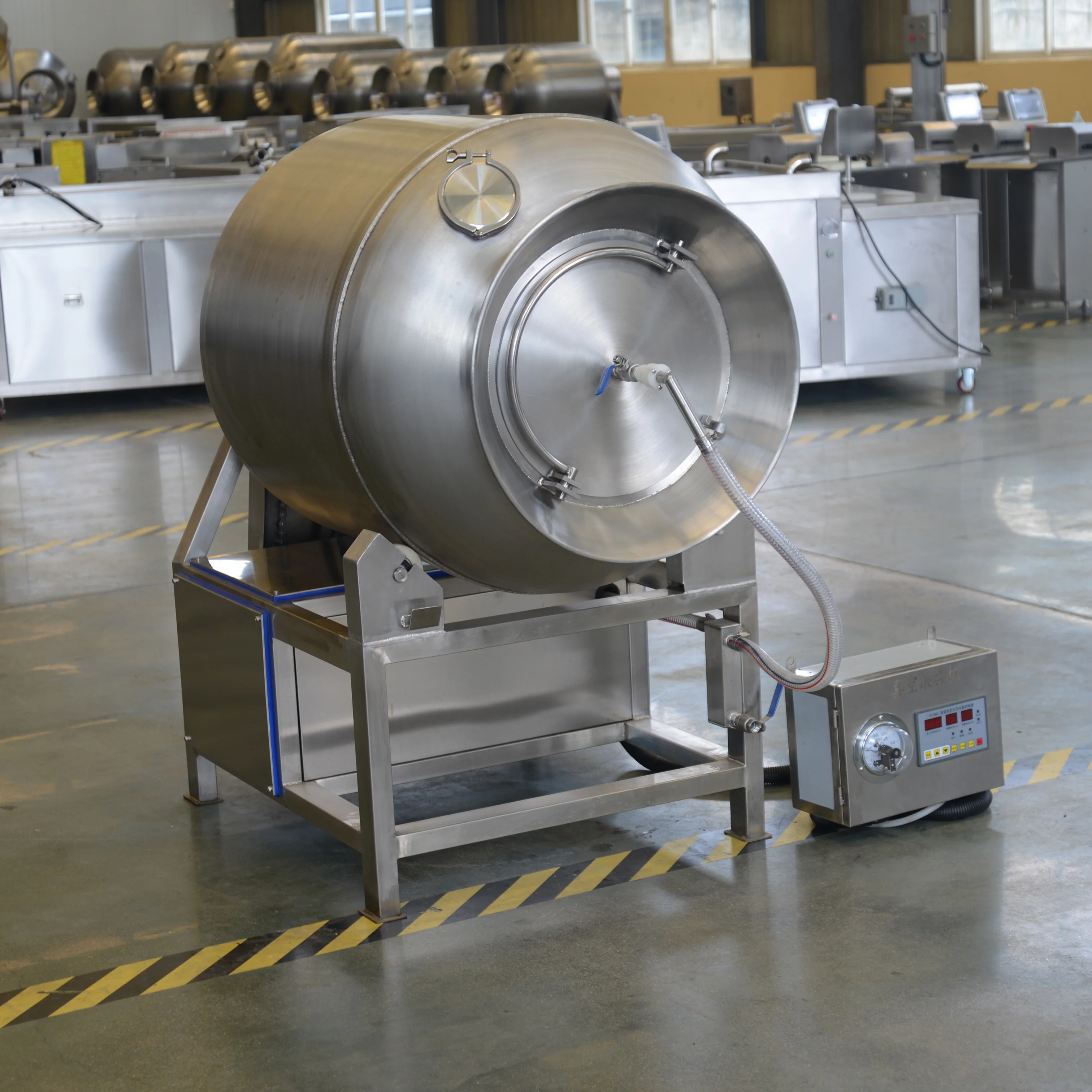

Has continuous vacuum function. There are two rolling methods to choose from: vacuum rolling (fixed vacuum degree) and breathing rolling (alternating vacuum pressure); The use of respiratory kneading function can effectively shorten kneading time and improve kneading efficiency; The vacuum gauge displays the vacuum level inside the rolling drum in real-time, allowing for real-time monitoring of the vacuum condition.

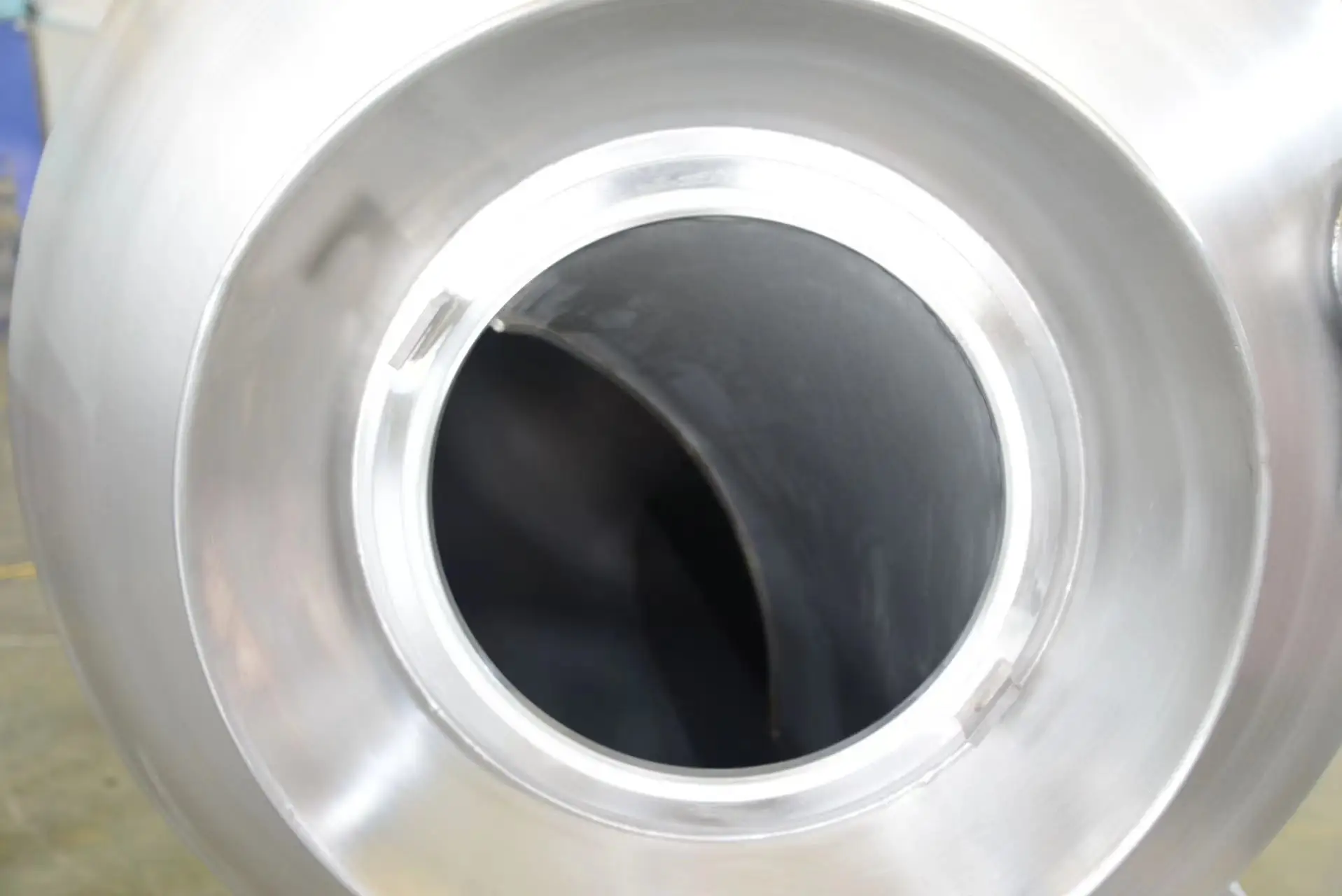

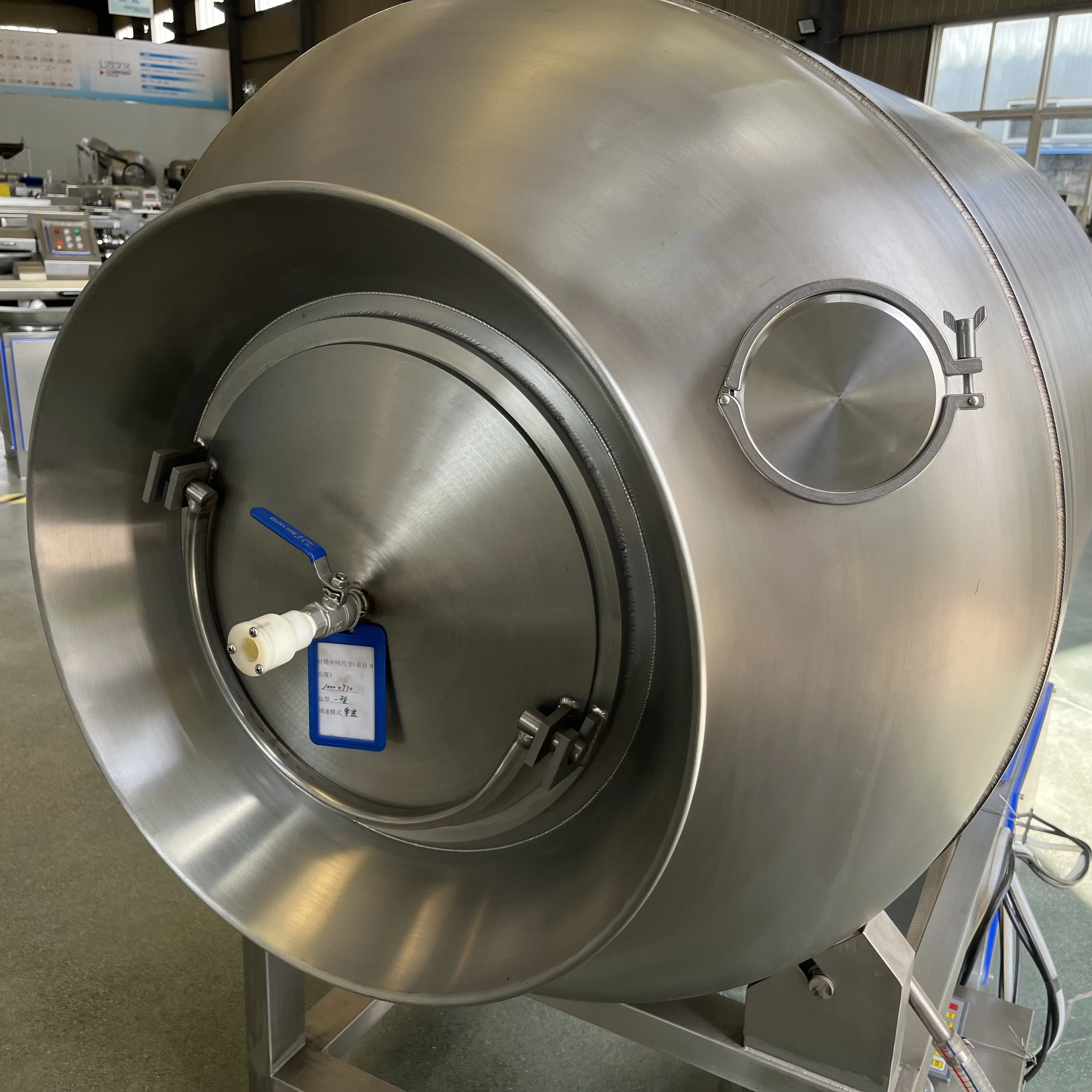

The inside and surface of the drum are finely polished and polished, with no hygiene dead corners, and the discharge position can be completely drained; And it can reduce additional temperature rise.


High standard hygiene design. The whole machine is made of high-quality SUS304 stainless steel material, and the bracket is made of stainless steel square tube

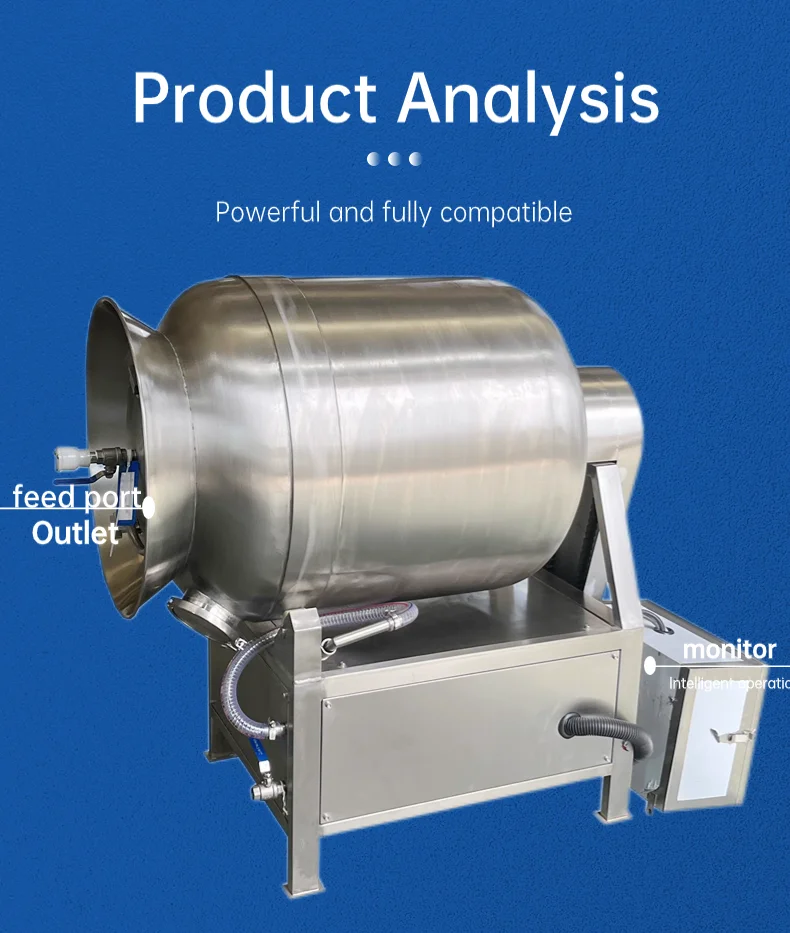

According to the characteristics of the product. You can choose manual loading, mechanical loading, or vacuum suction, with a vacuum suction port.
According to the different needs of various products, "single piece" or "V-shaped" propeller blades can be selected.


It can be controlled by touch screen, with more intuitive operation and good waterproof and moisture-proof performance.
Variable frequency infinite speed regulation. Start smoothly, reduce the impact of machine startup, and extend the service life of equipment; Save energy consumption; Adjustable speed.




Product Paramenters





Technical parameters of Hydraulic Vacuum Rolling Machine


model
SYGR-750
SYGR-1700
SYGR-2500
SYGR-3500
Volume (L)
750
1700
2500
3500
Reference feeding amount (kg)
340
900
1300
1800
Total power (kw)
5.25
9
13
13
Drum speed
frequency control
frequency control
frequency control
frequency control
 Dimensions (mm)
2800*1700*1800
3200*1800*2000
3500*2200*2200
3900*2200*2400
 Weight (kg)
1000
1500
2000
2500


Technical parameters of Tumbler


model
 Volume (L)
Reference feeding amount (kg/times)
Total power (kw)
Dimensions (mm)
Weight (kg)
SGR-50
50
30
1.1
850*510*940
100
SGR-100
100
50
1.5
1020*610*1050
130
SGR-200
200
100
1.5
1120*720*1210
150
SGR-300
300
150
2.25
1300*820*1320
210
SGR-400
400
200
2.25
1400*920*1400
260
SGR-500
500
250
2.4
1450*1020*1560
280
SGR-600
600
300
2.4
1600*1020*1560
300
SGR-800
800
400
4.55
1800*1020*1560
320
SGR-1000
1000
500
5.35
2000*1120*1660
350
SGR-1200
1200
600
6.85
2030*1230*1820
460
SGR-1500
1500
800
9.85
2230*1230*1820
490
SGR-1800
1800
900
7.55
2500*1230*1820
520
SGR-2000
2000
1000
7.55
2510*1330*1920
690
SGR-2400
2400
1200
9.5
3400*1430*1830
800
SGR-2700
2700
1400
11.5
3500*1530*1920
1000
SGR-3000
3000
1500
11.5
3600*1640*1980
1500
