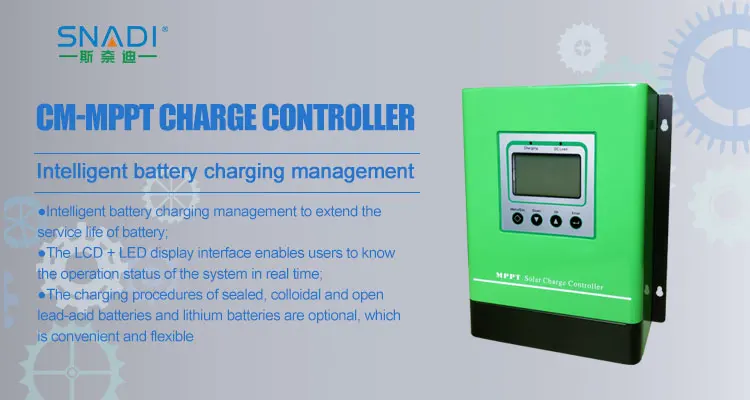

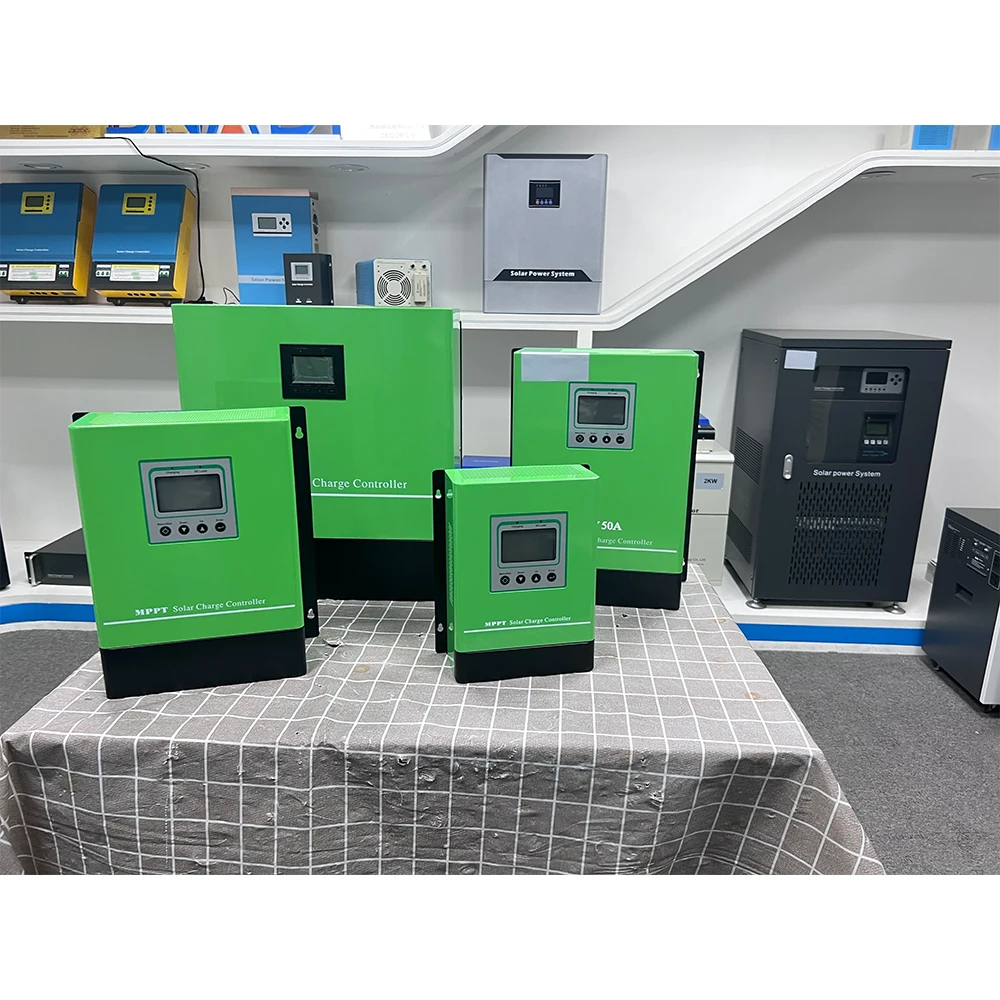

SNADI CM MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller
SNADI CM-MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller

SNADI CM MPPT 12/24/48V 60A Mppt Off Grid Solar Charge Controller

Share on (1601228474615):


Price:$63.00 - $71.00

Quantity:


Product Overview

Description





Home Complete Solar System Product Kit Battery Charger Controllers Price PV
12V 24V 48V MPPT Solar Charge Controller


















Model: MP- 20 / 30 / 40 / 50 / 60
20 A
30 A
40 A
50 A
60 A
Charging Mode
MPPT Automatic Maximum Power Point Tracking
Charging Method
Three stages : Constant Current ( MPPT), Balanced Charging,
Floating Charge
System Type
12 V/ 24 V/ 48 V
Automatic Identification/ Manual Setting


System
Identification
Voltage Range

12 V System

DC 9 V- DC 15 V
24 V System
DC 18 V- DC 30 V
48 V System
DC 36 V- DC 60 V
Soft Start Time
12 V/ 24 V/ 48 V
≤10 s
Dynamic Response Recovery Time

12 V/ 24 V/ 48 V

≤500 us
Static Power
12 V/ 24 V/ 48 V
≤2 W
Machine Efficiency
12 V/ 24 V/ 48 V
≥96 . 5 %
PV Module Utilization
12 V/ 24 V/ 48 V
≤99 . 97 %
Input Characteristics


MPPT Operating
Voltage Range
12 V System
DC 18 V- DC 150 V
24 V System
DC 34 V- DC 150 V
48 V System
DC 65 V- DC 150 V


Input Low Voltage
Protection Point
12 V System
DC 16 V
24 V System
DC 30 V
48 V System
DC 60 V


Input Low Voltage
Recovery Point
12 V System
DC 18 V
24 V System
DC 34 V
48 V System
DC 65 V
Limit Input Voltage
12 V/ 24 V/ 48 V
DC 160 V
Overvoltage Protection
12 V/ 24 V/ 48 V
DC 150 V
Overvoltage Recovery
12 V/ 24 V/ 48 V
DC 145 V
Maximum Solar
Panel Input Power
12 V System
280 W
420 W
570 W
700 W
900 W
24 V System
550 W
840 W
1130 W
1400 W
1700 W
48 V System
1100 W
1650 W
2270 W
2800 W
3400 W
Output Characteristics

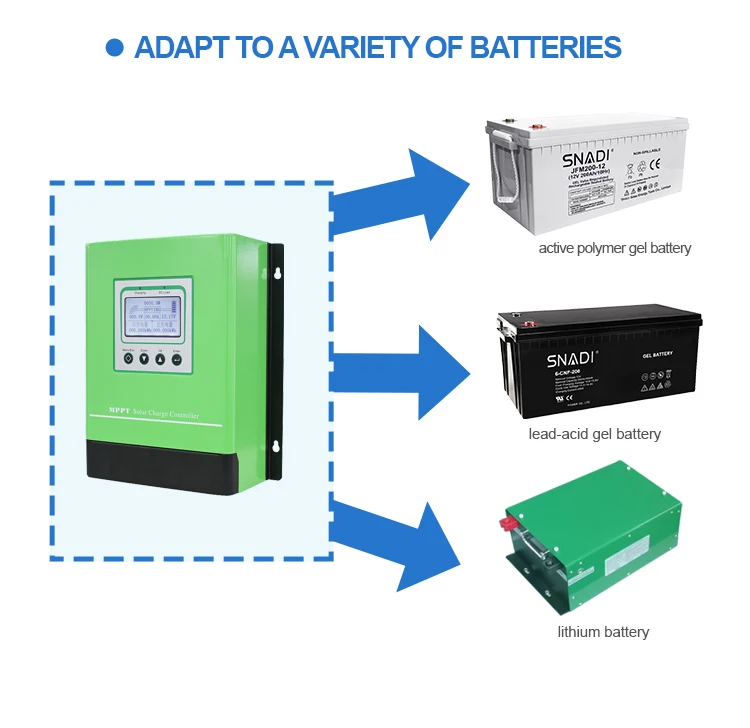

Optional Battery Type (Default is lead - acid maintenance- free
battery)

12 V/ 24 V/ 48 V
Lead- acid maintenance- free Battery, G e l Battery, Liquid Battery, Lithium Battery ( Can also be customized for other types of
battery)
