ZOYI ZT MD1 tweezers style LCR meters resistance capacitance inductance tester for measuring SMD components
- Category: >>>
- Supplier: Nanning Bokun Instrument Equipment Co. Ltd.
Share on (1601228484411):
Product Overview
Description

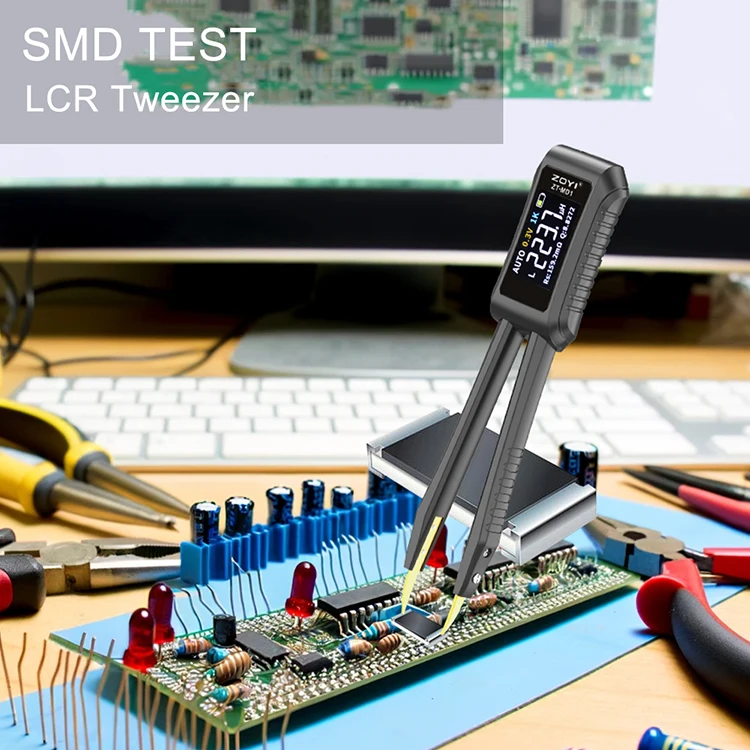

ZOYI ZT-MD1 Mini Smart Tweezer LCR SMD Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools
Product Description

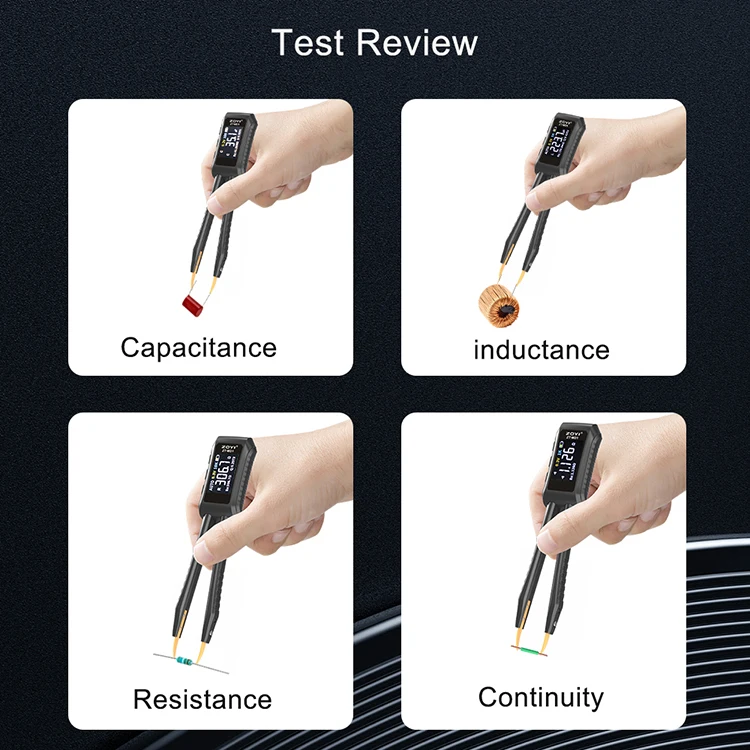

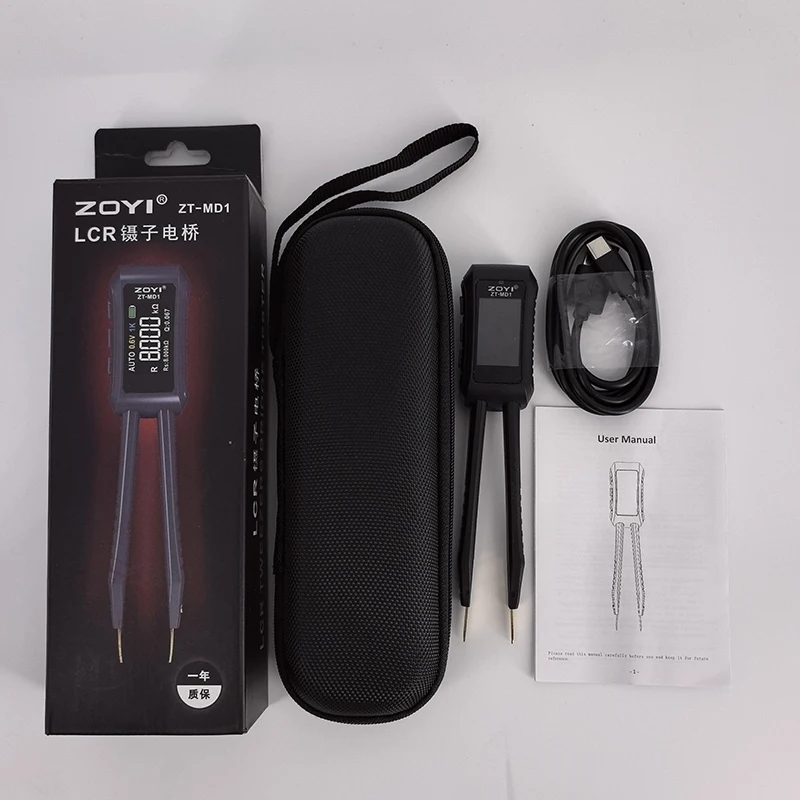

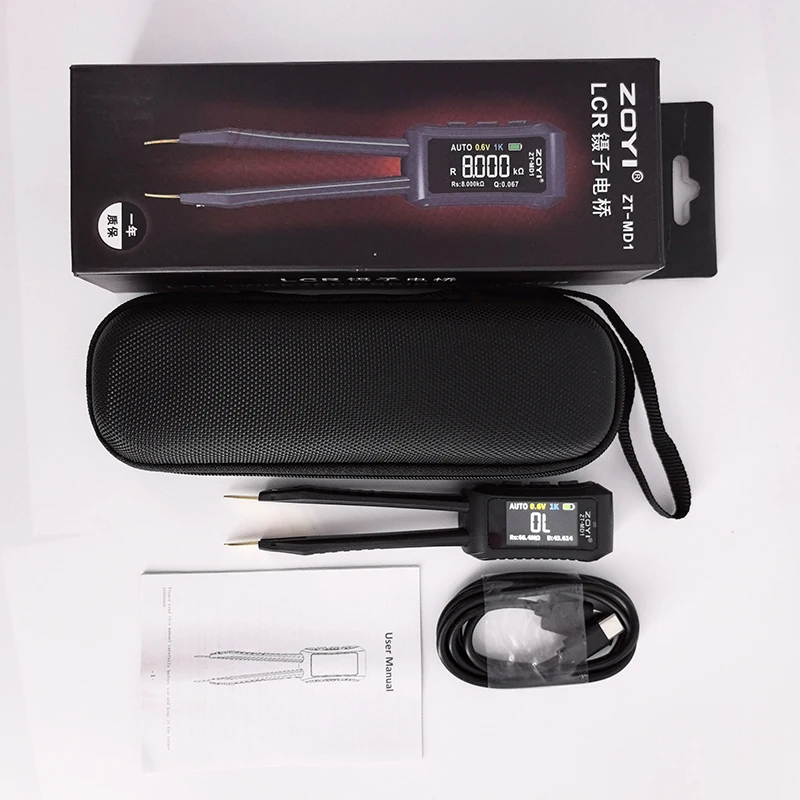

REAL PHOTOS
Specifications
Features | L, C, R, D, Q, Rs |
Mode | Auto, Resistance, Capacitance, Inductance, Continuity |
Frequency | 100Hz,1KHZ,10KHz |
Voltage | 0.3V,0.6V |
Ranging | AUTO |
Diode | Yes |
Screen | OLED |
Sampling | 1/s |
Low battery | With indicator |
Backlight range | 10%~100% |
Size | 146*30*18mm |
Weight | 37g |
Battery | 400mA Lithium |
Charger | USBType-C, 5V/1A |
Firmware Upgrade | Yes |

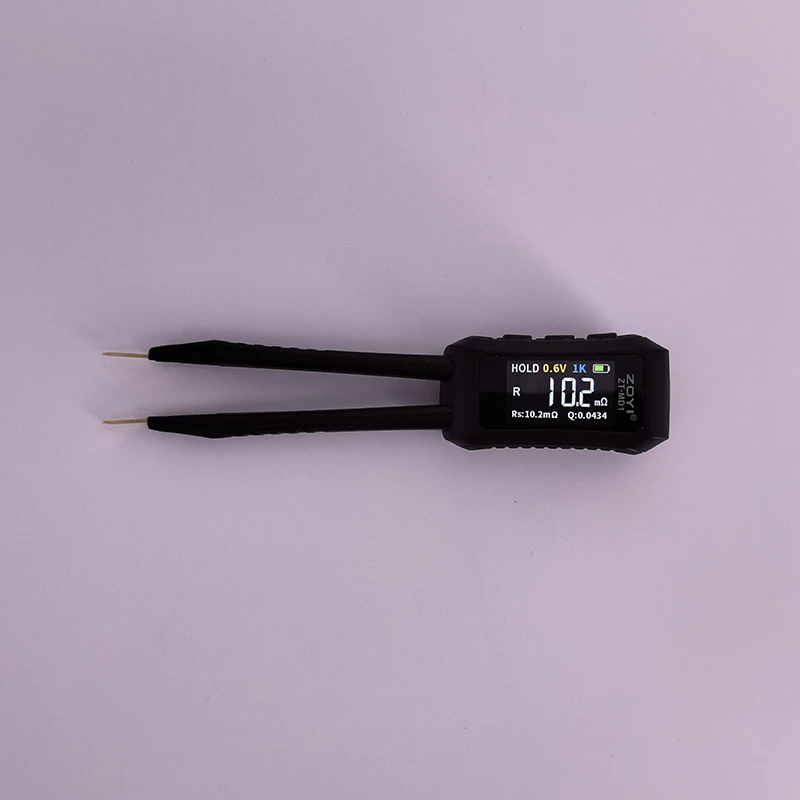

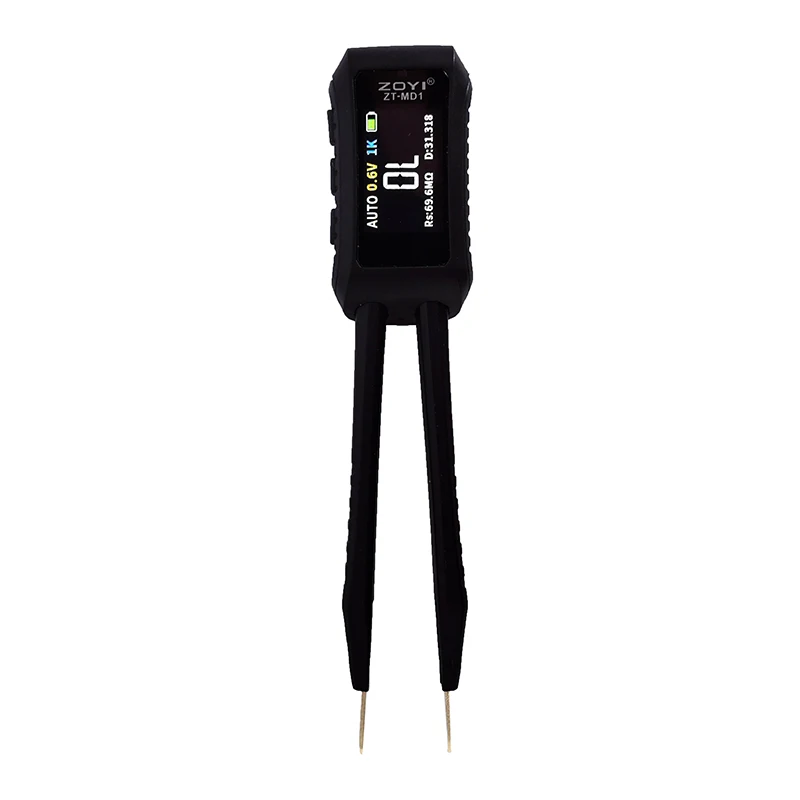

ZOYI ZT-MD1 tweezers-style LCR meters resistance capacitance inductance tester for measuring SMD components
Technical specifications | ||||
Measurement | Range | 100Hz Accuracy | 1KHz Accuracy | 10KHz Accuracy |
Resistance | 1MQ~10MQ 1KQ~10MQ 1Q~10KQ 1mQ~100 | 5%+/-5 1%+/-5 1%+/-5 2%+/-5 | 5%+/-5 0.5%+/-5 0.5%+/-5 2%+/-5 | ------- 1%+/-5 0.5%+/-5 2%+/-5 |
Capacitance | 1mF~20mF luF~lmF 1nF~luF 1pF~10nF | 5%+5 2%+/-5 2%+/-5 ------- | 5%+/-5 2%+/-5 0.5%+/-5 2%+/-5 | ------ 2%+/-5 0.5%+/-5 2%+/-10 |
Inductance | 1H~60H 1mH~1H 10uH~1mH 1uH~10uH | 5%+/-5 2%+/-5 2%+/-5 ------ | 5%+/-5 2%+/-5 0.5%+/-5 2%+/-10 | ------ 2%+/-5 0.5%+/-5 2%+/-10 |
About ZOYI
ZOYI company manufacture and provide multimeters, clamp meters, infrared thermometers, smart socket testers, coating thickness gauges, and voltage detectors. In the future will expand for more testing categories.
