Product Overview
Description
Product Description

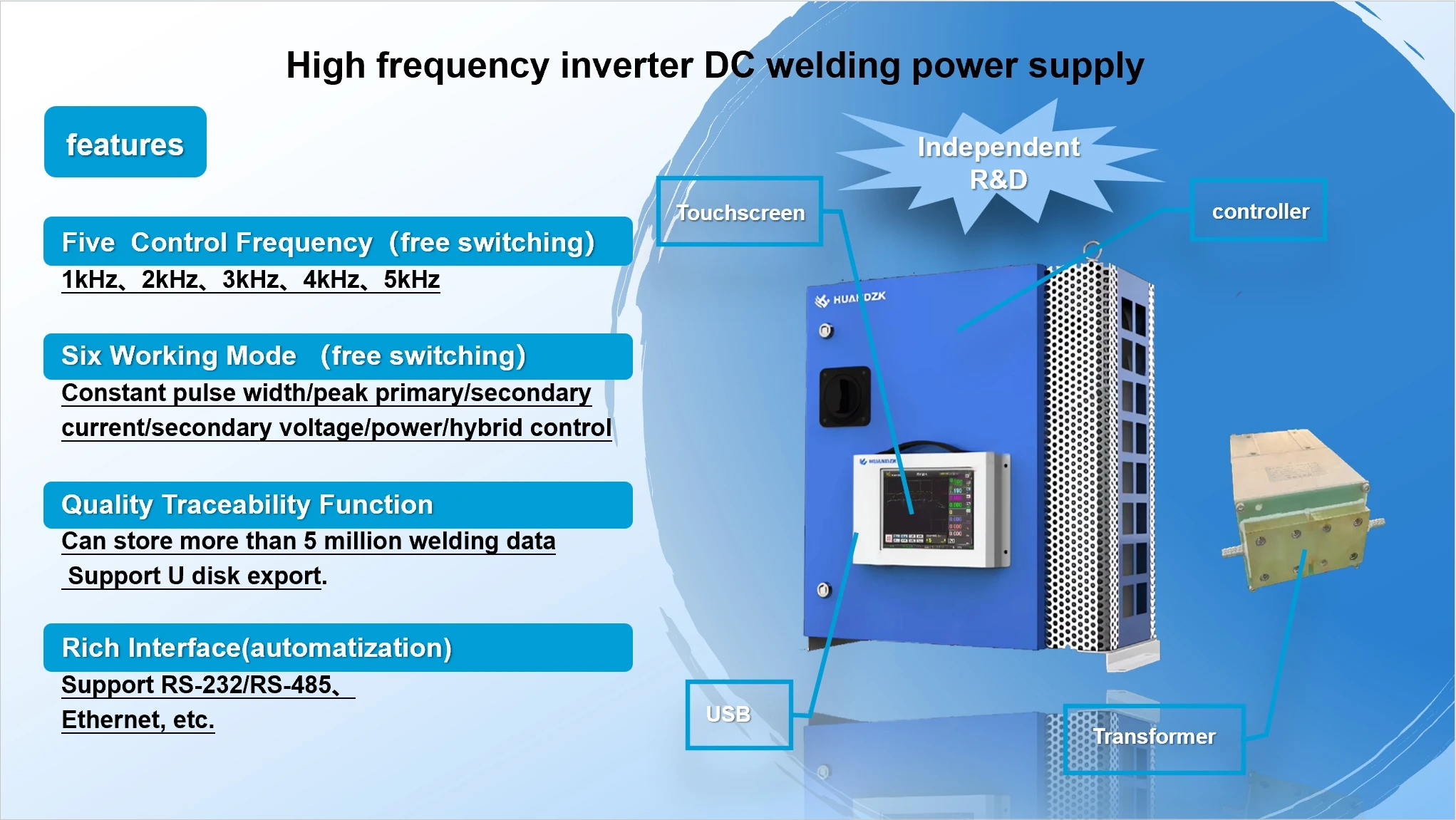

Power Supply Specifications：
Model | IDP-600 | IDP-800 | IDP-1000 | ||||
Supply Voltage | 3-phase 380V (50/60Hz) | ||||||
Control frequency | 1kHz/2kHz/3kHz/4kHz/5kHz | ||||||
Max. output current | 600A(Primary) | 800A(Primary) | 1000A(Primary) | ||||
Rated power | 120kVA | 170kVA | 220kVA | ||||
Control method | Constant pulse width/peak primary/secondary current/secondary voltage/power/hybrid control | ||||||
Number of welding norms | 32 group norms | ||||||
Welding time setting | Pre-pressure time | 0-9999ms | |||||
Pressurization time | 0-9999ms | ||||||
Slow rise 1 time | 0-9999cyc | ||||||
Welding 1 time | 0-9999cyc | ||||||
Slow down 1 time | 0-9999cyc | ||||||
Cooldown | 0-9999cyc | ||||||
Slow rise 2 time | 0-9999cyc | ||||||
Welding 2 time | 0-9999cyc | ||||||
Slow down 2 time | 0-9999cyc | ||||||
Slow rise 3 time | 0-9999cyc | ||||||
Welding 3 time | 0-9999cyc | ||||||
Slow down 3 time | 0-9999cyc | ||||||
Holding time | 0-9999ms | ||||||
Rest period | 0-9999ms | ||||||
Finish time | 0-9999ms | ||||||
Number of cycles | 0-9 | ||||||
Setting range for secondary current | 0.1-25.00KA | 0.2-35.00KA | 0.3-45.00KA | ||||
Setting range of pulse width | 1%-100% | ||||||
Setting range for secondary voltage | 0.02-10V | ||||||
Dimensions/mm(L*W*H) | 578*600*305mm | ||||||
Matching Transformer | IDT-925C | IDT-935C | IDT-945C | ||||
Transformer Specifications：
Model | IDT-925C | IDT-935C | IDT-945C | ||
Supply Voltage | PWM 500V | PVM500V | PVM500V | ||
Rated power | 120KVA | 170KVA | 220KVA | ||
Rated Primary Voltage | 500V | 500V | 500V | ||
No load secondary voltage | 9.1V | 11.3V | 11V | ||
Max. utilization rate | 25000A(5%) | 35000A(10%) | 45000A(10%) | ||
Cooling method | water-cooling | water-cooling | water-cooling | ||
Input frequency | 1-5kHz | ||||
Transformer volume ratio | 55:1 | 44:1 | 45:1 | ||
Dimension | 268*160*125mm | 333.5*160*125mm | 343*146*106mm | ||
Weight | 19KG | 19.5KG | 30KG | ||
