Tobee Effluent Handling
$12,600

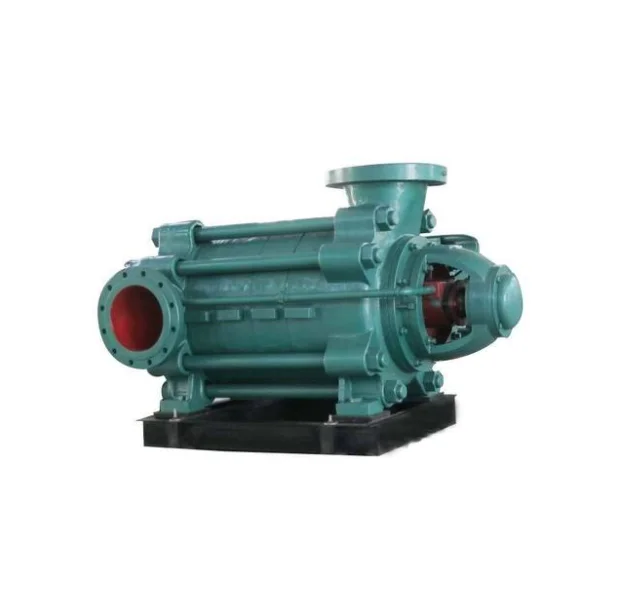

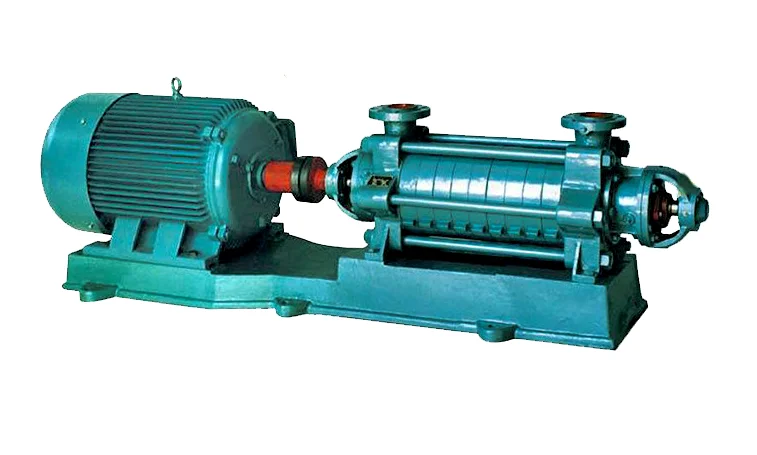

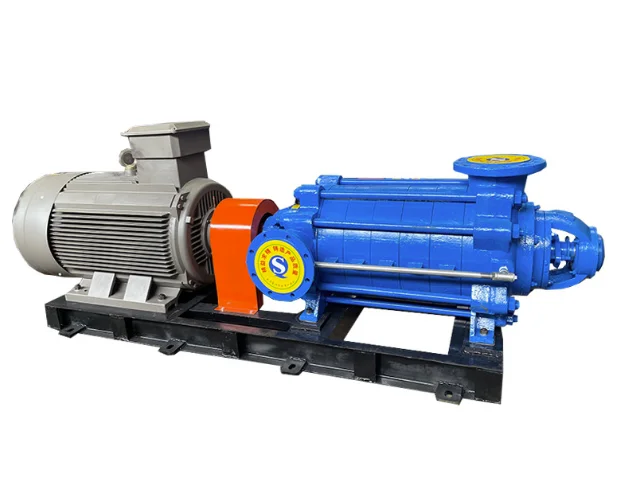

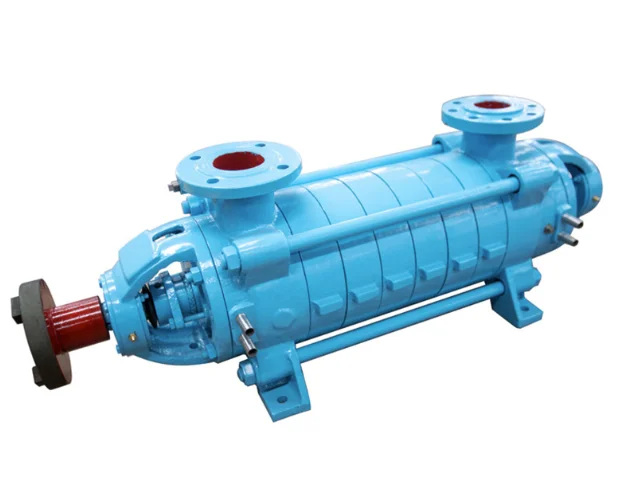

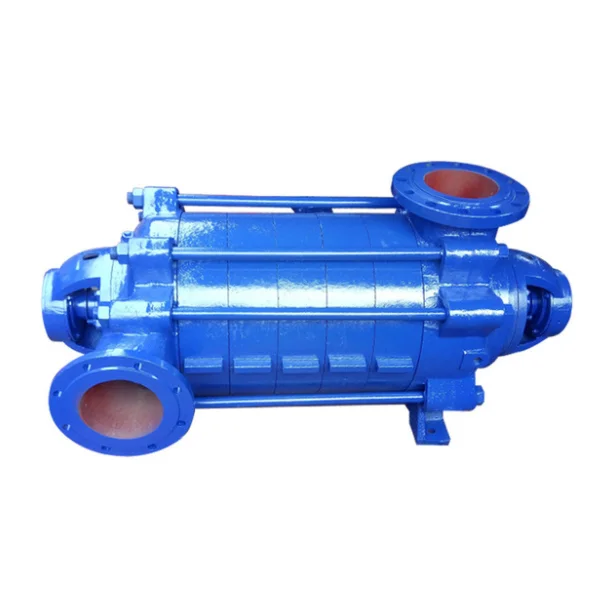

D type horizontal multistage, DG multistage booster clean water pump with large flow and high lift
- Category: >>>
- Supplier: Jiangsu Shuanglian Pump Industry Co. Ltd.
Share on (1601228512219):
Product Overview
Description
Product Description
Horizontal multi-stage centrifugal pump
Horizontal multi-stage centrifugal pumps are mainly divided into the following types according to their usage scope:
1. D-type: D-type pumps are used to transport clean water that does not contain solid particles and has a temperature below 80 ℃, or liquids with physical and chemical properties similar to clean water. They are suitable for use in mining or urban water supply and drainage projects.
1. D-type: D-type pumps are used to transport clean water that does not contain solid particles and has a temperature below 80 ℃, or liquids with physical and chemical properties similar to clean water. They are suitable for use in mining or urban water supply and drainage projects.
2. DF type: The DF type pump is designed to transport corrosive liquids at temperatures ranging from -20 ℃ to 105 ℃, without solid particles. It can also be used as a feed pump for sub high pressure boilers, with an allowable inlet pressure of 0.6MPa. Users can reasonably choose the material, sealing form, pump structure, and determine the capacity of the electric motor of the pump based on the name, concentration, pump inlet pressure, usage temperature, and specific gravity of the conveying medium.
3. DY type: The DY type pump is used to transport oil and petroleum products that do not contain solid particles, have a temperature of -20 ℃~105 ℃, and a viscosity of less than 120 cSt.
4. DM type: DM type pumps are used to transport mine water and similar liquids containing small amounts of solid particles, with particle diameters less than 0.5mm and temperatures below 80 ℃.
5. DG type: DG type pumps are used to transport clean water that does not contain solid particles and has a temperature below 105 ℃, or liquids with physical and chemical properties similar to clean water. They are suitable for feeding water to medium, small, medium, and low-pressure boilers or transporting hot water and similar hot water media.
3. DY type: The DY type pump is used to transport oil and petroleum products that do not contain solid particles, have a temperature of -20 ℃~105 ℃, and a viscosity of less than 120 cSt.
4. DM type: DM type pumps are used to transport mine water and similar liquids containing small amounts of solid particles, with particle diameters less than 0.5mm and temperatures below 80 ℃.
5. DG type: DG type pumps are used to transport clean water that does not contain solid particles and has a temperature below 105 ℃, or liquids with physical and chemical properties similar to clean water. They are suitable for feeding water to medium, small, medium, and low-pressure boilers or transporting hot water and similar hot water media.
Application | Other, Automotive Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Marine, Metal and Equipment Manufacturers |
Horsepower | 30-200KW |
Power Source | Electric |
Pressure | 0.8-2.5Mpa |
Outlet Size | 40-300mm |
Voltage | 220V/380V/custom made |
Power | 3-250kw |
Product name | D series horizontal centrifugal pump |
Materail | cast iron/stainless steel/copper |
Color | customizable |
capacity(m³/h) | 6~740 |
Certification | Other |
Usage | Emergency water supply/agricultural irrigation |
Hot Sell Products
Application
Packing And Shipping
Company Profile

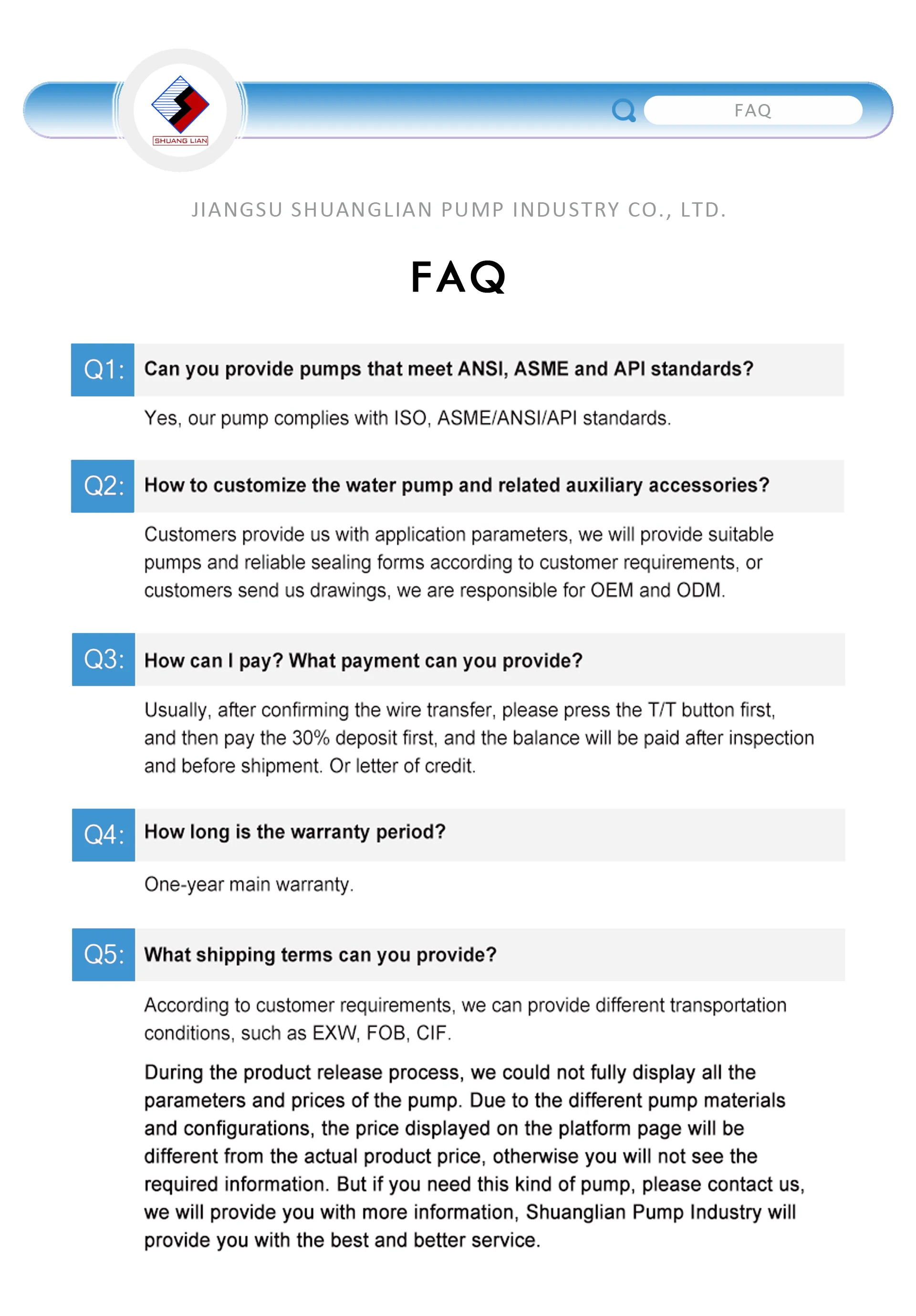

FAQ
