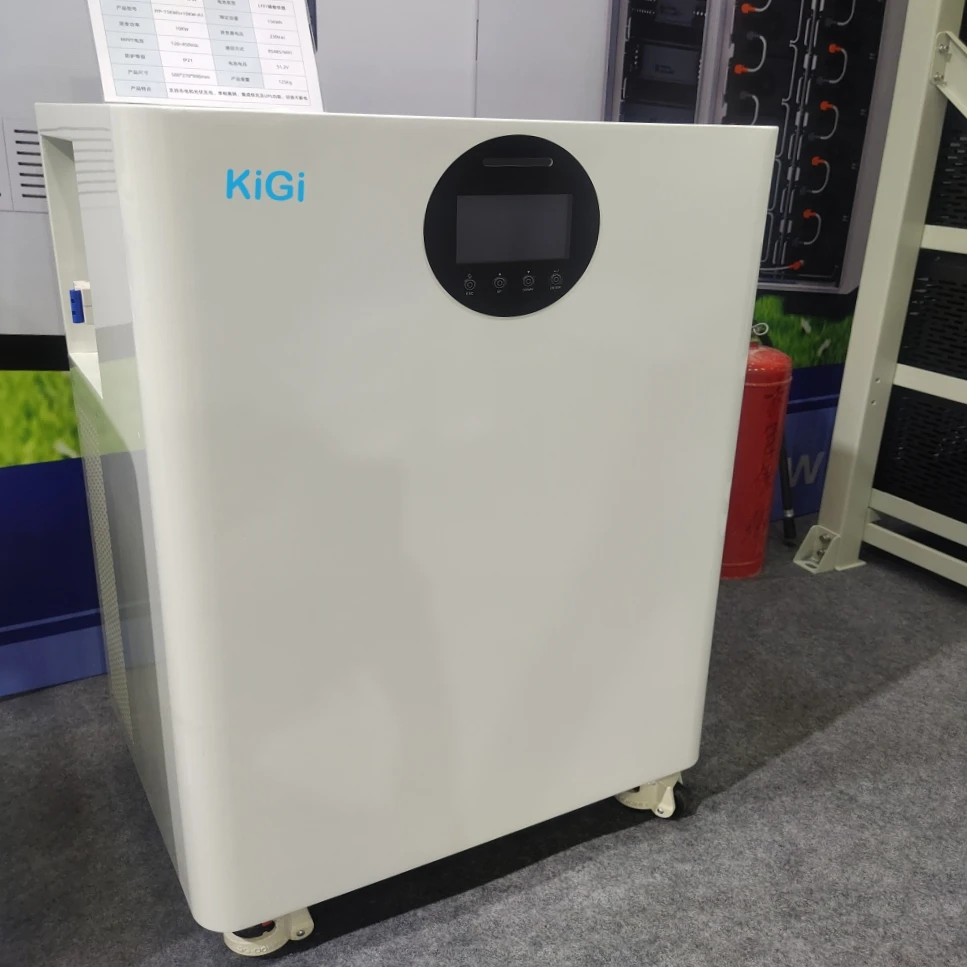

KIGI high voltage all in one ess energy storage 5000W 10kwh LiFePO4 Lithium Battery pack
- Category: >>>
- Supplier: Xiamen Kigienergy Technology Co. Ltd.Xiamen Ltd.
Share on (1601228583317):
Product Overview
Description
Products Description

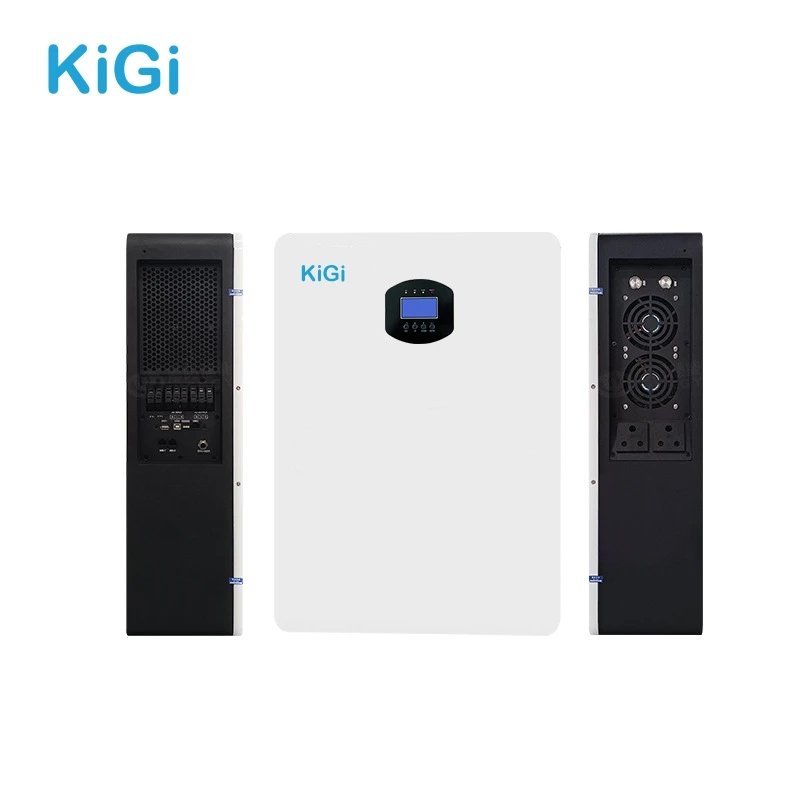

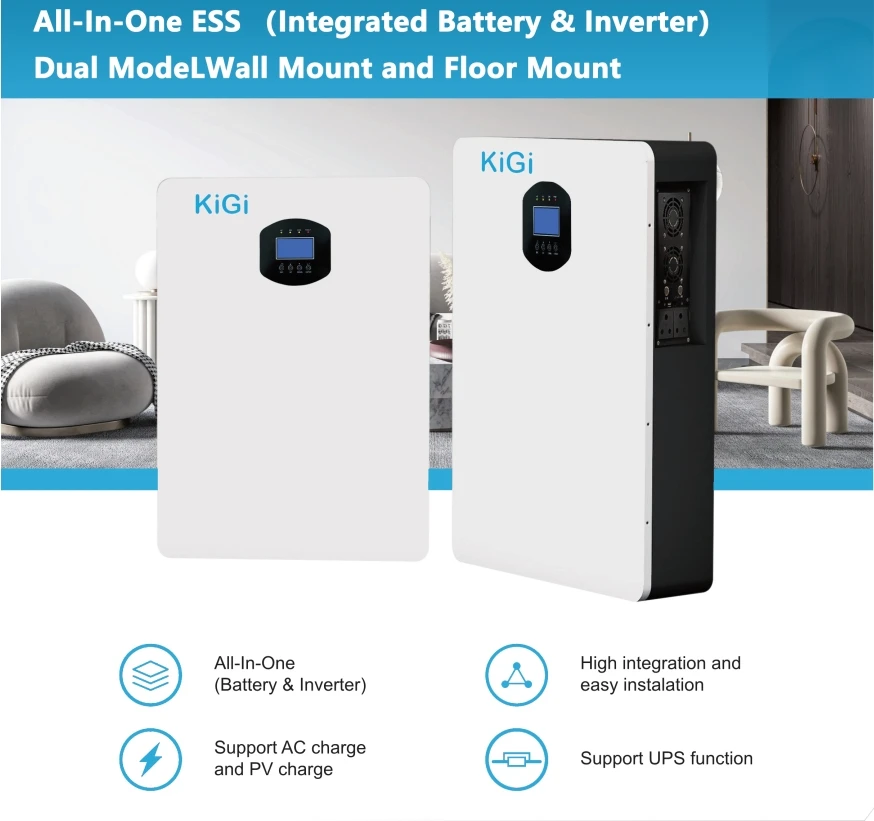

KIGI All-In-One ESS Solar Panel with Integrated AC Inverter and Battery
The battery and inverter all in one ESS is the core of the photovoltaic power generation system, responsible for converting the direct current generated by the photovoltaic cells into alternating current, supplying it to the power grid or user loads, and having multiple protection functions such as overvoltage, undervoltage, and overload. It can also optimize energy distribution through intelligent control, achieve coordinated operation with energy storage batteries and the power grid, and is a key equipment to ensure efficient and stable operation of photovoltaic power generation systems.KIGI high voltage all in one ess energy storage 5000W 10kwh LiFePO4 Lithium Battery pack

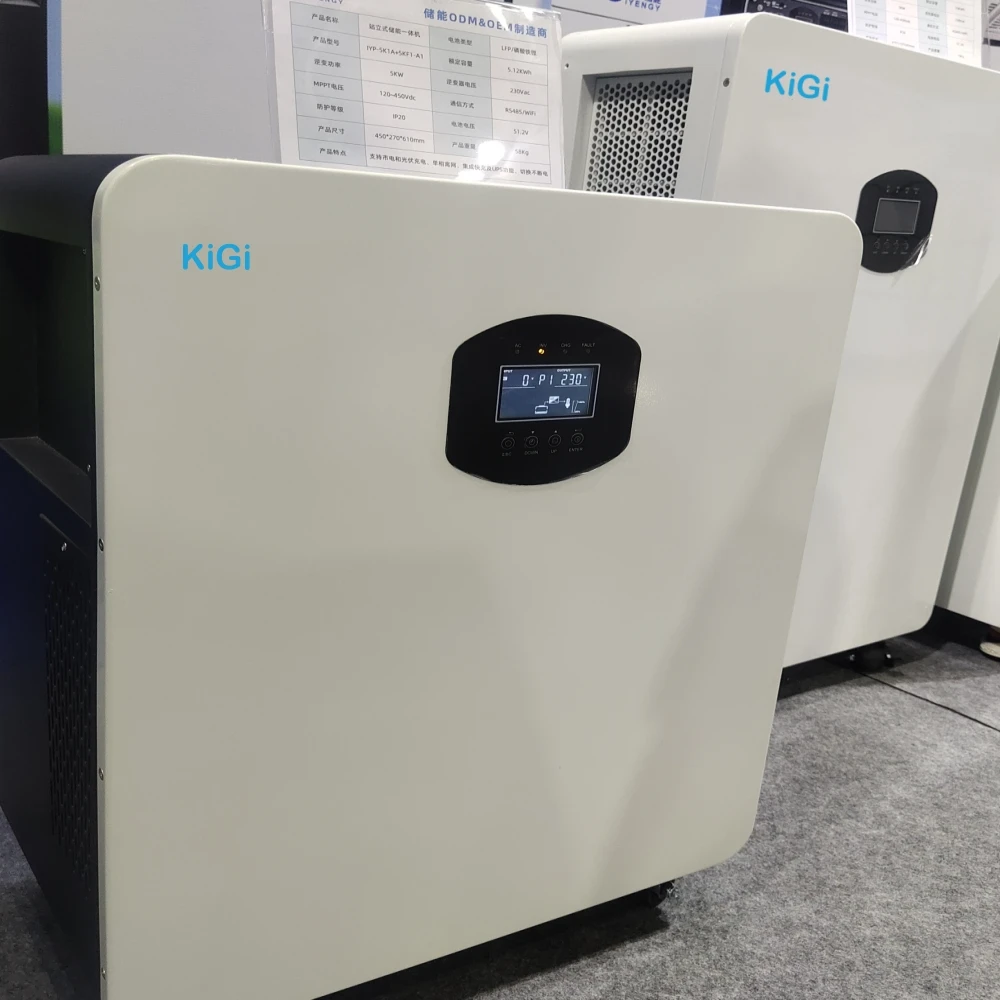

Details Images
Features

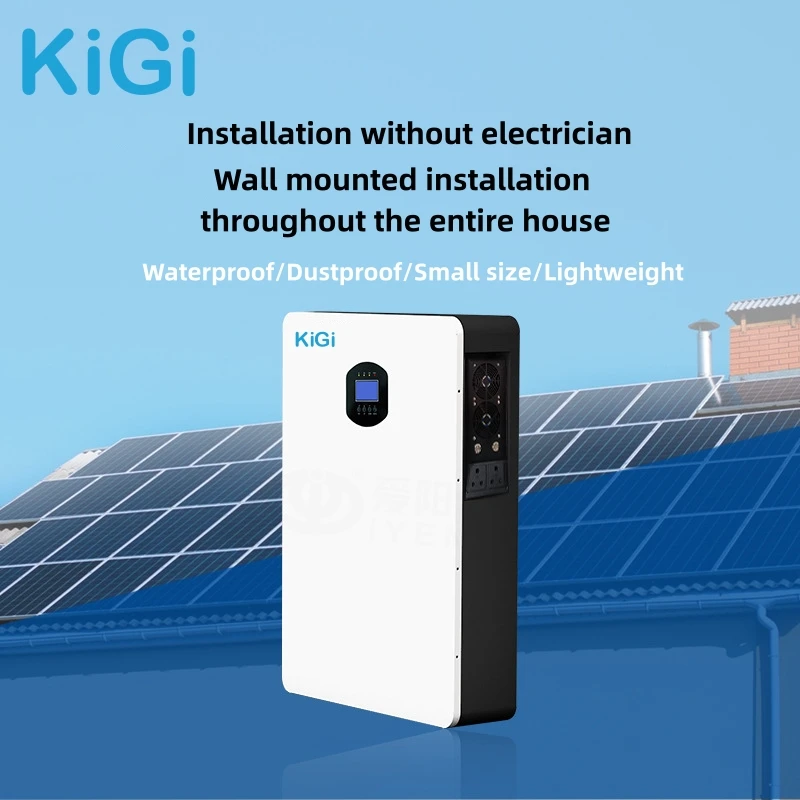

1. Wall-mounted， easy to install
2. Inverter and battery all in one

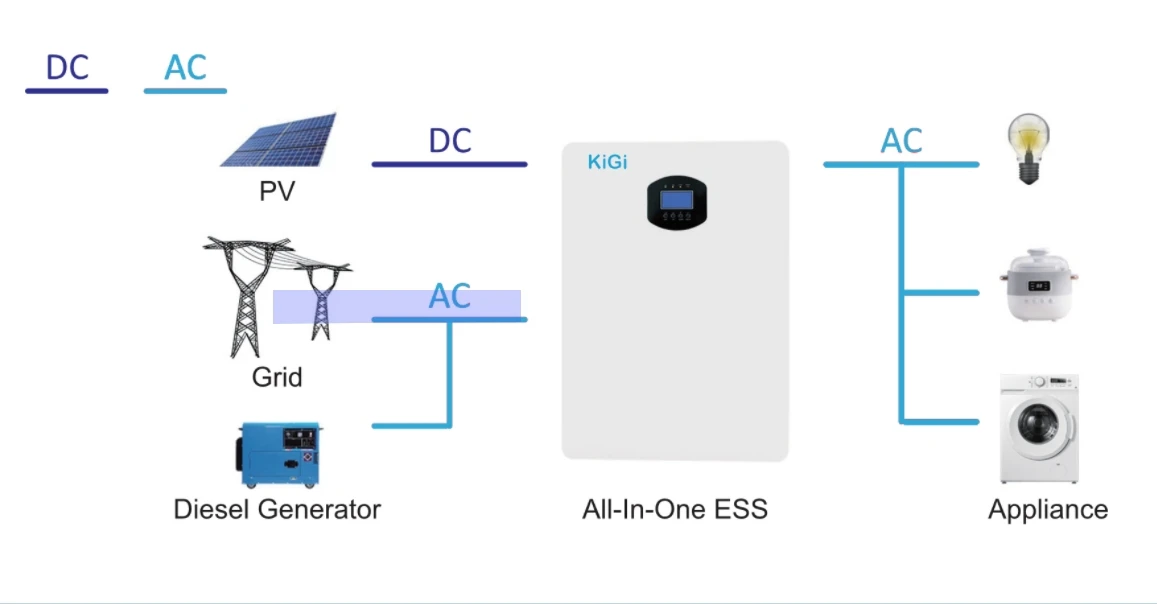

3. Support photovoltaic and municipal power access
4. Intelligent management
5. Safe and save house space

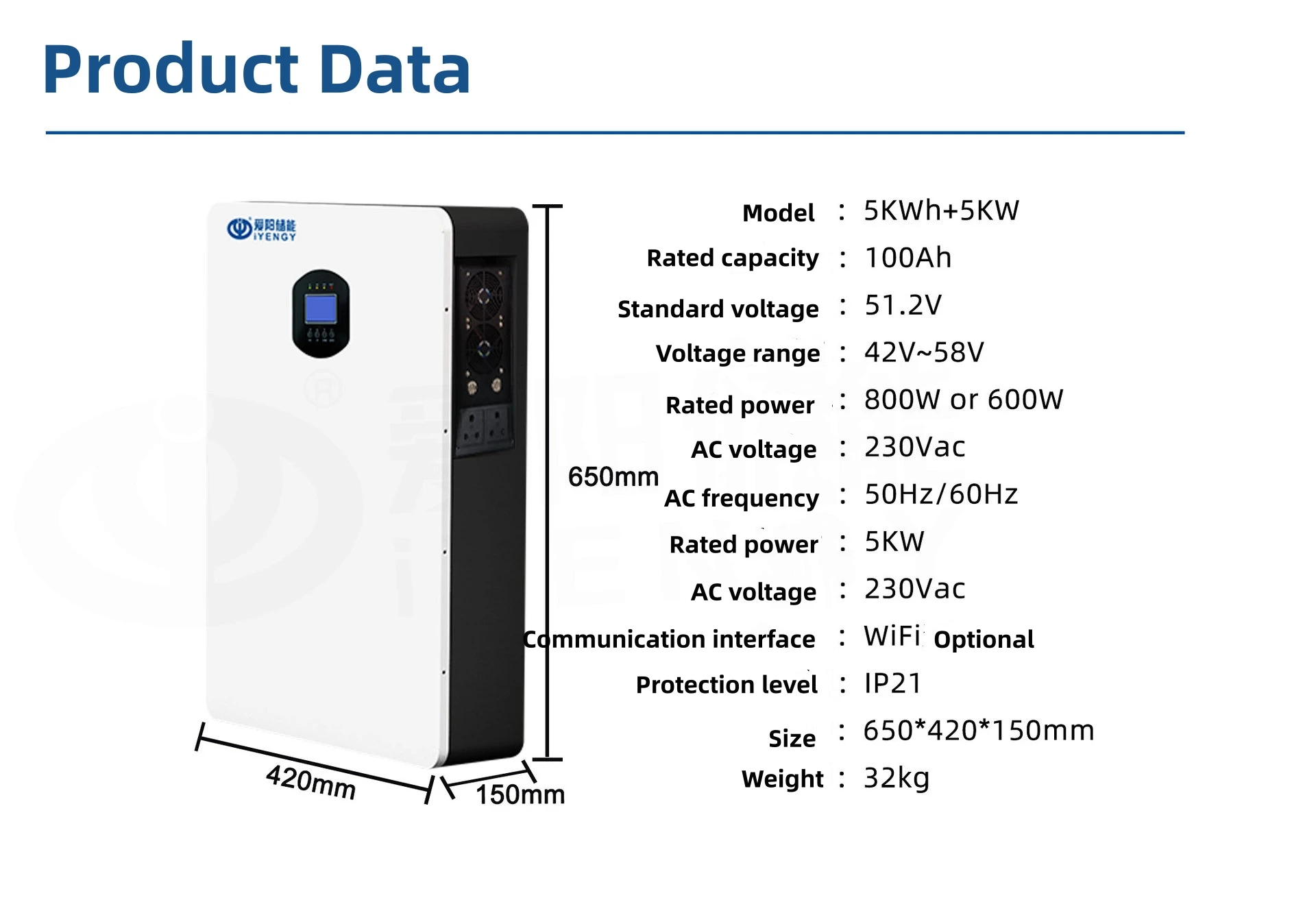

Specification
Model | 1.28kwh+1kw | 2.56kwh+3kw | 5.12kwh+5kw | 10.24kwh+10kw | |||
Battery Type | LiFePO4 Battery | ||||||
Battery Energy | 1.28KWh | 2.56KWh | 5.12KWh | 10.24KWh | |||
Nominal voltage | 12.8V | 25.6V | 51.2V | 51.2V | |||
Rated capacity | 100Ah | 100Ah | 100Ah | 100Ah | |||
Voltage Range | 11.0~14.0V | 22.0~28.0V | 42.0~57.0V | 42.0~57.0V | |||
PV | |||||||
Max. Power | 600w | 3000W | 6000W | 10.4KW | |||
Max. PV voltage | 150Vdc | 450Vdc | 500Vdc | 500Vdc | |||
MPPT Voltage Range | 20~150Vdc | 30~400Vdc | 60~450Vdc | 60~450Vdc | |||
MAX. PV charge current | 40A | 80A | 80A | 80A*2 | |||
AC Output | |||||||
Rated Power | 1000W | 3000W | 5000W | 10000W | |||
AC Voltage | 230Vac±5% | ||||||
AC Frequency | 50Hz/60Hz | ||||||
Efficiency | ≤93% | ≤94% | ≤94% | ≤94% | |||
Transfer Time | 10ms(for PC) 20ms(for Appliance) | ||||||
Waveform | Pure sine wave | ||||||
AC Input | |||||||
Rated AC Voltage | 230Vac | ||||||
AC Voltage Range | 170-280Vac(for PC)90-280Vac(for Applis) | ||||||
Frequency Range | 50Hz/60Hz(Auto Sensing) | ||||||
General Parameters | |||||||
Altidude | ≤2000m | ||||||
Work Temperature | -10℃-50℃ | ||||||

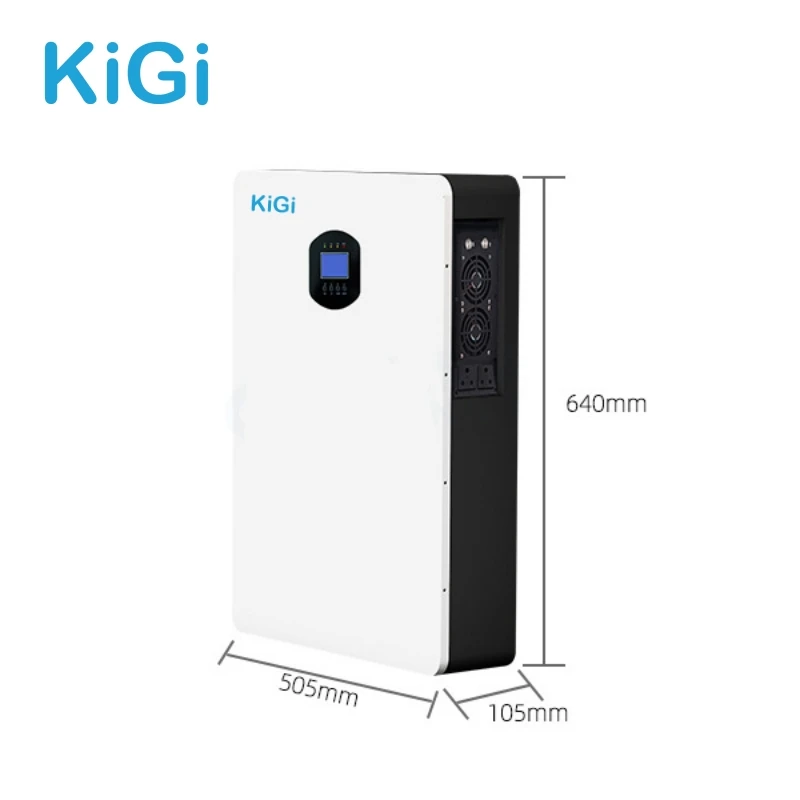

Size（mm） | 450*140*280 | 450*140*570 | 500*150*730 | 620*150*1300 | |||
Weight(kg) | 25 | 32 | 58 | 95 | |||
Packing & Delivery
* Timely delivery
* Safe transportation
* Reasonably plan transportation modes
* Economical and practical
* Safe transportation
* Reasonably plan transportation modes
* Economical and practical

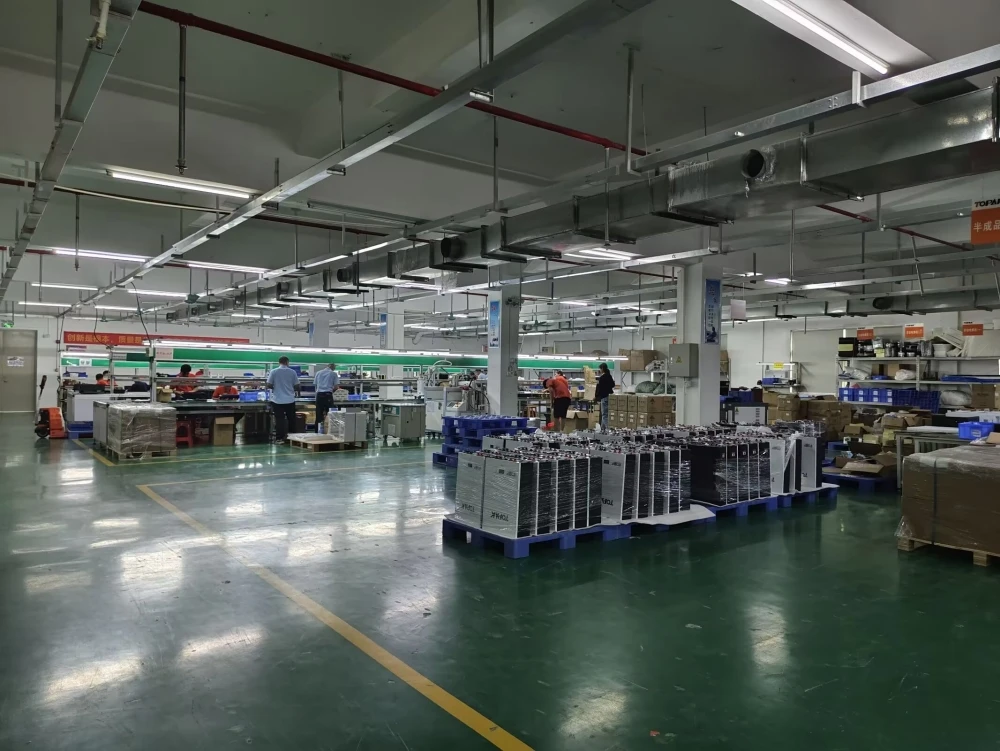

Company Profile
The headquarters of Xiamen Kigienergy Technology Co., Ltd. Is located in Fujian, China.It is a high-tech enterprise specializing in the field of new energy. The core business includes the research and development, production, sales and service of solar panels, solar inverters, photovoltaic brackets, energy storage batteries, solar power generation systems, solar cleaning machines and other products, and undertakes large-scale photovoltaic power station projects to meet the requirements of different customers.
Kigienergy's business covers more than 100 countries and regions and is widely praised around the world. Our company implements quality tracking management of its products, winning a high market reputation and being trusted by millions of customers around the world.
Employees: 160+
Professional R&D personnel: 50+
Production base area: 1,000 ㎡
Certificates: 30+
Patents: 60+
Enterprise government credit rating: AAA+
Kigienergy's business covers more than 100 countries and regions and is widely praised around the world. Our company implements quality tracking management of its products, winning a high market reputation and being trusted by millions of customers around the world.
Employees: 160+
Professional R&D personnel: 50+
Production base area: 1,000 ㎡
Certificates: 30+
Patents: 60+
Enterprise government credit rating: AAA+
FAQ
Q: How long is the delivery time of your products?
A:Stock products need around 15days. Customized products will base on the quantity.
Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.
A:Yes. The MOQ base on the service you need.
Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
