Chinese laser welder for sale 1500W3000W handheld laser welding machine with fiber laser beam welding
- Category: >>>
- Supplier: Shandong Xinbo Laser Technology Co. Ltd.Shandong Ltd.
Share on (1601228690827):
Product Overview
Description
Products Description
The 4-in-1 fiber laser cleaner represents a new generation of environmentally friendly,efficient and flexible cleaning technology. It combines the three functions of laser cleaning, welding and cutting in one. The system can be freely switched according to different application scenarios, providing users with diversified solutions. This laser cleaner can perform non-contact 360° laser cleaning, which is highly efficient regardless of the space and location of the workpiece to be cleaned. Compared with traditional cleaning methods, the 3-in-1 laser cleaner has more precise cleaning positioning, only cleans the laser irradiation position without additional consumables, is more environmentally friendly, and has a higher degree of cleanliness, while saving time and labor.
Details Images
Laser gun head
►Lightweight
►Ergonomic and easy to grip
►Easy to switch functions
Raycus laser generator
►Higher electro-optic conversion efficiency
►Anti-high reflection function
►Easy maintenance and short downtime
►Easy maintenance and short downtime
S&A Water chiller
►High temperature control accuracy
►Dual cooling function►Real-time alarm to protect the machine
Control System with Touch Screen
►Easy to operate
►Real-time alarm and protection
►File editing function
►Real-time alarm and protection
►File editing function
Switch button and pressure gauge
►Dedicated key to open
►Air pressure display
►Warning light
►Warning light
Automatic wire feeder
►Higher welding speed
►Welding various angles and shapes
►Automatic wire feeding is easy to learn
►Automatic wire feeding is easy to learn
Specification
MODE | BXL-1500 | XL-2000B | XL-3000B | ||
Rated output power | 1500W | 2000W | 3000W | ||
Maximum output power | 1500W | 2000W | 3000W | ||
Output fiber length | 10m (20m/ Customizable ) | ||||
Stainless steel/Carbon steel welding | 0.3mm~4mm | 0.3mm~5mm | 0.3mm~7mm | ||
Aluminium welding | 0.3mm~2mm | 0.3mm~3mm | 0.3mm~5mm | ||
Cutting thickness | 5mm | 6mm | 8mm | ||
Rust floating cleaning efficiency | 40m2/h | 60m2/h | 80m2/h | ||
Rust cleaning efficiency | 8m2/h | 10m2/h | 14m2/h | ||
Voltage | 220V ± 10V | 220V ± 10V | 380V ± 10V | ||
Indicator light | Red light | ||||
Cooling method | Water cooling | ||||
Max pressure | 10bar | ||||
Total Power | 8KW | 10KW | 14KW | ||
Working model | Continuous/Modulation | ||||
Working environment | Flat, no vibration and shock | ||||
Working humidity | <70% | ||||
Operating temperature | -20-40℃ | ||||
Overall size | 1050*600*1120mm | 1170*600*1120mm | |||
Net fuselage weight | 162kg | 171kg | 208kg | ||
Applications and Advantages
The Handheld Laser Welding Machine finds extensive applications in various industries including kitchen cabinets, bathrooms, stair lifts, shelves, advertising, ovens, stainless steel guardrails for doors and windows, distribution boxes, and stainless steel furniture. It offers precise welding with narrow widths, minimal heat-affected zones, reduced deformation, and fast welding speeds.

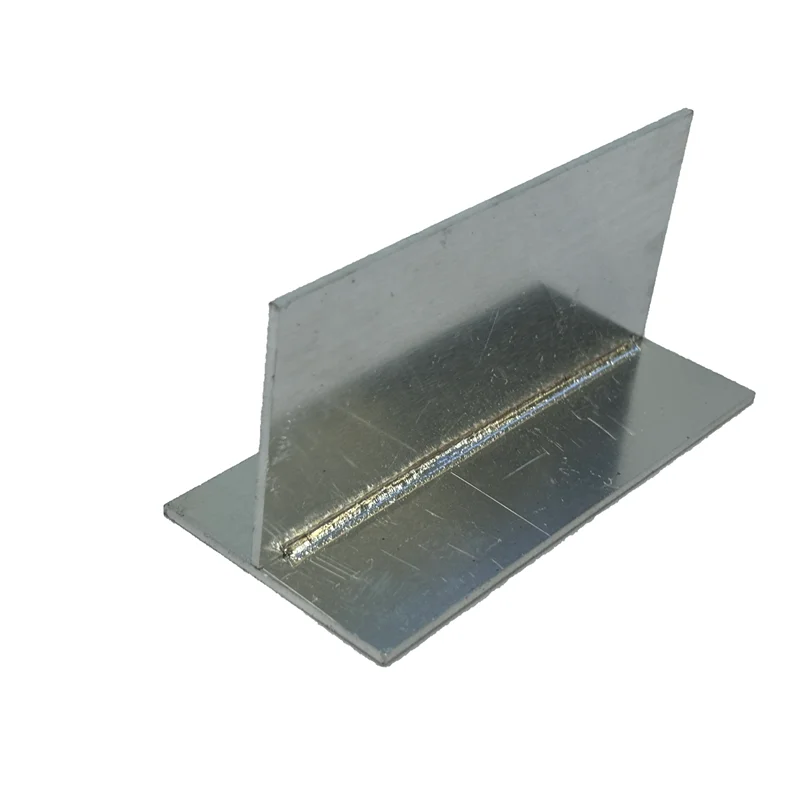

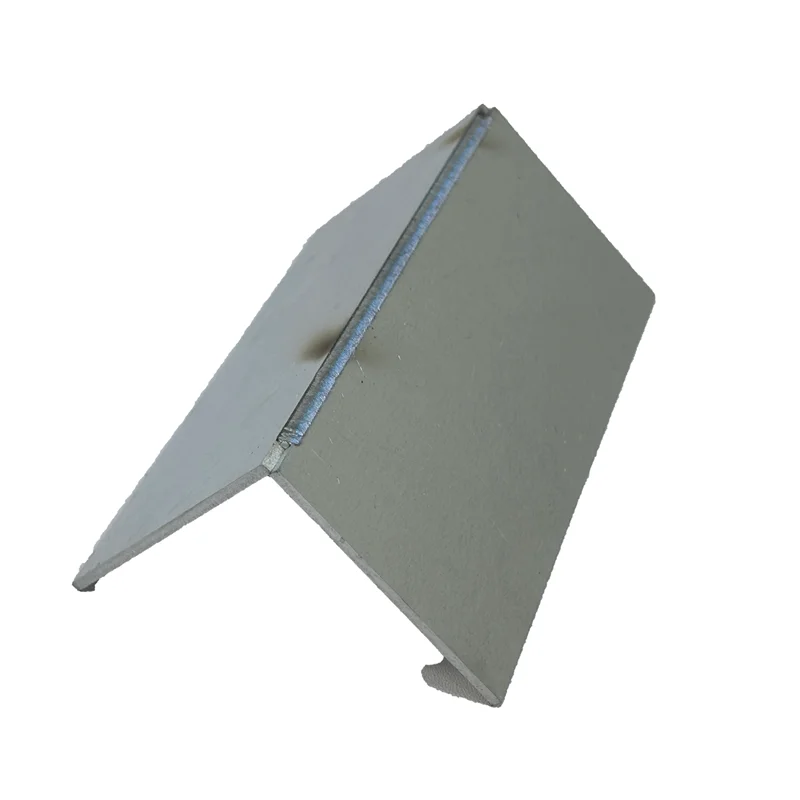

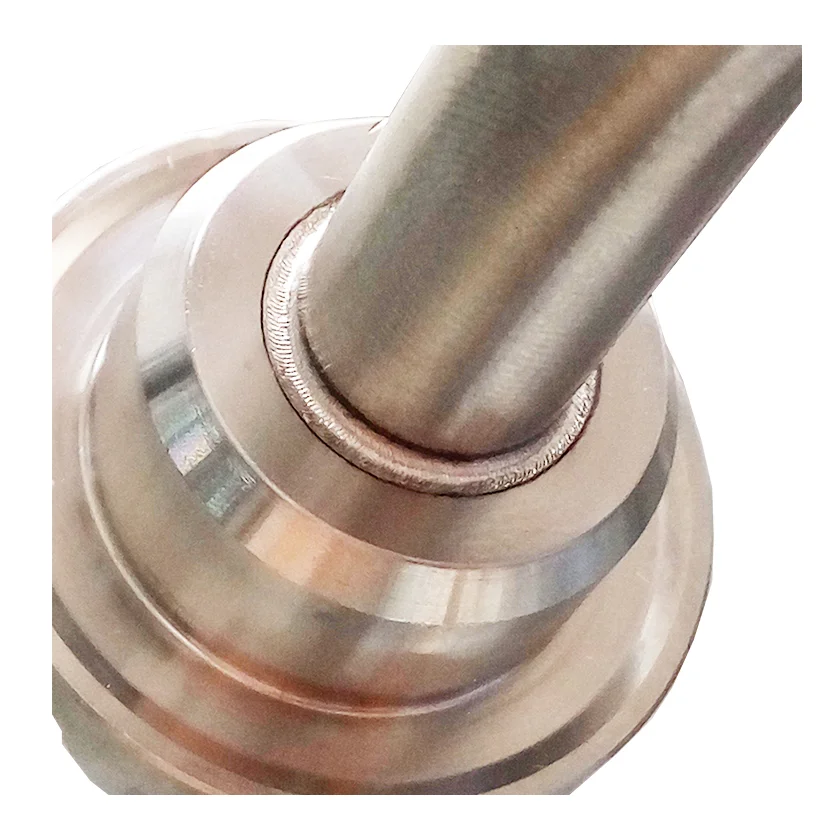

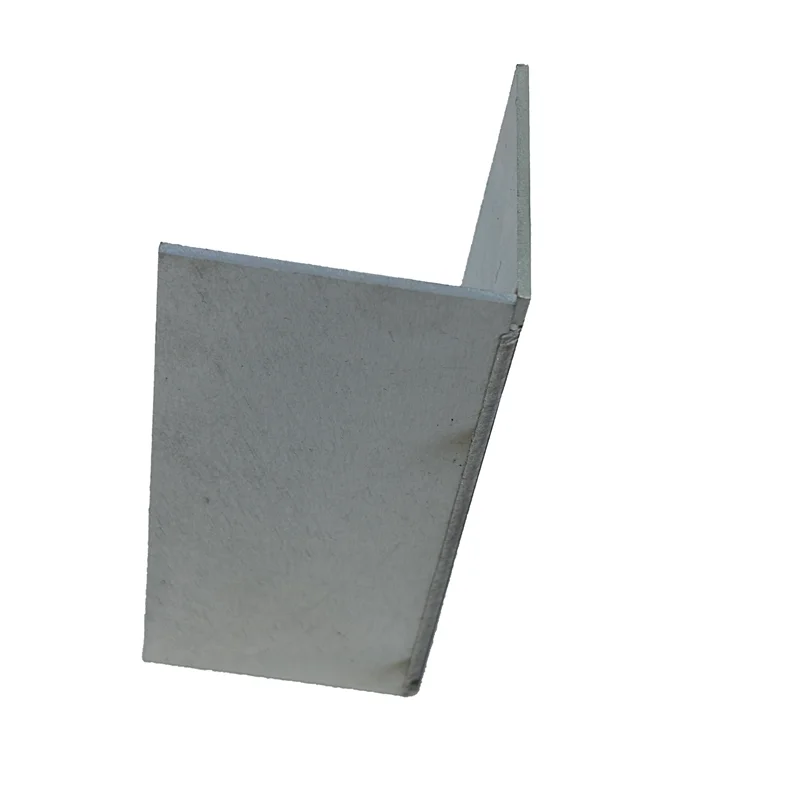

Welding Display

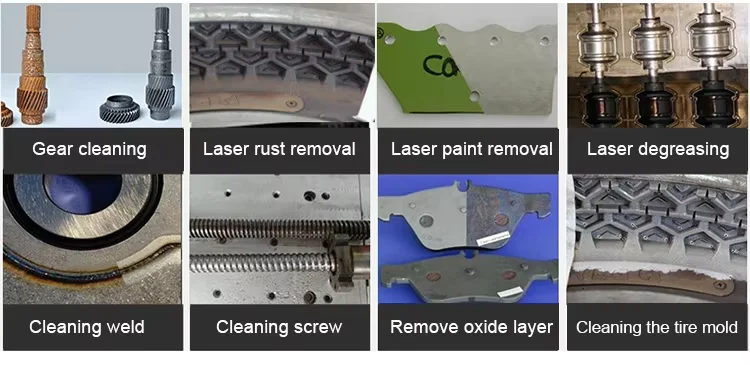

Cleaning Display

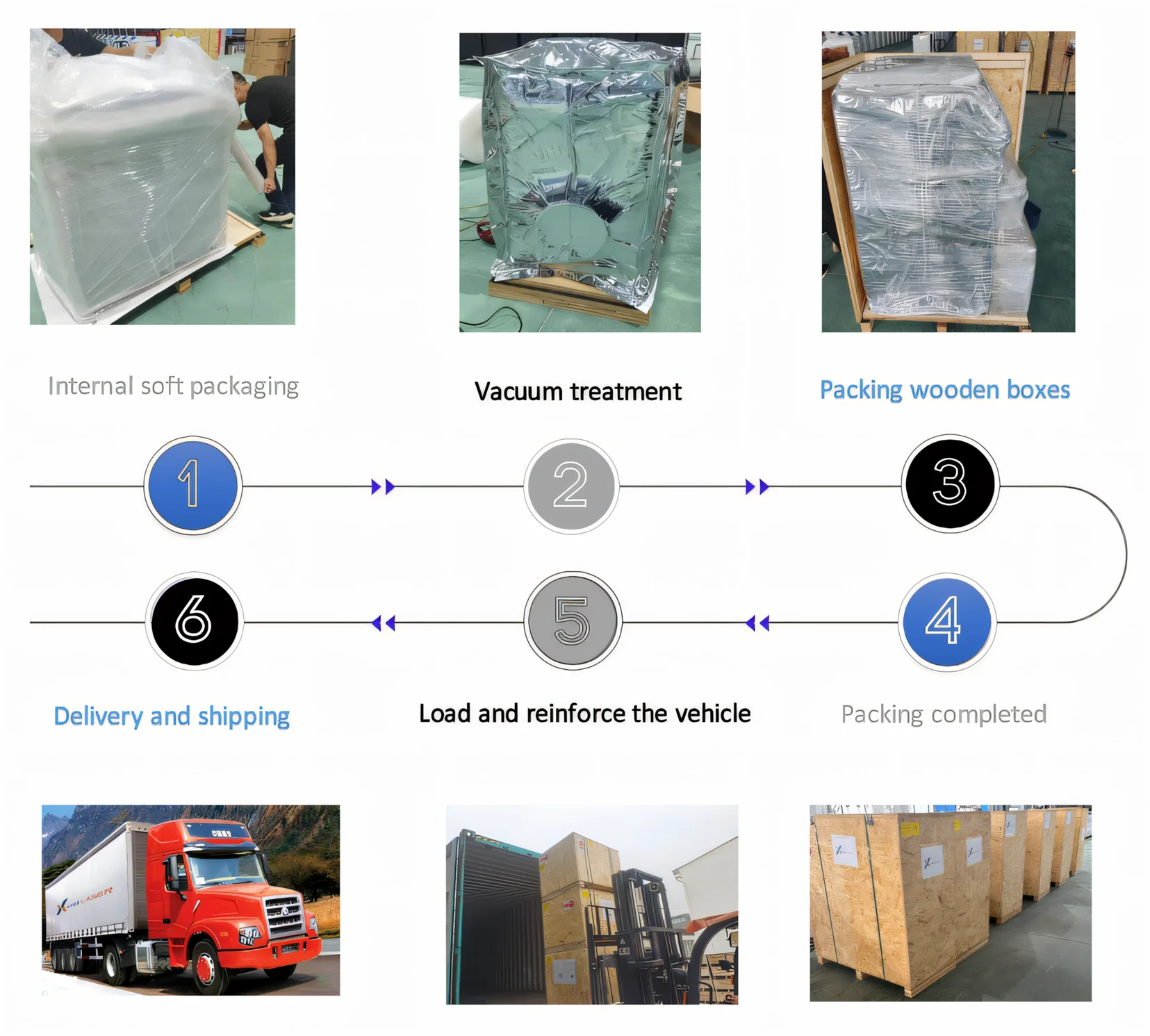

Product packaging
① For the outer package, we utilize robust wooden cases to ensure maximum protection.
②Inside, each item is carefully wrapped in a water-proof plastic film package with foam protection at every corner, all encased within a solid and seaworthy wood box package.
②Inside, each item is carefully wrapped in a water-proof plastic film package with foam protection at every corner, all encased within a solid and seaworthy wood box package.
Company Profile
Why choose Xinbo
High quality service
1. We have perfect after-sales service engineers, who can answer and handle problems online 24 hours a day. 2. All products have
passed various quality system certifications to ensure the safety and compliance of equipment use
3. Our company can provide teaching videos and manuals for you to learn. We can also provide on-site installation, commissioning
and training services according to your needs.
4. Xinbo Laser is customer-centric, with more reliable quality and more timely service.
passed various quality system certifications to ensure the safety and compliance of equipment use
3. Our company can provide teaching videos and manuals for you to learn. We can also provide on-site installation, commissioning
and training services according to your needs.
4. Xinbo Laser is customer-centric, with more reliable quality and more timely service.
Certifications
FAQ
Q1. Unsure how to operate the machine?
We provide comprehensive support. You'll receive an English manual and instructional videos. If you still need assistance, we offer online support via "Teamviewer" software, or we can communicate through phone, email, or Skype.
Q2. What's the delivery time?
Standard machines typically ship within 3-5 days. For non-standard or custom machines tailored to your specific requirements, delivery times may vary.
Q3. Quality Control:
We maintain rigorous quality control throughout the production process. Each machine undergoes thorough testing before leaving the factory. Our machines are CE certified, meeting European and American standards, and have been exported to over 100 countries.
Q4. Do you arrange shipment?
Yes, we offer FOB, CIF, or DAP pricing options and can handle shipment logistics. For EXW pricing, buyers must arrange their own shipment.
Q5. How to place an order:
1.Confirm order details, and we'll issue a Proforma Invoice or Alibaba Trade Assurance draft.
2.Upon receiving a 30% deposit, we'll begin testing the machine to ensure optimal performance.
3.After testing, we'll pack and dispatch the machine.
4.Upon receipt, you'll find user manuals and installation guides. Our engineers are available for online support.
Q6. Manufacturer or trading company?
We are a manufacturer established in 2015, based in Jinan, China, dedicated to offering economical, high-quality laser equipment.You're welcome to visit our factory.
Q7. Using cleaning and cutting functions:
Both cutting and welding use the same focus lens, requiring only a nozzle change. For cleaning tasks, adjust the focus lens accordingly. We're happy to provide user videos for further clarification.
Q8. Overseas after-sales support?
Yes, we offer overseas after-sales service. Additional fees may apply; please inform us if you require this service.
We provide comprehensive support. You'll receive an English manual and instructional videos. If you still need assistance, we offer online support via "Teamviewer" software, or we can communicate through phone, email, or Skype.
Q2. What's the delivery time?
Standard machines typically ship within 3-5 days. For non-standard or custom machines tailored to your specific requirements, delivery times may vary.
Q3. Quality Control:
We maintain rigorous quality control throughout the production process. Each machine undergoes thorough testing before leaving the factory. Our machines are CE certified, meeting European and American standards, and have been exported to over 100 countries.
Q4. Do you arrange shipment?
Yes, we offer FOB, CIF, or DAP pricing options and can handle shipment logistics. For EXW pricing, buyers must arrange their own shipment.
Q5. How to place an order:
1.Confirm order details, and we'll issue a Proforma Invoice or Alibaba Trade Assurance draft.
2.Upon receiving a 30% deposit, we'll begin testing the machine to ensure optimal performance.
3.After testing, we'll pack and dispatch the machine.
4.Upon receipt, you'll find user manuals and installation guides. Our engineers are available for online support.
Q6. Manufacturer or trading company?
We are a manufacturer established in 2015, based in Jinan, China, dedicated to offering economical, high-quality laser equipment.You're welcome to visit our factory.
Q7. Using cleaning and cutting functions:
Both cutting and welding use the same focus lens, requiring only a nozzle change. For cleaning tasks, adjust the focus lens accordingly. We're happy to provide user videos for further clarification.
Q8. Overseas after-sales support?
Yes, we offer overseas after-sales service. Additional fees may apply; please inform us if you require this service.
