Stock VMENG brand big flow pump diesel tracked mini skid steer loader cheap sale.

Share on (1601228779663):


Price:$9,688.00

Quantity:


Product Overview

Description



Product Description


Stock VMENG brand big flow pump diesel tracked mini skid steer loader cheap sale.





327T without bucket

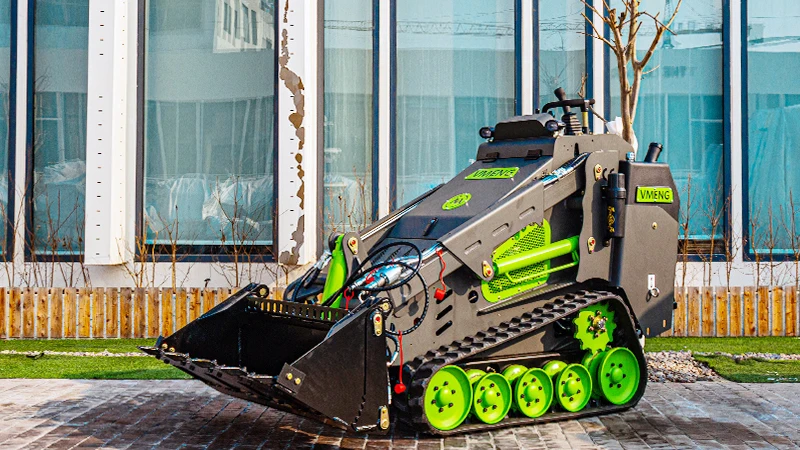

mini skid steer loader


>>>>>>INSTRUMENT PANEL
Updated instrument panel standard featuresinclude: the automatic arm lock and parkingbrake svstem,conveniently located dualhvdraulic levers for auxiliary hvdraulicattachment operation,an engine emergencystop function,and an updated loader armcontroliovstick that adds float functioncapabilities.operating type


>>>>>>DUAL HYDRAULIC AUXILIARY
Dual hydraulic auxiliary output connectionscome standard.Two sets of quick couplerswith case drain port on each side ofmachine.This allows support for high flowattachments that may require additionalhvdraulic requirements.


duplex coupler


>>>>>>STANDING PLATFORM
The comfortable stand on platform designcan be conveniently folded up whenmachine is being transported.loaded/unloaded,or stored.


Plat form mini loader


>>>>>>RUBBER TRACK
New designed 361°all-terrain and highperformance tracks, suitable for anyworking conditions.


rubber track


>>>>>>PARKING BRAKE
Parking brake system comes standard.Provides safety and piece of mind whenparking on slopes, job sites, and trailers


parking brake


mini skid steer attachments


Meng mini loader forks


 MINI SKID STEER LOADER MENG TY-327T CHARACTERISTICS:


1. The MENG TY-327T has powerful traction and lift, allowing it to perform many large tasks up close.


2. Crawler design, fast turn, low pressure on soft ground and grass.


3. MENG BRAND work accessories offer endless opportunities for this mini crawler loader.


4. MENG TY-327T can save you a lot of work, either alone or as a supplement to a large loader.

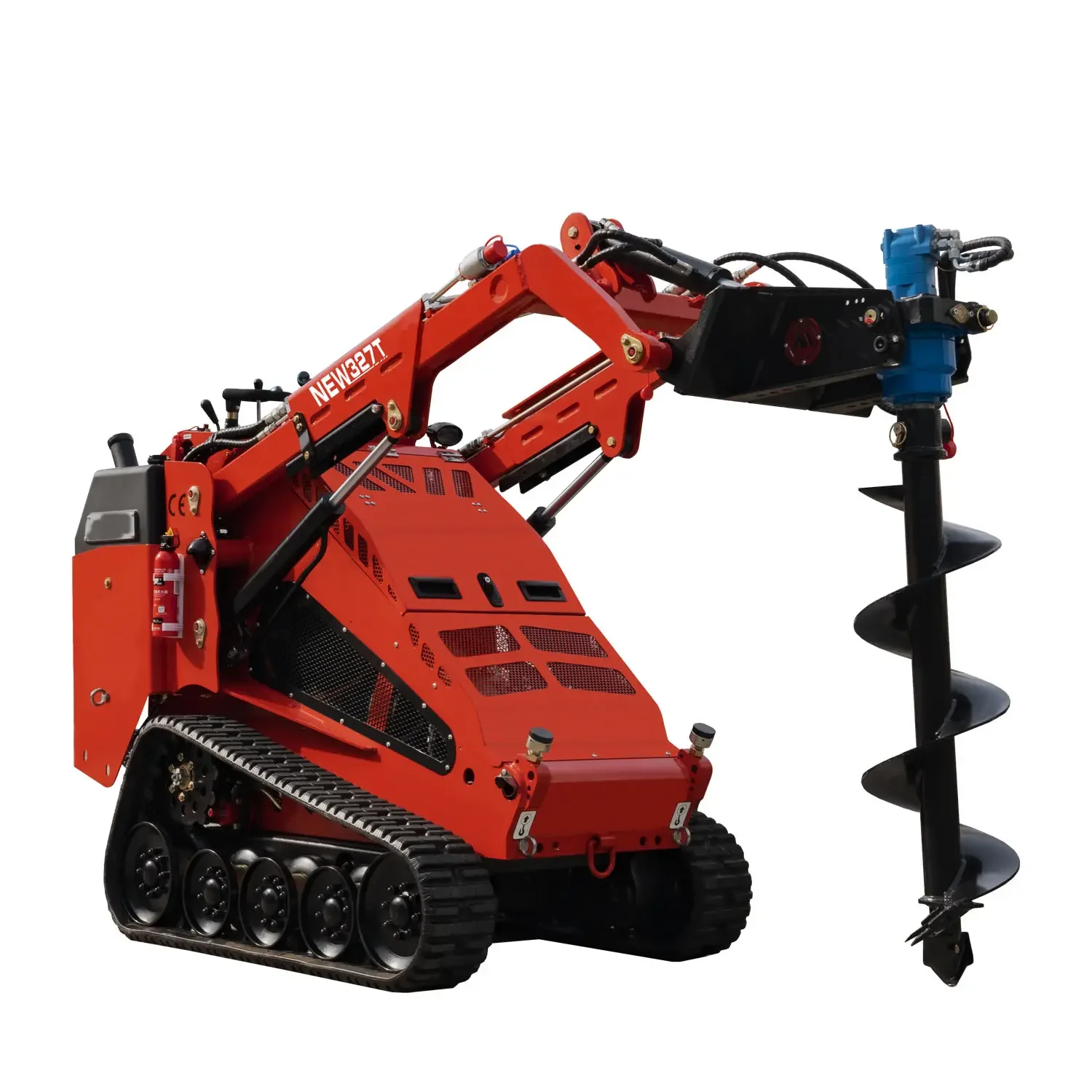

 mini loader with auger





Mini skid steer loader TY327T specifications:






















































DIMENSIONS



TY-327T Tracked



Operating height



2695mm



Height to bucket hinge pin



2000mm



Height to top



1496mm



Overall length with GP bucket



2694mm



Overall length without bucket



2067mm



Wheelbase



1080mm



Overall width



1070mm



Mini ground clearance



94mm



Angle of departure



23°



Rated loading capacity



400kgs



Kerb weight



1330kgs


















































POWER



TY-327T Tracked



Engine maker



   Kubota engine



Fuel type



Diesel



Rating power



25hp



Number of cylinder



3



Displacement



1.123L



Rated speed



3600 rpm



TRAVEL SPEED



TY-327T Tracked



Max. drive speed



6.8 km/h















































































HYDRAULIC SYSTEM



TY-327T Tracked



WORKING SYSTEM




working  system pressure



180bar



working system Flow rate



36L/min



DRIVING SYSTEM




Driving System pressure



250 bar



Driving system Flow rate



62.4 L/min



Auxiliary circuit System




Auxiliary circuit Pressure



180bar



Auxiliary circuit flow rate



36L/min



FLUID CAPACITIES



TY-327T Tracked



Fuel tank capacity



40 L



Engine oil



4.7 L



Hydraulic reservior capacity



40 L




BATTRY



TY-327T Tracked



Electrical Voltage



12V



Battry type



45AH made by YUASA









1.Japan Kubota diesel EPA engine 25hp, 3-cylinder


2. Italy Hansa master pump,direct connecting to engine


3. Hydraulic joystick control for driving.


4. 400kgs-500kgs loading capactiy


5. Total width 1060mm


6.  ISO 330mm rubber crawler


*Travel through narrow doorways, aisles, alleys and gates -indoors or outside!


*Easy to load and transport on a trailer


*The mini loader with both walk behind and ride on capabilities.


*More than 20 attachments available.





Mini skid steer loader TY-327T with attachments:


327T attachments


breaker quick attach


-1 1mini loader with augerMeng mini loader forks21 (1)6





Max TY-327T 36 inches Landscaping  25hp 30hp 35hp diesel tracked  skid steer mini skid steer loader with 4 in 1 bucket

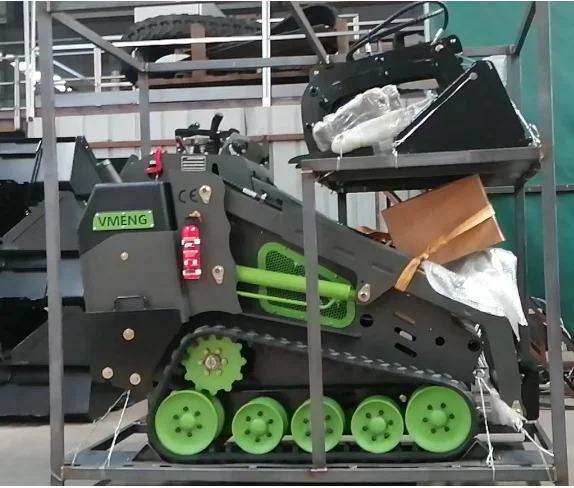

Packaging & Shipping


 1. 1-3 units, will be packed into plywood cover box, the packing measurement should be negotiated with the seller according to your order items(including attachments, tools,etc..)


paste-pic-dp_uuid_hge8d



2.  6 units into one 20'GP container.
3. 12 units into one 40'GP container.
