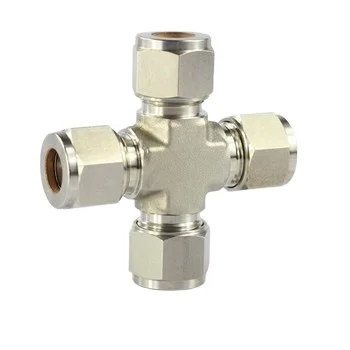

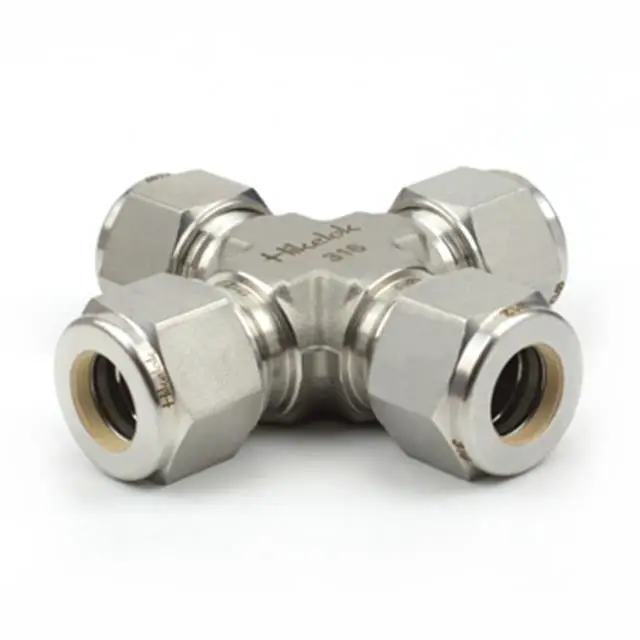

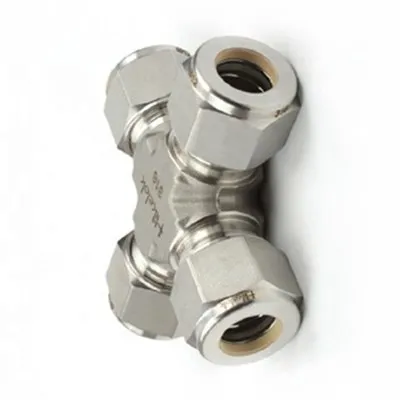

Stainless steel compression fittings tube fitting Swagelok type 1/4' 1/8' OD 4 way connector tube union cross

 Features

* Twin ferrule fittings provide metal-to-metal seal connections, non-elastomeric seals for leak- free connections
* Hikelok twin ferrule fittings are designed to have a maximum allowable working pressure that is higher than that of any tubing
* Industry standard design for all instrumentation grade tubing
* Stainless steel tube hardemess: the hardness of the tube shall be not greater than 85 HRB
* Available in sizes from 1/16 to 2 in and 2 mm to 50 mm
* Hikelok fittings materials include 316 stainless steel, steel, brass, aluminum, nickel-copper, Hastelloy C, 6Mo, Incoloy 625 and 825
* Hikelok special treated back ferrule is to provide secure
* Silver coated threads to reduce galling
* Leak-proof joints capable of satisfying high pre ssure vacuum and vibration applications

Performance

* Hydraulic proof pressure test (1.5 times the maximum pemissible working pressure): no leakage
* Dismantling and reassembly test (dismantle 10 times): no leakage
* Minimum hydrostatic pressure test (4 times the maximum permissible ambient pressure rating): no leakage
* Vacuum test(1 x 10-* mbar or greater): the leak rate less than1 x 10~* mbar·L/s
* Maximum static gas pressure test (with nitrogen gas to 150% of pressure rating): no visible bubbles
* Hydraulic impulse and vibration test (the pressure impulses at between 0.5 Hz and 1.7 Hz and the vibration at between 23 Hz and 47 Hz): no leakage
* Thermal cycle test (ambient to + 80 "C and then to -25 "C with a hydrostatic pressure): no leakage
* Pneumatic pressure vibration test (The frequency of vibration shall be set at 45 Hz and complete 20 x 10 cycles): without failure
* Fire test (in accordance with BS ISO 19921): no leakage
* Corrosion resistance test (the duration of exposure at least 1 68 h): no visible evidence of corrosion
* Deep water submersion test (equivalent to 3048 m of sea water): no leakage

Working Temperature Rating

From quote to delivery, we can provide the detailed support you need:

1. CAD drawing

2. P&lD

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery 8. Give you solution within 24 hours

1. Are you manufacturer of instrumentation valves and fittings?

YES.

2.Do you have the experience 0f exporting?

YES,we have 10 years exporting experience.

3.what is your products' standard?

We carry on the standard of ASTM , ASME , EN.

4. will you test the out-going products?

we guarantee 100% test the out-going products and charge in the after-sale service.

5.what is products' warranty time ?

usually 1 year warranty time
