Professional Manufacturer 4 flutes square end mill carbide milling cutter in huge stock
- Category: >>>
- Supplier: Zhuzhou OBT Carbide Tools Co. Ltd.Zhuzhou Ltd.
Share on (1601228836647):
Product Overview
Description

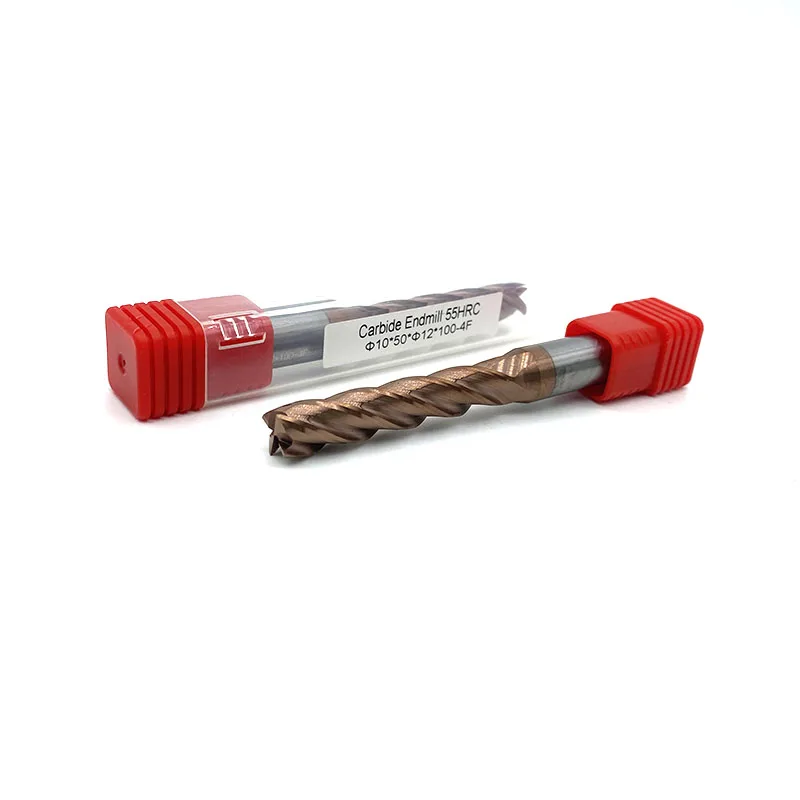

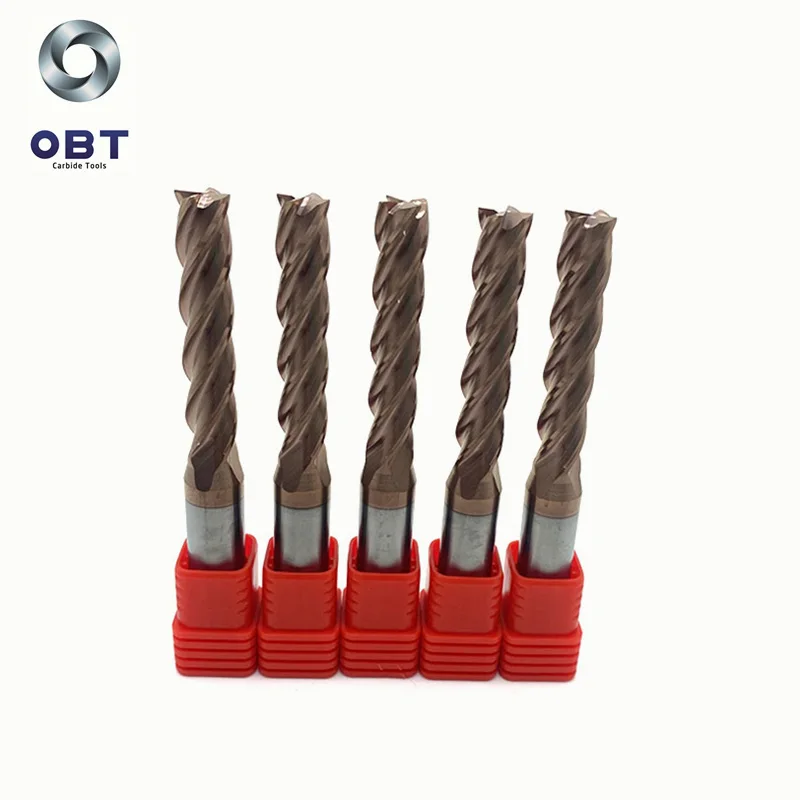

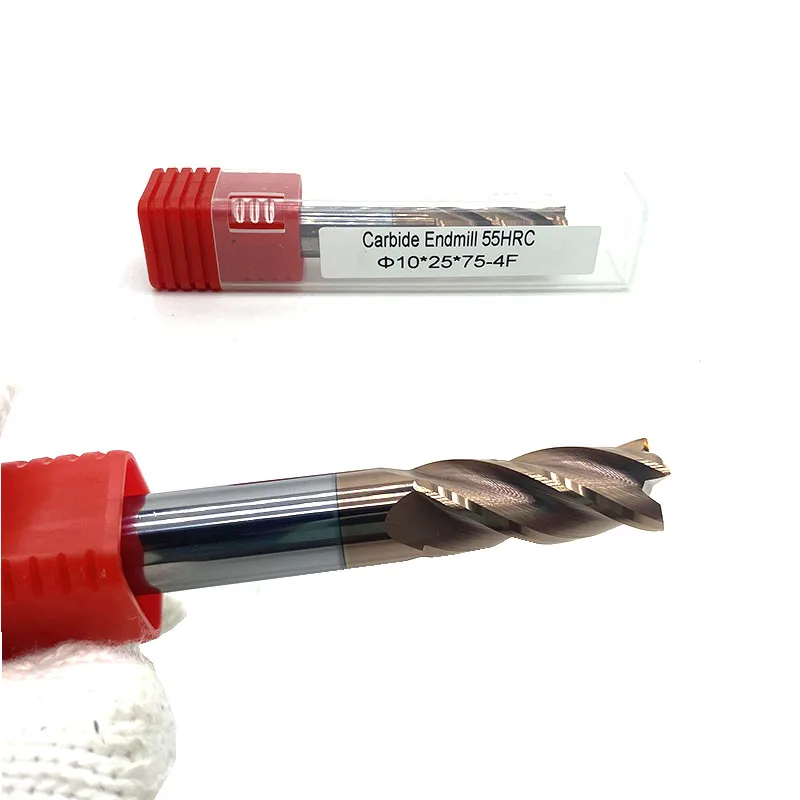

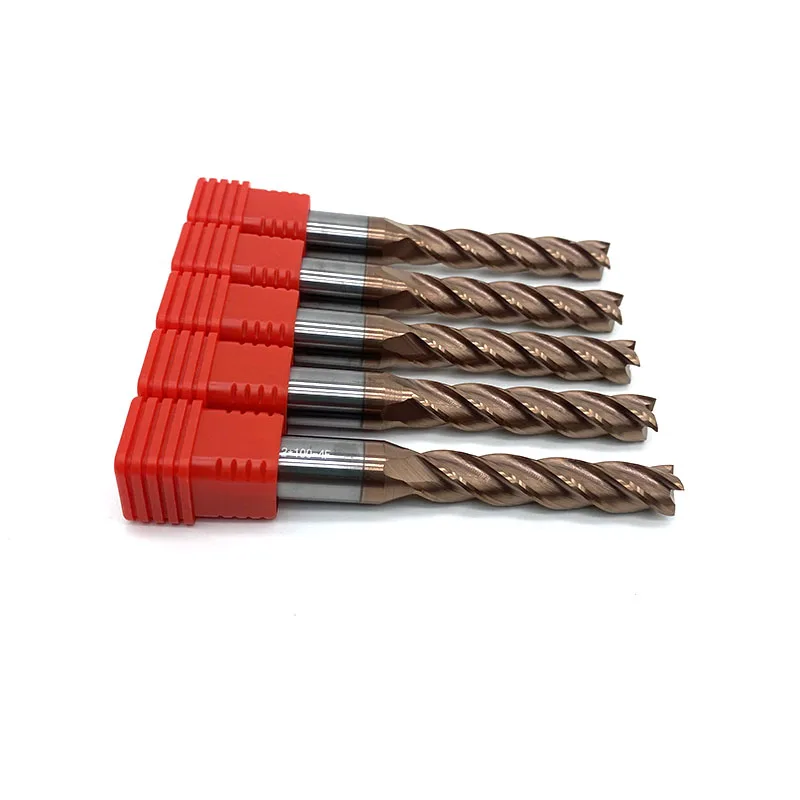

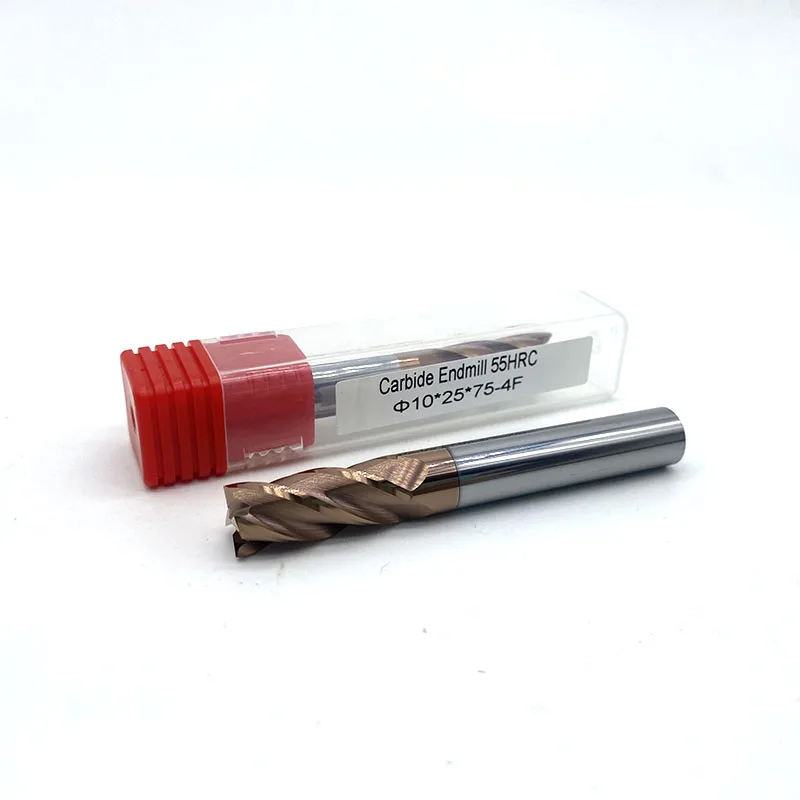

Professional Manufacturer 4 flutes square end mill carbide milling cutter in huge stock
Product Description
Coating Introduction | ||||||
ENDMILL GRADE | Coating Name | Color | Hv | μm | Friction | The Max ℃ |
HRC45 coating | AlTiN | black | 3300 | 1-4 | 0.7 | 850℃ |
HRC55 coating | TiSiAlN | bronzed | 3400 | 1-4 | 0.7 | 900℃ |
HRC60 coating | AlCrSiN | black | 4000 | 1-7 | 0.35 | 1100℃ |
HRC65 coating | nACo 3 Blue | blue | 4500 | 1-7 | 0.45 | 1200℃ |
Stainless Steel coating | nACo 3 Blue | blue | 4500 | 1-7 | 0.55 | 1200℃ |
Carbide Material Introduction | ||||||
ENDMILL GRADE | Material Grade | Grain | Introduction | Application | ||
HRC45 carbide material | YL10.2 | 0.6μm | YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance. | General Steel | ||
HRC55 carbide material | K30 | 0.5μm | K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness. | General Steel, Stainless Steel, cast iron | ||
HRC60 carbide material | WF25 | 0.4μm | WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance. | High Hard Material, steel, cast iron, etc | ||
HRC65 carbide material | GU25UF | 0.4μm | GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard cutting. | Titanium Alloy, High-temperature Alloy, Harden material, etc | ||
Stainless Steel material | WF25 | 0.4μm | WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance. | stainless steel | ||

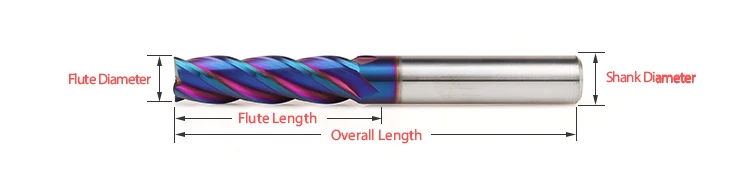

Size Details (flute diameter* flute length* shank diameter* overall length)
| ITEM | FLUTE DIAMETER(d) | FLUTE LENGTH(l) | SHANK DIAMETER(D) | OVERALL LENGTH(L) |
| 1*3*4*50 | 1mm | 3mm | 4mm | 50mm |
| 2*5*4*50 | 2mm | 5mm | 4mm | 50mm |
| 3*8*4*50 | 3mm | 8mm | 4mm | 50mm |
| 4*10*4*50 | 4mm | 10mm | 4mm | 50mm |
| 5*13*5*50 | 5mm | 13mm | 5mm | 50mm |
| 6*15*6*50 | 6mm | 15mm | 6mm | 50mm |
| 8*20*8*60 | 8mm | 20mm | 8mm | 60mm |
| 10*25*10*75 | 10mm | 25mm | 10mm | 75mm |
| 12*30*12*75 | 12mm | 30mm | 12mm | 75mm |
| 14*40*14*100 | 14mm | 40mm | 14mm | 100mm |
| 16*40*16*100 | 16mm | 40mm | 16mm | 100mm |
| 18*45*18*100 | 18mm | 45mm | 18mm | 100mm |
| 20*45*20*100 | 20mm | 45mm | 20mm | 100mm |
Packaging & Shipping
1.Use plastic box to protect end mill cutter
2.Use bubble wraps to fasten
3.Use carton package with bubble wraps
By sea, by air cargo, DHL, FEDEX, TNT, UPS, EMS
Port: Shenzhen, any port in China.
Company Information
WHO WE ARE

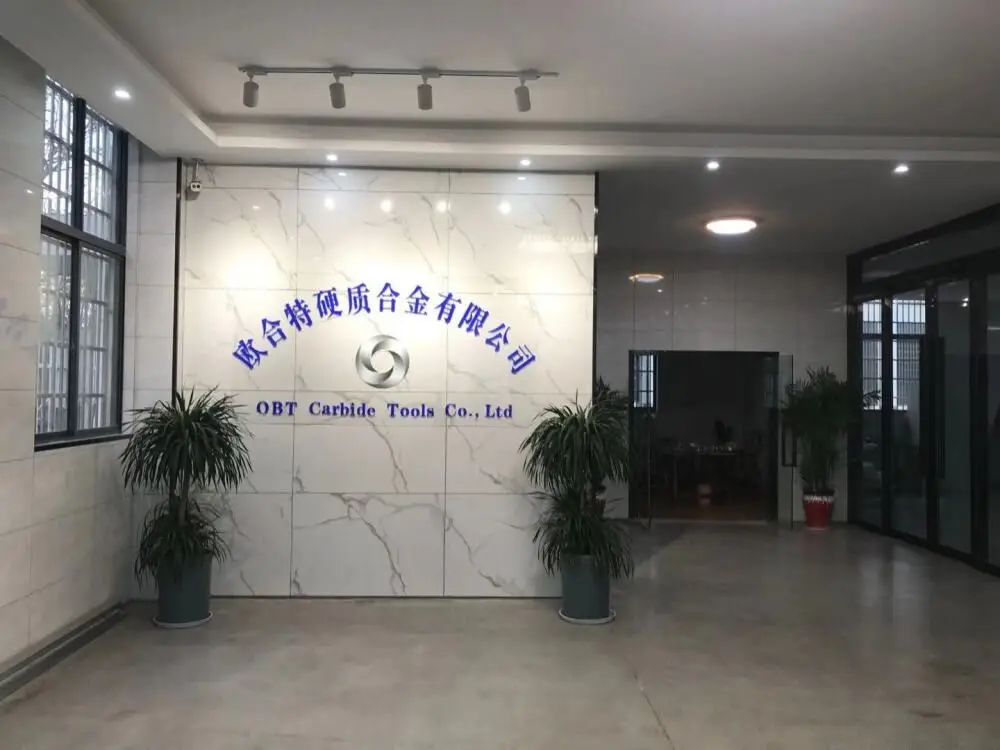

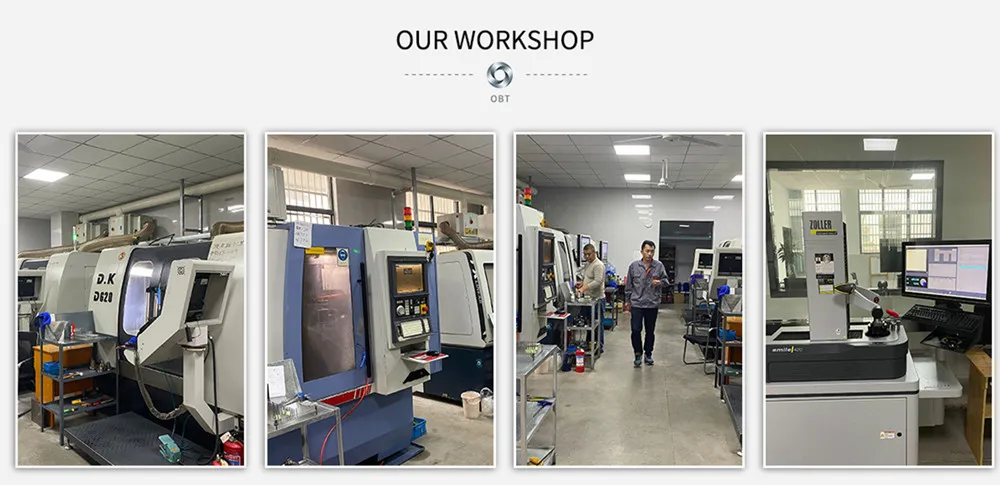

Zhuzhou OBT Carbide tools Co., Ltd. is a professional manufacturer of Carbide cutting tools. Include carbide end mills, carbide drill, CNC inserts, standard size and non- standard size all can be provided, our tools are widely used in for Aerospace, Molding & Die, 3C, Medical, Automotive and General Machining. Located in zhuzhou, near ZCCCT, we provide various and efficient delivery ways.
FAQ
Q: How can I pay?
A: We accept paypal as the sample. if large amount need pay by western union or TT.
Q:Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
Q:Whats your MOQ?
A:We welcome your sample order to test our quality, we believe that u will find that we are the right supplier u are looking for. So no MOQ.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Is zhuzhou obt carbide tools co.,ltd company or factory?
A: We are carbide tools professional factory more than 10 years. we are located in zhuzhou. the best tungsten carbide tools manufacture are in China
