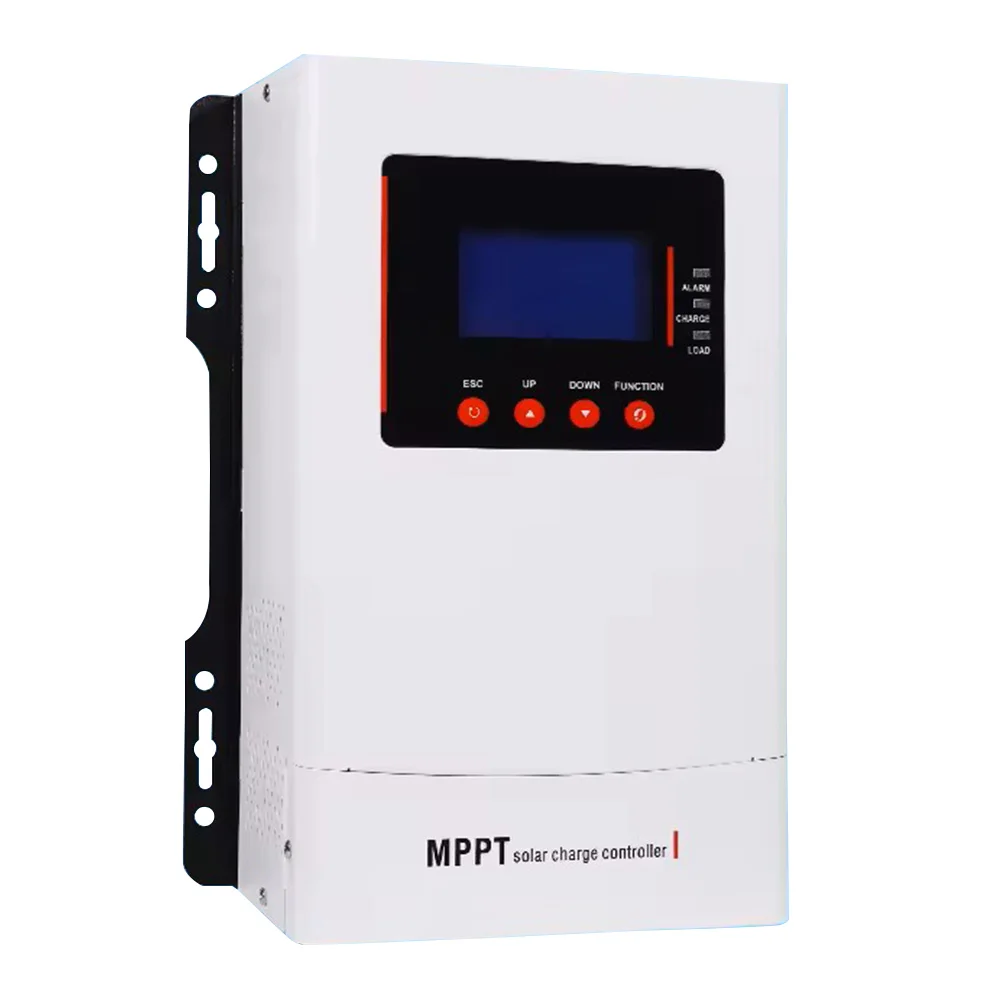

MPPT Solar Charge Controller with 60A 80A 90A 100A Rated Current LCD Display 12V/24V System Volta ROHS Certified
- Category: >>>
- Supplier: Guangzhou CBB Battery Technology Co. Ltd.
Share on (1601228859778):
Product Overview
Description
30415 | 40415 | 60415 | 80415 | 100415 | 40825 | 60825 | 80825 | 100825 | |||||||||
Rated voltage of the system | 12/24/36/48VDC Auto | 96VDC | |||||||||||||||
Operating voltage range | 11~64V | 72~128V | |||||||||||||||

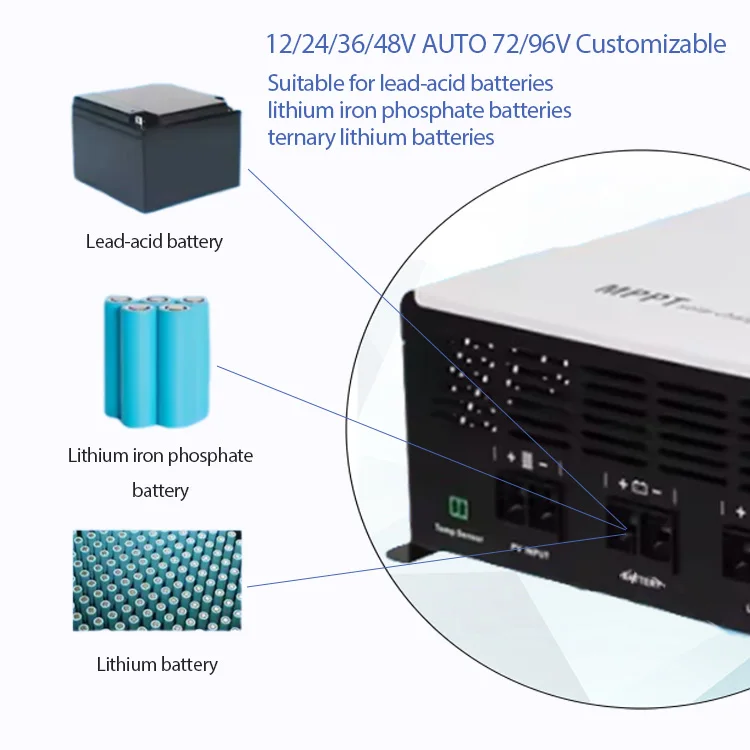

Maintenance free (default)/Colloid/Liquid/Custom | |||||||||||||||||
Lithium battery type | Lithium iron phosphate/ternary lithium/custom | ||||||||||||||||
Rated charging current | 30A | 40A | 60A | 80A | 100A | 40A | 60A | 80A | 100A | ||||||||
Rated charging power | 390W/12V | 540W/12V 1080W/24V 1620W/36V 2160W/48V | 800W/12V 1600W/24V 2400W/36V 3200W/48V | 1080W/12V 2160W/24V 3240W/36V 4320W/48V | 1300W/12V 2600W/24V 3900W/36V 5200W/48V | 4160W/96V | 6240W/96V | 8320W/96V | 10400W/96V | ||||||||
Maximum open circuit voltage of photovoltaic modules | 150V (at minimum temperature) 138V (at 25 ℃) | 250V (at minimum temperature) 225V (at 25 ℃) | |||||||||||||||

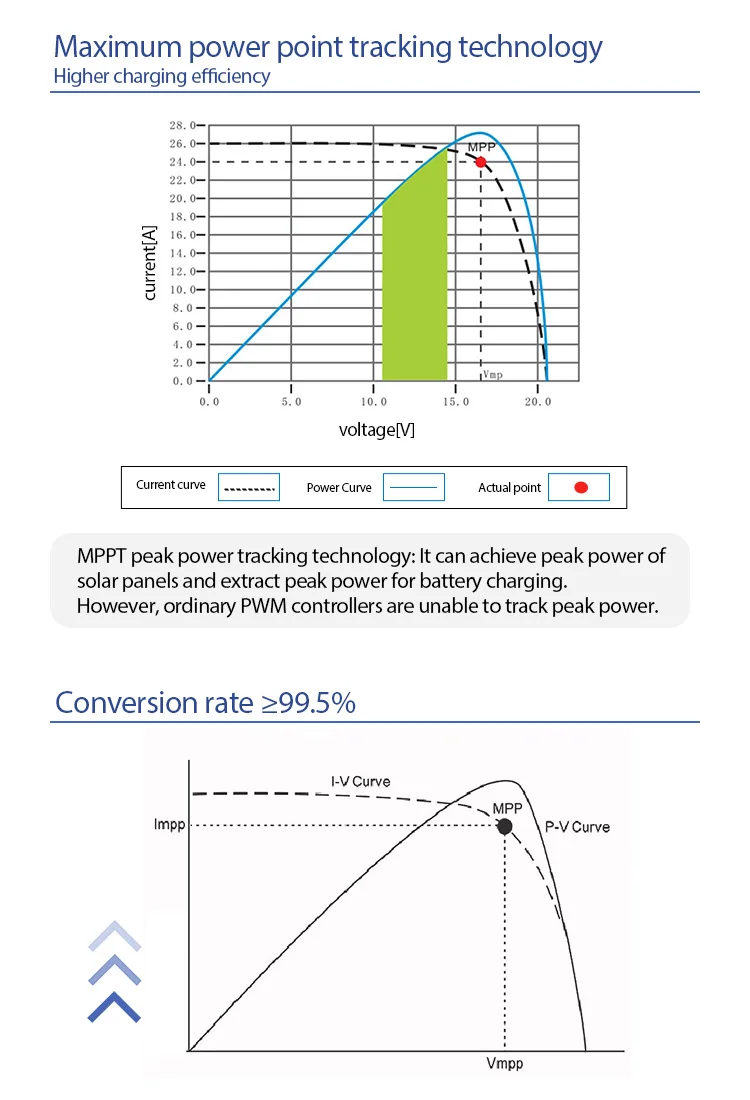

Maximum power point operating voltage range | Maximum power point operating voltage range (Battery voltage+5V)~138V (under 25 ℃ conditions) | 128~225V (at 25 ℃) | |||||||||||||||
Tracking efficiency | ≥99.5% | ||||||||||||||||
Maximum conversion efficiency | 0.975 | ||||||||||||||||
Static loss | 700mA/12V;300mA/24V;150mA/48V;100mA/96V | ||||||||||||||||
DC load output voltage | Can be turned on in 12/24V mode | Scalable functionality | |||||||||||||||
Rated output current of DC load | Normally open and normally closed mode/time controlled mode/light controlled mode | / | |||||||||||||||
DC load output control mode | 40A | / | |||||||||||||||

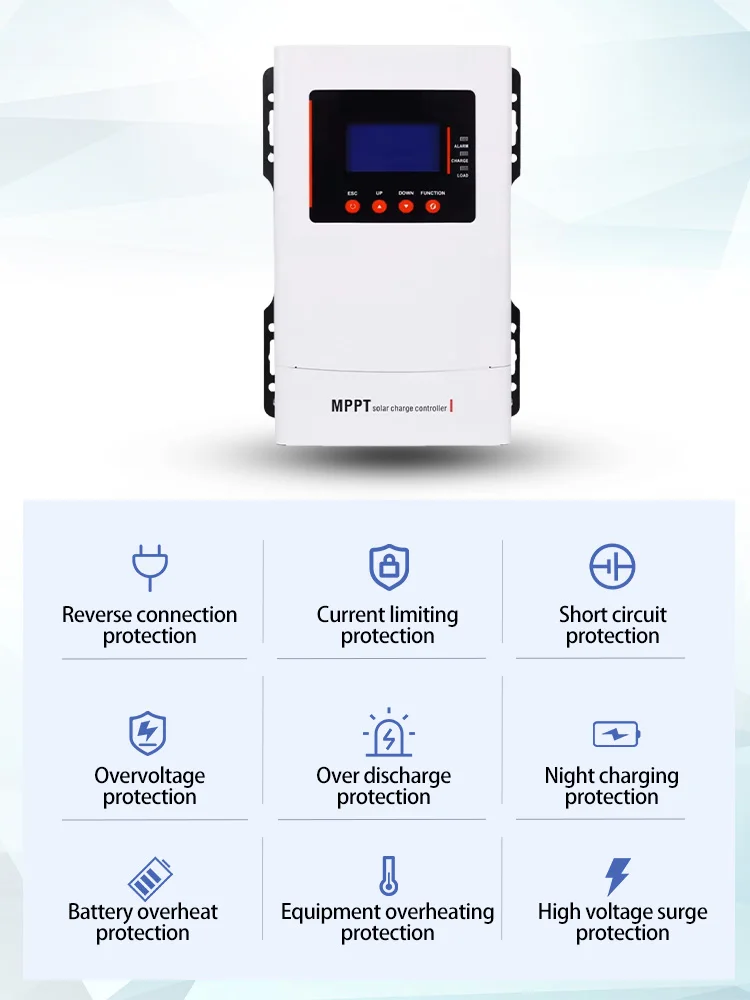

Protection function | PV input anti reverse protection, battery input reverse protection, battery overcharge protection, battery undervoltage protection, battery over temperature protection, machine over temperature protection | ||||||||||||||||

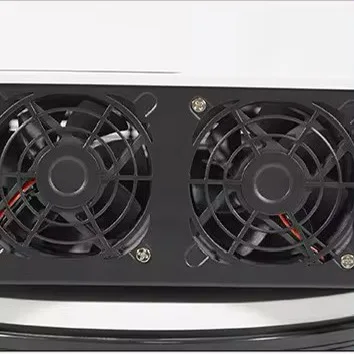

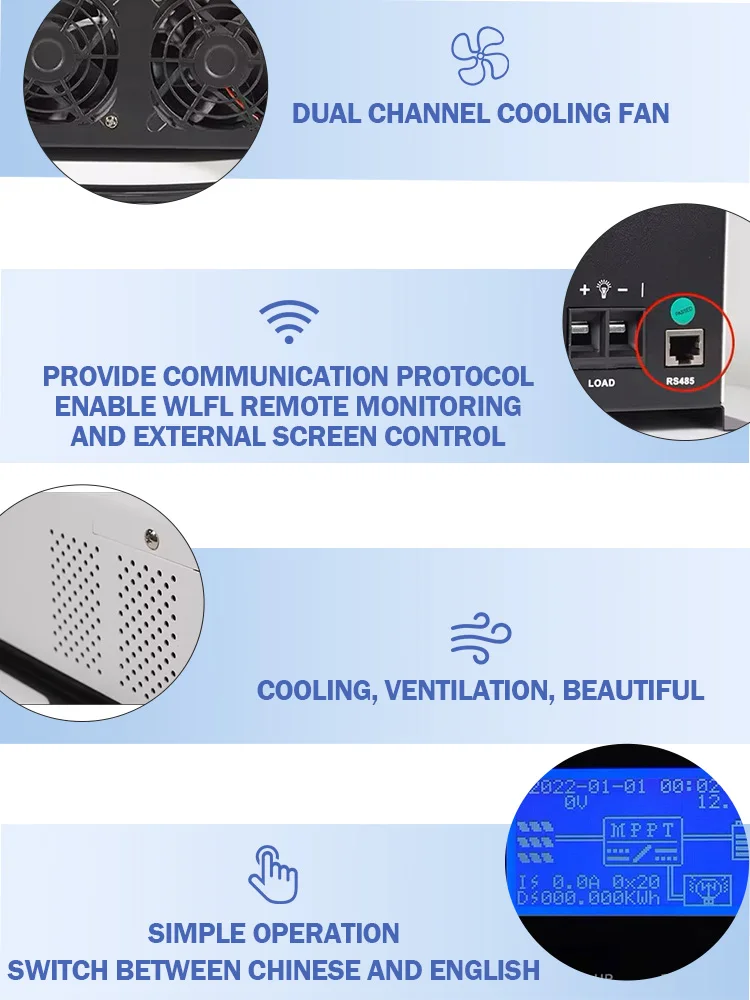

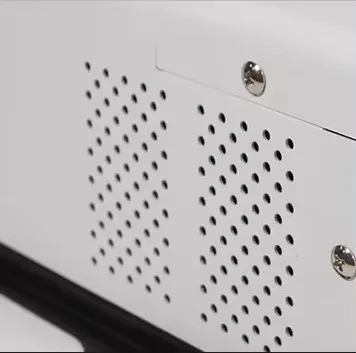

Heat dissipation method | forced air cooling | ||||||||||||||||
Communication | RS485 | ||||||||||||||||

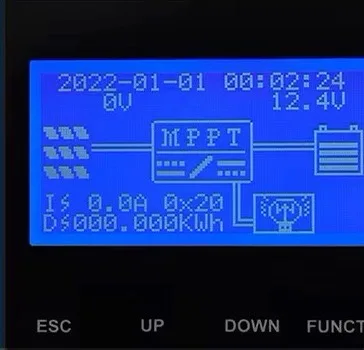

LCD backlight time | Default 60S, backlight mode can be set | ||||||||||||||||
Environmental parameters | |||||||||||||||||
Operation Temperature Range | -20℃~+50℃ | ||||||||||||||||
Storage temperature range | -40℃~+70℃ | ||||||||||||||||
Relative humidity range | 0~90%RH | ||||||||||||||||
mechanical parameters | |||||||||||||||||
parameter | 30825F | 40415F | 60415F | 80415F | 100415F | 40825F | 60825F | 80825F | 100825F | ||||||||

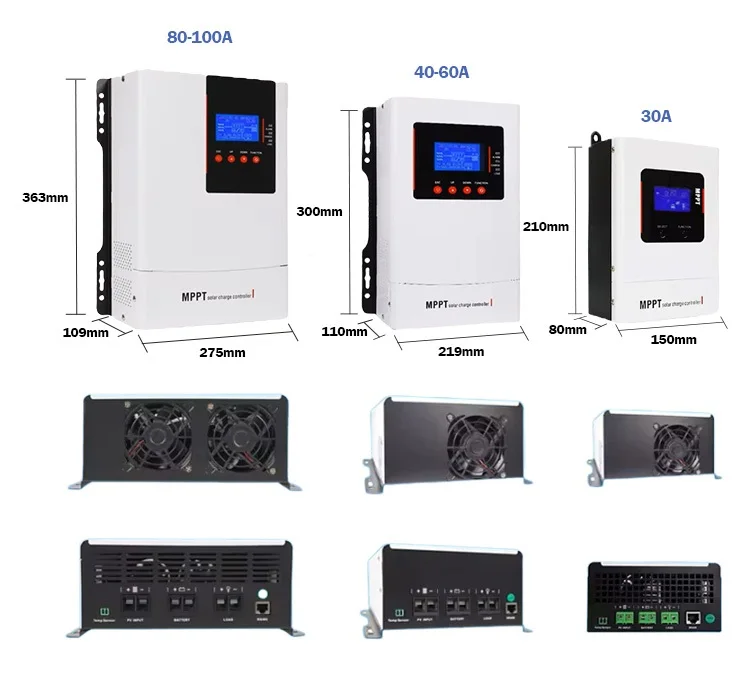

External dimensions | 210*150*80mm | 219*300*110mm | 219*300*110mm | 275*363*109mm | 275*363*109mm | 219*300*110mm | 219*300*110mm | 275*363*109mm | 275*363*109mm | ||||||||
Recommended wiring | 9AWG/6mm² | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2ANG/35mm² | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2AWG/35mm² | ||||||||
net weight | 1.45kg | 2.94kg | 2.94kg | 4.56kg | 4.56kg | 2.94kg | 2.94kg | 4.56kg | 4.56kg | ||||||||
