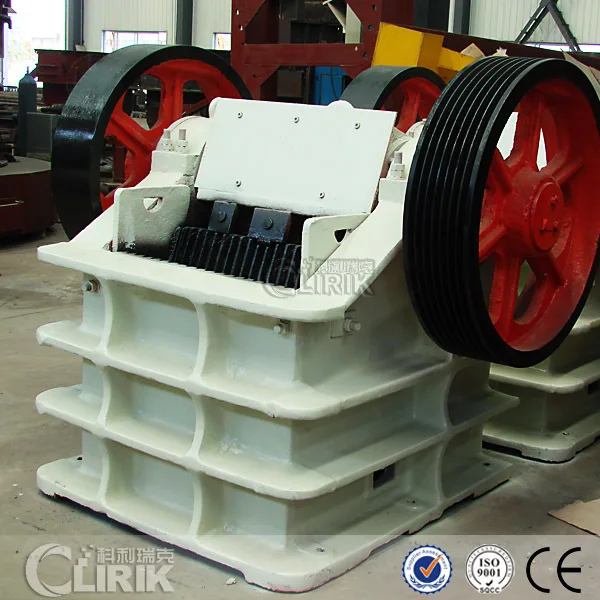

Mining Used PE 250x400 Fine Sand Granite Gravel Rock Stone Jaw Crusher with Conveyor for Sale
- Category: >>>
- Supplier: Shanghai Clirik Machinery Co. Ltd.
Share on (1601228941864):
Product Overview
Description
Fine Secondary Used 250*400/400*600 Mining Machinery Rock Jaw Crusher with Conveyor
*every production line needed machines has difference*
*the final quotation will according to your project case*
Product Description

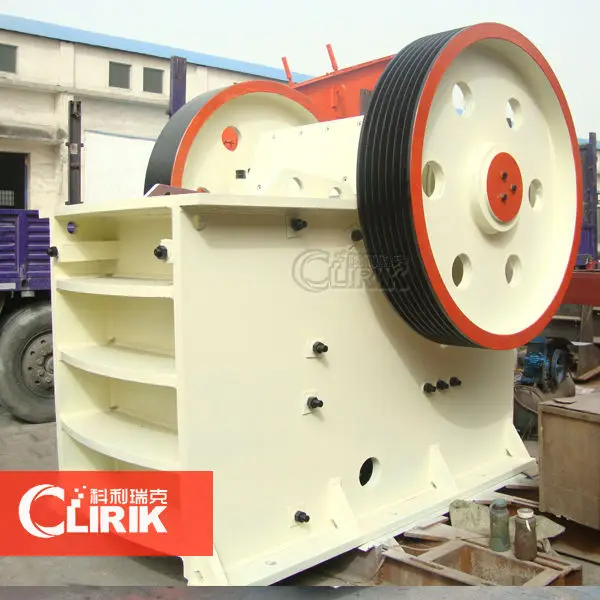

Clirik PE Series Jaw Crusher Introduction
1. Small stone powder jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as
ore,quartz, granite,limestone,slags, construction materials, marble, etc..
2.The maximum compression strength of materials to be crushed is 320MPA.
3.PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.
ore,quartz, granite,limestone,slags, construction materials, marble, etc..
2.The maximum compression strength of materials to be crushed is 320MPA.
3.PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.

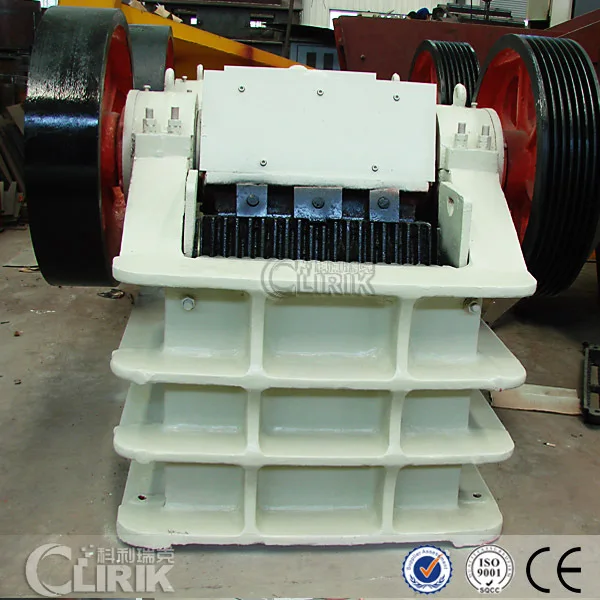

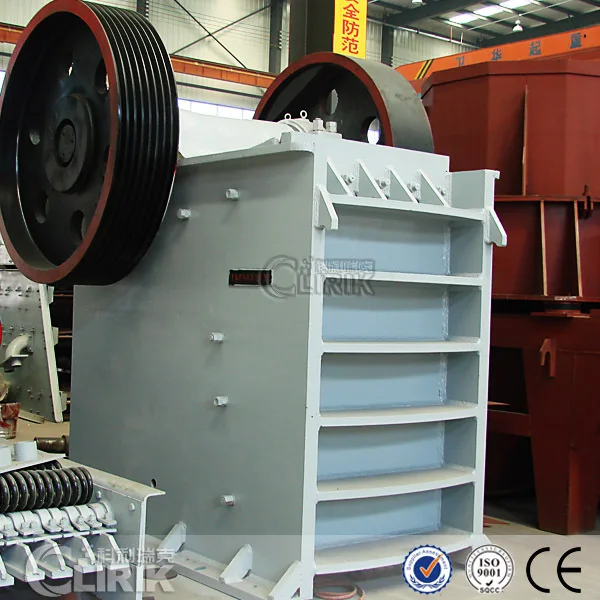

PE series Jaw Crusher

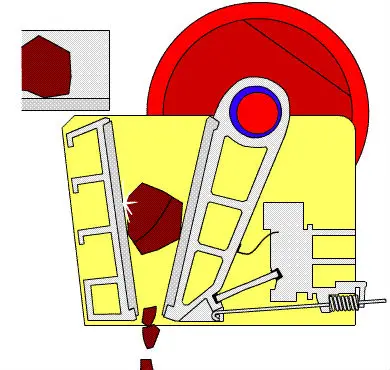

---Working Principle
The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.
So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Advantages of Clirik PE series Jaw Crusher
1. Reliable quality can be guaranteed for many years without repair.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio,even particle size,low noise
5. Strong adaptability to materials,wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed
7.The bearings adopt complete steel structure.---The whole cast steel housing can fully coordinate with the rack. Meanwhile, it greatly enhances the radial intensity of the bearings.
8.The applications of finite element analysis technology can greatly strengthen the efficiency of crushing process.
9. It is more convenient to adjust the discharging mouth.---The adjusting device is equipped with wedge block, while our devices are simpler and safer than the old-fashioned ones.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio,even particle size,low noise
5. Strong adaptability to materials,wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed
7.The bearings adopt complete steel structure.---The whole cast steel housing can fully coordinate with the rack. Meanwhile, it greatly enhances the radial intensity of the bearings.
8.The applications of finite element analysis technology can greatly strengthen the efficiency of crushing process.
9. It is more convenient to adjust the discharging mouth.---The adjusting device is equipped with wedge block, while our devices are simpler and safer than the old-fashioned ones.
PE series Jaw Crusher Certification
At present, we have passed many international certification, such as: CE, SGS, ISO9001, BV and etc, if you are interested in our crusher, you can leave your inquiry to us.
Specification
Model | Feeder Size(mm) | Input Size(mm) | Output Size(mm) | Capacity(t/h) | Powder(kw) | Dimension(mm) |
PE150*250 | 150*250 | 125 | 10-40 | 1-5 | 5.5-7.5 | 922*745*933 |
PE200*300 | 200*300 | 125 | 15-30 | 2-10 | 7.5 | 935*750*990 |
PE200*350 | 200*350 | 125 | 15-40 | 5-16 | 7.5-11 | 1056*1142*1220 |
PE250*400 | 250*400 | 210 | 20-60 | 5-20 | 15-18.5 | 1430*1310*1340 |
PE400*600 | 400*600 | 350 | 40-100 | 15-60 | 30-37 | 1700*1732*1653 |
PE500*750 | 500*750 | 425 | 50-100 | 40-100 | 45-55 | 2035*1921*2000 |
PE600*750 | 600*750 | 465 | 60-140 | 50-120 | 50-65 | 2150*1988*2105 |
PE600*900 | 600*900 | 480 | 65-160 | 60-140 | 55-75 | 2290*2106*2370 |
PE750*1060 | 750*1060 | 550 | 75-200 | 75-160 | 60-85 | 4180*2560*3070 |
PE1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 110 | 3480*2876*3330 |
PEX150*750 | 150*750 | 120 | 18-48 | 8-25 | 7.5-75 | 1200*1530*1060 |
PEX250*400 | 250*400 | 210 | 12 | 5-10 | 15-18.5 | 1430*1310*1340 |
PEX250*1000 | 250*1000 | 210 | 25-60 | 16-50 | 30-37 | 1530*1992*1380 |
PEX250*1200 | 250*1200 | 210 | 25-60 | 20-60 | 37-45 | 2192*1605*1415 |
PEX300*1300 | 300*1300 | 250 | 25-105 | 20-90 | 75 | 2720*1950*1600 |
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Related Products
If you are interested in our Jaw Crusher, or you need other mining use machines, such as: grinding mill, powder mill, and other crusher, you can visit our
-----Ball Mill-----
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Profile
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, European version coarse grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.

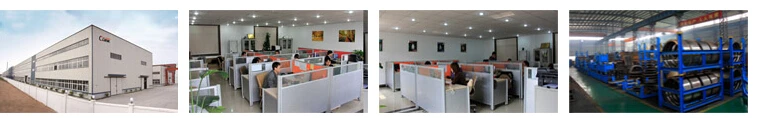

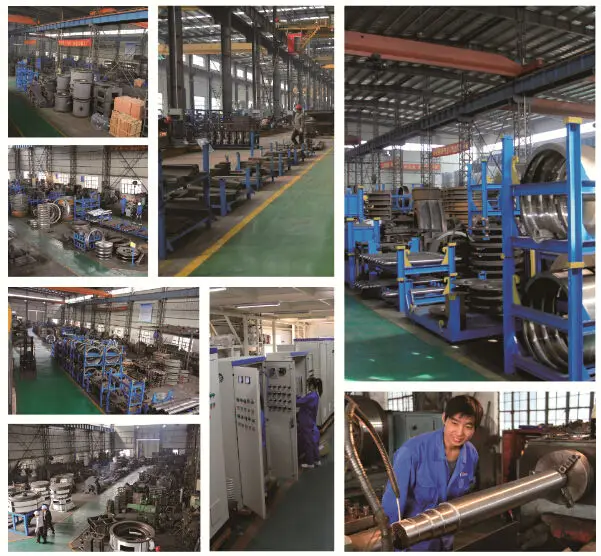

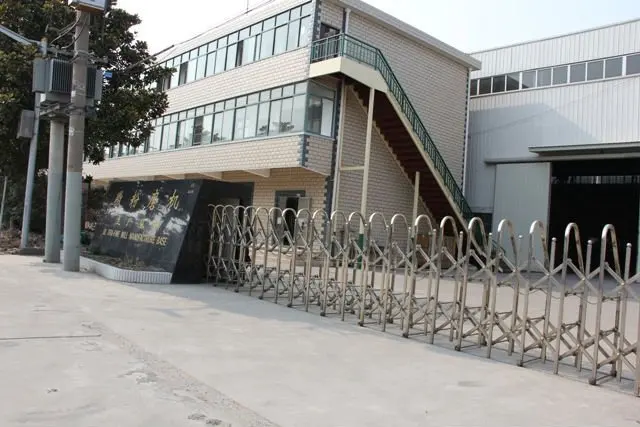

Our Factory
Our Work Site
Our Team
Exhibition we attend
Customer Visit

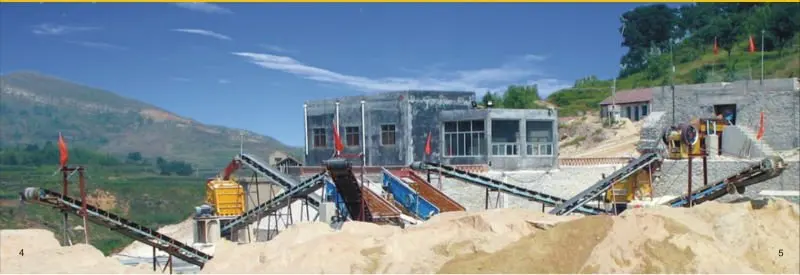

Customer Site
Why Choose Us
Packing&Shipping Service
After you set your order, during these pried of time, we this flow:
producing-painting(according to your color choose)-packing-shipping
It usually will take you 15-35 days, so don't worry, the painting always will take 3-7 days...
--------
Our Service
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business.
Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
---Select equipment model;
--- Sdeign and manufacture products according to clients' special requirement;
---Train technical personnel for clients.
Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
---Pre-check and accept products ahead of delivery;
---help clients to draft solution.
After-sales service
Provide considerate services to minimize clients' worries.
---Assist clients to prepare for the first construction scheme;
---Install and debug the equipment;
---Train the first-line operators on site;
---Examine the equipment regularly;
---Take initiative to eliminate the troubles rapidly at site;
---Distribute the guarantee fittings door-to-door;
---Provide technical exchanging;
---Provide maintenance for big items.Sdeign and manufacture products according to clients' special requirement;
---Train technical personnel for clients.
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
---Select equipment model;
--- Sdeign and manufacture products according to clients' special requirement;
---Train technical personnel for clients.
Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
---Pre-check and accept products ahead of delivery;
---help clients to draft solution.
After-sales service
Provide considerate services to minimize clients' worries.
---Assist clients to prepare for the first construction scheme;
---Install and debug the equipment;
---Train the first-line operators on site;
---Examine the equipment regularly;
---Take initiative to eliminate the troubles rapidly at site;
---Distribute the guarantee fittings door-to-door;
---Provide technical exchanging;
---Provide maintenance for big items.Sdeign and manufacture products according to clients' special requirement;
---Train technical personnel for clients.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2010,sell to Domestic Market(8.33%),South Asia(8.33%),Southern Europe(8.33%),Central America(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinding Mill,Crusher,Mining Machine,Packing Machine,Coating Machine
4. why should you buy from us not from other suppliers?
1. CE, ISO9001
2. factory sell directly
3. 30 years experience, professional
4. Sales market all over the world
5. good after sales serive
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French
We are based in Shanghai, China, start from 2010,sell to Domestic Market(8.33%),South Asia(8.33%),Southern Europe(8.33%),Central America(8.33%),Eastern Asia(8.33%),Mid East(8.33%),Oceania(8.33%),Africa(8.33%),Southeast Asia(8.33%),Eastern Europe(8.33%),South America(8.33%),North America(8.33%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinding Mill,Crusher,Mining Machine,Packing Machine,Coating Machine
4. why should you buy from us not from other suppliers?
1. CE, ISO9001
2. factory sell directly
3. 30 years experience, professional
4. Sales market all over the world
5. good after sales serive
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
