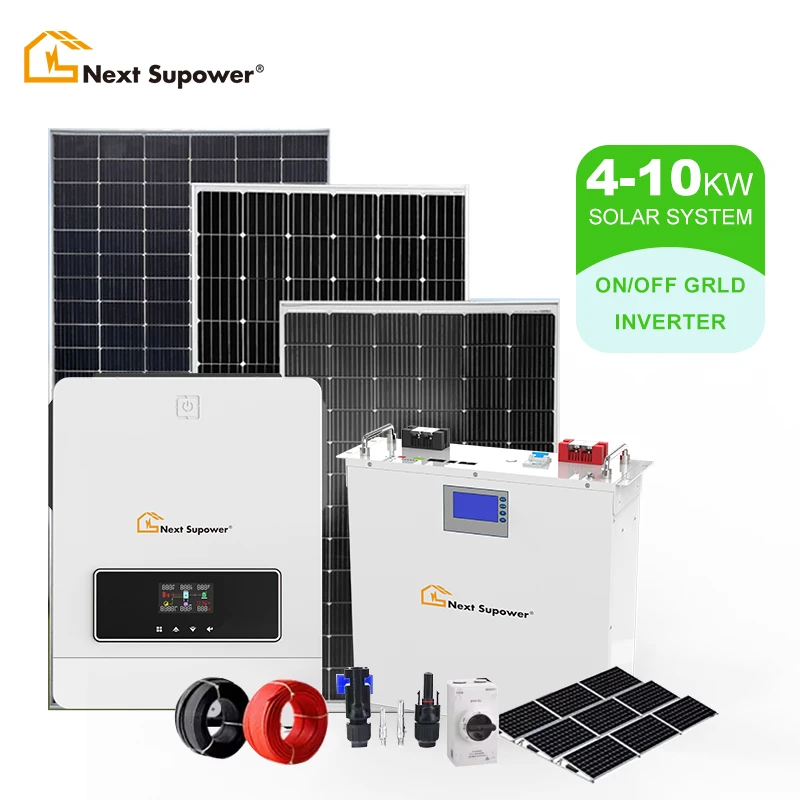

Best Hybrid Energy System Complete Kit 6KW 10KW 15KW 20KW 25KW 30KW 35KW 40KW OFF Grid Solar Panels with Battery and Inverter
- Category: >>>
- Supplier: Shenzhen Itsuwa Technology Co. Ltd.
Share on (1601228977895):
Product Overview
Description
Product Description
MODEL | T-PFG-4KW | T-PFG-6KW | T-PFG-7KW | T-PFG-8KW | T-PFG-10KW | |||||
Phase | 1 Phase | |||||||||
Maximum PV input power | 6200W | 6500W | 7000W | 8000W | 10000W | |||||
Rated output power | 3600W | 6200W | 7000W/7000VA | 8000W/8000VA | 10000W/10000VA | |||||
Maximum solar charging current | 120A | 140A | 160A | 160A | ||||||
PV Input(DC) | ||||||||||
Nominal DC voltage/Maximum DC voltage | 360VDC/500VDC | |||||||||
Start-up voltage/lnitial feeding voltage | 60VDC/ 90VDC | 90VDC/ 120VDC | ||||||||
MPPT voltage range | 60-450VDC | 90-450VDC | ||||||||
Number of MPPT trackers/Maximum input current | 1/23A | 1/27A | ||||||||
Grid Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output voltage range | 195.5-253VAC | |||||||||
Nominal output current | 15.7A | 27.0A | 31.3A | 35.6A | 44.3A | |||||
Power factor | >0.99 | |||||||||
Feed-in grid frequency range | 49-51±1Hz | |||||||||
Efficiency | ||||||||||
Maximum conversion efficiency(sloar to AC) | 98% | |||||||||
wo Load Output Power | ||||||||||
Full load | 3600W | 5000W | 7000W | 8000W | 10000W | |||||
Maximum main load | 3600W | 5000W-10000W | 7000W | 8000W | 10000W | |||||
Maximum second load(battery mode) | 1200W | 1666W-3333W | 2400W | 2733W | 3400W | |||||
Main load cut off voltage | 22VDC | 44VDC | ||||||||
Main load return voltage | 26VDC | 52VDC | ||||||||
AC Input | ||||||||||
AC start-up voltage/Auto restart voltage | 120-140VAC/180VAC | |||||||||
Acceptable input voltage range | 90-280VAC or 170-280VAC | |||||||||
Maximum AC input current | 40A | 50A | 40A | 40A | 50A | |||||
Nominal operating frequency | 50/60Hz | |||||||||
Surge power | 7200W | 1000W | 14400W | 16400W | 20400W | |||||
Battery Mode Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output waveform | Pure sine wave | |||||||||
Efficiency(DC to AC) | 94% | |||||||||
Battery & Charger | ||||||||||
Nominal DC voltage | 24VDC | 48VDC | ||||||||
Maximum charging current (solar to AC) | 120A | 140A | 160A | 160A | ||||||
Maximum AC charging current | 100A | 120A | 140A | 140A | ||||||
Physical | ||||||||||
Dimension D*W*H(mm) | 420*350*110 | 500*390*110 | ||||||||
Cartoon dimension D*W*H(mm) | 500*415*180 | 588*463*205 | ||||||||
Net weight(kg) | 8.5 | 9 | 13.6 | 14.5 | 14.8 | |||||
Gross weight(kg) | 9.5 | 10 | 14.9 | 16 | 16.2 | |||||
Interface | ||||||||||
Communication port | RS232WIFI/GPRS/LITHIUM BATTERY | |||||||||
