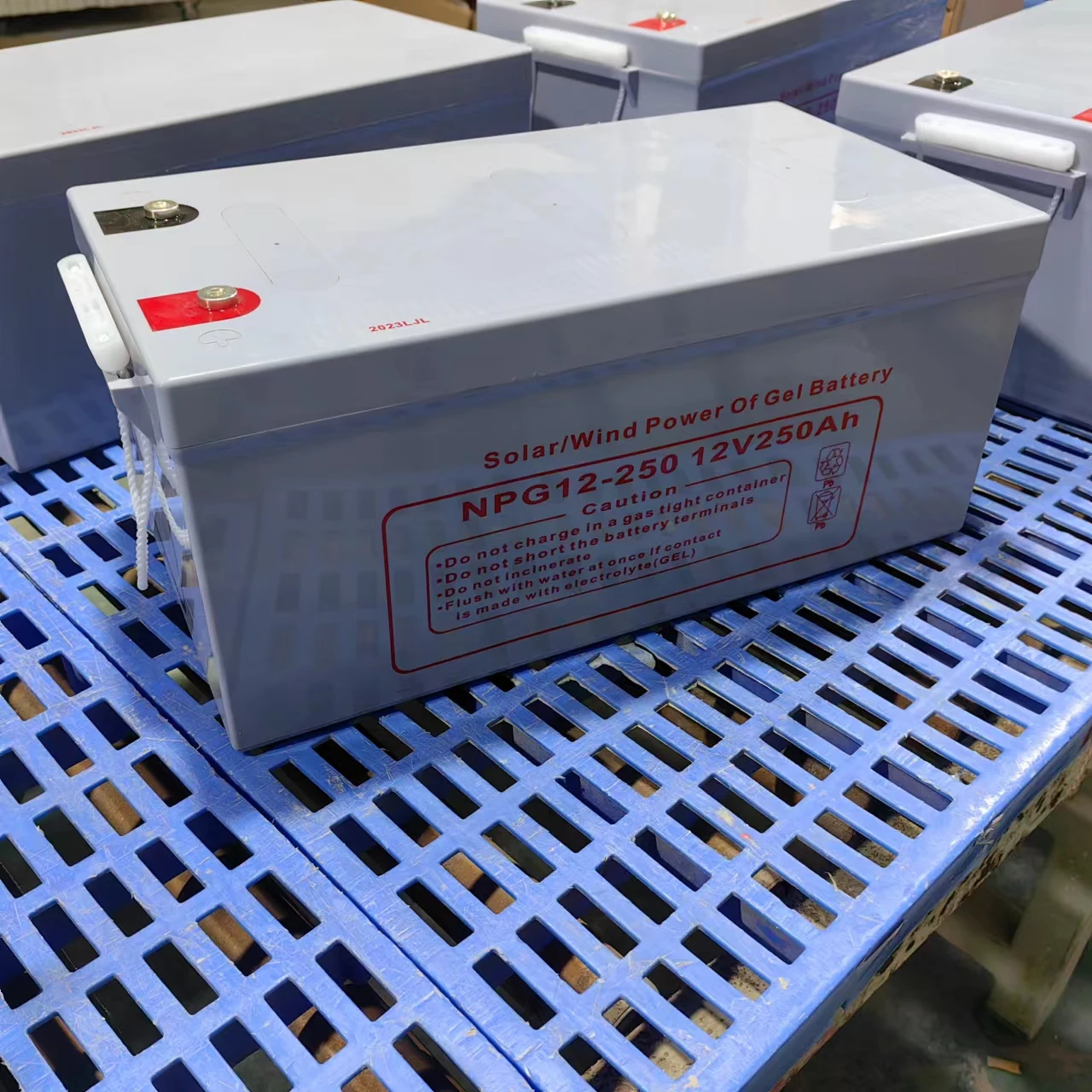

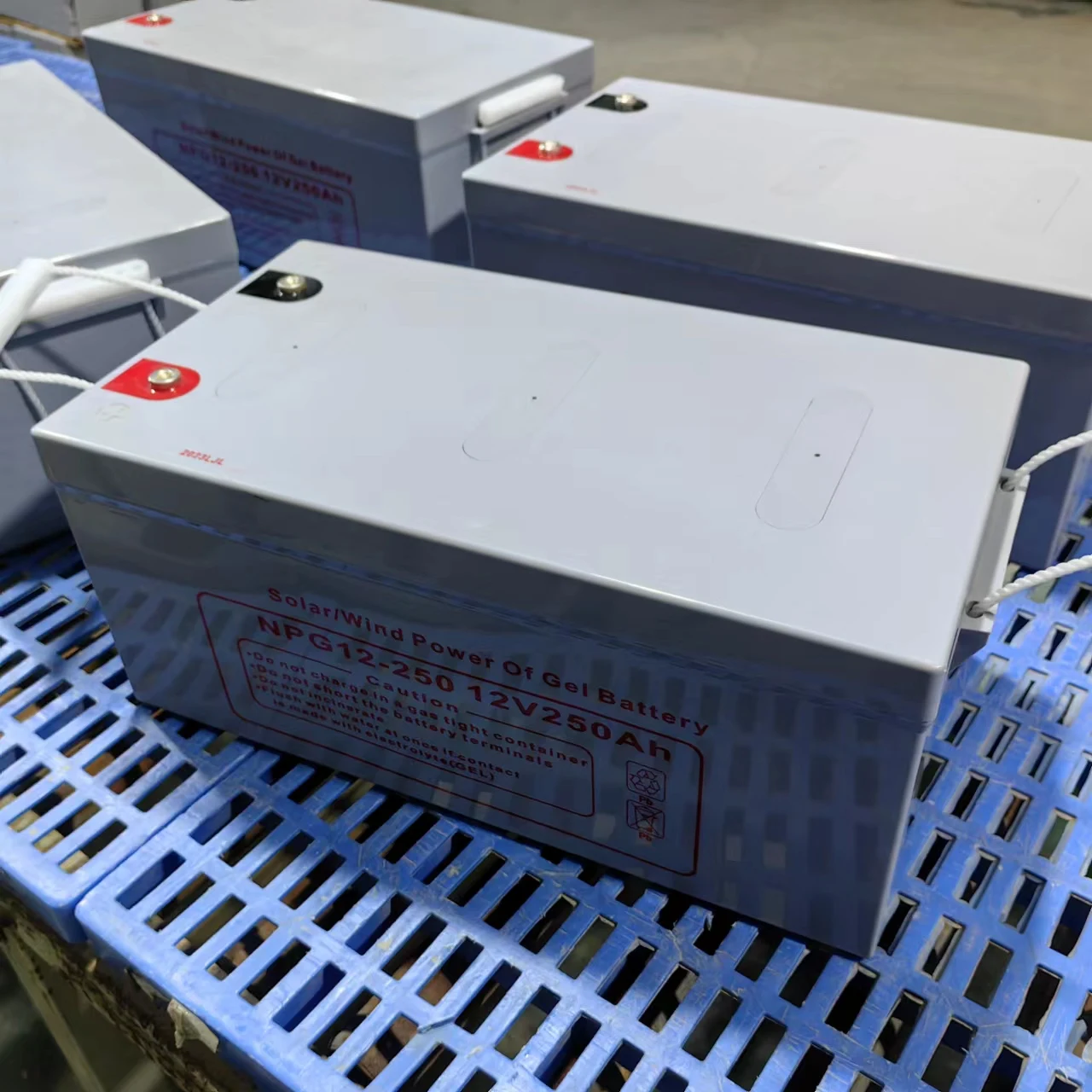

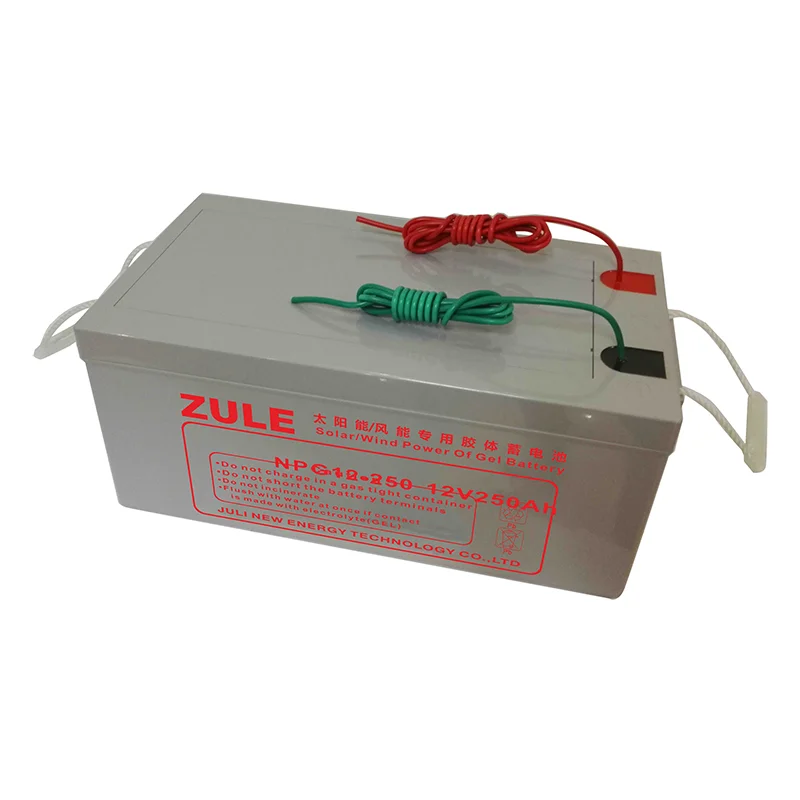

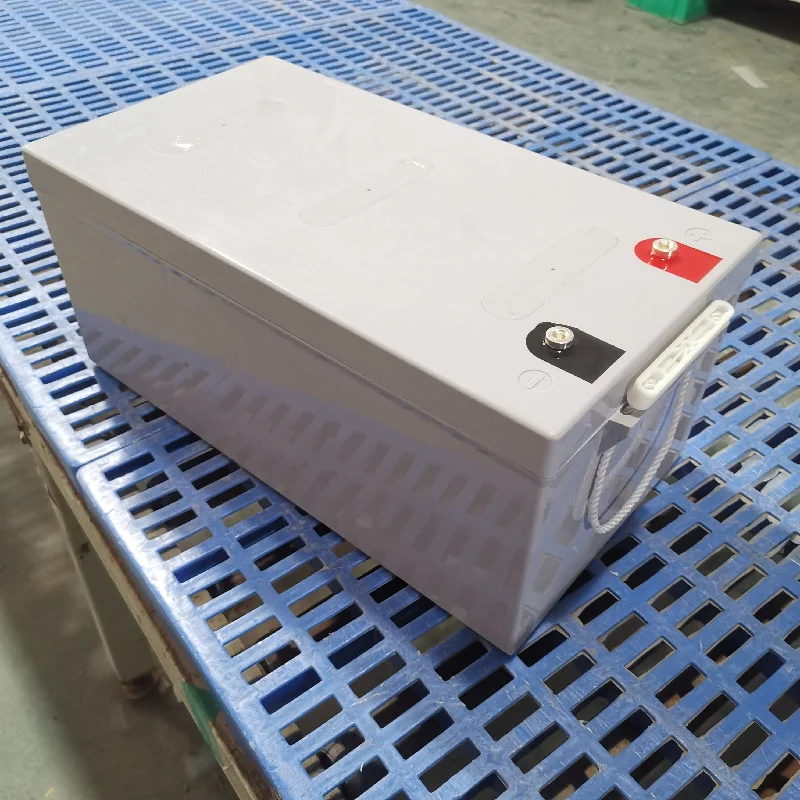

Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture
Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture

Deep Cycle Solar Gel Battery 12V 250Ah 200Ah 100Ah 150AH 105AH Lead Acid Agm Varta gel Battery China Manufacture

Share on (1601228979687):


Price:$63.00 - $87.00

Quantity:


Product Overview

Description



Products Description


Model
G-12V 70AH
G-12V 100AH
G-12V 150AH
G-12V 200AH
G-12V 250AH
Cels Per Unit
6
Voltage Per Unit
12
Capacity
70Ah@10hr -rate to 1.80V per cell@25°C
100Ah@10hr- rate to 1.80V per cell@25*C
150Ah@10hr -rate to 1.80V per cell@25*C
200Ah@10hr- rate to 1.80V per cell@25°C
250Ah@1Ohr-rate to 1.80V per cell@25*C
Weight
21.5KG
32.8KG
44KG
61.5KG
72.5KG
Max.Discharge Current
700A(5 sec)
1000A(5 sec)
1500A(5 sec)
2000A(5 sec)
2500A(5 sec)
Intemal Resistance
Approx.5.8 m
Approx.5m
Approx.4.2m
Approx.4 m
Approx.3.8m
Recommended Maximum Charging
21A
30A
45A
60A
75A
Operating Temperature Range
Discharge:- -20°C~60°C Charge:0*C~ 50*C Storage: -20°C~60°C
Normal Operating Temperature Range
25°C+5°C
Float charging Voltage
13.6 to 13.8V DC/unit Average at 25*C
Equalization and Cycle Service
14.4to 14.6V DC/unit Average at 25C
Self Discharge
GEL batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3%per month at 25'C.Please charge
batteries before using.
Size
260x169x2 10MM
330x171x218 MM
484x241x17 0MM
522x219x24 0MM
520x268x220MM














Company Profile
Hangzhou Sanke Electronic Technology Co., Ltd. is a professional company dedicated to the research, development, production and sales of lithium iron phosphate battery packs, 18650 lithium battery packs, electric bicycle batteries, lithium iron phosphate cells, and lithium-ion polymer battery products. After 1 year of rapid development. Sanke has accumulated core technologies and comprehensive solutions for power battery products, and has also gained recognition and praise from customers around the world. Most of our battery models have certificates such as MSDS, UN383.CE.UL1642. Relying on professional R&D engineers, enthusiastic sales team and reliable after-sales service, our battery products are widely used in off-grid solar power generation systems, solar street lights, RVs, electric vehicles, golf carts, power tools and other fields. backup power. Medical equipment.


Our Advantages


Our advantage


Our goal is to provide customers with competitive, safe, and high-quality battery products. At the same time, we focus on
environmental protection, assume social responsibility, and encourage people to use green new energy. Believe that we will become
your trustworthy battery business partner!


office
test
production line




Model
Nominal Voltage
Capacity
Dimension
(V)
(Ah)
Length
Width
Height
mm
inch
mm
inch
mm
inch
DG12-33
12
33
C20/1.75VPC
195
7.68
130
5.12
155
6.65
DG12-40
12
40
C20/1.75VPC
198
7.80
166
6.54
169
6.65
DG12-55
12
55
C20/1.75VPC
229
9.02
138
5.43
211
8.31
DG12-65
12
65
C20/1.75VPC
350
13.78
167
6.57
182
7.17
DG12-70
12
70
C20/1.75VPC
350
13.78
167
6.57
182
7.17
DG12-60
12
60
C20/1.75VPC
260
10.24
169
6.65
211
8.31
DG12-70S
12
70
C20/1.75VPC
260
10.24
169
6.65
211
8.31
DG12-75
12
75
C20/1.75VPC
260
10.24
169
6.65
211
8.31
DG12-75S
12
75
C20/1.75VPC
350
13.78
167
6.57
182
7.17
DG12-80S
12
80
C20/1.75VPC
328
12.91
172
6.77
215
8.46
DG12-100S
12
90
C20/1.75VPC
307
12.07
169
6.63
210
8.27
DG12-100
12
100
C20/1.75VPC
328
12.91
172
6.77
215
8.46
DG12-120
12
120
C20/1.75VPC
307
16.02
177
6.97
225
8.86
DG12-134
12
134
C20/1.75VPC
407
13.39
173
6.81
280
11.02
DG12-145
12
145
C20/1.75VPC
340
13.39
173
6.81
280
11.02
DG12-150
12
150
C20/1.75VPC
340
19.02
170
6.69
241
9.49
DG12-160S
12
160
C20/1.75VPC
483
19.02
170
6.69
241
9.49
DG12-160
12
160
C20/1.75VPC
483
20.94
207
8.15
214
8.43
DG12-180
12
180
C20/1.75VPC
532
20.94
207
8.15
214
8.43
DG12-200
12
200
C20/1.75VPC
532
20.55
240
9.45
219
8.62
DG12-225
12
225
C20/1.75VPC
522
20.55
240
9.45
219
8.62
DG12-230
12
230
C20/1.75VPC
521
20.51
269
10.59
204
8.03
DG12-260
12
260
C20/1.75VPC
521
20.51
268
10.55
220
8.66








Product packaging




FAQ


Q：Does the sending battery include BusBar connector and screws?
Yes ,we ship the battery with the BusBar connector and screws.
Q:Is the cells I bought balanced?
A: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
Q：What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate (LiFePO4) battery is 5-15 years, or 6000 to 8000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Q:If I want to solar charge LiFePO4/Lithium Ion battery, which already has PCB, would a normal controller work fine?
A: For LiFePO4 / Lithium Ion battery, we always recommend to use LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead Acid
solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be.
Q：I am a distributor. Can I cooperate with battery warehouse for a long time?
A: Yes,Individual pricing for large scale projects and wholesale demands is available.
Q:Why I can't buy cells from your store？
A: This is usually unable to provide accurate logistics prices for your cou
