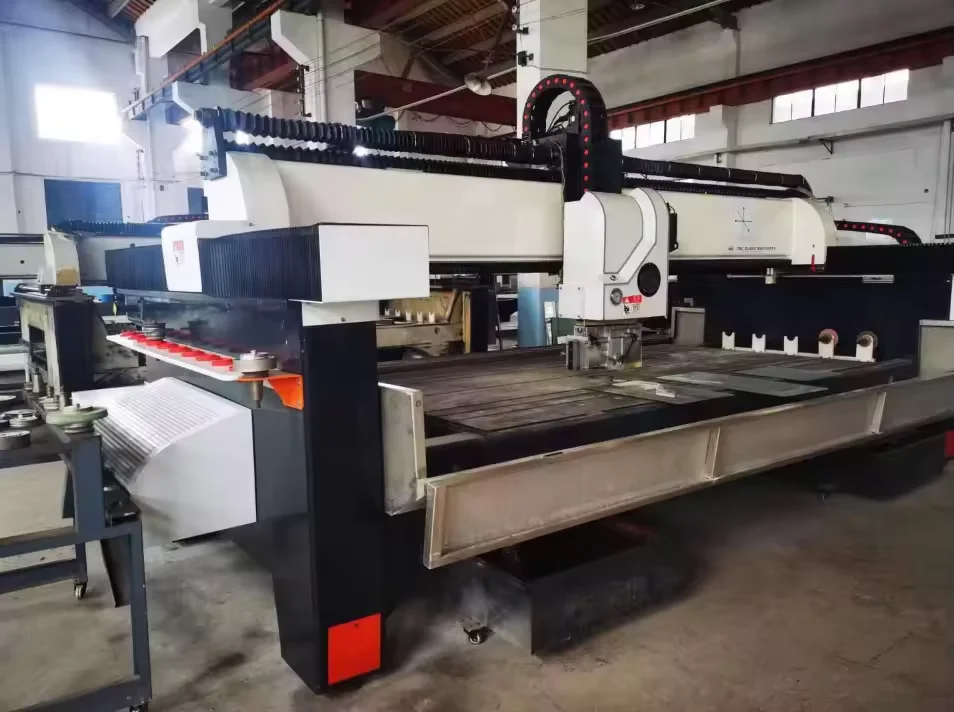

Advanced Factory Tempered Decoration Glass Groove Making CNC Glass Carving Engraver Cutting Engraving Machine
- Category: >>>
- Supplier: Jinan Truepro Cnc Machine Co. Ltd
Share on (1601229008980):
Product Overview
Description
Automatic Pattern Making Machine Stainless Steel Made Glass Groove Wheels Engraving Machine
Product Description
1、可与典型的 CAD 集成，信息不丢失
With typical CAD integration, information is not lost
2、具有更精准、更快捷的加工属性
With more accurate and faster processing properties
3、工艺知识库支持工艺推理
Process knowledge base supports process reasoning
4、工序模型自动生成
The process model is automatically generated
5、与 CAM 集成自动生成加工仿真
Automatic generation process simulation withCAM integration
With typical CAD integration, information is not lost
2、具有更精准、更快捷的加工属性
With more accurate and faster processing properties
3、工艺知识库支持工艺推理
Process knowledge base supports process reasoning
4、工序模型自动生成
The process model is automatically generated
5、与 CAM 集成自动生成加工仿真
Automatic generation process simulation withCAM integration

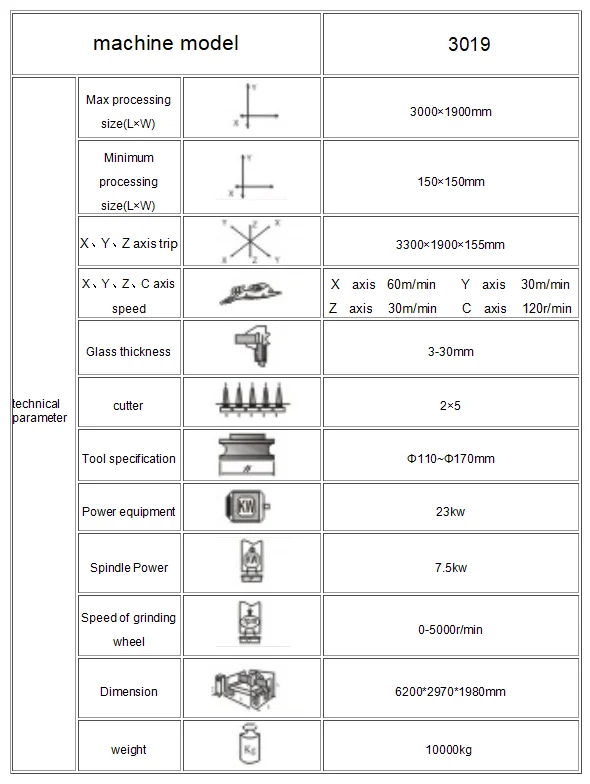

Specification
Overview of device functionality

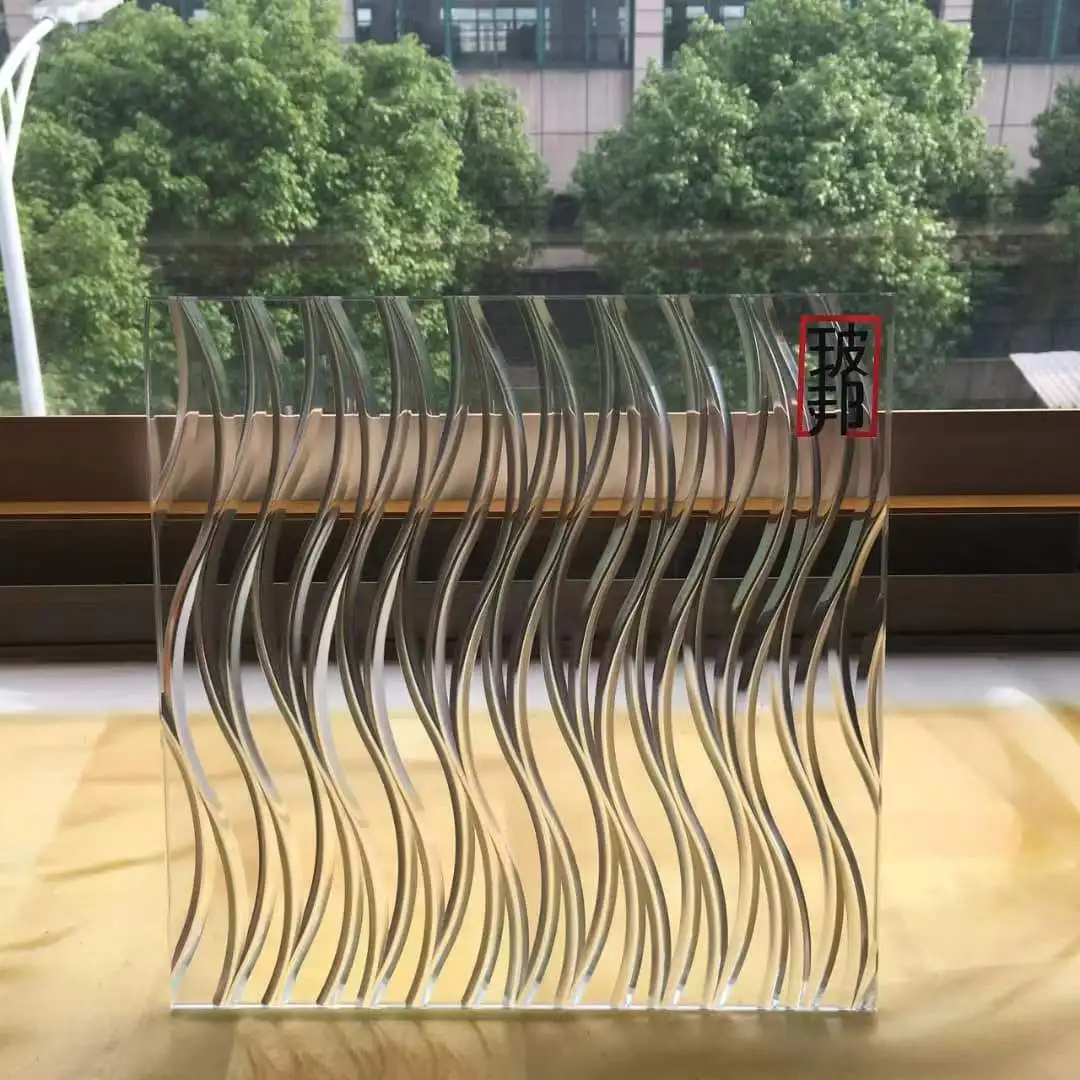

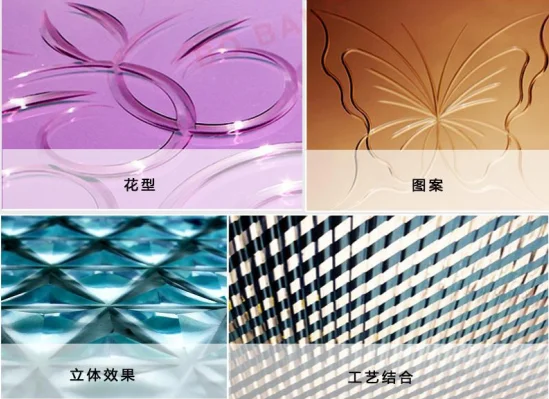

1、刻槽：可在玻璃表面刻出直线、圆和圆弧组成的图形（最宽能可到 8mm-100mm 的宽度，国内第一家能达到这种技术）
Groove: the shape of the line, circle and arc of the glass surface can be engraved. (the widest can reach 8mm to 100mm. The first
family can achieve this technique.)
2、抛光：可对刻槽的结果进行抛光，抛光程度能达到家具级别
Polish: can be polished to the result of groove, polishing degree can achieve furniture grade
Groove: the shape of the line, circle and arc of the glass surface can be engraved. (the widest can reach 8mm to 100mm. The first
family can achieve this technique.)
2、抛光：可对刻槽的结果进行抛光，抛光程度能达到家具级别
Polish: can be polished to the result of groove, polishing degree can achieve furniture grade

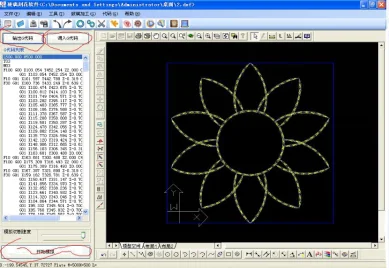

software

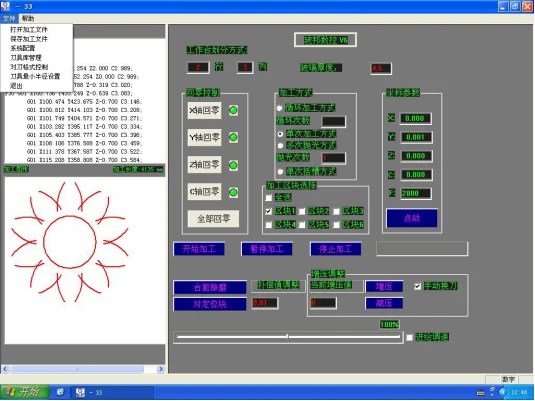

1, special research and development of the engraving machine industry dedicated operating software, can accomplish linear, circular, elliptical, A solid circle, special-shaped lines grooving polishing function, the whole process is done automatically; B, automatic automatic compensation and automatic conversion speed, and increase the pressure and decompression function of polishing time to provide the product qualification rate. The screen shows the size of the design and the processing time.
2. Of form a complete set of operating software to develop design of automatic generation of software import CAD graphics, only need to set up a few simple parameters can generate machines need G code. soft
The process of identifying and optimizing the way of the process saves the manual process and increases the efficiency of the customer. At the same time, we have the ability to detect the problems of the imported CAD, which can effectively avoid the production of defective products.
The process of identifying and optimizing the way of the process saves the manual process and increases the efficiency of the customer. At the same time, we have the ability to detect the problems of the imported CAD, which can effectively avoid the production of defective products.

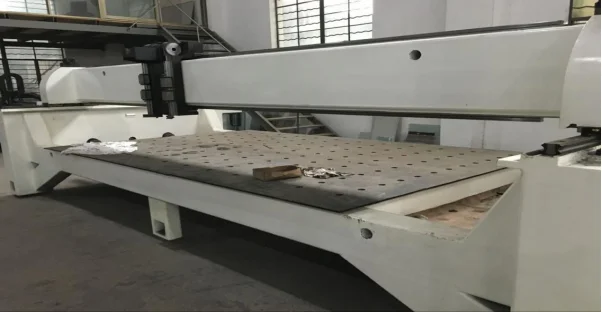

machine structure
1, USES the computer mode of operation, the man-machine interface, easy to understand, than similar products of physical buttons to reduce the probability of error, at the same time reduce the late maintenance cost. (physical buttons operation panel of the maintenance cost is higher than the cost of a mouse and keyboard). The use of the System is the Delta Tau Data System's PC platform motion controller, is a completely open System with PMAC, with PMAC motion controller is the strongest function, flexibility in the world's biggest motion controller, and has fast response speed, high precision, short development cycle, programming, and the characteristics of simple operation. Of PC + with PMAC open multi-axis motion control method not only enhances the numerical control system of flexible, adaptive and open, you can make the products in the later expanded and perfected, the system has to catch up with and even has exceeded the level of imported equipment.
2. Rack is controlled by a welding and the annealing treatment of the steel structure of beams with four slide block is installed on the frame, large contact area to ensure the stability of the machine at run time, no vibration. The technical department analyzes and oscillates the machine, and makes the machine more perfect. Automatic fuel pumps installed on the machine ensure that the machine lubricates the parts at high speed and reduces the wear and tear of the machine. The pump and refueling time are automatically controlled. The Swiss SKF bearing is used to ensure the continuous running of the machine, while using the Italian megaudi synchronous belt to achieve accurate transmission.

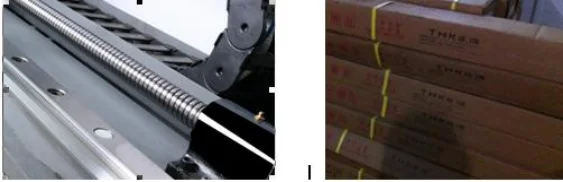

Lead screw and guide rail
Screw: all ball screw adopts imported screw, TBI company produces the overloaded double nut screw guide: guide part of the machine all adopt Japan THK rails (THK is not only the world top 100 companies, in hydraulic transmission, control and mobile technology has become the world's example) production of ball bearing slide block, its high bearing capacity and excellent dynamics to ensure the reliability of the company's products and reaction speed.
Company Profile
Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. Our factory have more than 16 years possesses R&D experience.
Top 3 in Jinan, the largest area for window machines in China.
We manufacture from raw material to final machine to control each machine quality.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
We are KA store in Alibaba plateform,and SGS verified supplier, trade assurance to protect your money in safe and deliver machine on time.
Top 3 in Jinan, the largest area for window machines in China.
We manufacture from raw material to final machine to control each machine quality.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
We are KA store in Alibaba plateform,and SGS verified supplier, trade assurance to protect your money in safe and deliver machine on time.
Packing & Delivery
Why Choose Us
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Tempered glass, how many basic machines do i need?
We usually arrange shippment within 15 days after getting deopsit,but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Tempered glass, how many basic machines do i need?
1） Glass Cutting Table
2）Glass Drilling Machine
3）Glass Polishing Machine
4）Glass Washing Machine
5）Glass tempering furnace
2）Glass Drilling Machine
3）Glass Polishing Machine
4）Glass Washing Machine
5）Glass tempering furnace
