Customized Color Height Capacity Two post hydraulic automotive vehicle car lifter repair hoist for sale
- Category: >>>
- Supplier: Qingdao Evergrande Solid Industry Co. Ltd.
Share on (1601229051995):
Product Overview
Description
Product Description
TP-210 | TP-230H | TP-250 | TP-270H | TP-270 | TP320 | |
Weight | 1000KG | 1000KG | 1050KG | 1050KG | 1100KG | 1150KG |
Lifting capacity | 2100KG | 2300KG | 2500KG | 2700KG | 2700KG | 3200KG |

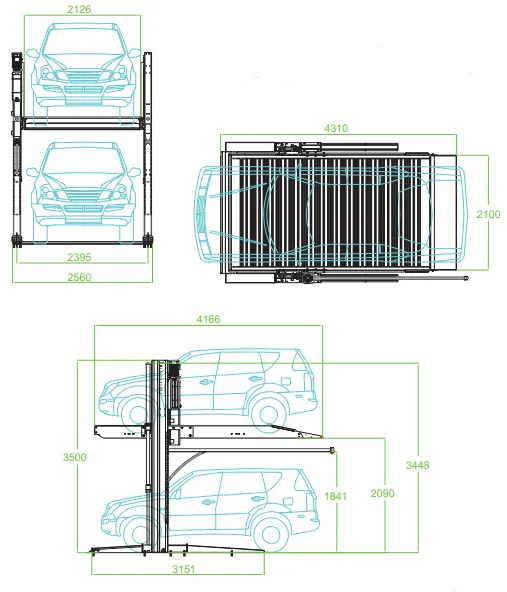

Size(mm) | 4019*2565*3000 | 4028*2555*3010 | 4242*2565*3000 | 4163*2555*3210 | 4310*2560*3500 | 4164*2558*3400 |
Parking time | 45S | 40S | 45S | 45S | 45S | 55S |
Parking height | 2100mm | 2100mm | 2100mm | 2100mm | 2100mm | 2100mm |
Parking width | 2100mm | 2100mm | 2100mm | 2100mm | 2100mm | 2100mm |
Parking length | 5000mm | 5000mm | 5000mm | 5000mm | 5000mm | 5000mm |
Power pack | 2.2KW Hydraulic power unit | 2.2KW Hydraulic power unit | 2.2KW Hydraulic power unit | 2.2KW Hydraulic power unit | 2.2KW Hydraulic power unit | 3.0KW Hydraulic power unit |
Electrical require | 110-450V，1/3Phase, 50/60Hz | 110-450V，1/3Phase,50/60Hz | 110-450V，1/3Phase,50/60Hz | 110-450V，1/3Phase,50/60Hz | 110-450V，1/3Phase,50/60Hz | 110-450V，1/3Phase,50/60Hz |
Control power | 24V | 24V | 24V | 24V | 24V | 24V |
Steel structure part
1. Following the concept of quality first, select high-quality steel, laser cutting, machine welding to ensure the accuracy and quality of products.
2. The surface of the equipment adopts hot-dip galvanizing, electrogalvanizing,spraying,electrophoresis, anti-slip, and other finishing methods, and strictly requires the thickness and adhesion of the finishing method, which will face complex environmental challenges.
2. The surface of the equipment adopts hot-dip galvanizing, electrogalvanizing,spraying,electrophoresis, anti-slip, and other finishing methods, and strictly requires the thickness and adhesion of the finishing method, which will face complex environmental challenges.
Electrical part
1. From steel structure to electrical to safety protection, it is formulated in strict accordance with the EU CE safety standards.
2. The use of electromagnets, photoelectric induction, emergency stop, fall prevention devices, limit switches, and other electrical devices to ensure that parking equipment can face the challenges of various unexpected situations.
2. The use of electromagnets, photoelectric induction, emergency stop, fall prevention devices, limit switches, and other electrical devices to ensure that parking equipment can face the challenges of various unexpected situations.
Power part
In terms of power, there are two ways of motor drive and hydraulic drive, the hydraulic operation is more stable, and the motor can be adapted to large parking equipment. Configure different drive modes according to different needs.
Specification
Model | TP-270 |
Equipment Weight | 1100KG |
Lifting Capacity | 2700KG/3200KG |
Parking Height | 2100mm |
Parking Length | 5000mm |
Control Power | Integrated Modules For Simple Wiring |
Electrical Requirement | 110-450 V, 1/3 Phase, 50/60 HZ |
Control Power | 24 V |
Parking Time | 45 Seconds |
Surface finishing | Anti-rust smooth galvanizing and power coating finishing |
Safety lock | 17 full range anti-fall locks |
Control switch | Safety key switch controller |
Packing & Delivery
Quantity | Delivery | Packing | Transportation | ||
1-3 units | 35 | Steel Structure with Plastic Wrap | air and sea | ||
10-50 units | 50 | Steel Structure with Plastic Wrap | air and sea | ||
＞50units | To be negotiated | Steel Structure with Plastic Wrap | air and sea | ||
commitment:
1.Quality check before delivery, I wish you rest assured.
2.Take photos throughout the journey to help you know the whole process.
2.Take photos throughout the journey to help you know the whole process.
3.Follow the whole delivery process to ensure smooth delivery of goods.
Credit guarantee
Company instruction
Solid Parking has been providing OEM service to two of the world largest parking equipment companies for years. We are committed and dedicated to continually supply the most reliable and cost-efficient parking systems and related products to our customers.
We are specialized on two post car stickers, four post car stickers, pit parking lifts, multi-level parking lifts and automatic parking systems. In order to guarantee the quality, our production has adopted the most advanced technology including laser cutting and robotic welding process.
All of our products are CE certified. The products are designed and manufactured for long-term heavy-duty use. Providing high quality parking products and professional services to our customers is our mission.
Company Profile
Factory founded | 2001 | ||||||
Registered patents | 86 | ||||||
Brand for parking | SolidParking | ||||||
Current main markets | China , US , Europe , Australia , Russia , South America , Mexico , Southeast Asia , etc. | ||||||
Core advantage | senior engineering team and railway standard production quality | ||||||
Business field | Factory members | Processing equipment | Product type |
railway industry | 380 highly skilled workers | 8 CNC machining centers | simple car parking lift |
parking industry | 25 experienced engineers | 32 digital controlled welding machines | semi-auto car parking system |
machining service industry | 15 management stuff | 2 laser cutting machines | special car platforms |
ETC. | ETC. | 9 hectares of R&D,manufacturing and testing bases | automated car parking system |
Certifications
Exhibition
FAQ
1.How many years does the service life of the equipment can reach ?
1. The equipment uses high quality steel, the selection of materials from the stiffness, fatigue resistance and other aspects of multiple considerations.The steel surface is treated by hot dip galvanized or electric galvanized, and then the surface blowing process is carried out to ensure the service life of the equipment.
2. The cylinder adopts Italian Aston professional sealing ring, which has a long life and can be used for more than 8 years under the premise of correct installation and maintenance.
2.Can the device be placed outdoors?
The equipment adopts the finishing method of surface galvanized and surface spray painting, which can completely meet the requirements of indoor and outdoor conditions.
3.Can I take my car off in the event of a power failure?
Yes.When the equipment is in a high position but at this time the equipment power failure, through the emergency drop valve to reduce the hydraulic oil in the cylinder block, so that the hydraulic cylinder down to achieve the purpose of high vehicle emergency release.
4. Is it easy to install and maintain?
The prototype was completed in 2005. The equipment is the seventh generation. 2.2 KW hydraulic drive, galvanized wave plate car plate design, make the equipment lightweight, easy to transport, installation, maintenance.
5. Do you accept any custom designs?
Yes, SolidParking provide OEM / ODM services to all of the world partners.
2.Can the device be placed outdoors?
The equipment adopts the finishing method of surface galvanized and surface spray painting, which can completely meet the requirements of indoor and outdoor conditions.
3.Can I take my car off in the event of a power failure?
Yes.When the equipment is in a high position but at this time the equipment power failure, through the emergency drop valve to reduce the hydraulic oil in the cylinder block, so that the hydraulic cylinder down to achieve the purpose of high vehicle emergency release.
4. Is it easy to install and maintain?
The prototype was completed in 2005. The equipment is the seventh generation. 2.2 KW hydraulic drive, galvanized wave plate car plate design, make the equipment lightweight, easy to transport, installation, maintenance.
5. Do you accept any custom designs?
Yes, SolidParking provide OEM / ODM services to all of the world partners.
