Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill
Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill

Factory Custom Gold Mining Equipment 900*3000 Cement Calcium Carbonate Powder Ball Mill

Share on (1601229152779):


Price:$4,000.00 - $8,700.00

Quantity:


Product Overview

Description



Products Description

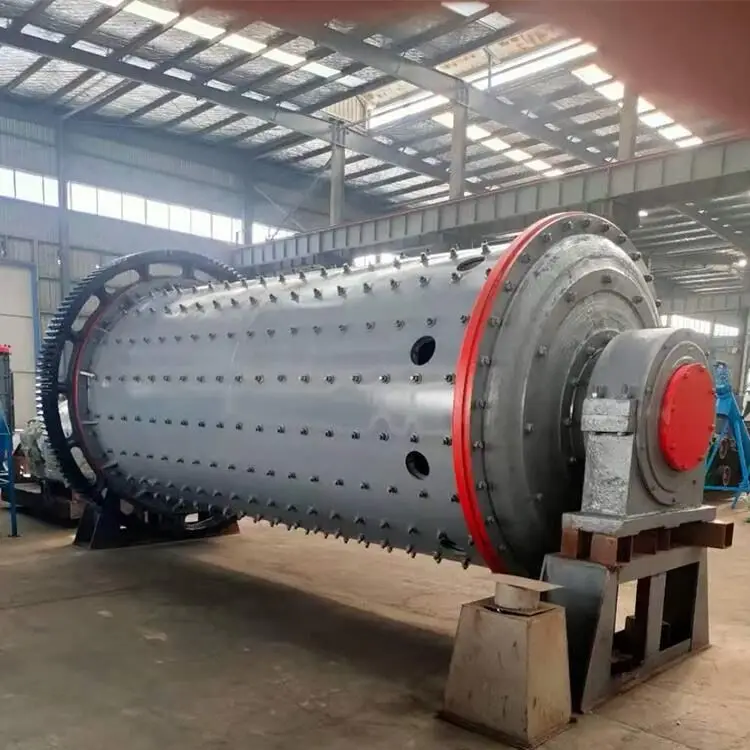

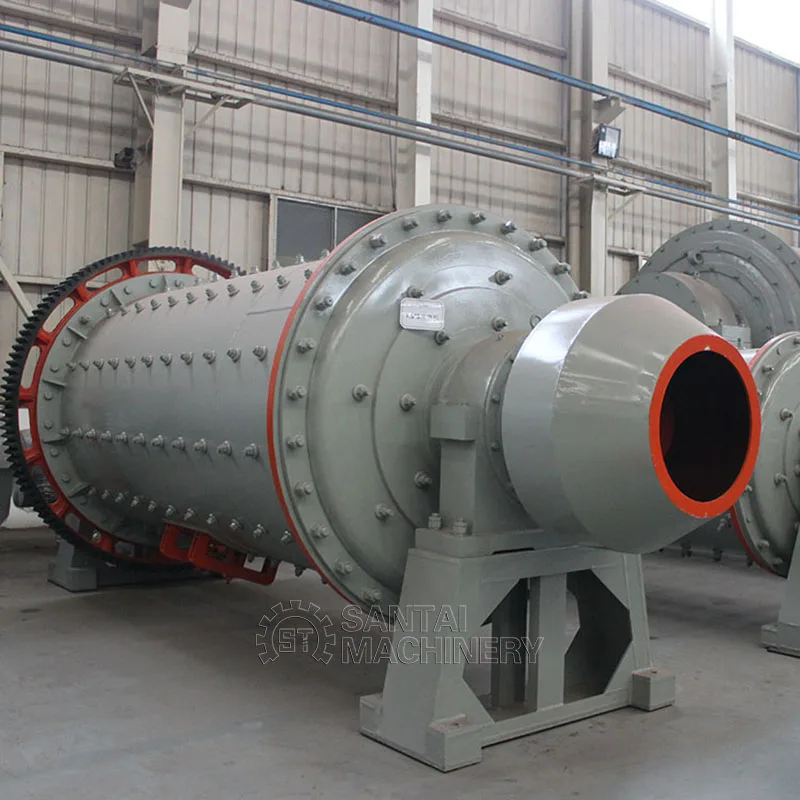

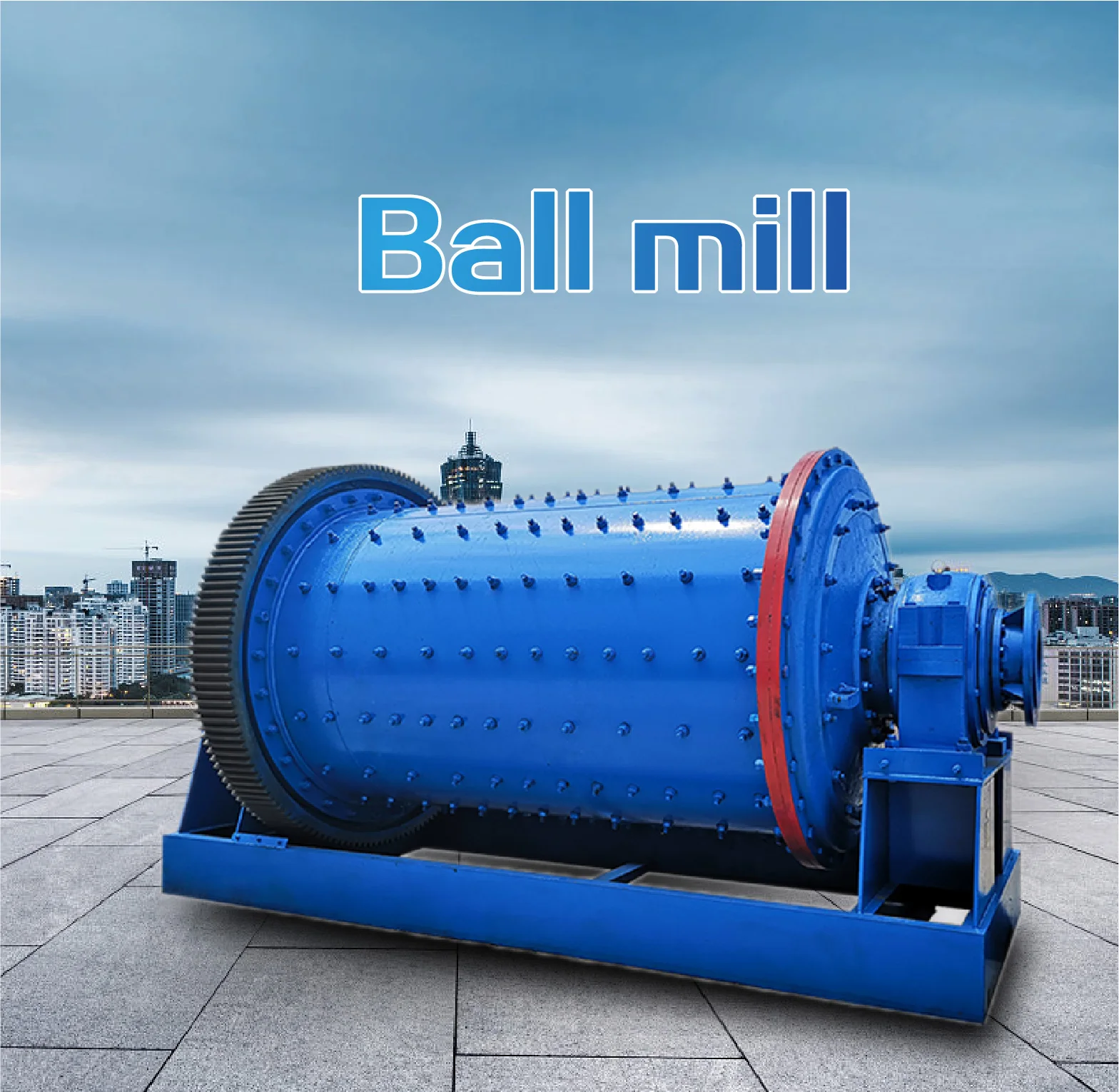

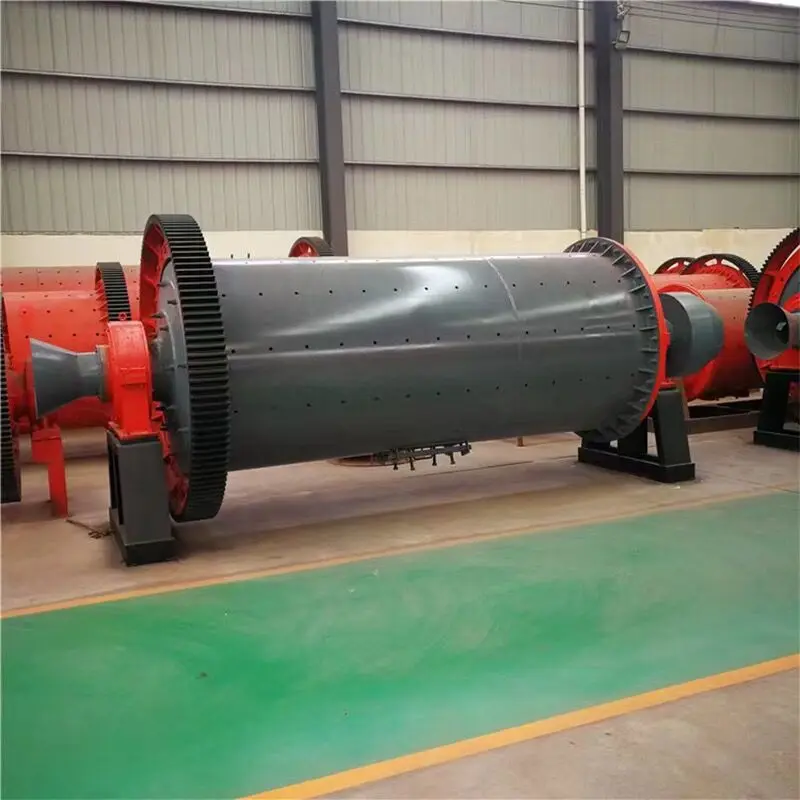

Ball Mill
Ball mill is the key equipment for grinding crushed materials, which can be used for dry and wet grinding. Wear-resistant liner embedded in the cylinder body, with good wear-resistant performance. The machine runs smoothly, with reliable performance and high efficiency. In addition, it adopts full hydraulic operation, which is convenient to use and easy to automate, greatly improving the reliability and service life.


Product parameters


Model
Power
(kw)
Capacity
(t/h)
Rotating speed
(r/min)
Discharge size
(mm)
Weight
(t)
ST-900*1800
18.5
0.65-2
36-38
0.075-0.89
4.6
ST-900*3000
22
1.1-3.5
36
0.075-0.89
5.6
ST-1200*2400
30
1.5-4.8
36
0.075-0.6
12
ST-1200*3000
37
1.6-5
36
0.074-0.4
12.8
ST-1200*4500
55
1.6-5.8
32.4
0.074-0.4
13.8
ST-1500*3000
75
2-5
29.7
0.074-0.4
15.6
ST-1500*4500
90
3-6
27
0.074-0.4
21
ST-1500*4700
130
3.2-6
28
0.074-0.4
24.7
ST-1830*3000
130
4-10
25.4
0.074-0.4
28

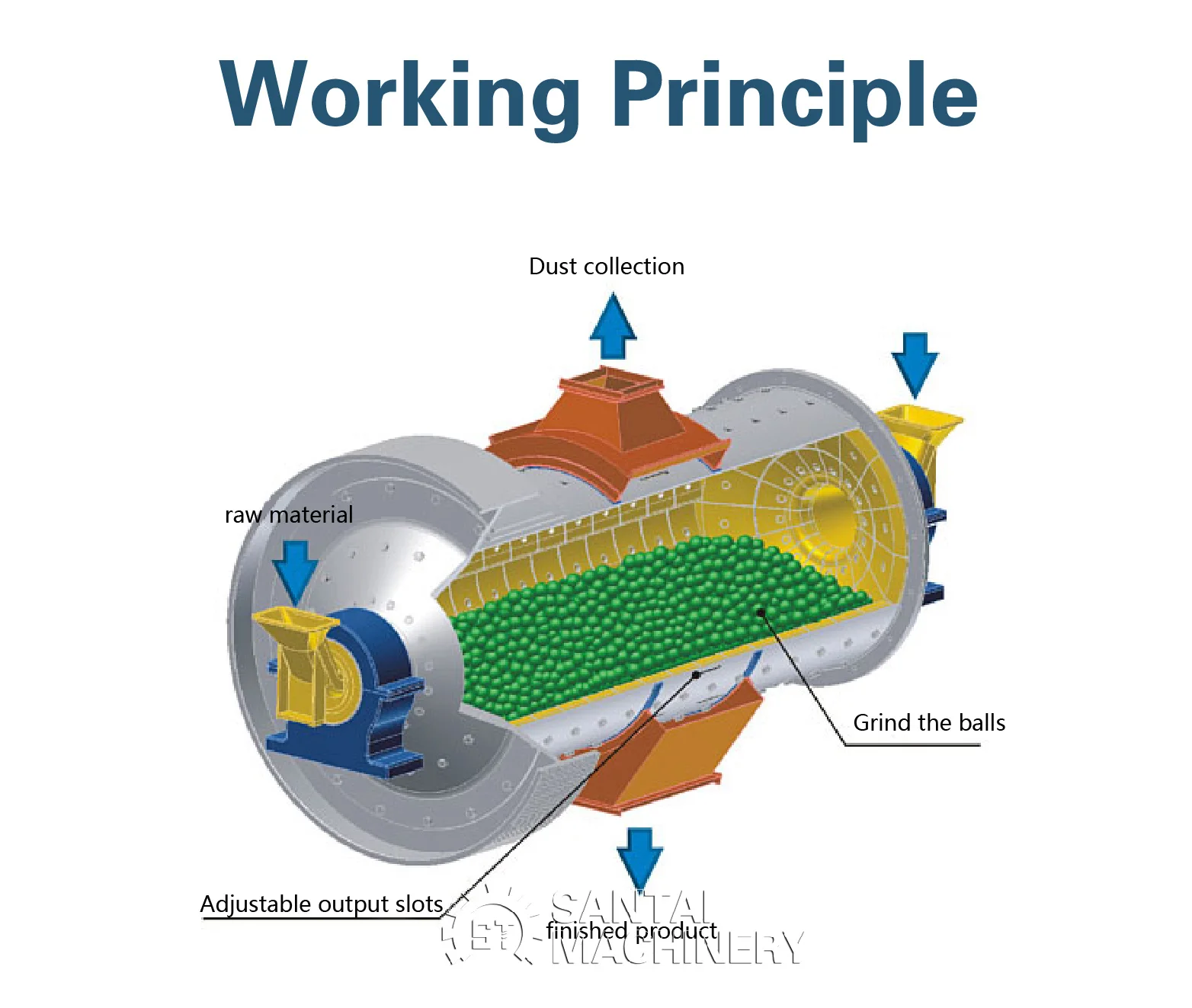

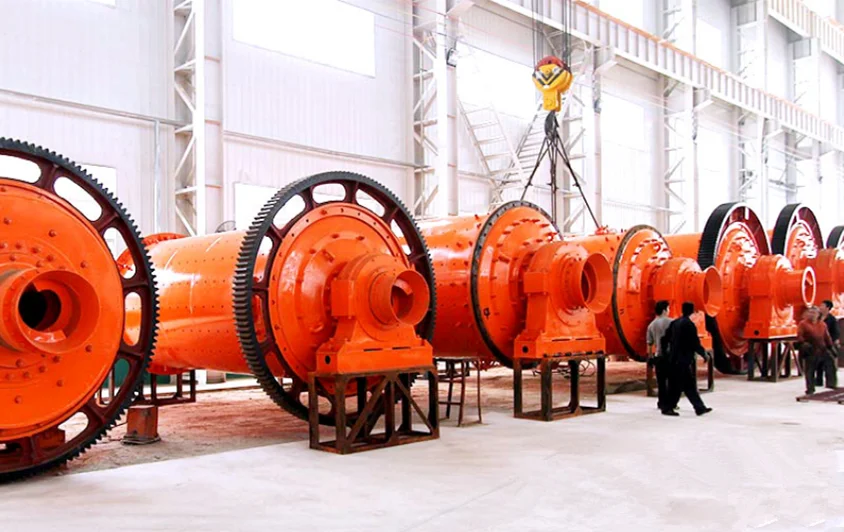

Ball Mill
The ball mill is filled with steel balls, which fall under the centrifugal force of the cylinder to grind the material. The use of a centripetal spherical double drum as support for the main shaft reduces energy consumption by 30% and increases output by 15%.
Dust collection raw material Grind the balls Adjustable output slots finished product



Details Images


Casting Large End Caps
Material, mould design, sand core, casting, shot blasting, heat treatment, machining, surface treatment
Rolling Bearings
Low friction, flexible start-up, bear radial and axial loads at the same time High rotary accuracy, good interchangeability
Inlet And Outlet Spirals
No clogging, no leakage, no air leakage, coarse ore, steel ball feeding back


Large Gears
High corrosion resistance, no rust, long service life, high tensile strength, various transmission ratios possible
Cylinder Body Part
High strength, sound manufacturing process, wear-resistant and fatigue-resistant with long service life
Corrugated Liner
Protect the cylinder, increase the friction, automatic grading ball, wear-resistant, anti-impact










Application Scenarios




Ball mills are used for crushing iron ore, copper ore, lead zinc ore, gold ore, steel slag, water slag, coal slag, limestone,fluorite, barite, potassium feldspar, coal gangue, fly ash, white ash, desulfurization gypsum, cement clinker, cement,refractorymaterials, etc.

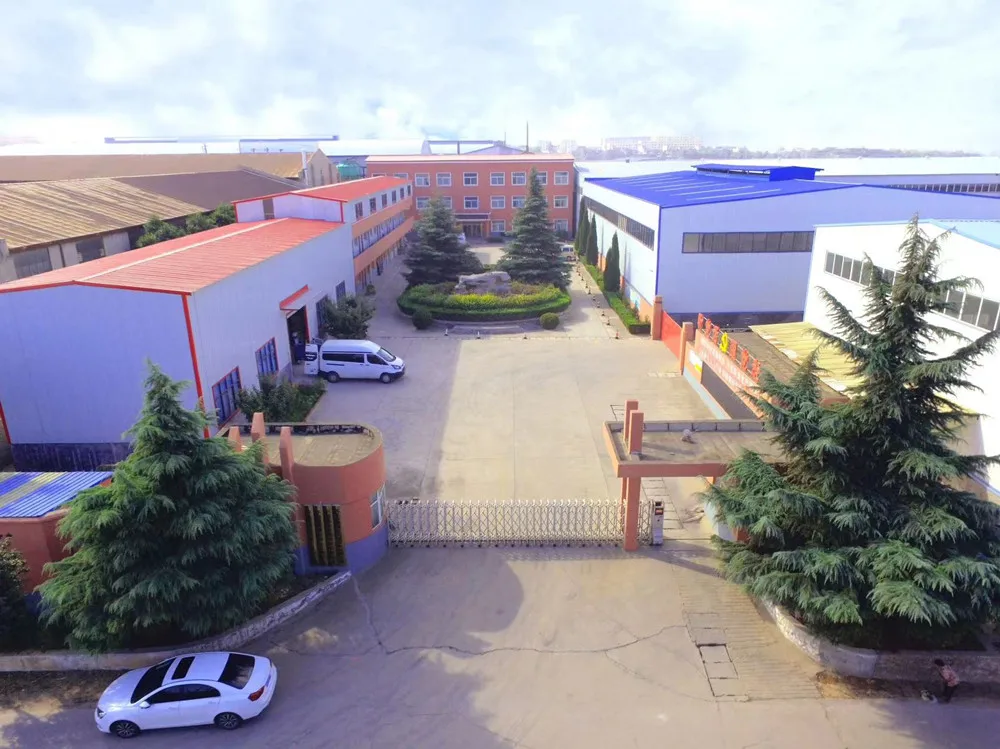

Company Profile




Henan suntai machinery manufacturing co., ltd is a large customised factory producing mineral processing equipment, drying equipment, solid waste processing equipment, biomass pellet equipment, wood crusher, and our products have been exported to more than 50 countries in africa, asia, north america and south america. our sales managers and engineers are very familiar with the local conditions, and we will provide you with the most suitable solutions.

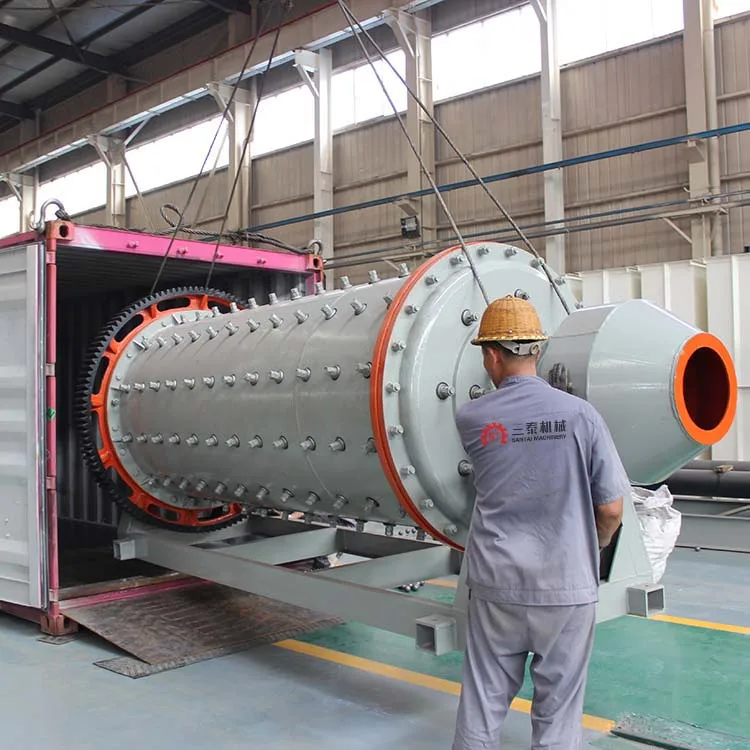

Product packaging






FAQ


1、Are you a factory or a trading company?
A:We are a factory that supports customization.
2、How long is your delivery time?
A:Inventory takes 7-10 days, mass production takes 15-30 days.
3、What is your payment method?
A:Advance 30% T/T deposit and 70% balance before shipment.
4、Can you promote our brand on your products?
A:If you can meet our minimum order quantity, we can print your logo on the product and packaging.
5、How to ensure the quality of your products?
A:1) Strict testing is carried out during the production process.
2) Strict sampling inspection shall be conducted on the products before shipment to ensure that the packaging is intact and undamaged.
