Product Overview
Description

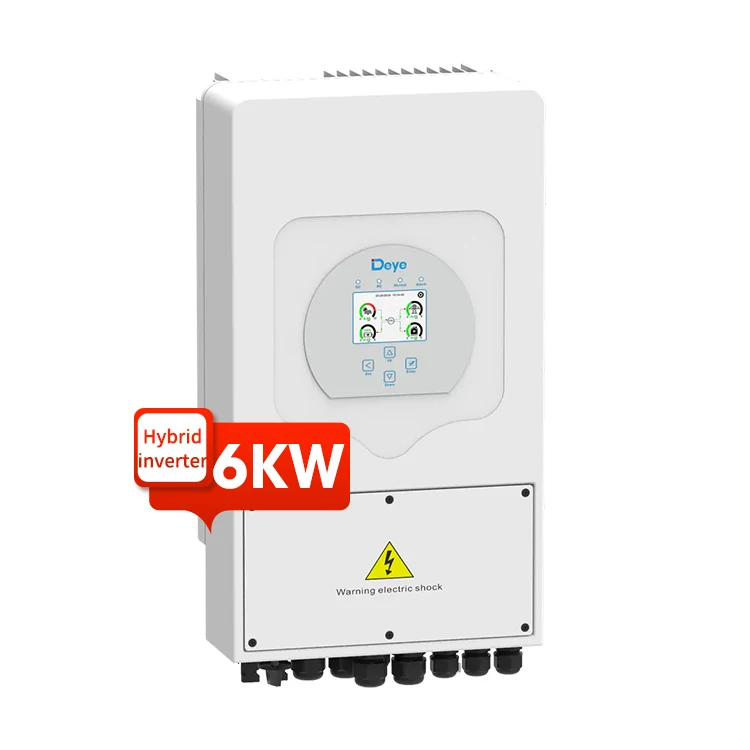

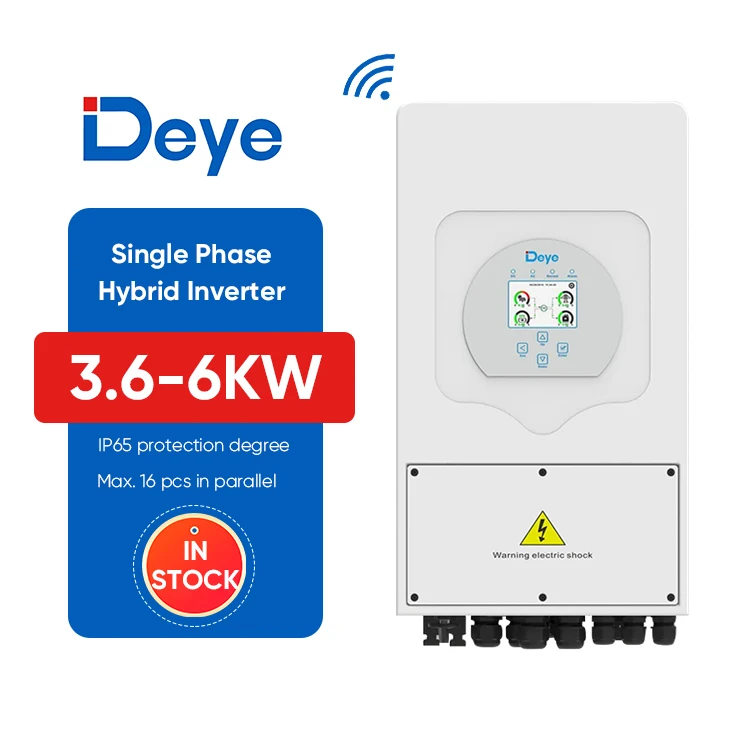

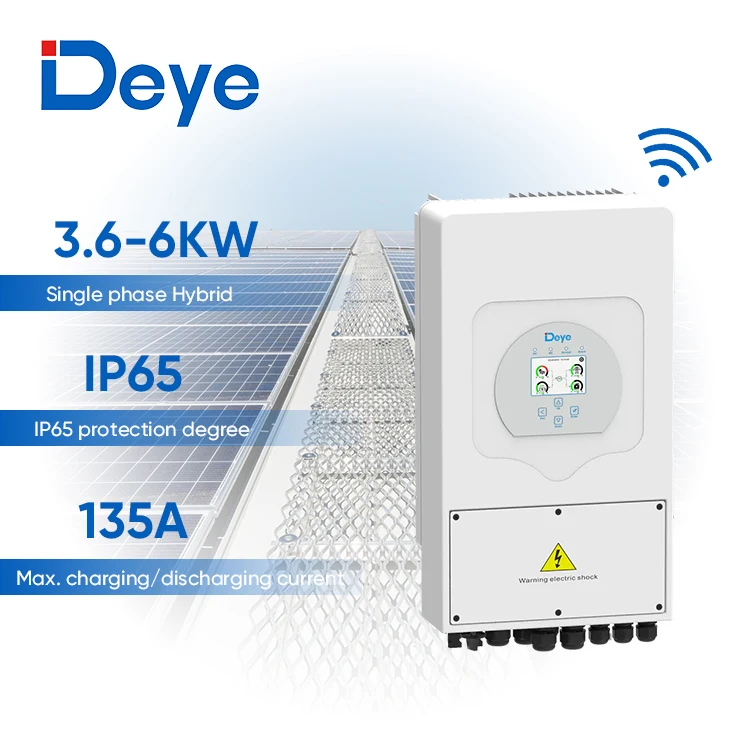

DEYE 3.6/5/6KW HYBRID INVERTER

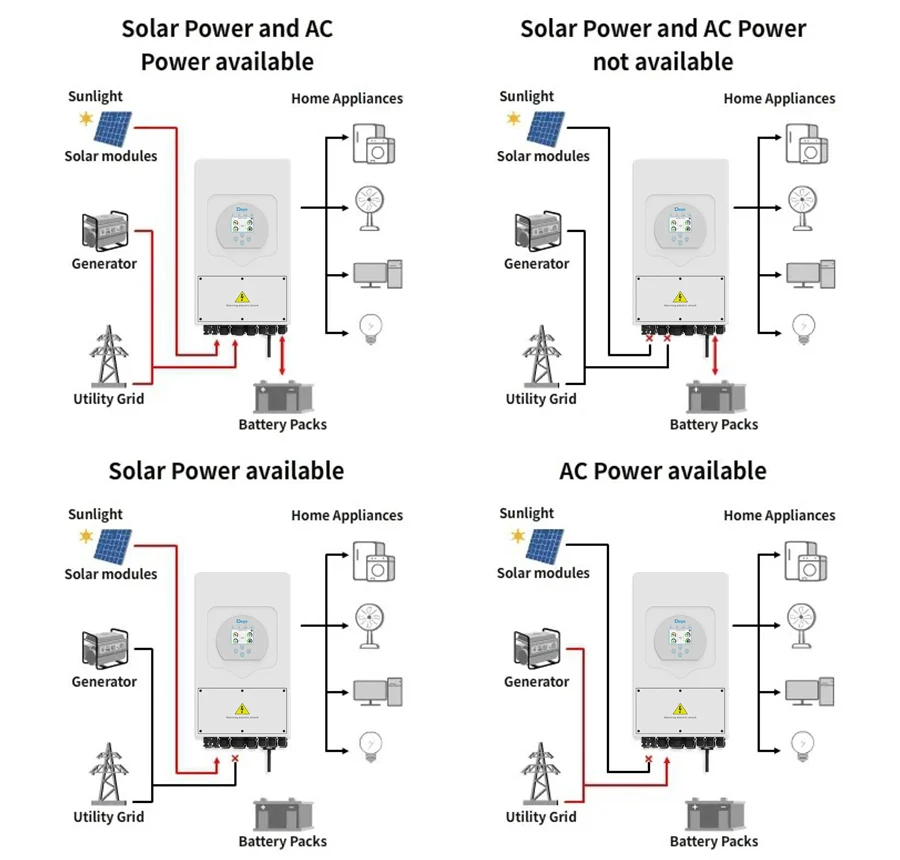

DEYE 3.6/5/6KW HYBRID INVERTER，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication
It equipped with RS485/CAN port for battery communication
Product Parameters
DEYE SUN-3.6/5/6K-SG03LP1-EU | 3.6-6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU | ||
Battery Input Data | |||||
Battery Type | Lead-acid or Lithium-ion | ||||
Battery Voltage Range(V) | 40-60 | ||||
Max.Charging Current(A) | 90 | 120 | 135 | ||
Max.Discharging Current(A) | 90 | 120 | 135 | ||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
Number of battery input | 1 | ||||
PV String Input Data | |||||
Max. PV Access Power (W) | 7200 | 10000 | 12000 | ||
Max PV Input Power（W） | 4680 | 6500 | 7800 | ||
Max PV Input Voltage（V） | 500 | ||||
Start-up Voltage（V） | 125 | ||||
MPPT Voltage Range（V） | 150-425 | ||||
Rated PV Input Voltage(V) | 370 | ||||
Max Input Short-Circuit Curren（A） | 17+17 | ||||
Max Operating PV Input Curre（A） | 13+13 | ||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | ||||
AC Input/Output Data | |||||
Rated AC Input/Output Active Power（W） | 3600 | 5000 | 6000 | ||
Max AC Input/Output Apparent Power （VA） | 3960 | 5500 | 6600 | ||
Peak Power (off-grid)（W） | 2 times of rated power,10s | ||||
Rated AC Input/Output Current（A） | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | ||
Max AC Input/Output Current（A） | 18/17.2 | 25/23.9 | 30/28.7 | ||
Max Continuous AC Passthrough (grid to load)（A） | 35 | 40 | |||
Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | ||||
Grid Connection Form | L+N+PE | ||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||||
Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||
DC Injection Current | <0.5%ln | ||||
Efficiency | |||||
Max Efficiency | 97.6% | ||||
Euro Efficiency | 96.5% | ||||
MPPT Efficiency | ＞99% | ||||
Equipment Protection | |||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | ||||
Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||
Interface | |||||
Communication Interface | RS485/RS232/CAN | ||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
General Data | |||||
Operating Temperature Range | -40 to+60℃,＞45℃ Derating | ||||
Permissible Ambient Humidity | 0~100% | ||||
Permissible Altitude | 2000m | ||||
Noise | ＜30 dB(A) | ||||
Ingress Protection(IP) Rating | IP 65 | ||||
Inverter Topology | Non-Isolated | ||||
Over Voltage Category | OVC II(DC),OVC III(AC) | ||||
Cabinet size（W*H*D）[mm] | 330×580×232 (Excluding Connectors and Brackets) | ||||
Weight[kg] | 25 | ||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||
Type Of Cooling | Intelligent air cooling | ||||
Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105 | ||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
If you want to know more about Deye single-phase inverters, you can contact us, in addition, we have prepared a large number of Deye inverters in stock, if you have needs, we are happy to serve youIf you want to know more about Deye single-phase inverters, you can contact us, in addition, we have prepared a large number of Deye inverters in stock, if you have needs, we are happy to serve you.

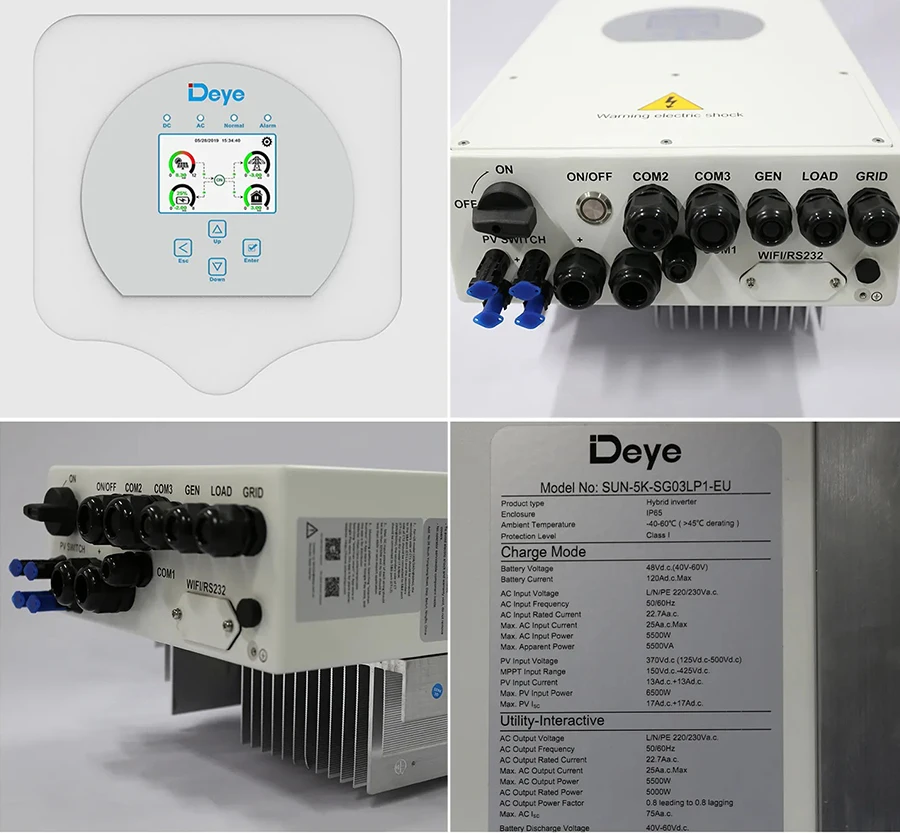

Product Details

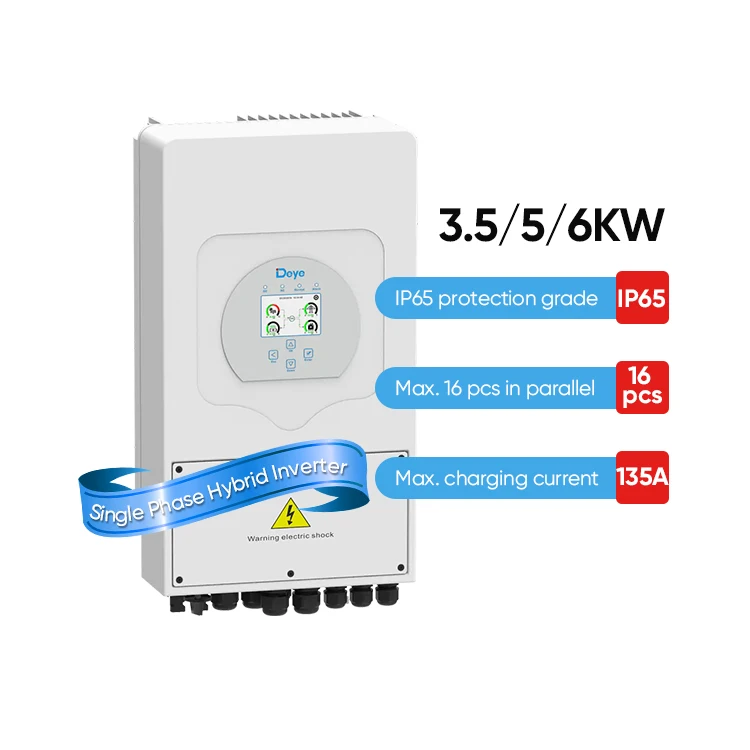

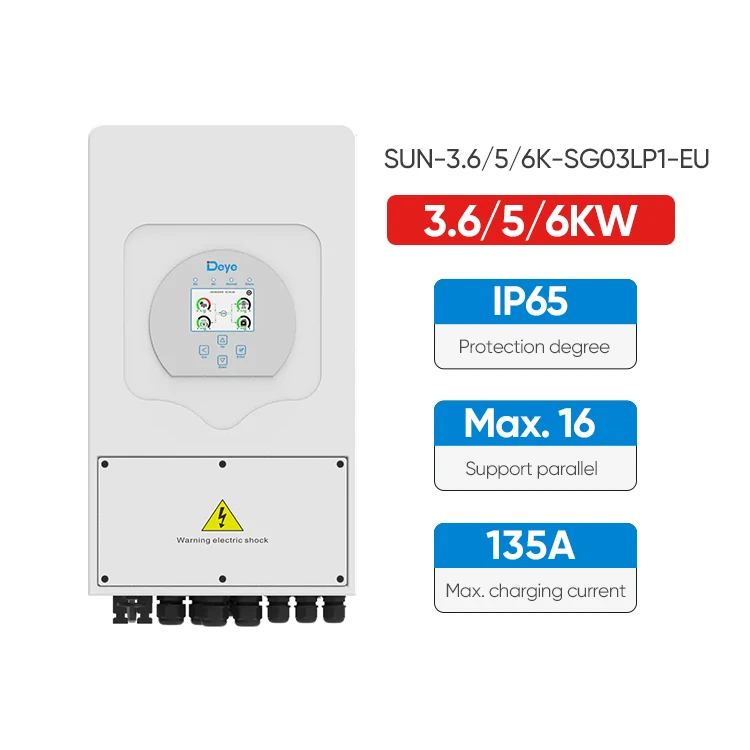

ADVANTAGE
deye single inverert SUN-5K-SGO3LP1-EU SUN-6K-SG03LP1-EU
* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 135A
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator

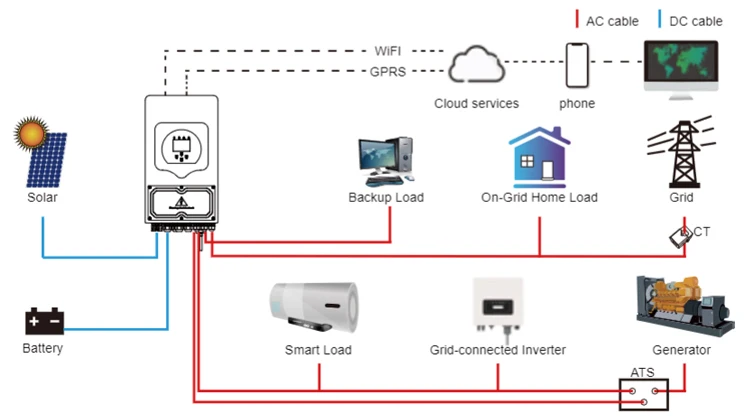

System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility - PV modules consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such asrefrigerator and air conditioner.
Product Packaging

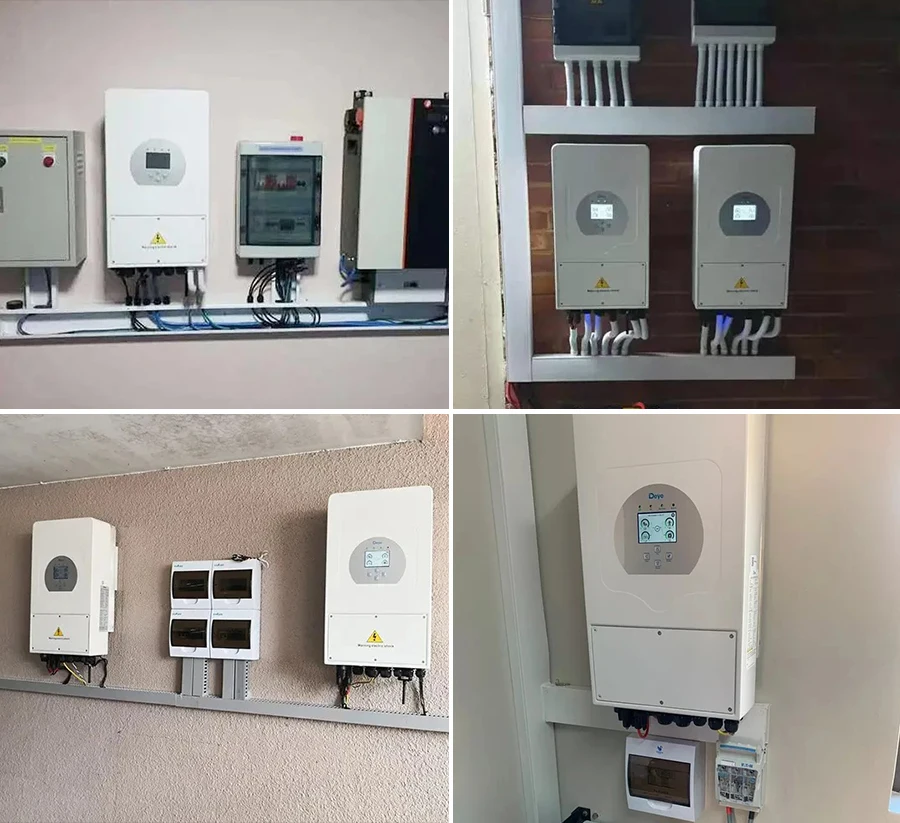

Application
Company Profile
S K Tech Co., Ltd.founded in 2020,is a professional manufacturer and exporter that are concerned with the design, development and production of Solar panels, solar energy systems, Solar Inverter, Lithium Ion Batteries, Solar street lights and solar pump systems, Wind Generators. SK TECH has adopted international advanced production equipment and integrated the first class manufacturing engineering and management system, dedicated to provide high performance solar modules with competitive cost.
If you have a demand for photovoltaic products, welcome to contact us
