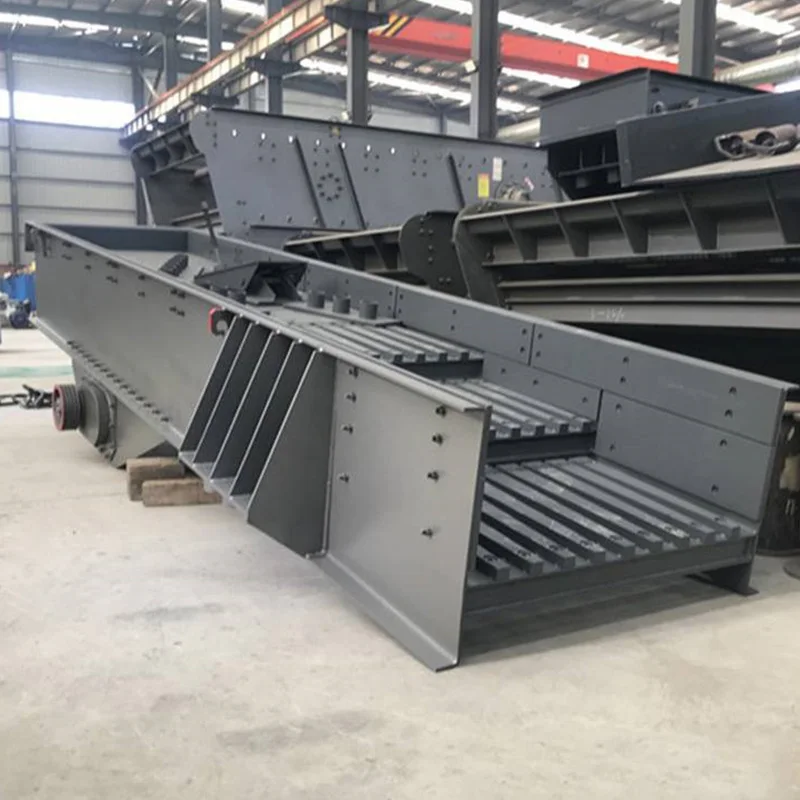

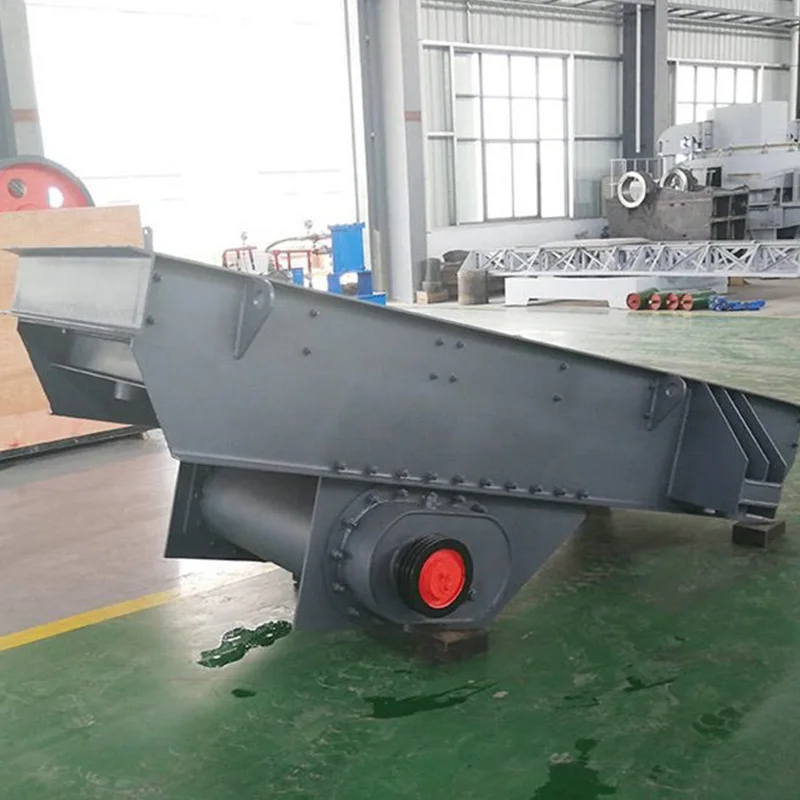

Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder
Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder

Stone Mining limestone granite pebble gravel silica feeding equipment vibrating feeder

Share on (1601229268538):


Price:

Quantity:


Product Overview

Description



Product Description




Vibrating feeder is mainly used to feed materials continuously, stably and evenly before the coarse crushing. It transports
materials to the crusher machine and has the function of Pre-screening the materials. It is widely used in crushing and screening production lines in the areas of coal mines, construction, building materials, chemical industry, and other fields.

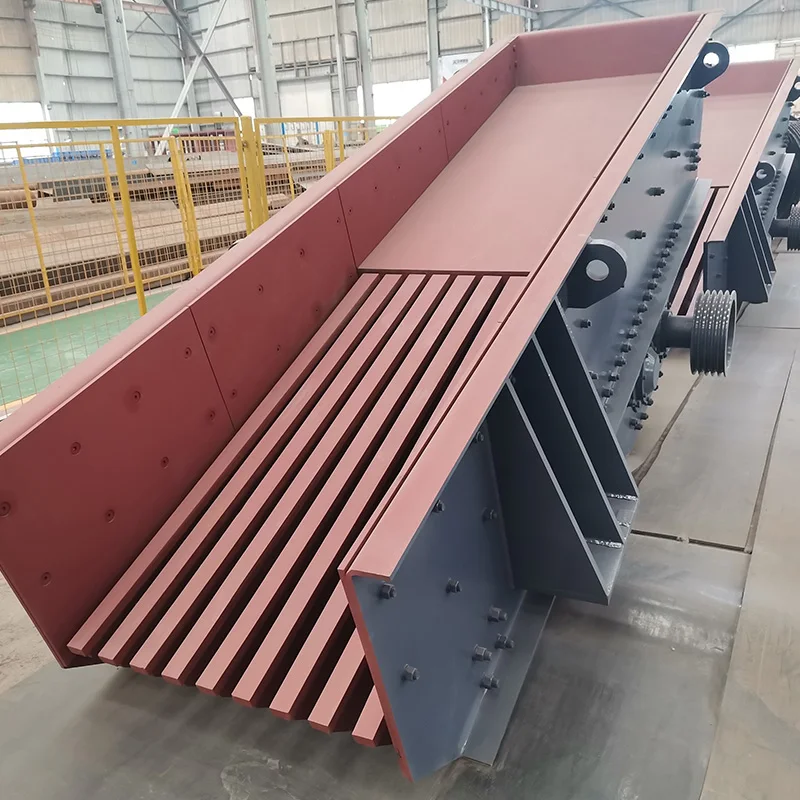

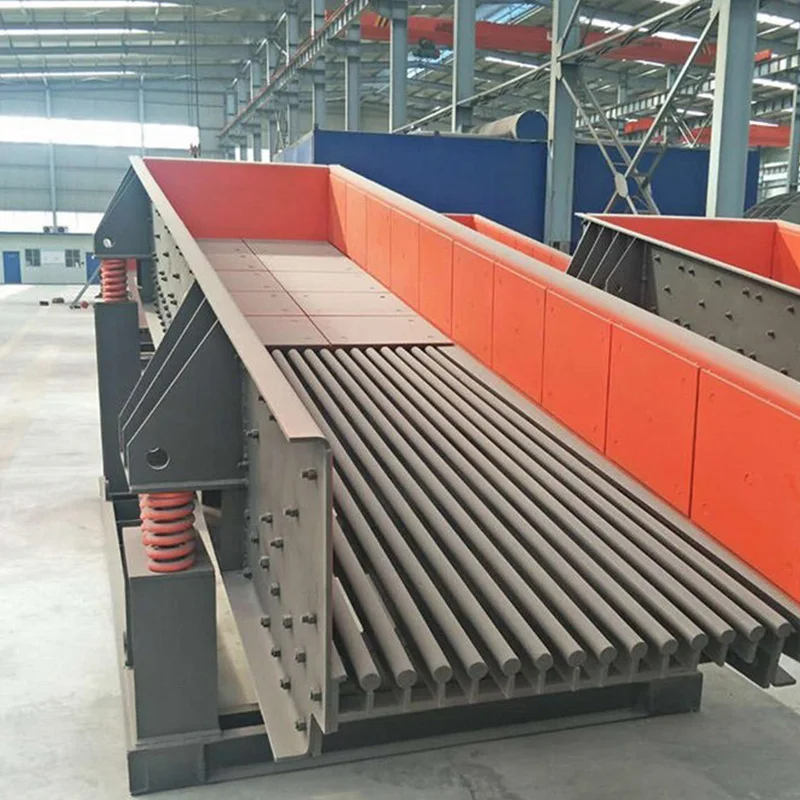

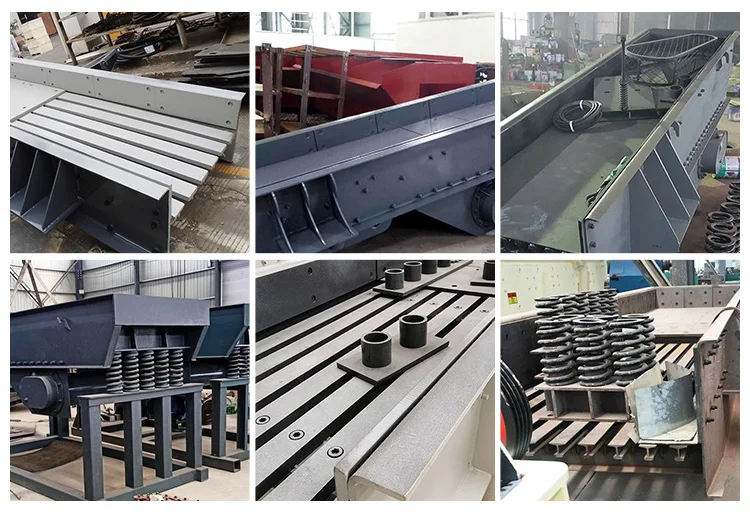

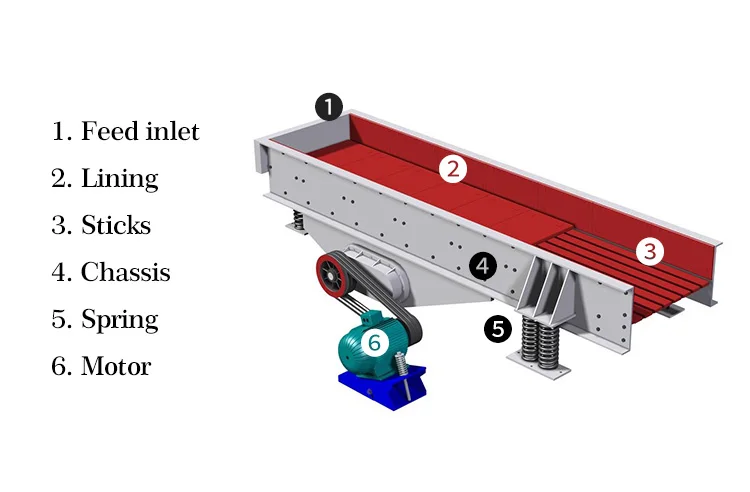

Details Images




Features
1. Based on the principle of exciting force.
2. The vibration is stable, the feeding is continuous and even, to give balanced
production of the production line.
3. It can pre-screen fine materials to improve crushing efficiency.
4. The structural design with adjustable screen bar gap can effectively prevent material clogging.
5. High efficiency, large feeding capacity, simple installation, convenient maintenance, and low operating costs.




Specification


Model
Feeder Trough
size(mm)
Max Input size
(mm)
Capacity
(t/h)
Motor power
(kw)
Weight
(t)
Dimensions
(mm)
ZSW380*95
3800*950
400
100-160
11
4
3890*2230*2130
ZSW490*95
4900*950
500
120-250
15
4.5
4960*2280*2160
ZSW490*110
4900*1100
700
150-300
15
5
4960*2450*2160
ZSW490*130
4900*1300
800
180-320
22
5.5
5100*2650*2160
ZSW590*110
5900*1100
850
200-350
22
6
6010*2500*2160
ZSW600*130
6000*1300
900
400-550
22
7
6090*2590*2090
ZSW600*150
6000*1500
1000
500-650
30
8
6630*2350*3070
ZSW600*200
6000*2000
1000
600-800
45
9
6450*3860*3070
GZD0724
700*240
450
30-80
1.5*2
2
2480*1130*990
GZD0936
900*360
550
80-150
3.7*2
4
3300*1580*1200
GZD1148
1100*4800
600
150-300
5.5*2
5
4930*1700*1480
GZD1256
1200*5600
800
180-400
7.5*2
6
5710*1850*1510
GZD1560
1500*6000
1000
400-600
13*2
8
6095*2495*1690


* Note: The capacity may vary with different materials and feeding sizes. Technical parameters are subject to change without notice.

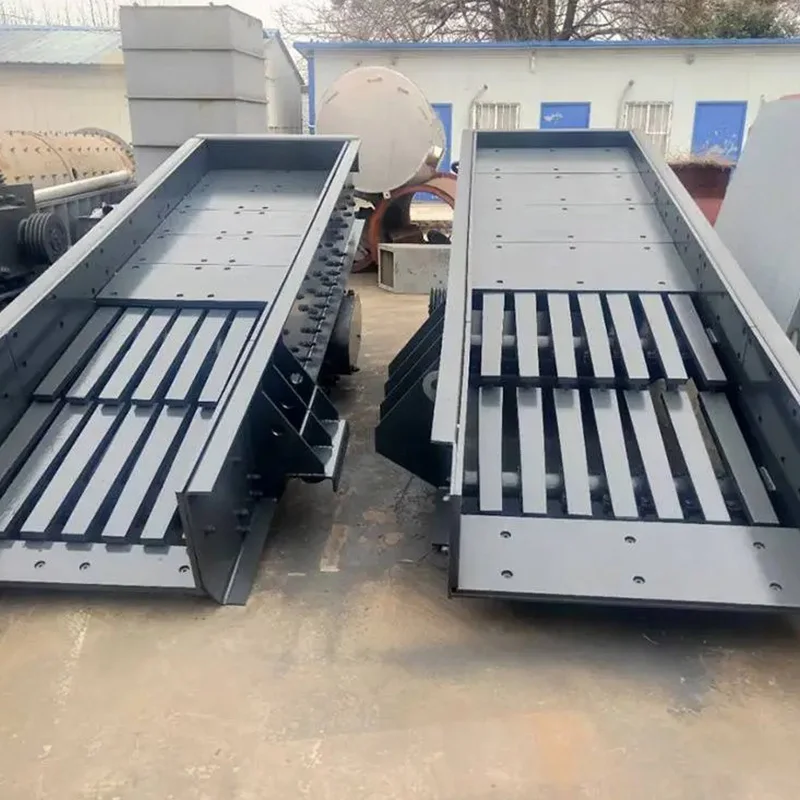

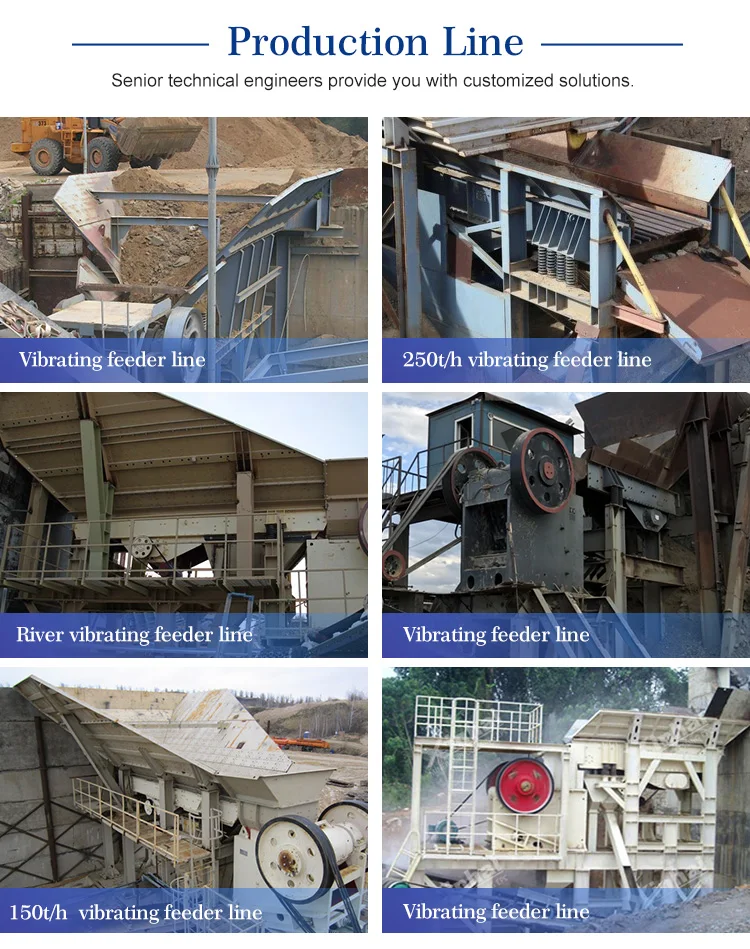

Customer Photos

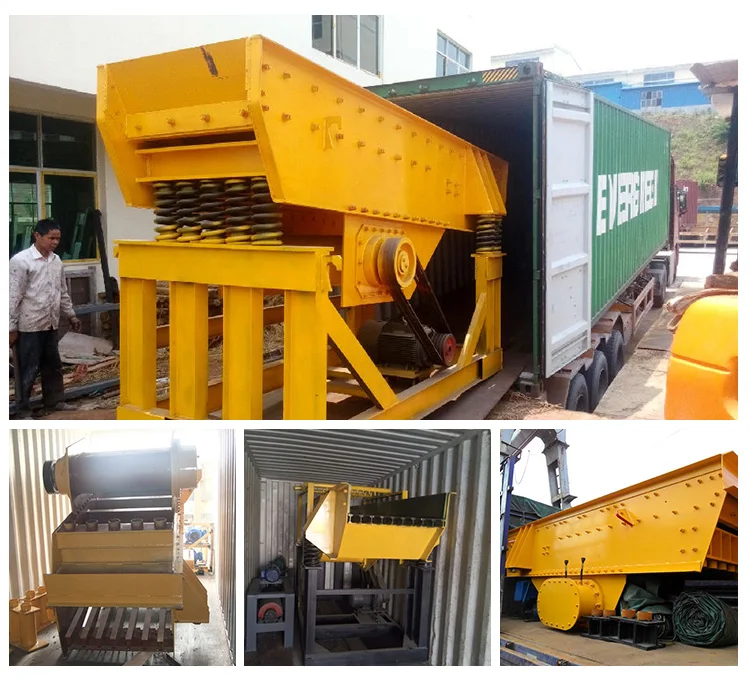

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. Our equipment includes stone crusher, grinding mill machine, VSI sand maker, vibrating screen, ball-mill and cement mill and is widely used in building,mining, cement making, construction area, etc. We are the largest EPC supplier for new aggregate production-line in China.




FAQ


1. What is your payment method?
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.

2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.

3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.

4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.

5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.

6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Fine Sand Recovery Machine/ Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station
