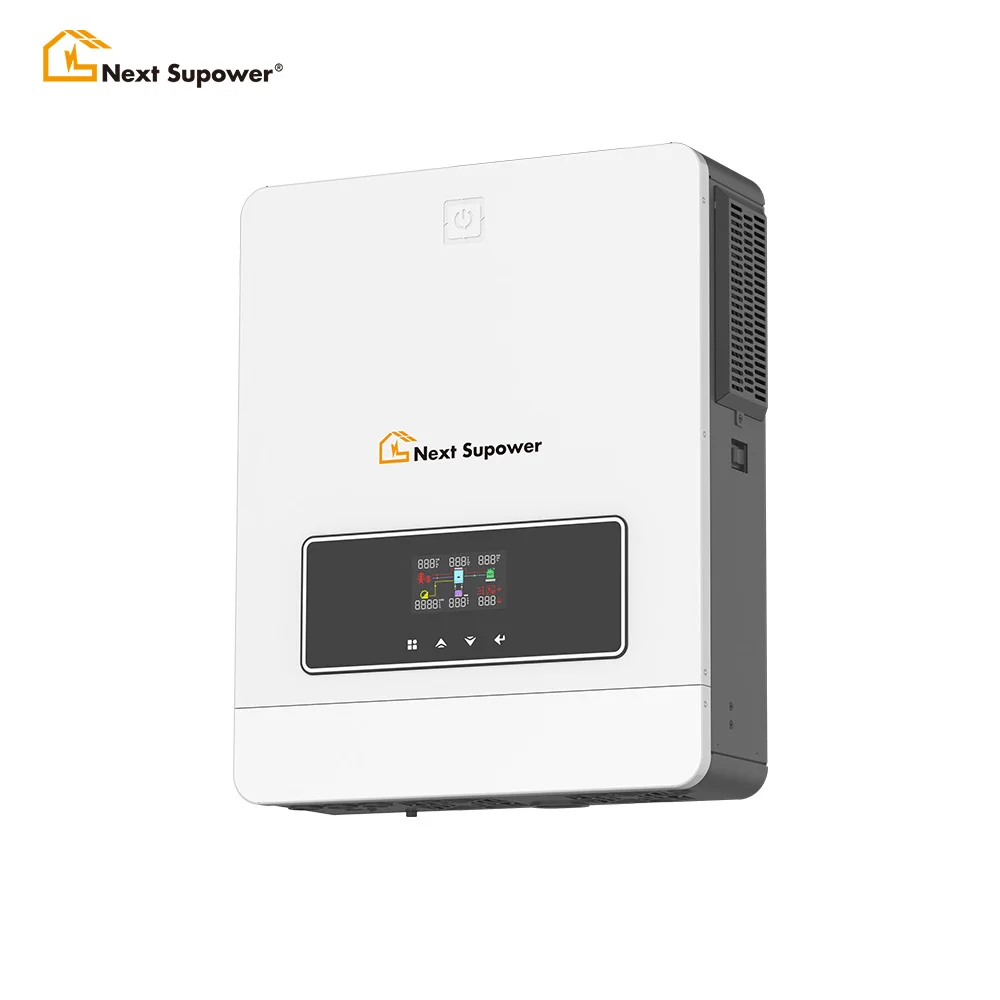

Home Energy Storage Solar Inverter Off Grid 5kw 5.5Kw 6kw 8kw 10kw High Frequency Hybrid Solar Panels with Battery and Inverter
- Category: >>>
- Supplier: Shenzhen Itsuwa Technology Co. Ltd.
Share on (1601229328073):
Product Overview
Description
Product Description
MODEL | T-PFG-4KW | T-PFG-6KW | T-PFG-7KW | T-PFG-8KW | T-PFG-10KW | |||||
Phase | 1 Phase | |||||||||
Maximum PV input power | 6200W | 6500W | 7000W | 8000W | 10000W | |||||
Rated output power | 3600W | 6200W | 7000W/7000VA | 8000W/8000VA | 10000W/10000VA | |||||
Maximum solar charging current | 120A | 140A | 160A | 160A | ||||||
PV Input(DC) | ||||||||||
Nominal DC voltage/Maximum DC voltage | 360VDC/500VDC | |||||||||
Start-up voltage/lnitial feeding voltage | 60VDC/ 90VDC | 90VDC/ 120VDC | ||||||||
MPPT voltage range | 60-450VDC | 90-450VDC | ||||||||
Number of MPPT trackers/Maximum input current | 1/23A | 1/27A | ||||||||
Grid Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output voltage range | 195.5-253VAC | |||||||||
Nominal output current | 15.7A | 27.0A | 31.3A | 35.6A | 44.3A | |||||
Power factor | >0.99 | |||||||||
Feed-in grid frequency range | 49-51±1Hz | |||||||||
Efficiency | ||||||||||
Maximum conversion efficiency(sloar to AC) | 98% | |||||||||
wo Load Output Power | ||||||||||
Full load | 3600W | 5000W | 7000W | 8000W | 10000W | |||||
Maximum main load | 3600W | 5000W-10000W | 7000W | 8000W | 10000W | |||||
Maximum second load(battery mode) | 1200W | 1666W-3333W | 2400W | 2733W | 3400W | |||||
Main load cut off voltage | 22VDC | 44VDC | ||||||||
Main load return voltage | 26VDC | 52VDC | ||||||||
AC Input | ||||||||||
AC start-up voltage/Auto restart voltage | 120-140VAC/180VAC | |||||||||
Acceptable input voltage range | 90-280VAC or 170-280VAC | |||||||||
Maximum AC input current | 40A | 50A | 40A | 40A | 50A | |||||
Nominal operating frequency | 50/60Hz | |||||||||
Surge power | 7200W | 1000W | 14400W | 16400W | 20400W | |||||
Battery Mode Output(AC) | ||||||||||
Nominal output voltage | 220/230/240VAC | |||||||||
Output waveform | Pure sine wave | |||||||||
Efficiency(DC to AC) | 94% | |||||||||
Battery & Charger | ||||||||||
Nominal DC voltage | 24VDC | 48VDC | ||||||||
Maximum charging current (solar to AC) | 120A | 140A | 160A | 160A | ||||||
Maximum AC charging current | 100A | 120A | 140A | 140A | ||||||
Physical | ||||||||||
Dimension D*W*H(mm) | 420*350*110 | 500*390*110 | ||||||||
Cartoon dimension D*W*H(mm) | 500*415*180 | 588*463*205 | ||||||||
Net weight(kg) | 8.5 | 9 | 13.6 | 14.5 | 14.8 | |||||
Gross weight(kg) | 9.5 | 10 | 14.9 | 16 | 16.2 | |||||
Interface | ||||||||||
Communication port | RS232WIFI/GPRS/LITHIUM BATTERY | |||||||||
Recommend Products
Company Profile
Shenzhen Itsuwa Technology Co., Ltd

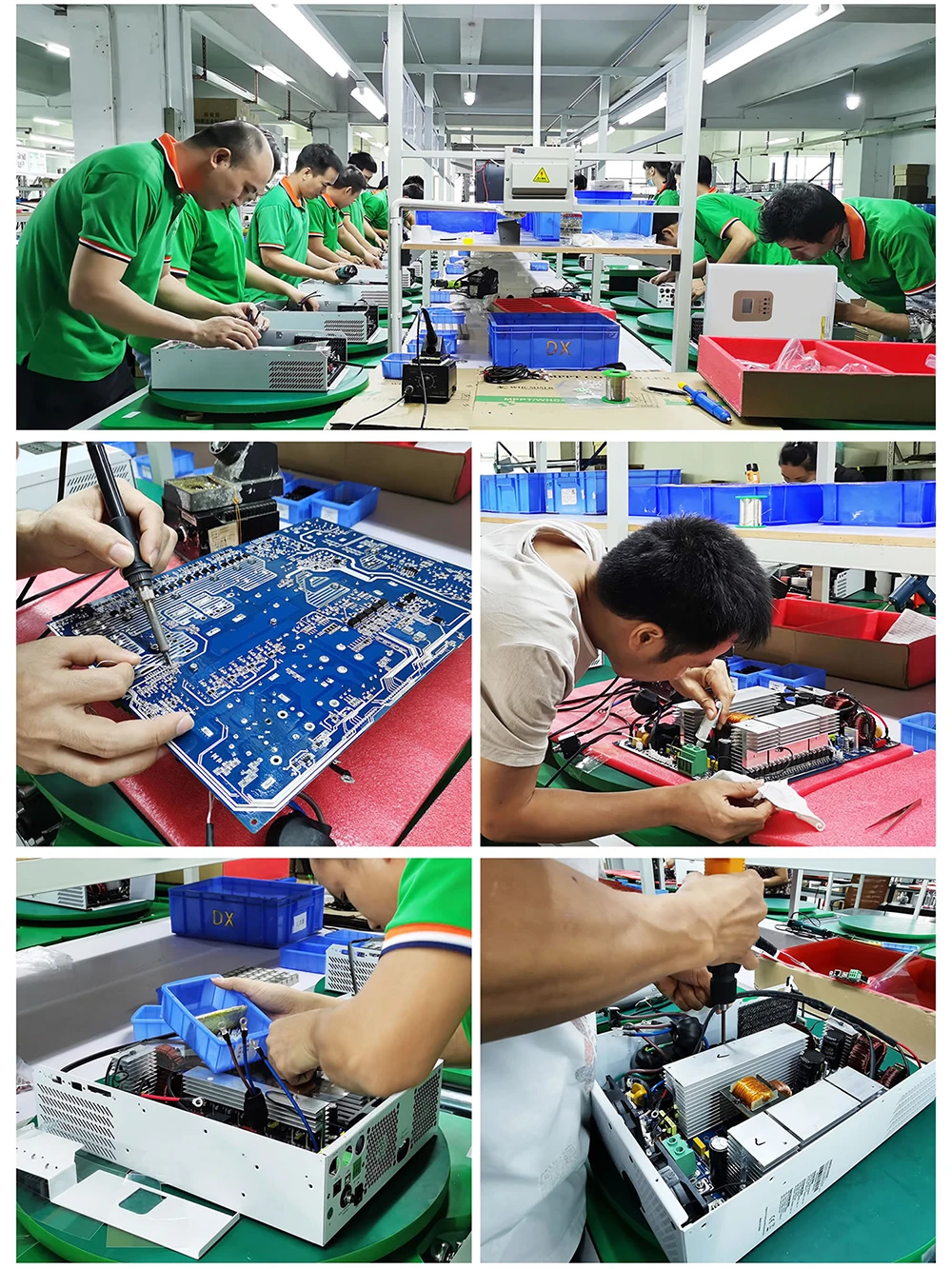

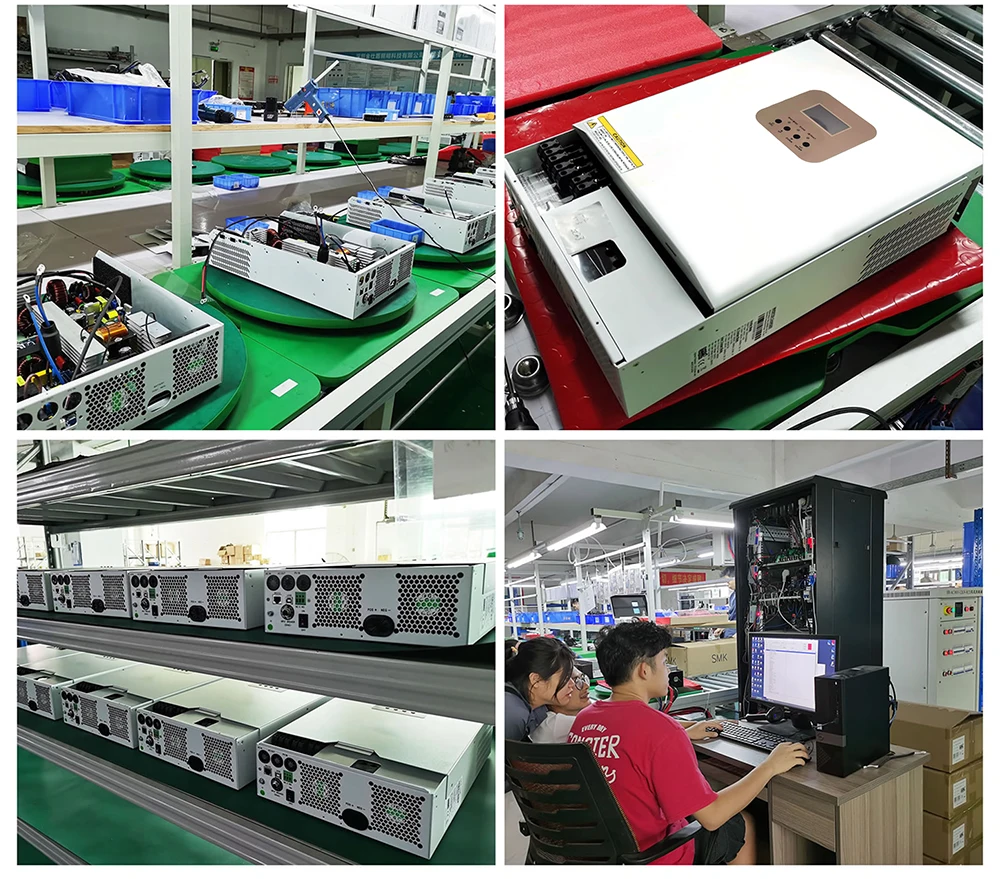

Founded in 2014, armed with a team of 100 experienced staff, covers an area of 2000 square meters. Our R&D team has more than 20 employees, they have a wealth of electronic experience and enthusiasm for electronic product innovation. We have built our own SMT lines and in-house prototyping workshop to make mock-up samples. With years of efforts, we exported our products to North America,Europe, Asia, Australia. We built relationship with customers like Retailers, Wholesale Distributors, OEM & ODM Brand customers.
We are committed to innovating and improving our existing technical standards to bring our customers safety and convenience.To make it possible "Power Anything ,Anywhere ,Anytime".
We are committed to innovating and improving our existing technical standards to bring our customers safety and convenience.To make it possible "Power Anything ,Anywhere ,Anytime".
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
