Yongli 150w Max 180w 1850mm Dia. 80mm Glass Laser Tube with Metal Head II VI Lens
- Category: >>>
- Supplier: Jilin Yongli Laser Technology Co. Ltd.
Share on (1601229351214):
Product Overview
Description
YongLi As series is the most advanced laser tube series of our company. It adopts patented technology to effectively correct the diameter and quality of the output spot with physical methods to increase the power while solving the problem of spot mode changes. Imported raw materials are safe and reliable, the coating technology is upgraded, the gas purity is improved, the working time is longer, and the working quality is more stable.
Product Description
Yongli 150w Max 180w 1850mm Dia. 80mm Glass Laser Tube with Metal Head II-VI Lens
Model: A8s, 150W Max. 180W, 1850mm Dia. 80±2mm
Features:
1. Metal Sealed structure, water cooled.
2. The best life time ratings of up to 12,000 hours.
3. Warranty 6 months.
4. Original patented, excellent beam spot, stable optical performance.
5. Equipped with top-quality American II-VI lens.
6. Safer and faster replacement, full metal cathode and anode terminal connections.
Technical Parameters

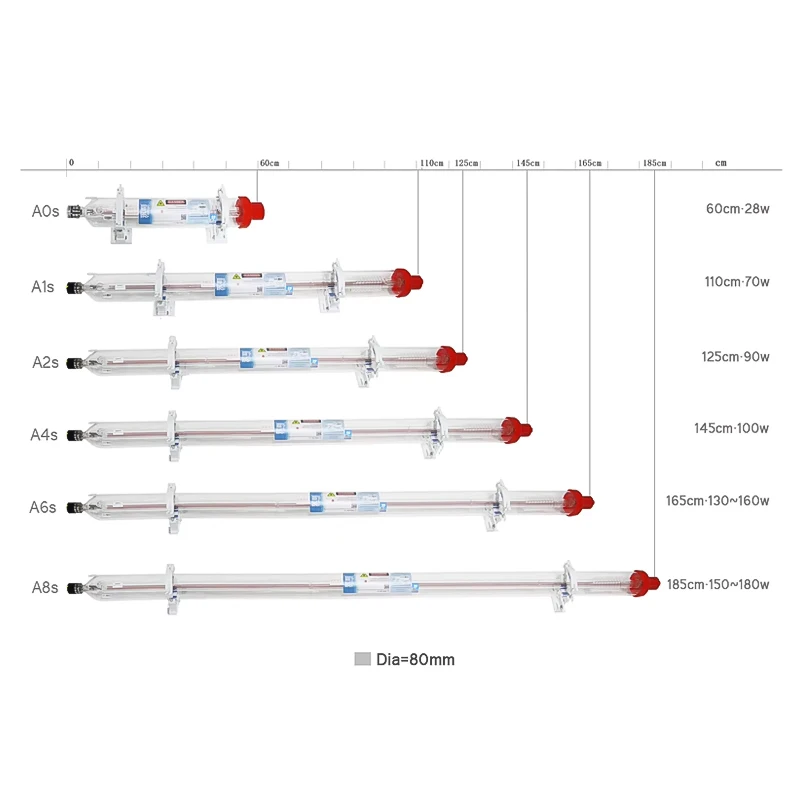

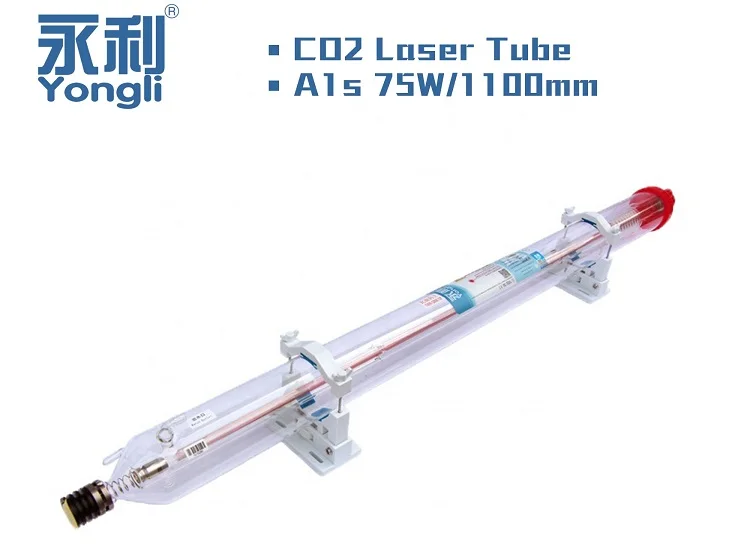

Laser Tube Model | A0s | A1s | A2s | A4s | A6s | A8s |
Length (mm) | 600 | 1100 | 1250 | 1450 | 1650 | 1850 |
Diameter (mm) | 80±2 | 80±2 | 80±2 | 80±2 | 80±2 | 80±2 |
Rated Power (watts) | 28 | 70 | 90 | 100 | 130 | 150 |
Max Power (watts) | 35 | 90 | 100 | 130 | 160 | 180 |
Ignition Voltage (kV) | 12 | 20 | 23 | 26 | 30 | 32 |
Working Voltage (kV) | 8 | 15 | 18 | 19 | 21 | 22 |
MAX Working Current (mA) | 20 | 22 | 26 | 28 | 30 | 35 |
Power Instability(%) | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 | ≤±5 |
catalyst | Yes | Yes | Yes | Yes | Yes | Yes |
Working Lifespan | 12,000h | 12,000h | 12,000h | 12,000h | 12,000h | 12,000h |
Warranty (months) | 6 | 10 | 18 | 18 | 12 | 12 |
Gross Weight | 3 | 4 | 4 | 4.5 | 5.2 | 6.9 |
Package Dimension(L*W*H) | 82x36x36 | 129*14*12 | 136*18*15 | 157*18*15 | 176*18*15 | 207*26*23 |

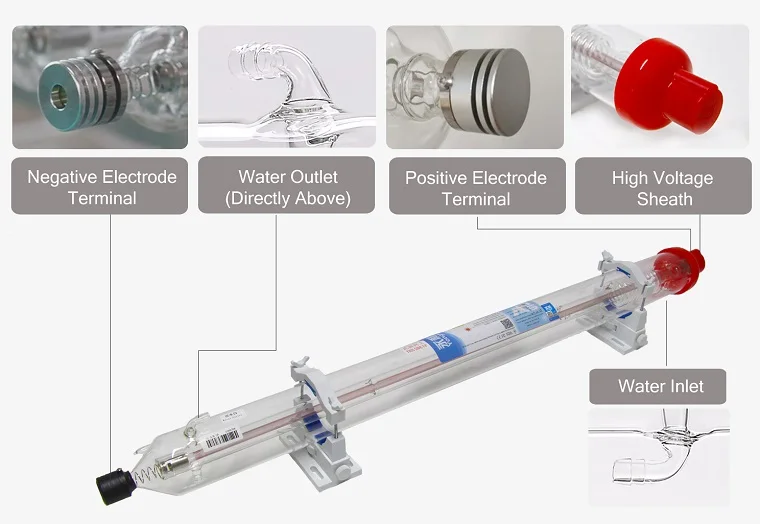

Product Details
Extended Protection Tube: recommended for cutting multi layer plywood, PVC materials. Avoid dust contaminating or temperature increasing.
Negative Electrode Terminal: equipped with high quality American II-VI lens to achieve strong and stable output power and best lase beam mode.
Nano Gold Coating Technology: enhances the co2 laser tubes power and improves its service life time, cutting speed, quality of laser beam.
Red Dot Laser Pointer: could work on YongLi As/H series Co2 laser tube, allows easy mirror alignment. No more taping your mirrors..
Positive Electrode Terminal：Full Metal head structure, special heat dissipation process to greatly reduce lens operating temperature.
High Voltage Sheath: Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.
Why Choose Us
YongLi's unique technology platform allows our products to have higher output powers and superior beam quality at a lower cost. Our proprietary designs are based around innovative pumping techniques and high-performance components perfected by YongLi over a 30-year period of intense investment and innovation. The cornerstones of YongLi Laser technology are our cladding side-pumping technique and distributed single-emitter diode pumping architecture.
Application

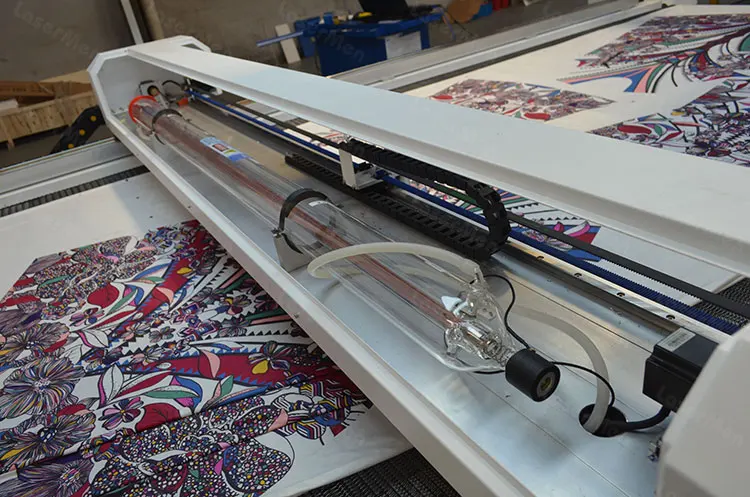

The As Series CO2 laser tube are widely used in industrial production, national defense, scientific research, medical science and other fields.
Application Materials: acrylic, wood planks(light planks, candlenut wood),metal sheet, bamboo ware, double color board, paper, leather, shell, conconut shell,ox horn, resin animal grease, ABS board,lamp shade, etc.
Certifications
Certification is commitment to quality and safety
YongLi Laser Technology has obtained 50 patents, 6 software copyrights, and has successfully passed European CE certification, RoHS certification, FCC certification, REACH certification, MSDS certification, US Food and Drug Administration Certification, TUV Rheinland certification, Swiss SGS testing certification, and ISO9001 quality management system certification.
