High Quality Remote Control 5T 8T 12T Mini Crawler Crane For Construction
- Category: >>>
- Supplier: Henan Seven Industry Co. Ltd.
Share on (1601229662863):
Product Overview
Description
Mini Spider Crane is commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment. Spider crawler crane can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction.
Model | Spider | ||
Crane capacity | 3.0t x 1.3m | ||
Max working radius | 8.45m | ||
Max lifting height | 9.5m | ||
Winch | Hook up speed | 5.5m/min （4 falls） | |
Diameter and length of wire rope | φ8mmx50m | ||
Telescopic system | Boom length | 2.56-8.92m | |
Telescoping speed | 6.36m/25 seconds | ||

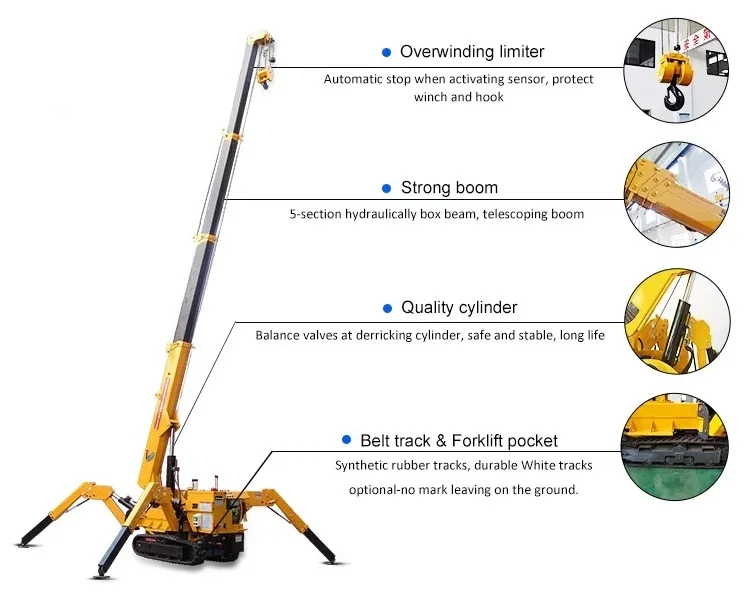

Boom type | 5-section hydraulically box beam, telescoping boom | ||
Derrick | Derricking angle/speed | 0-75°/25 seconds | |
Slewing | Slewing angle | 360° (continuous) 0.6rpm | |

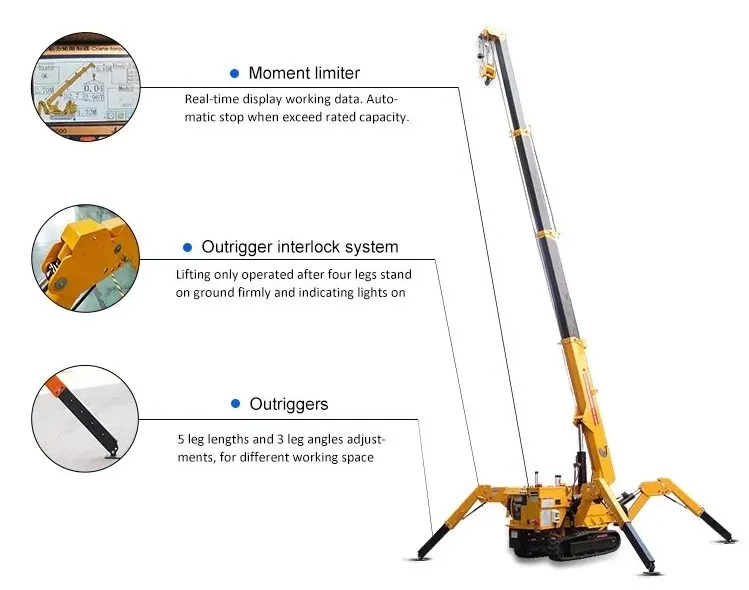

Outrigger | Form of outrigger | First phase--automatic Second phase--manual | |
Max extend range | Distance between two outriggers 4.04m（width）x3.47m（length） | ||
Traction system | Drive | Hydrostatic，stepless forward and reverse | |
Travel speed | 0-3km/h | ||
Gradeability | 30% | ||
Track | Synthetic rubber | ||
Track ground length | 1.4m | ||
Track ground pressure | 36Kpa | ||
Track width | 200mm | ||
Dual power optional | Diesel + Electric motor Gasoline + Electric motor | ||
Motor | Power | 3KW | |
Voltage | 380V/50Hz and optional for others | ||
Remote control | Operation | Boom rotation, boom derricking, boom telescopic, hook up and down, emergency stop button (Outriggers and walking are optional) | |
Glazing and Glass Works
Subway Installation
Factory
Spider Crane are suitable for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. Mini crawler crane is especially effective for operation in narrow spaces. Mini tracked crane can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction.
