Product Overview

Description











Working Principle.

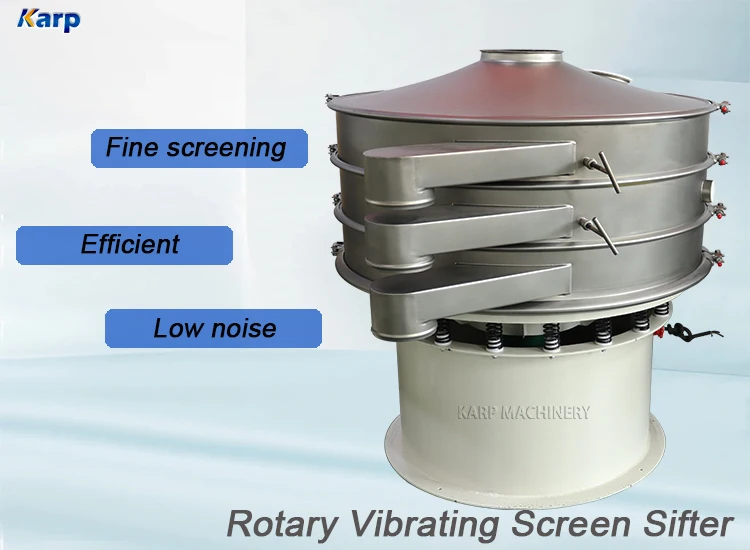

Flour Industry Rotary Vibrating Screen Food Powder Sieving Machine Automatic Sieve is suitable for the classification, removing impurity and filtration of granule, powder ,liquid and other materials.
The screening takes the vertical motor as the excitation source, it installs eccentric hammers at the upper and lower ends, the rotating motion of the motor is transformed horizontal, vertical, inclined three-dimensional motion to the mesh surface.By adjusting the phase Angle of the upper and lower hammers, can change the movement track of the material on the screen surface,so as to achieve different screening requirements.




Overall advantage.
1.Wide range of application, not only suitable for dry materials, but also suitable for wet materials.
2. High fine screening, up to 500 mesh particles can be screened with high productivity.
3.Screen replacement speed is fast, saving downtime and maintenance time.
4. Small floor area, no special floor or foundation is required.
5. Fully closed structure, easy to operate, less power consumption.
6. The whole machine can be customized to provide the best solution according to customer requirements.




Flour Industry Rotary Vibrating Screen Food Powder Sieving Machine Automatic Sieve
Model
Diameter
(mm)
Largest particle
(mm)
Screen mesh
Layer
Power
（kw）
KP400
400
＜10




2-500




1-4
0.22
KP600
600
＜10


0.55
KP800
800
＜20


0.75
KP1000
1000
＜20


1.1
KP1200
1200
＜20


1.5
KP1500
1500
＜20


2.2

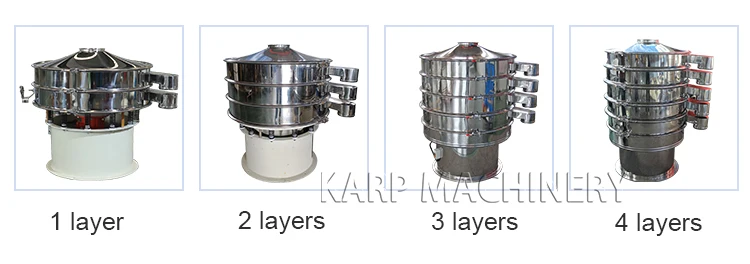

The Flour Industry Rotary Vibrating Screen Food Powder Sieving Machine Automatic Sieve above is 1-4 layer rotary sieve display, we can customize different sizes, specifications and materials (SS304/316L or carbon steel) according to your needs,if you have customization requirements, please click here to contact us.




Flour Industry Rotary Vibrating Screen Food Powder Sieving Machine Automatic Sieve Specific field.
Food:Sugar powder , starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, wheat flour, coffee beans, yeast, vinegar,etc.
Chemicals: Resin, paint, Coating, Cosmetic, fertilizer, pvc powder, rubber, herbal powder, fertilizer, spices, washing powder, soda ash, lemon powder, plastics, etc.
3D printing materials: titanium alloy powder, aluminum alloy powder, stainless steel powder, iron base alloy, nickel base alloy, titanium powder, copper powder, aluminum powder, molybdenum powder, etc.
Metal metallurgy mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory, kaolin,lime, alumina, heavy calcium carbonate, quartz sand, etc.
Lithium battery industry: battery cathode material, battery cathode material, artificial graphite, natural graphite, lithium iron phosphate, battery material powder, etc.

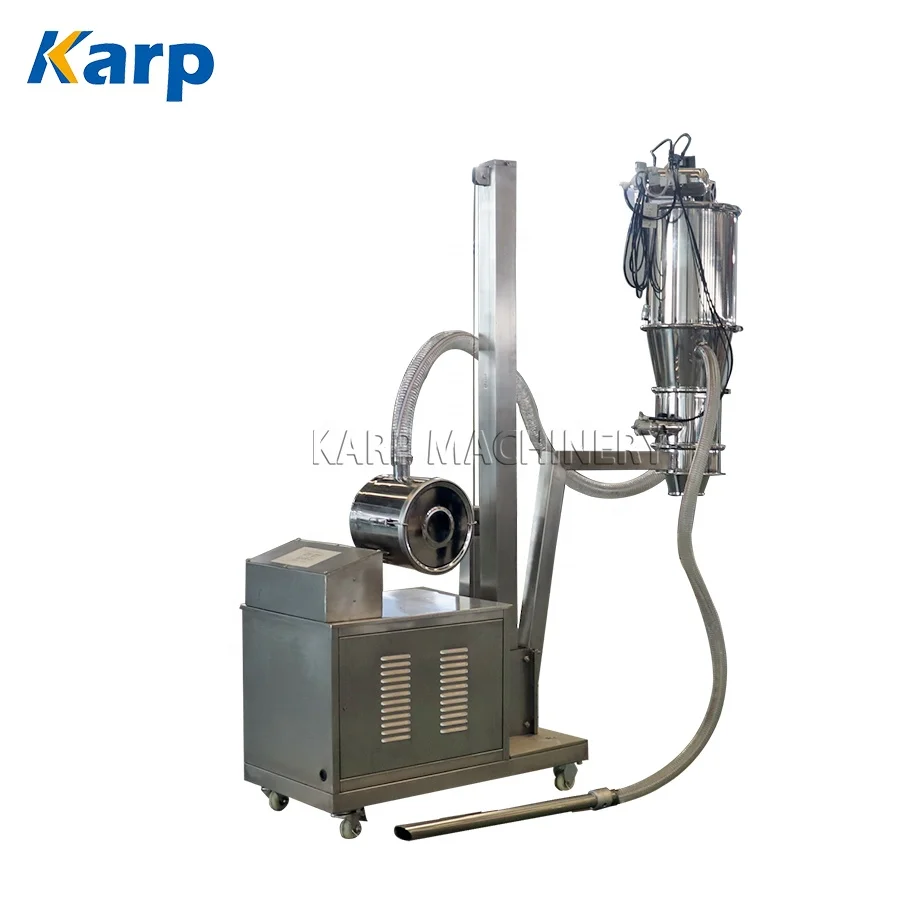

Vacuum conveyor

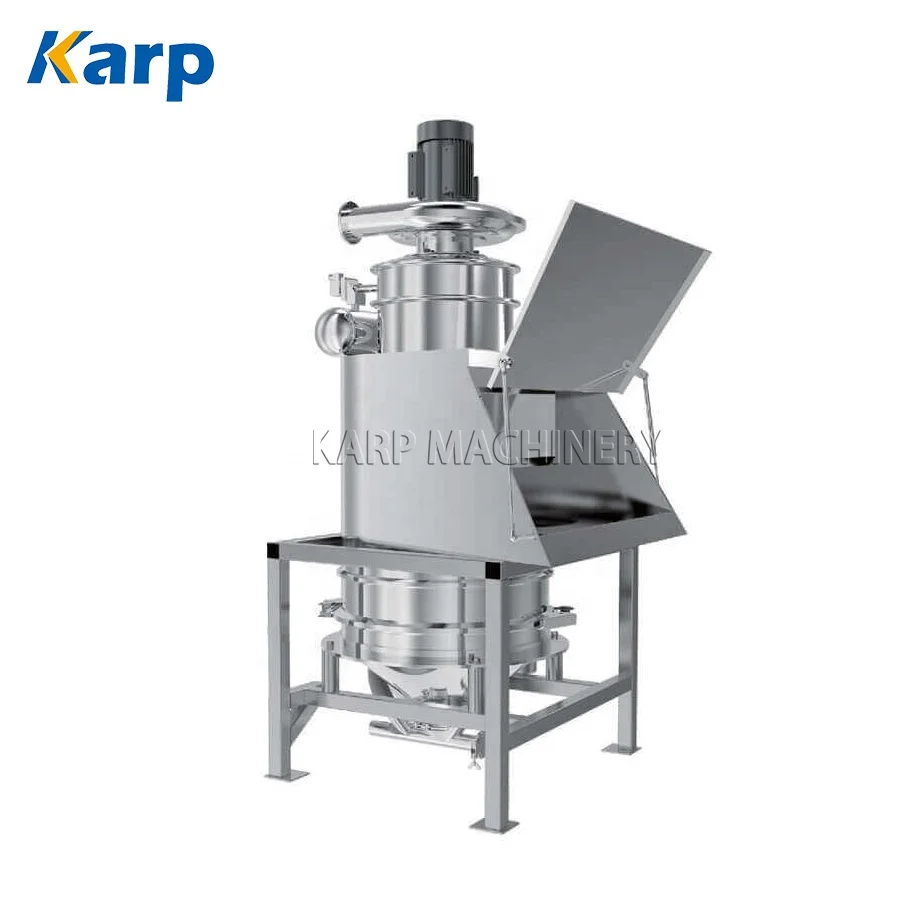

Bag dump station

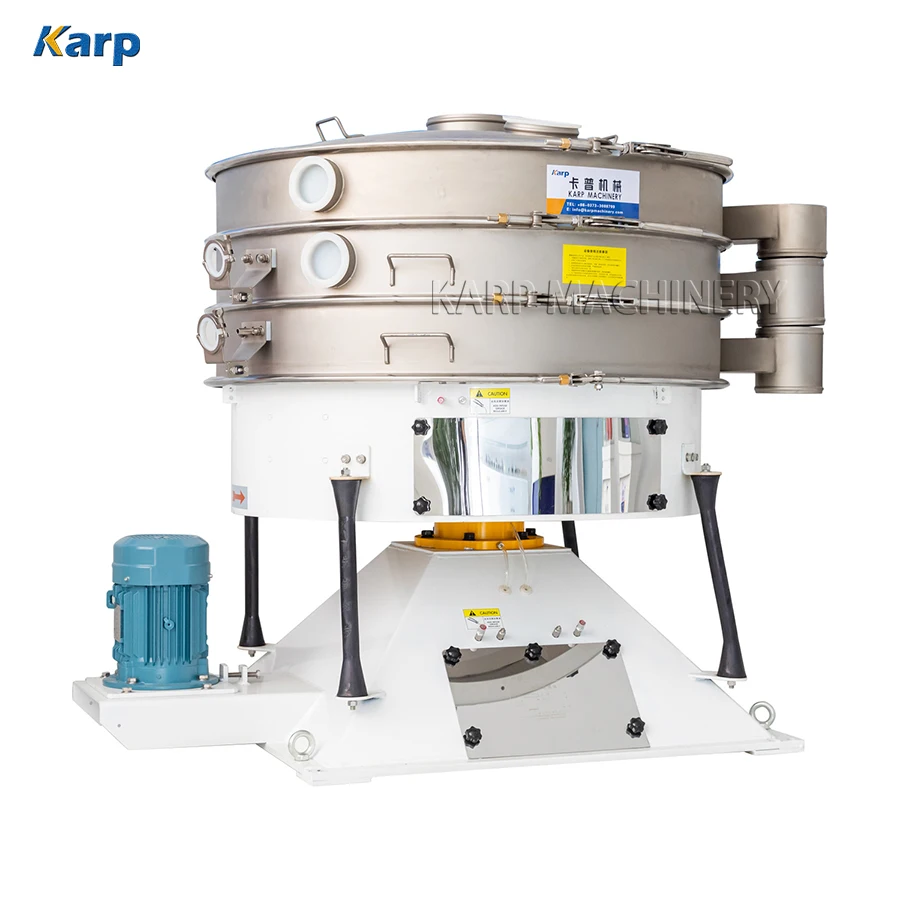

Tumbler screen


Screw conveyor
Linear vibrating screen
In-line discharge screen








Xinxiang KARP Machinery Equipment Co., Ltd. is located in Xinxiang City, has been established for 11 years, is a professional engaged in powder and granular material screening, conveying machinery manufacturing enterprises.

With the development of the company, the company now covers an area of 20,000. Over the years, the company has been adhering to the original heart, starting from customer needs, and constantly optimizing and improving products, the main products have involved rotary vibrating screen (Flour Industry Rotary Vibrating Screen Food Powder Sieving Machine Automatic Sieve), square gyratory sifter, circular tumbler screen, linear vibrating screen, screw feeder, vacuum conveyor, belt conveyor and related equipment. We have a professional technical team and production equipment, committed to providing customers with the best solutions, for customers to produce mechanical equipment to meet the needs of customers.

Our products are widely used in food, medicine, chemical, metal, metallurgy, mining, environmental protection and other fields. Welcome friends at home and abroad to visit, and look forward to working with you sincere cooperation, mutually beneficial development.












How to select a suitable vibrating screen? Please tell me the following questions,we will introduce you to suitable products.
1. what's the material and its density?
2. what's the mesh size? And which size of powder do you need?
3. What's the percentage of every size in your material?
4. What's your excepted capacity?

Frequently Answer Questions:
Q:How long for the manufacturing time?
A: 10-15 working days.

Q: How long for warranty time?
A: 13 months from the shipping date.

Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
