Hot Sale Mineral Equipment Gold Mining Separation Machine Spiral Classifier For Ore Processing Plant Classifying Copper Silver
- Category: >>>
- Supplier: Gongyi City Jingying Machinery Manufacturing Factory
Share on (1601229696642):
Product Overview
Description
Products Description

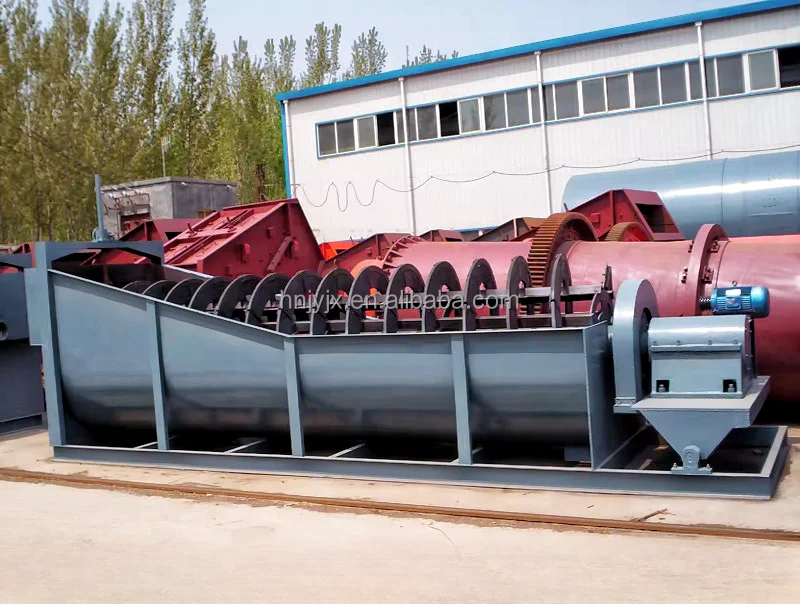

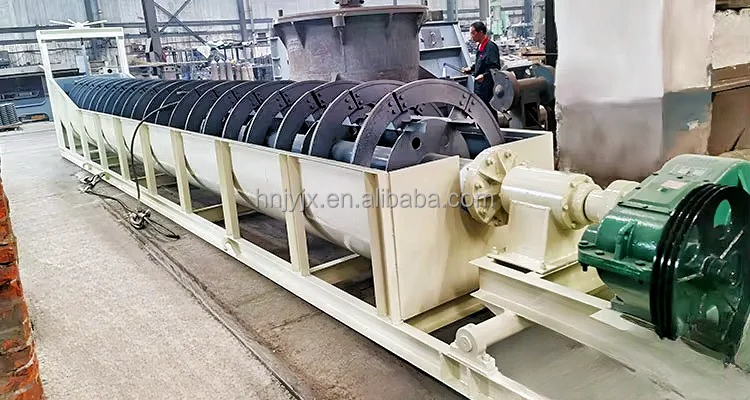

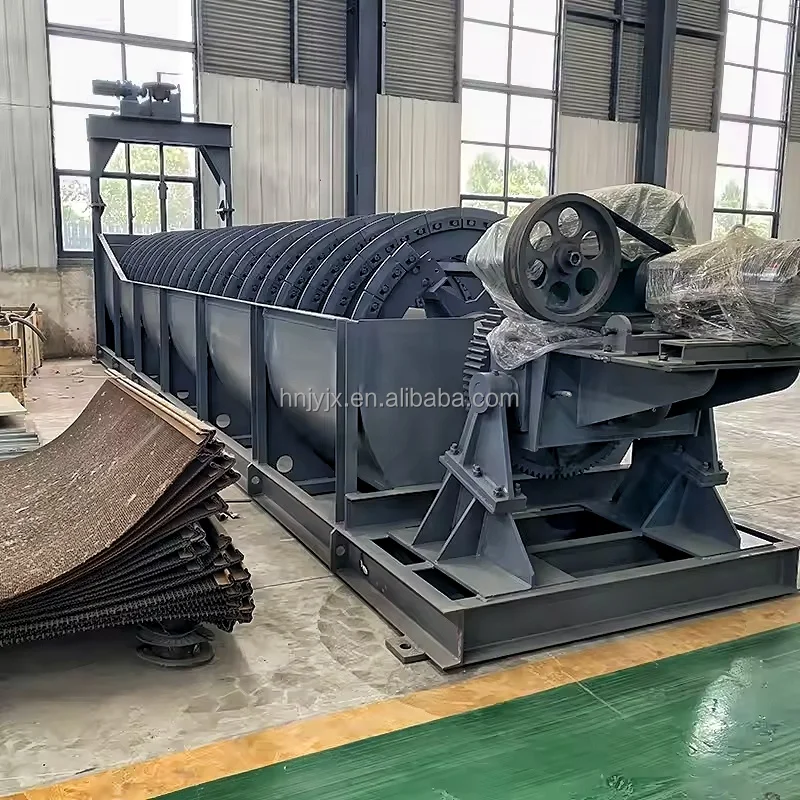

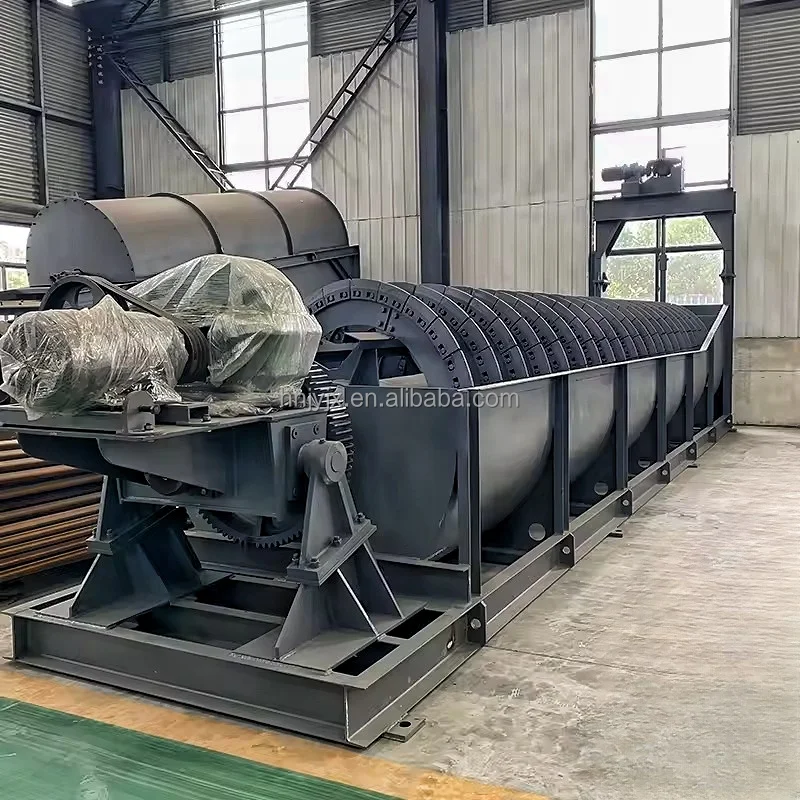

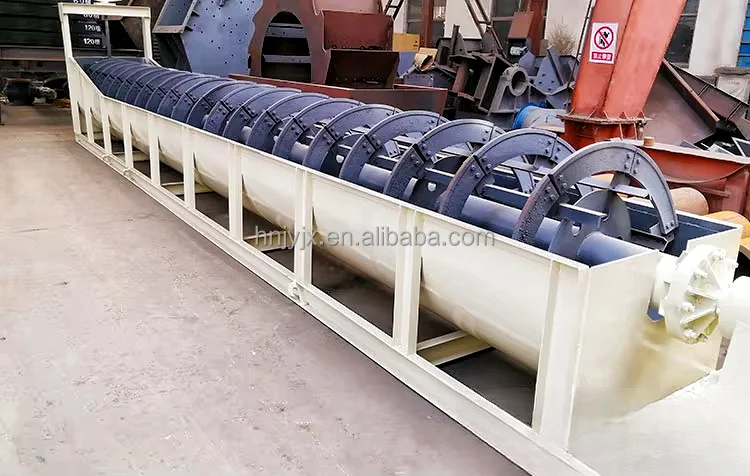

Spiral classifier
Spiral classifier is one of the equipment of mineral processing, spiral classifier with the help of solid particles of different specific gravity, and thus the principle of different precipitation speed in the liquid, a mechanical classification equipment. It can filter the material powder from the mill, and then use the spiral piece rotor to spin the coarse material into the mill inlet, and discharge the filtered fine material from the overflow pipe. Mineral spiral classifier are widely used in the distribution of ore in closed-circuit with Ball mill in mining processing, in order to get a certain degree fineness of ore particles, meanwhile increasing the efficiency of grinding. This machine can also be used to washed sand classify ore sand and play other functions.

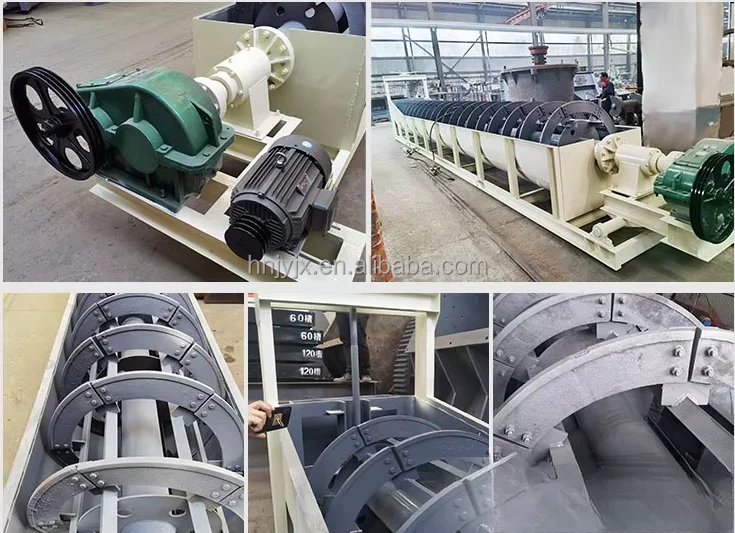

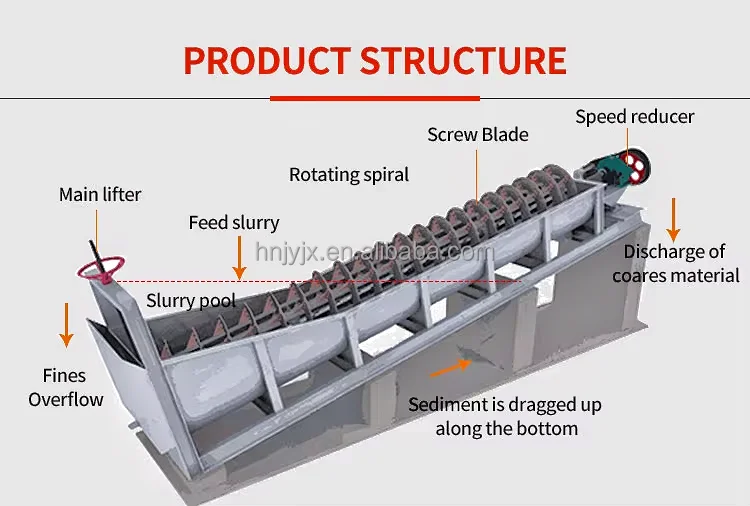

Product Structure
Spiral classifier is with the help of solid particles of different sizes, different specific gravity, and thus the principle of different settling speeds in the liquid, fine particles floating in the water into the overflow out of the coarse particles sunk to the bottom of the tank. By the spiral pushed to the upper discharge, to carry out mechanical classification of a classification equipment, can be ground out of the mill material powder level in the filtration, and then the coarse material using the spiral piece of rotary vane spinning into the mill inlet, the filtered out of the fine material from the overflow pipe discharge. The base of the machine is made of channel steel and the body is welded by steel plate.
Product Parameters
Model | Spiral speed (r/min) | Return sand volume (t/d) | Overflow handling capacity (t/d) | Spiral diameter (mm) | Spiral length (mm) | Slope of sink | Drive motor power (kw) | Lifting motor power (kw) | Weight (kg) |
FLG-300 | 7.7 | 30-80 | 10-30 | Φ300 | 3900 | 14-18 | 2.2 | - | 668 |
FLG-500 | 8 | 145-260 | 21-75 | Φ500 | 4390 | 14-18 | 2.2 | - | 1600 |
FLG-750 | 7.8 | 100-455 | 31-165 | Φ750 | 5500 | 14-18 | 3 | - | 2716 |
FLG-1000 | 6.7 | 473-1026 | 85 | Φ1000 | 6556 | 14-18 | 5.5 | - | 4000 |
FLG-1200 | 5,6,7 | 1145-1600 | 150 | Φ1200 | 6500 | 14-18 | 5.5 | 1.5 | 7943 |
FLG-1500 | 2.5,4,6 | 1140-2730 | 235 | Φ1500 | 8265 | 14-18 | 7.5 | 2.2 | 11827 |
FLG-2000 | 3.6,5.5 | 3240-5940 | 400 | Φ2000 | 8700 | 14-18 | 11,15 | 3 | 20814 |
FLG-2400 | 3.6 | 6800 | 580 | Φ2400 | 9130 | 14-18 | 22 | 4 | 24194 |
FLG-3000 | 3.2 | 11625 | 890 | Φ3000 | 12500 | 14-18 | 30 | 4 | 42188 |
2FLG-1200 | 5,6,7 | 2290-3200 | 310 | Φ1200 | 6500 | 14-18 | 5.5*2 | 1.5*2 | 15840 |
2FLG-1500 | 2.5,4,6 | 2240-5360 | 460 | Φ1500 | 8230 | 14-18 | 7.5*2 | 2.2*2 | 22903 |
2FLG-2000 | 3.6,5.5 | 6400-10800 | 750 | Φ2000 | 8400 | 14-18 | 15*2 | 3.0*2 | 34621 |
2FLG-2400 | 3.63 | 13600 | 1160 | Φ2400 | 9130 | 14-18 | 22*2 | 4*2 | 42460 |
2FLG-3000 | 3.2 | 23300 | 1785 | Φ3000 | 12500 | 14-18 | 30*2 | 4*2 | 73030 |
Product Features
1. Low power consumption, high classifying efficiency.
2. Heavy duty,long working life.
3. Powerful manual control and electric control lifting device.
4. Wide choice of weir height, rigid tank and substructure.
5. Continuous spiral raking.
2. Heavy duty,long working life.
3. Powerful manual control and electric control lifting device.
4. Wide choice of weir height, rigid tank and substructure.
5. Continuous spiral raking.

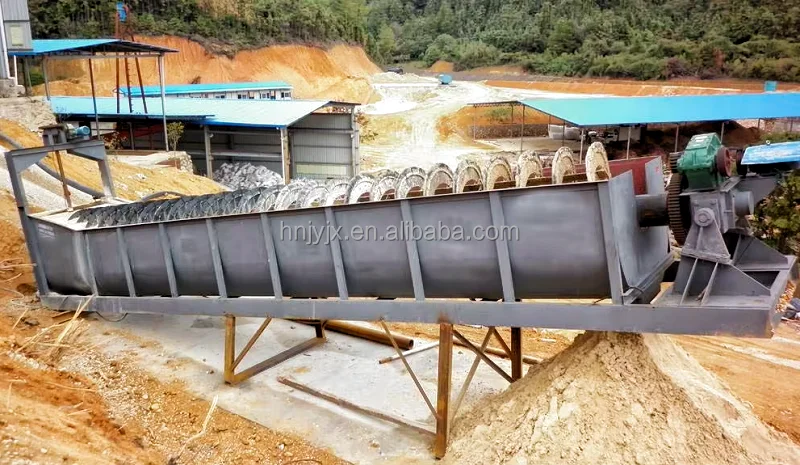

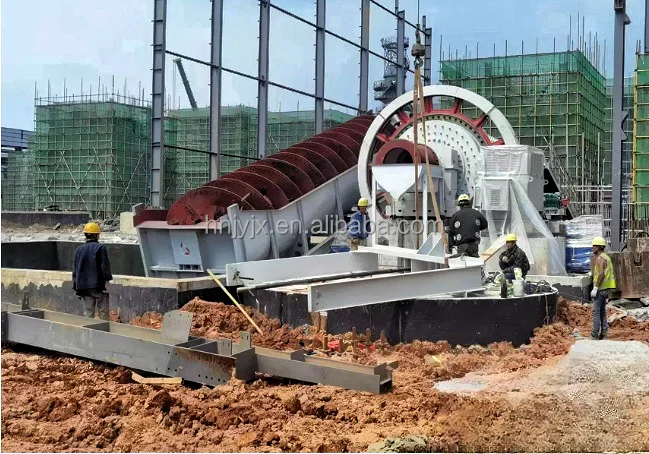

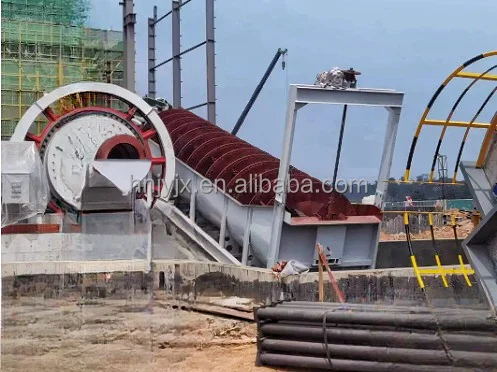

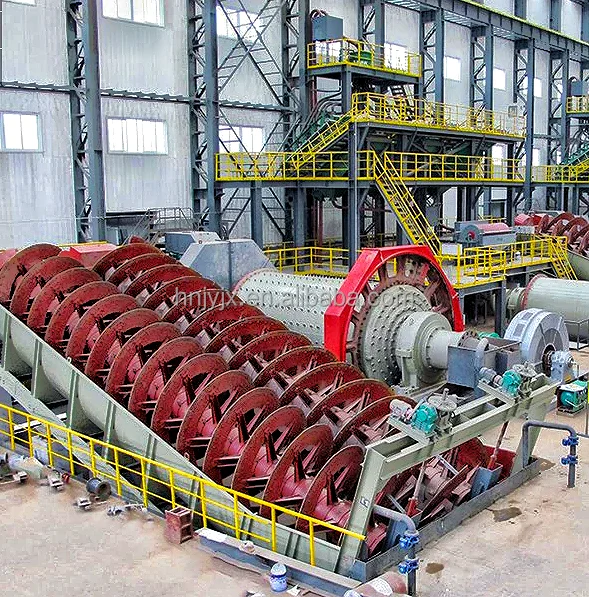

Customer Site

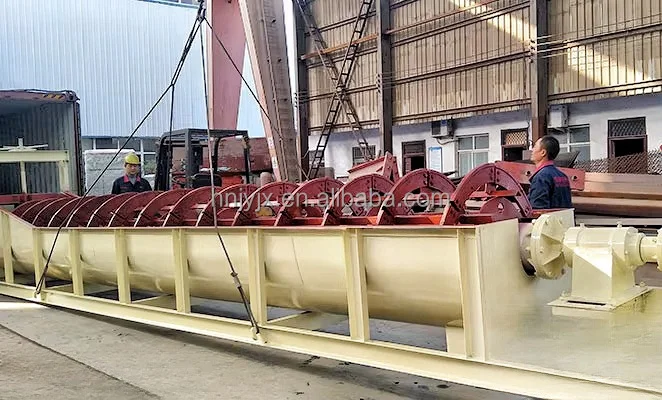

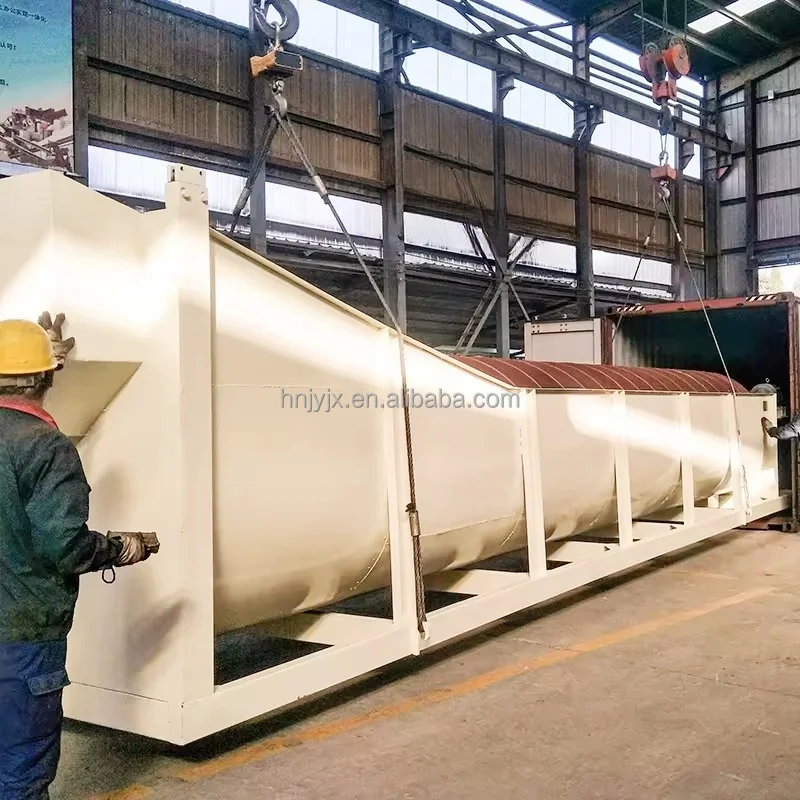

Packing and Shipping
Maybe you are interested in
Company Profile
FAQ
Q: Are you a manufacturing or trading company?
A: We are a factory, established in 1998. We are the direct manufacture, so we can offer you the lowest price than the market price. The price of the machine can be given the largest discount based on quantity.
Q: What is your payment method?
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
Q: What is your payment method?
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
