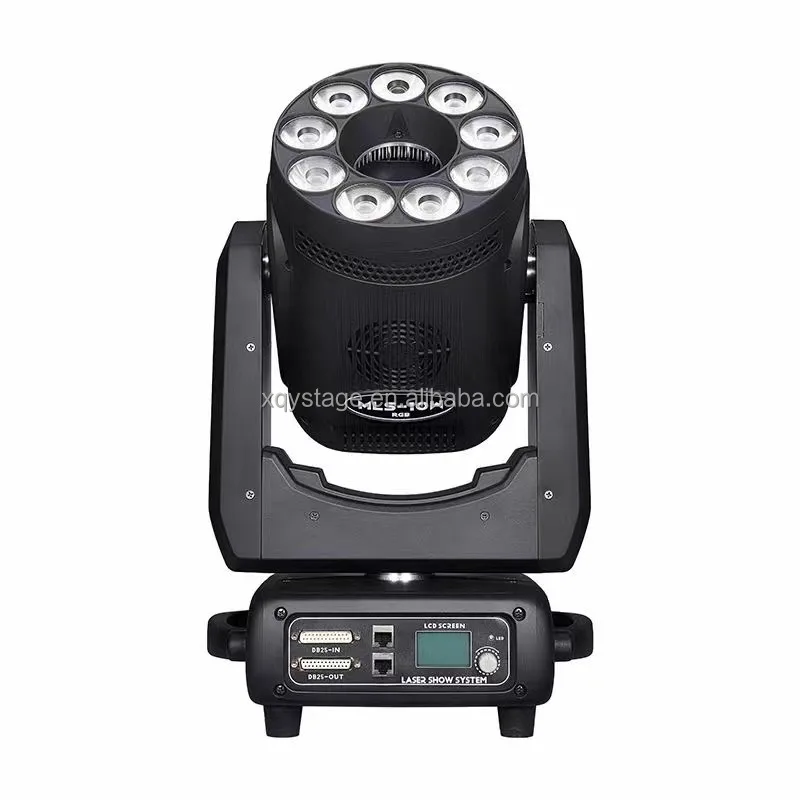

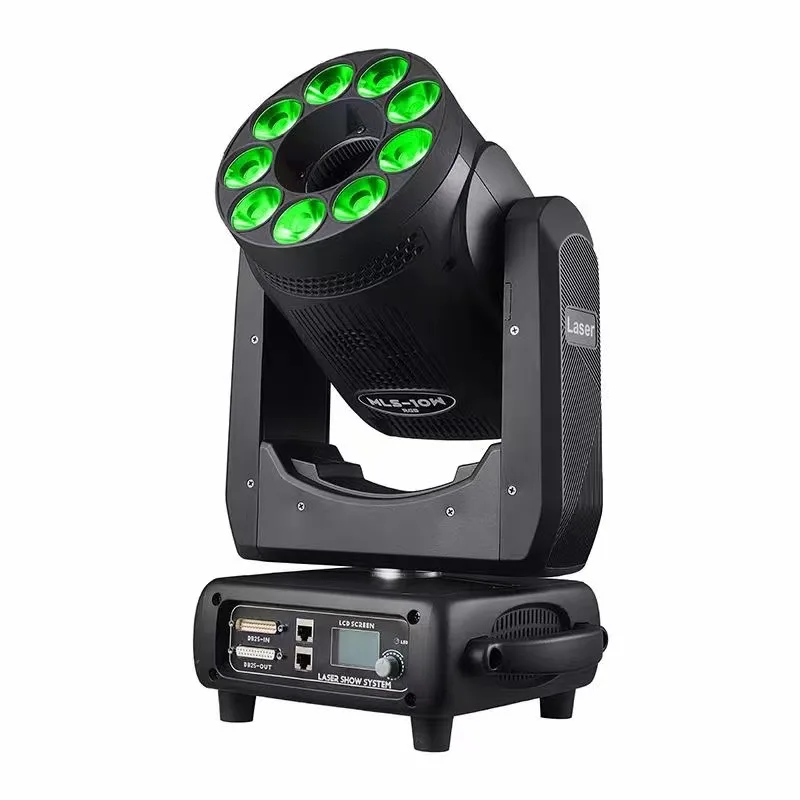

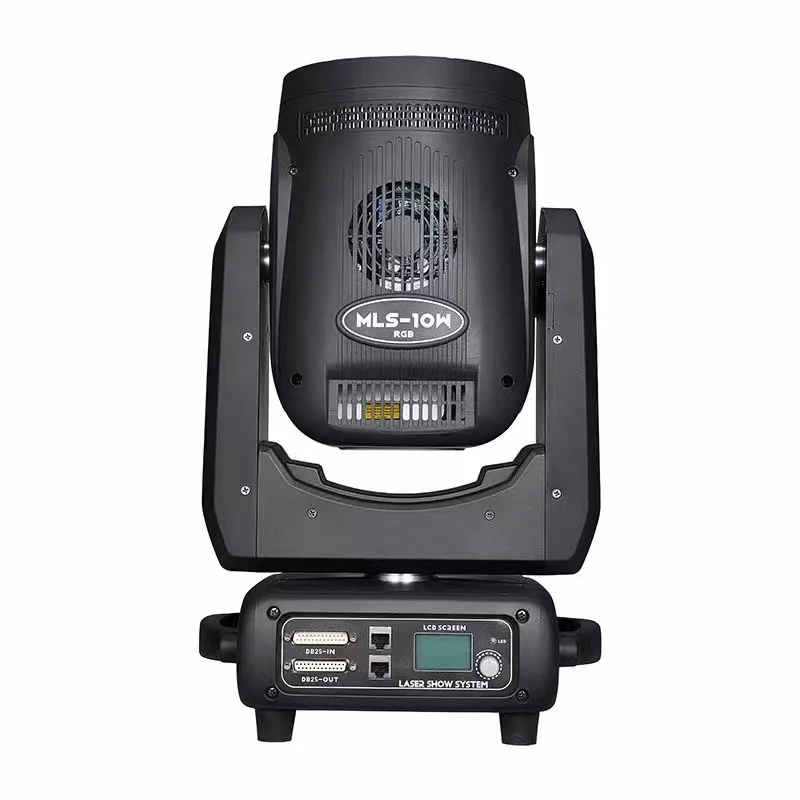

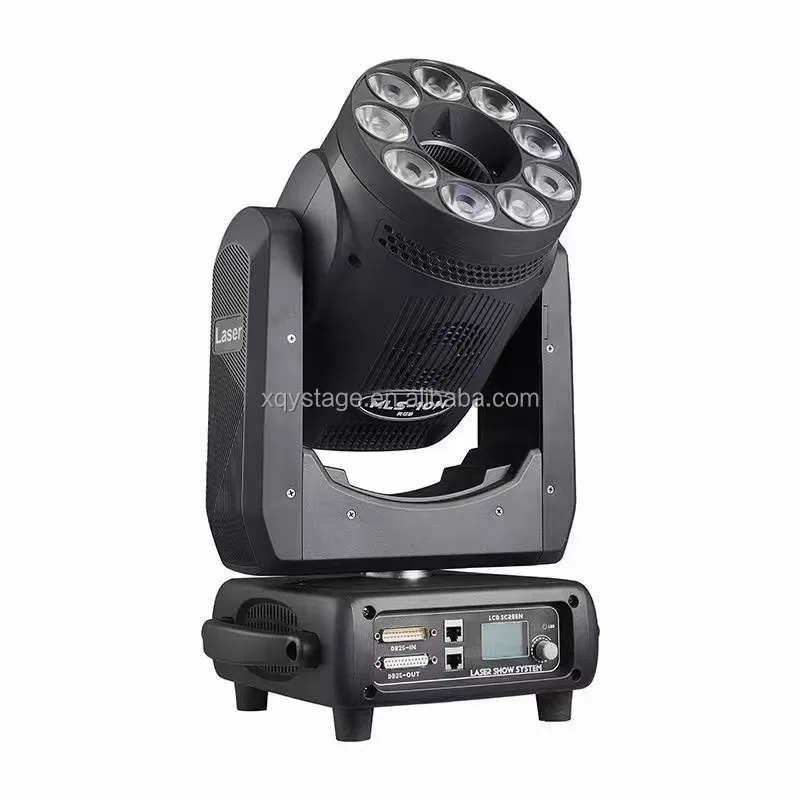

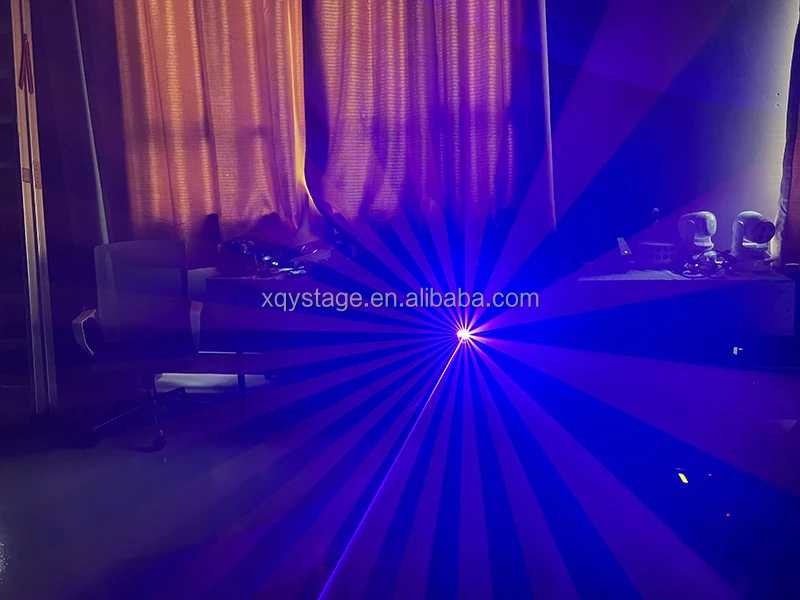

Moving head laser + LED dyeing light Technical Parameters: Rated voltage: AC110-220V Moving head laser + LED dyeing light Rated frequency: 50~60Hz Rated power: 300W Laser color: RGB full color Laser power: RGB 5W/10W Laser light source: R3w/638nm G3w/525nm B4w/447nm Laser pattern: 256 laser animation patterns Modulation signal: TTL modulation (analog modulation) Scanning system: galvanometer scanning 30KPPS Scan angle: plus or minus 20 degrees Stepper motor: 2 two-phase 57 motors Horizontal: 540 degrees Vertical: 270 degrees LED dyeing configuration: 9 20W four-in-one high-brightness LED lamp beads Control method: DMX512, voice control, self-propelled, computer ILDA interface, network cable Art-Net, Control channels: 30 DMX512 control channels DMX special effects: Single pattern mode, which can break the pen, strobe, rotate, move, roll, split the image, gradually draw, change color, change size and other functions. Function: It can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. Ilda control adopts automatic electronic transfer switch, with scanning system error protection and laser light closing protection. Instructions for use: The ambient temperature is controlled between 0~35℃. A dry and dust-free environment can reduce laser power attenuation and extend the life of the lamp. Suitable places: disco bars, bars, nightclubs, concerts, advertising promotions, etc. Cooling system: fan forced cooling
|
