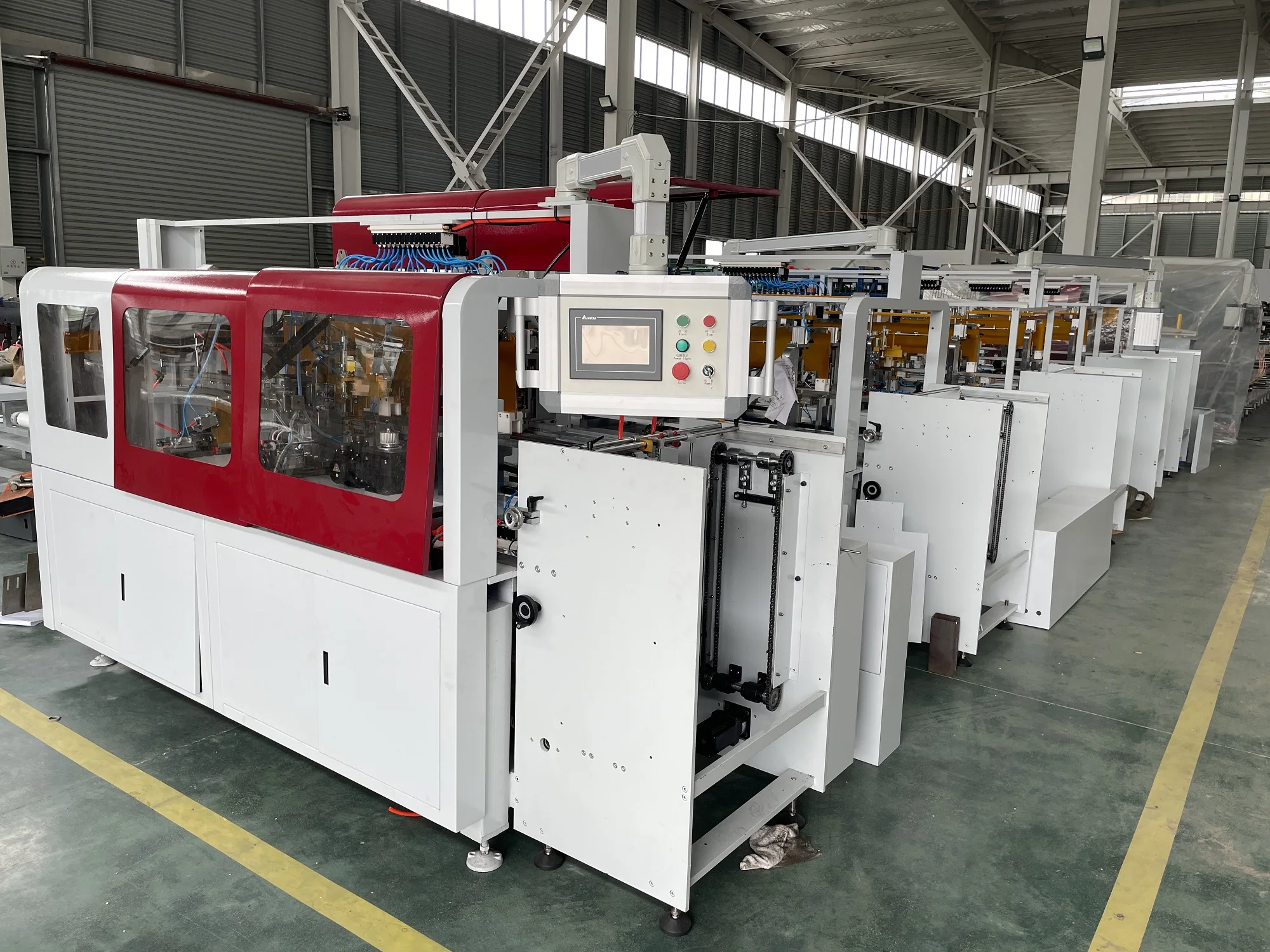

Automatic Elastic Band Inserting Machine For Hardcover Books
PJ-420
This machine is used for hardcover book elastic band inserting, including automatic hardcover feeding,hole punching, automatic elastic size calculating, cutting, inserting, and gluing by hot melt glue, then automatic delivery. It has a high efficiency for elastic band binding, can solve problem of the difficult jobs by hand. There are 3 servo systems control and PLC touch screen control the whole process which has a steady running and convenient for workers’operation.

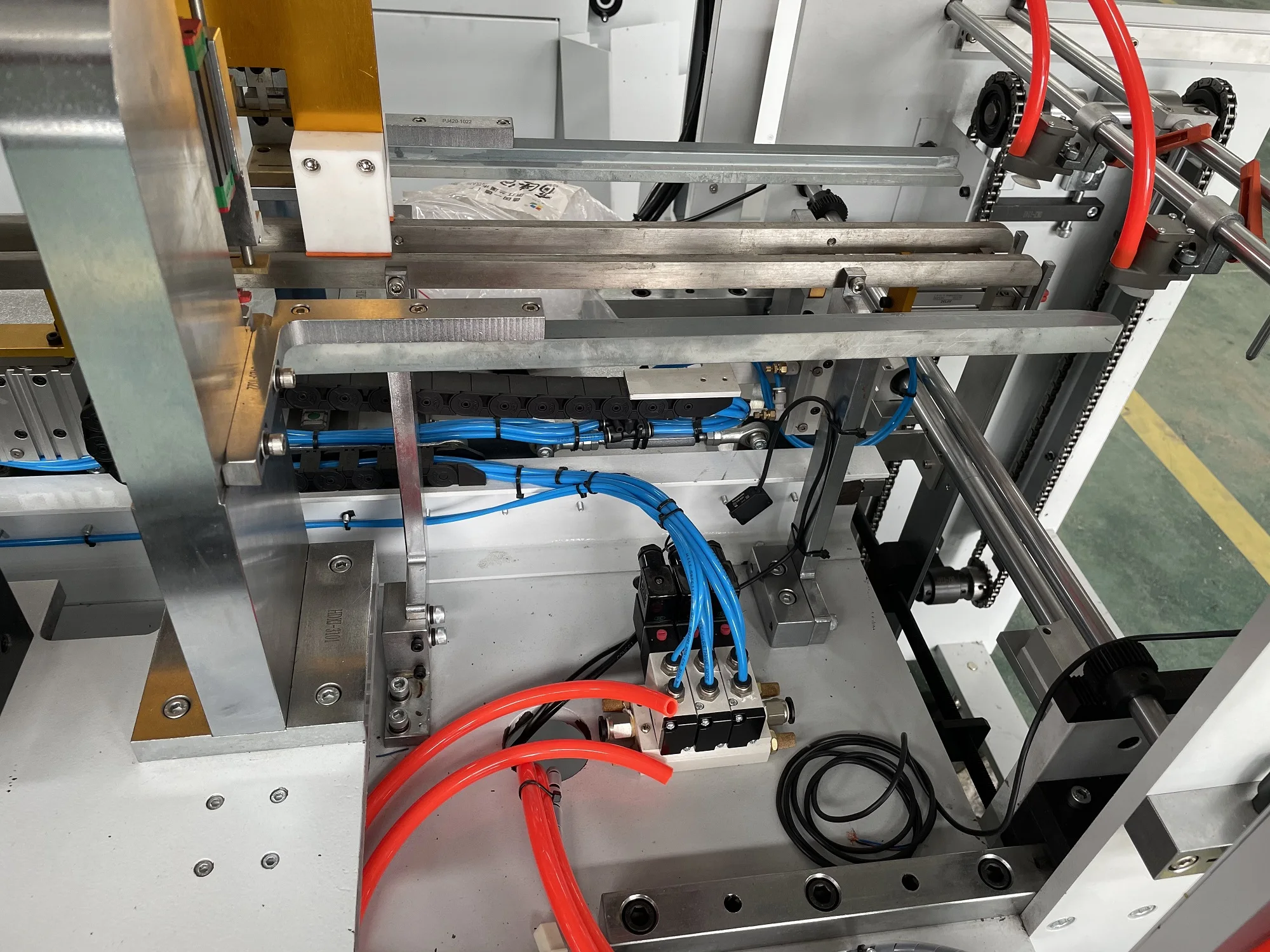

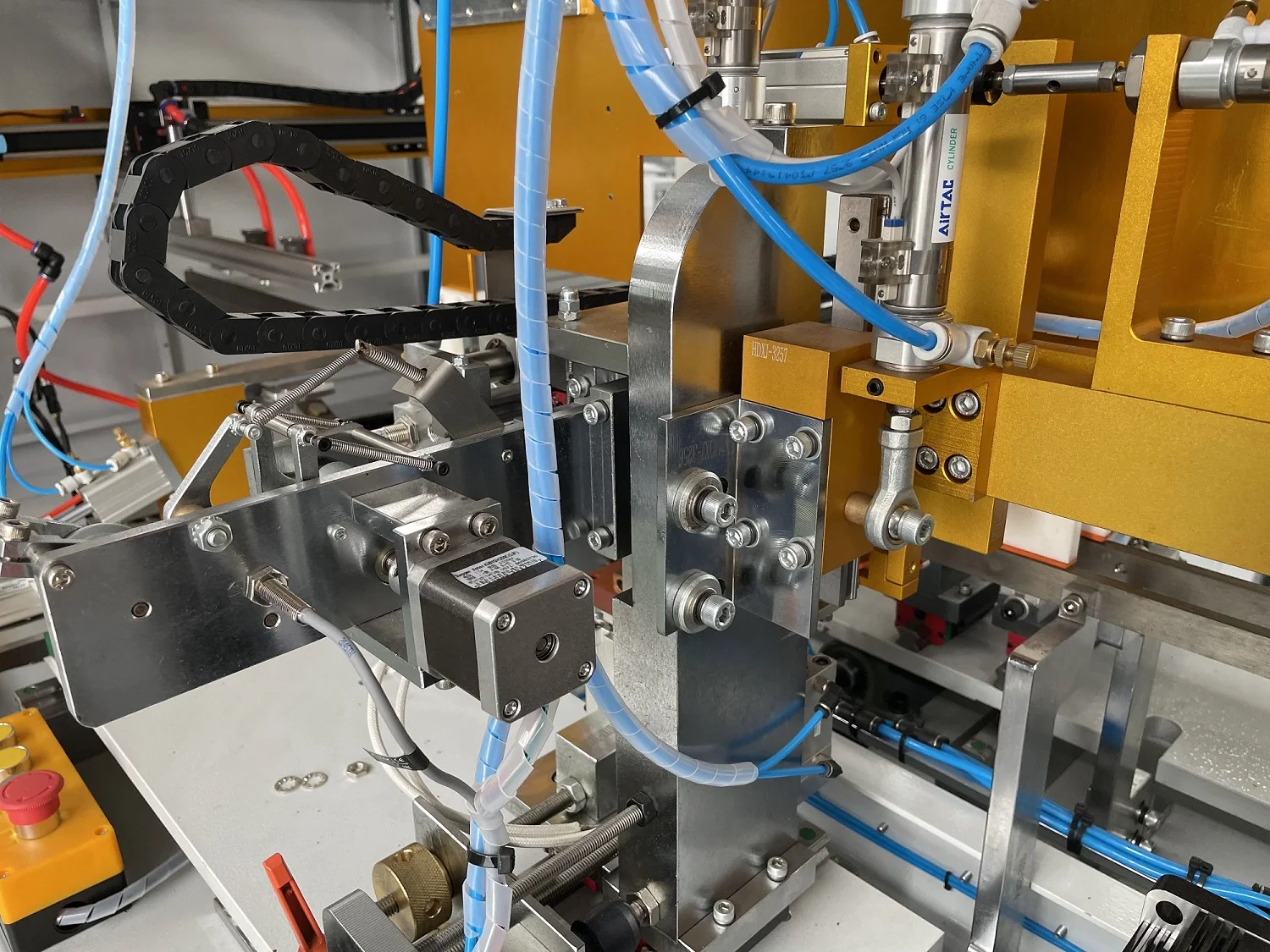

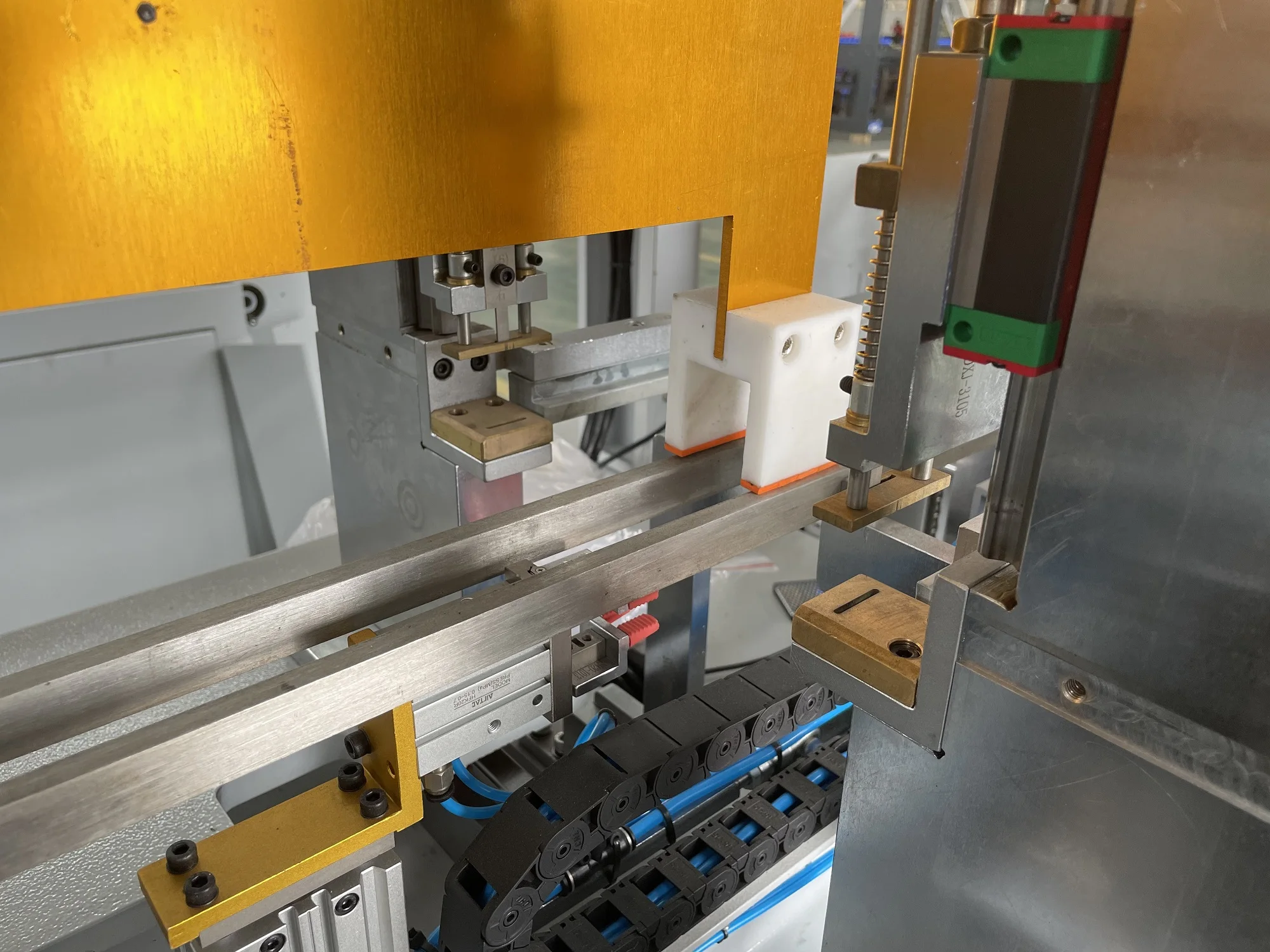

Details Images




Main Parameters


Model
PJ-420
Max.size of cover
340x440mm
Min.size of cover
105x170mm
Hole sizes
5mm, 6mm,8mm,10mm (Customized)
Max. Speed
25books/min
Main Power
6kw 3P 380v 50hz
Air compressor
At least 0.6kg/cm2
Machine weight
1600kg
Machine size
2880x1600x1800mm


Configuration list


Name
Brand
PLC
DELTA
Touch screen
DELTA
Air Cylinder
AIRTAC
Photocell
Panasonic
Servo Motor
OUXIN
Stepping Motor
BUKE
AC contactor
Schneider
Breaker
Schneider
Hot melt glue gun
WEILIAO
Linear Guideway
HIWIN


Application
