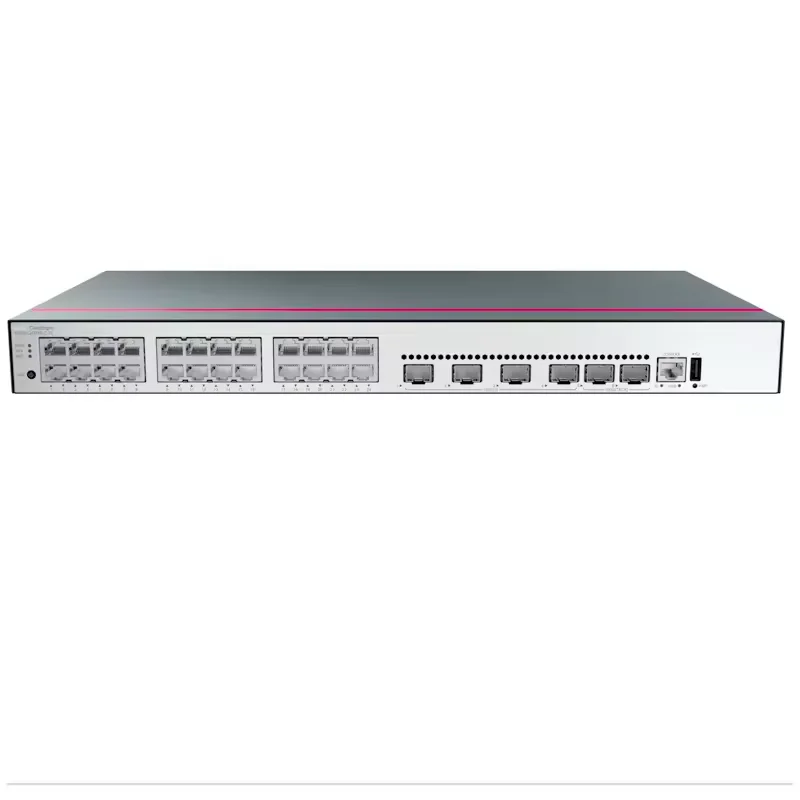

CloudEngine S5735-L24P4XE-TA-V2 (4*10GE SFP+ ports 2*12GE stack ports PoE+ HTM 98012027 Network Switch

CloudEngine S5735 L24P4XE TA V2 (4*10GE SFP ports 2*12GE stack ports PoE HTM 98012027 Network Switch

Share on (1601229739870):


Price:

Quantity:


Product Overview

Description



Product Description










Based on the latest generation of high-performance hardware and software platform, CloudEngine S5735-L-Q-V2 series switches feature flexible Ethernet networking, diversified security control, simple operation and maintenance, and support multiple Layer 3 routing protocols, providing higher performance and diversified service processing capabilities. The whole system of switches adopts fanless design, quiet and energy saving, widely used in medical, retail, mining, Internet and other industries


































Item


Details


Description


S5735-L24P4XE-TA-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, HTM, AC power, Only for Overseas)


Part Number


98012027


Model


S5735-L24P4XE-TA-V2


First supported version


V600R022C01







Details Images







Specification









































































































Item


Specification


Dimensions without packaging (H x W x D) [mm(in.)]


Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)


Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)


Dimensions with packaging (H x W x D) [mm(in.)]


90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)


Chassis height [U]


1 U


Weight without packaging [kg(lb)]


2.94 kg (6.48 lb)


Weight with packaging [kg(lb)]


3.81 kg (8.4 lb)


Typical power consumption [W]


44.09 W


Typical heat dissipation [BTU/hour]


150.44 BTU/hour


Maximum power consumption [W]


Without PoE: 59.15 W


Full PoE load: 500.33 W (PoE: 400 W)


Maximum heat dissipation [BTU/hour]


Without PoE: 201.83


Full PoE load: 1707.18


MTBF [year]


58.27 year


MTTR [hour]


2 hour


Availability


>0.99999


Noise at normal temperature (acoustic power) [dB(A)]


49.3 dB(A)


Noise at normal temperature (acoustic pressure) [dB(A)]


37.3 dB(A)


Number of card slots


0


Number of power slots


0


Number of fans modules


2


Redundant power supply


Not supported


Long-term operating temperature [°C(°F)]


-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)


Restriction on the operating temperature variation rate [°C(°F)]


When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.).


Devices cannot start when the temperature is lower than 0°C (32°F).
