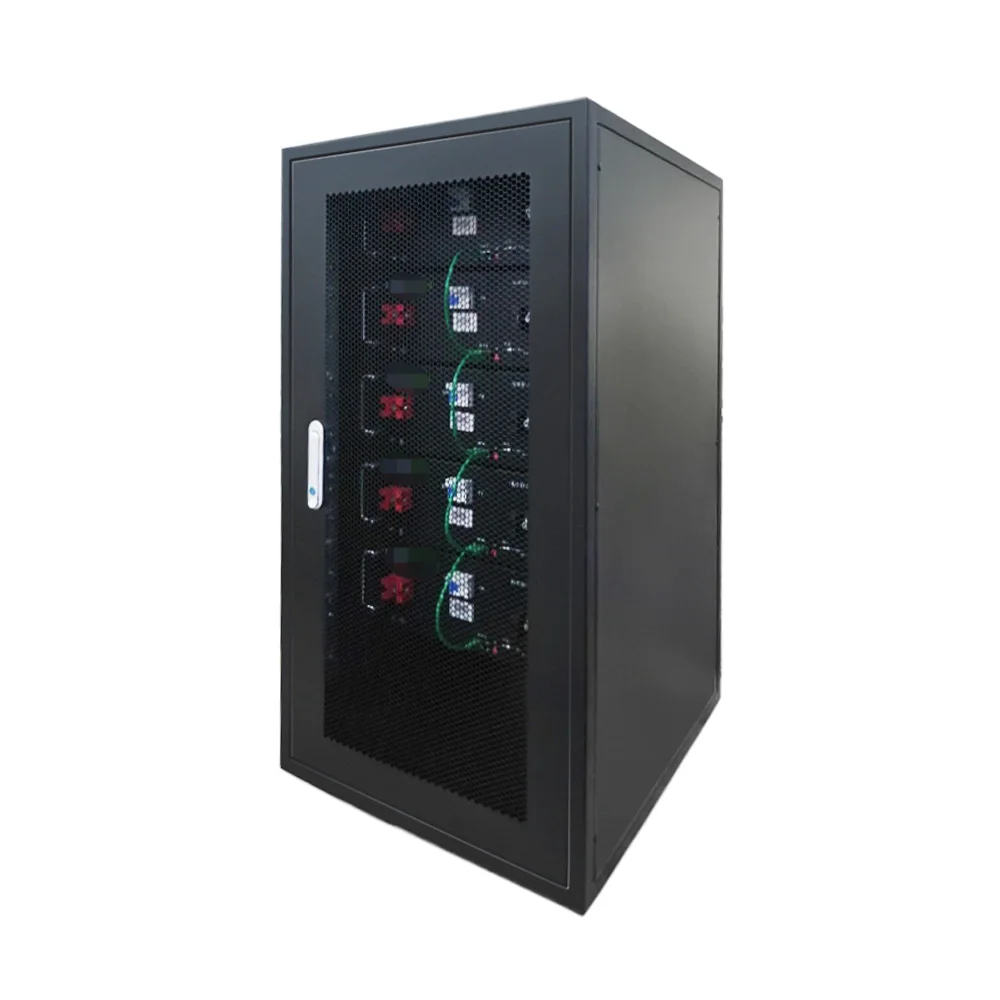

Widely Used 5KW Rack mounted solar lithium ion batteries 48V LiFePO4 Battery Cabinet 100Ah 50Ah for renewable energy systems
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. Limited.
Share on (1601229754609):
Product Overview
Description

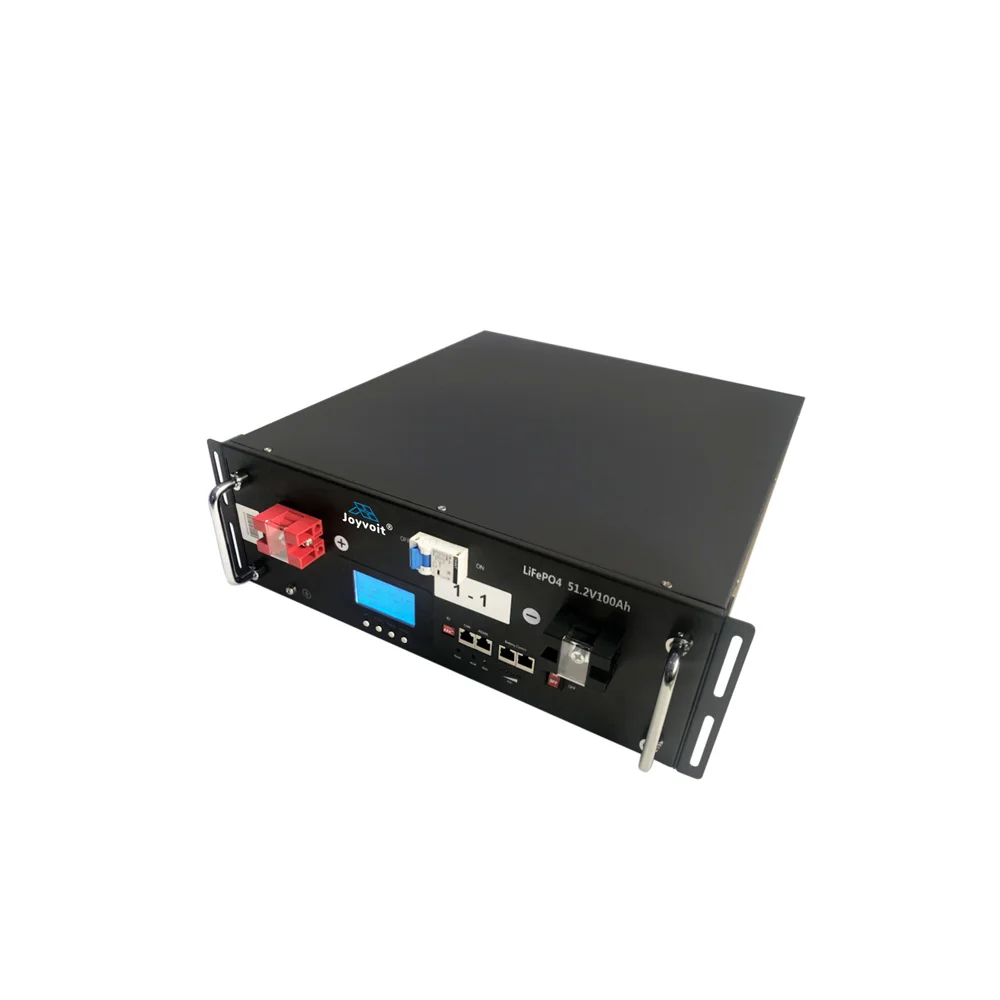

Widely Used 5KW Rack Mounted Solar Lithium-ion Batteries 48V LiFePO4 Battery Cabinet 100Ah 50Ah for Renewable Energy Systems
Remarks

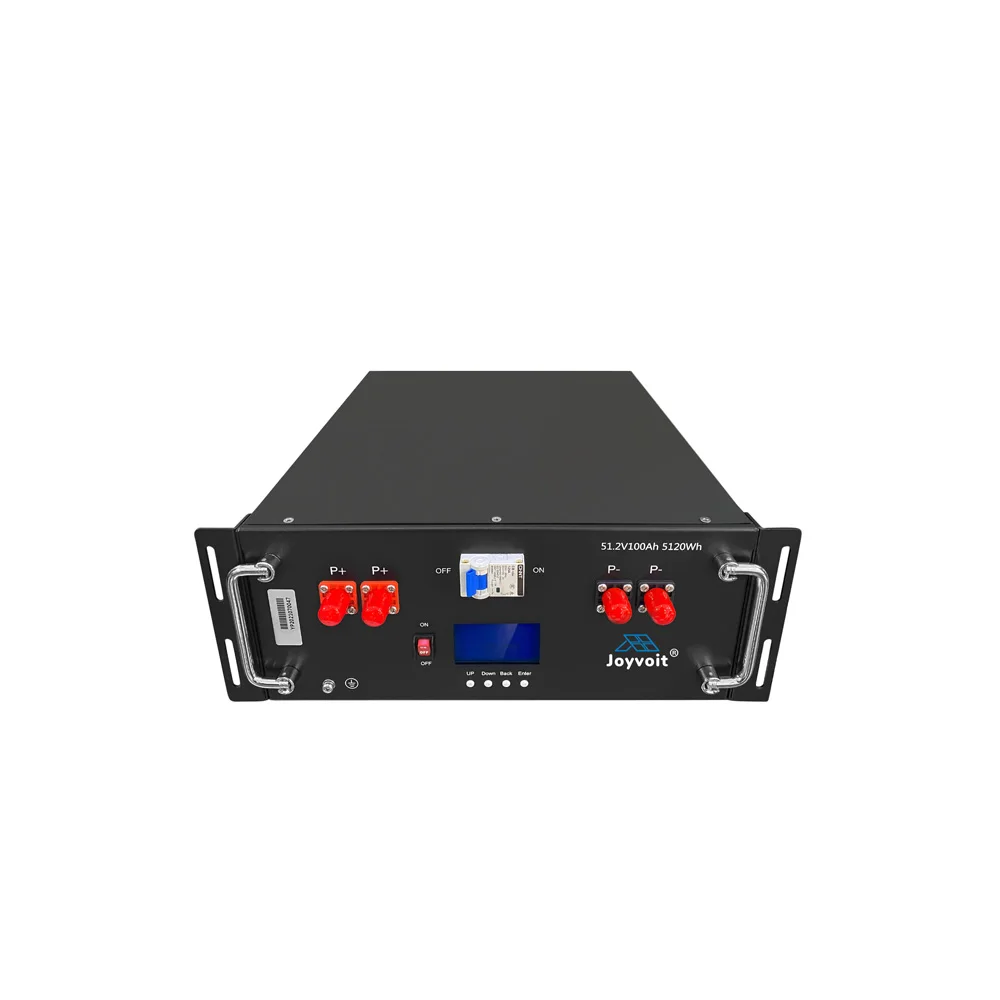

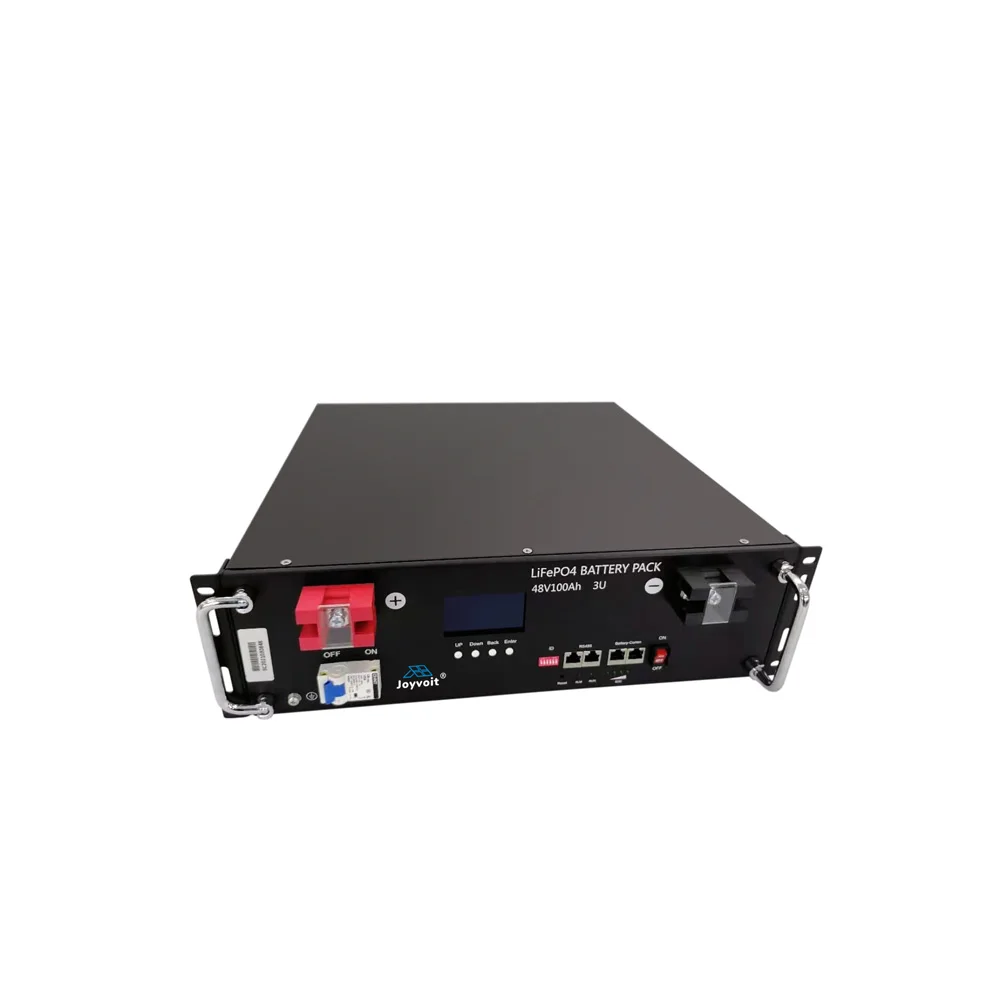

The lithium iron phosphate battery module which designed for residential energy storage application. This battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, fast charging, temperature range and environmental protection. And also, it has a beautiful fashionable modeling design. We Joyvoit is committed to providing safe and stable power supply for residential energy storage system.
Model/Parameters | BR2KW | BR3KW | BR5KW | |||
Basic | ||||||
Normal Voltage [V] | 51.2 | 51.2 | 51.2 | |||
Normal Capacity [Ah] | 50 | 60 | 100 | |||
Operating Voltage [V] | 45~56 | 45~56 | 45~56 | |||
Rated energy [kWh] | 2.56 | 3.07 | 5.12 | |||
Battery Type | Li-on（LiFePO4） | Li-on（LiFePO4） | Li-on（LiFePO4） | |||
Ah Efficiency [%] | 99.5 | 99.5 | 99.5 | |||
Wh Efficiency [%] | 96 | 96 | 96 | |||
Standard Power [kW] | 2.5 | 3 | 5 | |||
Recommended Charging current [A] | 25 | 30 | 50 | |||
Maximum Discharging current [A] | 70 | 70 | 100 | |||
Dimension & Weight | ||||||
Dimension(L*W*H) [mm] | 442*430*133(3U) | 442*430*88(2U) | 442*470*154(3.5U) | |||
Weight [Kg] | 29.5 | 32 | 46 | |||
Communication | ||||||
Battery to Inverter | RS485/CAN 2.0 | |||||
Battery to Battery/BMS | RS485 | |||||
Capacity Indicator | 4LED (25%, 50%, 75%, 100%) | |||||
Display | LCD Screen(Optional) | |||||
Switch ON/OFF | Button | |||||
Environment | ||||||
Operating Temperature [℃] | -10 to 55 | |||||
Relative Humidity [%] | 5 to 95 | |||||
Altitude [m] | Below 4500 | |||||
Standard Comply | ||||||
Safety | CE, TUV(IEC62619), ROHS | |||||
Hazardous Materials Classification | Class 9 | |||||
Transport Testing Requirement | UN38.3 | |||||
Cycle Life [80% DOD] | > 6000 Cycles | |||||
Warranty [Year] | 5 | |||||
Feature:
The battery module consists of single LFP cells, wire, BMS and metal container.
* LFP single cell, long life, safety and wide temperature range
* High energy density, small size, light weight, no pollution
* High efficiency, fast charging
* Built-in BMS, protect voltage, current, temperature in whole service life
* Integrated communication interface, communication with inverter controller
* Integrated LED indicator, display the SOC and operation status

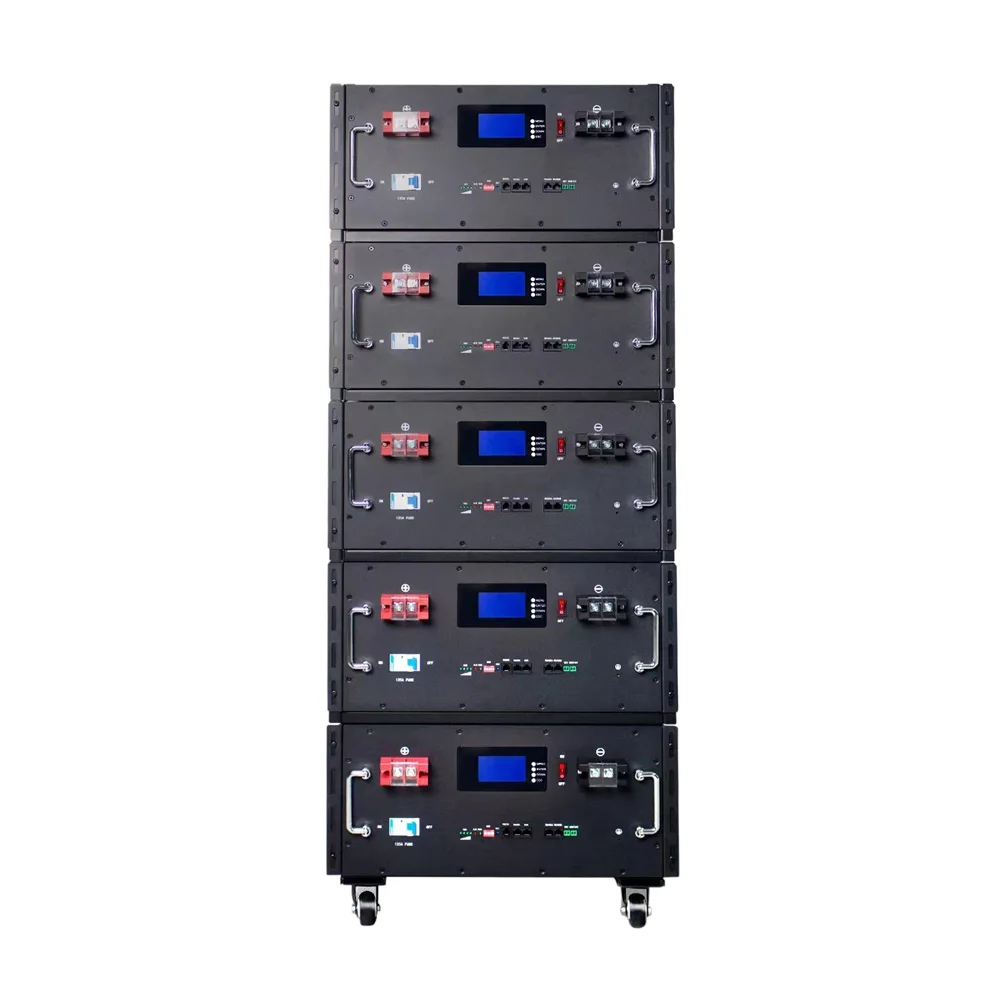

* Standardized module, supporting parallel design, matching a variety of inverters
* 5 years design life, stable performance, maintenance-free.
* High energy density, small size, light weight, no pollution
* High efficiency, fast charging
* Built-in BMS, protect voltage, current, temperature in whole service life
* Integrated communication interface, communication with inverter controller
* Integrated LED indicator, display the SOC and operation status
* Standardized module, supporting parallel design, matching a variety of inverters
* 5 years design life, stable performance, maintenance-free.

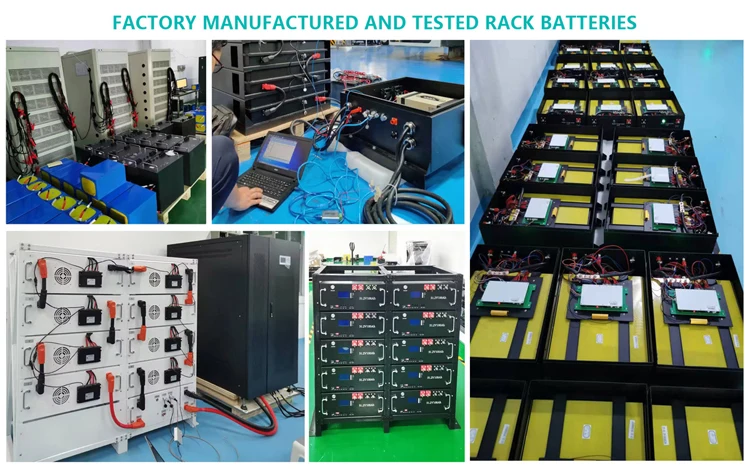

We have more than 14 years experience on solar design & production, We have professional people both on production & sales & after sales service. We are located in Shenzhen, close to Hongkong, cheap & fast on shipping.
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use Alibaba platform
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use Alibaba platform
for 12 years as supplier.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong Kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong Kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
