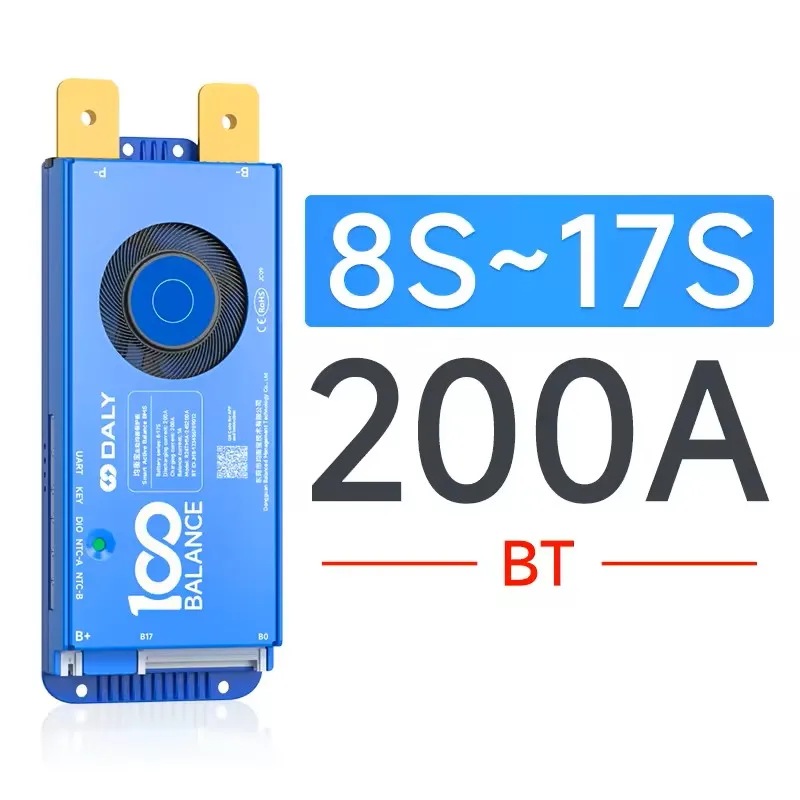

Daly Smart BMS 4s lifepo4 blue tooth Wifi 8S 16S 24S 40A 60A 80A 100A 150A 200A 300A JK active balance
- Category: >>>
- Supplier: Shenzhen Ecodi Technology Co. Ltd.Shenzhen Ltd.
Share on (1601229759804):
Product Overview
Description
Product Description
Daly bms Smart BMS 4s lifepo4 blue-tooth Wifi bms 8S 24S 40A 60A 80A JK active balance bms 16s 48v lifepo4 bms jk Lifepo4 100A
With passive and active cell balancing, each cell in the battery stack is monitored to maintain a healthy battery state of charge(SoC). It extends battery cycle life and provides an extra protection by preventing damage to a battery cell due to deepdischarging over or overcharging.
Active cell balancing is a latest balancing technique that redistributes charge between battery
cells during the charge and discharge cycles, thereby increasing system run time by increasing the total useable charge in thebattery stack, decreasing charge time compared with passive balancing, and decreasing heat generated while balancing.
cells during the charge and discharge cycles, thereby increasing system run time by increasing the total useable charge in thebattery stack, decreasing charge time compared with passive balancing, and decreasing heat generated while balancing.

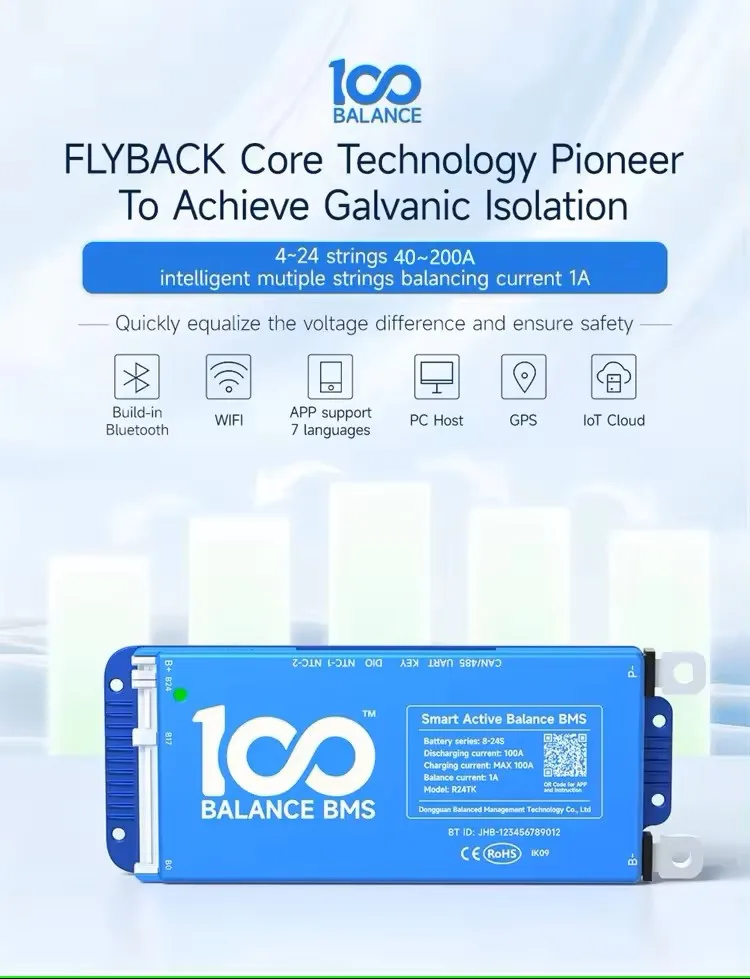

Our 100balance active balance BMS (battery management system) is the ideal partner of your Lithium battery.

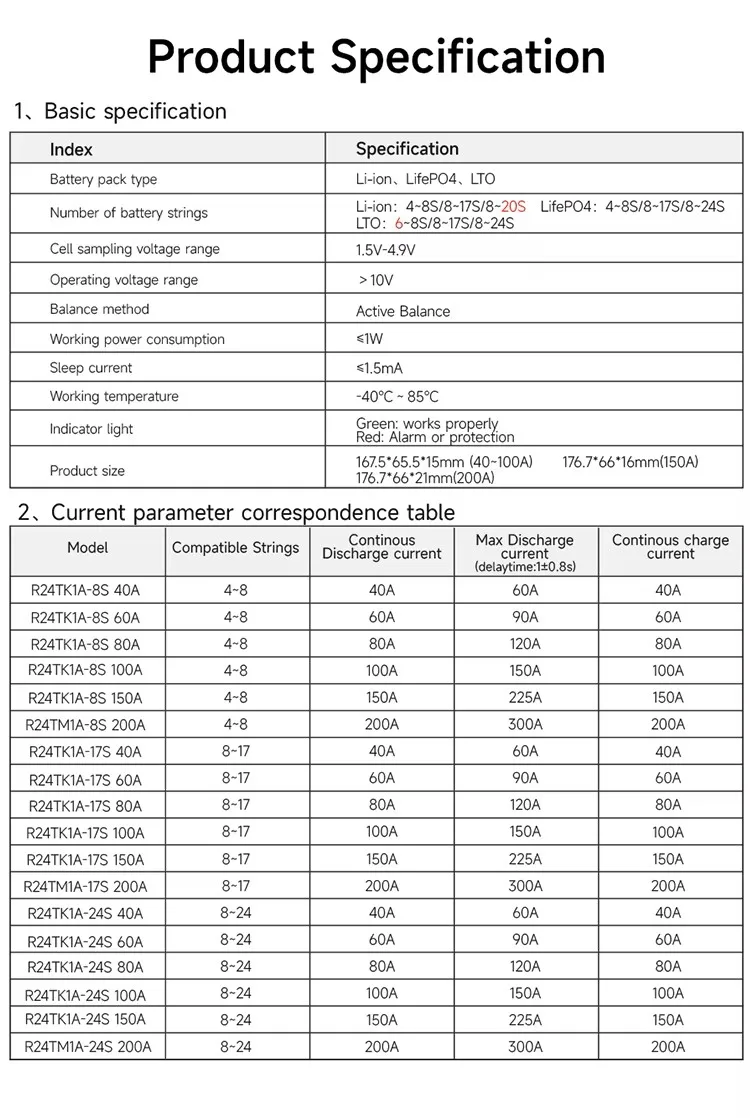

Specification
Product Name | Smart Active Balance BMS for Lithium Battery |
Key Words | Smart BMS with Active Balancer |
Aplication | Li-ion LiFePO4 Battery Pack |
Battery type | Lithium battery , Li-ion , LiFePO4 |
Battery Protective function | Overcharge, over-discharge, over-current, short circuit, temperature control, pre-charge, disconnection, wrong connection, built-in parallel connection, buzzer (optional), heating (optional) |
Communication function | UART ( BT , PC host , GPS , display ) RS485 ( PC host , GPS , display (independent interface)) CAN （ CAN module , PC host (independent interface)) NTC ( Up to 4 channels of temperature control (2 channels standard)) KEY ( key , soft switch ) DO ( Choose one of 1 channel 12VDO and 1 channel 3.3VDO (external heating module, parallel wiring harness) DI ( 1 road DI ) Charging detection, WIFI module , IoT Cloud , data storage(400 item) |
Balanced current | 1A |
Number of plate type strings (S) | 4-8S, 8-17S, 8-24S |
Maximum support current charging & discharging current | 40-100A |
Max over charging & discharging current | 60-150A |

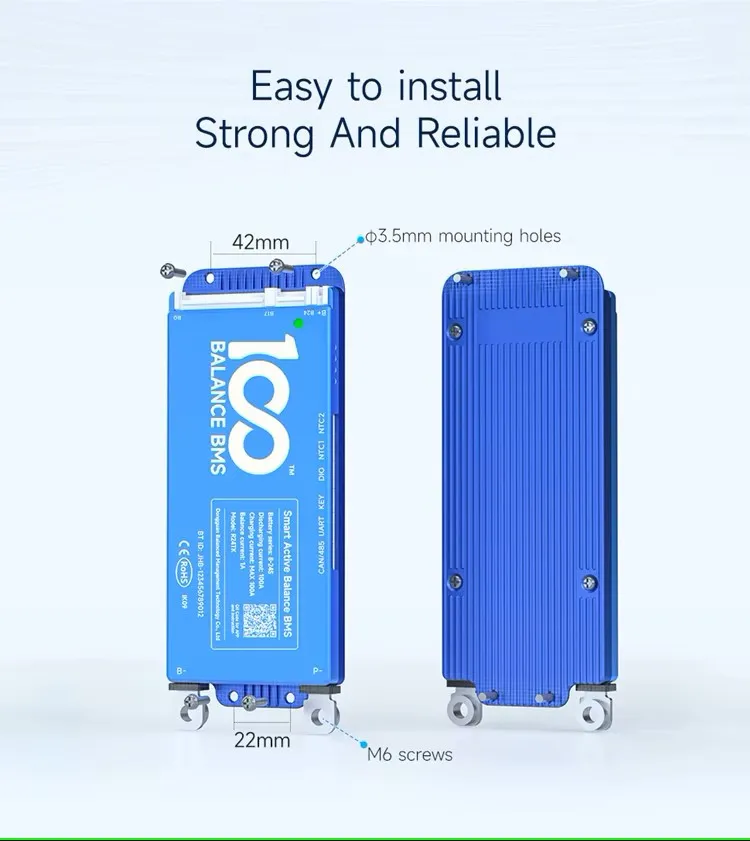

BMS product size | 167*65*15mm |
Surface finishing | Sandblasting process, with mounting holes |
Service | ODM, OEM |
What is Advantage of our BMS ?
1. Balanced current
Precharge protection: Anti-surge during power-on, effectively preventing instantaneous large current impact and reducing damageto BMS and battery.
Protection board BMS comes with 1A active balancing current. There is no need to install an additional active balancing module. There are fewer wirings, which saves costs and has higher balancing efficiency.
2. String range Intelligent
compatible serial number 4-24S, one board for multiple purposes. Applicable to more scenarios and reduce the pressure of stocking up. The standard configuration includes three series ranges: 4-8S, 8-17S, and 8-24S.
compatible serial number 4-24S, one board for multiple purposes. Applicable to more scenarios and reduce the pressure of stocking up. The standard configuration includes three series ranges: 4-8S, 8-17S, and 8-24S.
3. Parallel current limiting
The protection board has a built-in parallel current limiting module, eliminating the need for additional external parallel modules. Parallel capacity expansion is more convenient and safer.
4. Wifi module: supports wifi wireless transmission to achieve remote monitoring.
Built-in Bluetooth module, the mobile terminal can link to the Bluetooth APP, which makes it more convenient to view battery status information and set parameters.
Cloud Butler: Supports cloud platform, remote, batch, visual, and intelligent comprehensive cloud battery management services.
GPS: GPS positioning management, which can track historical trajectories, remotely set parameters, view battery status, and control battery work.
Rich interfaces: Supports UART, RS485 and CAN simultaneous multi-channel communication, and can expand various functions such as display screen, host computer, Wifi, heating, soft switch and so on as needed.
Data storage: Large storage space, can store up to 400 pieces of battery status information.
5. Disconnection protection/wrong-line protection: Real-time monitoring of battery pack line conditions, such as disconnection, disconnection, mis-circulation and other abnormal situations, and timely alarms.
Precharge protection: Anti-surge during power-on, effectively preventing instantaneous large current impact and reducing damageto BMS and battery.

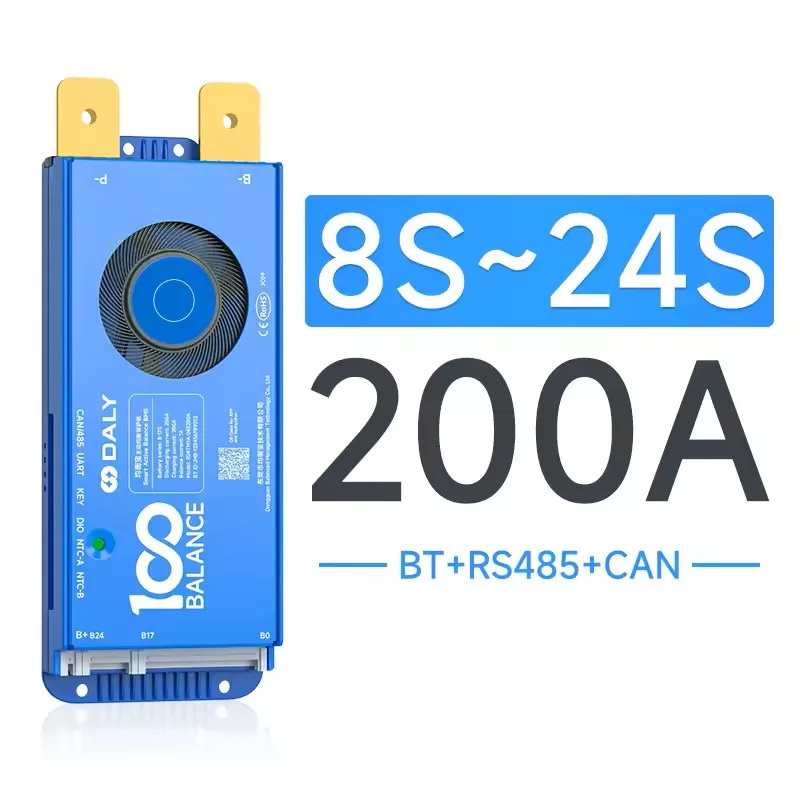

Supported current: Supports full range current from 40A to 200A (150A and 200A will be launched soon). Applications range from small power tools to large marine equipment.

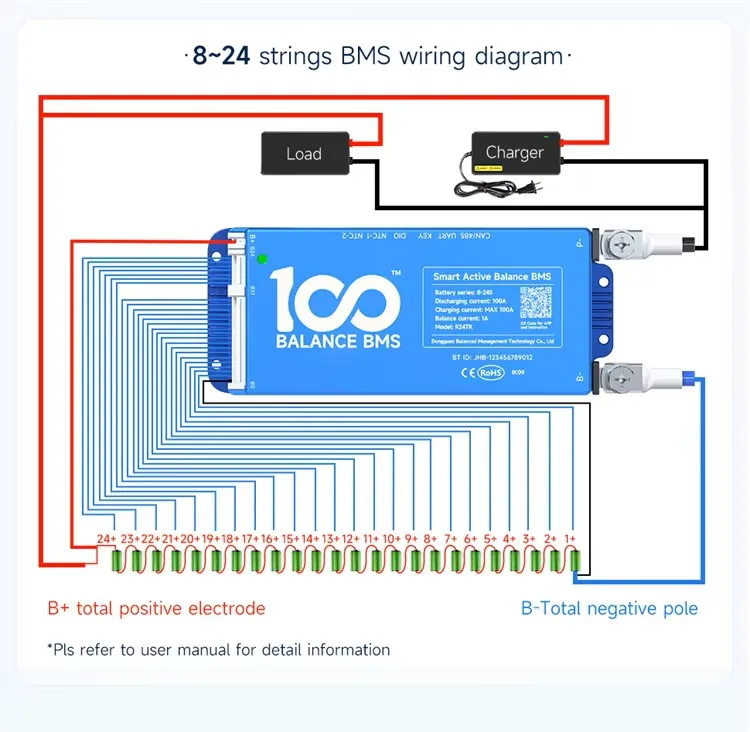

Installation Instructions
We will provide professional installation guidance, including product specifications, installation instructions, installation
videos, free APPs, free software. We also provide online one-on-one guidance, video connection real-time guidance, etc.
APP Download and Install
1.Pls search "BalanceBMS" from iOS Store and Google store and download and install.
2.Smart active balance bms has integrated BT function, it will connect to APP automatically with APP installed.
videos, free APPs, free software. We also provide online one-on-one guidance, video connection real-time guidance, etc.
APP Download and Install
1.Pls search "BalanceBMS" from iOS Store and Google store and download and install.
2.Smart active balance bms has integrated BT function, it will connect to APP automatically with APP installed.

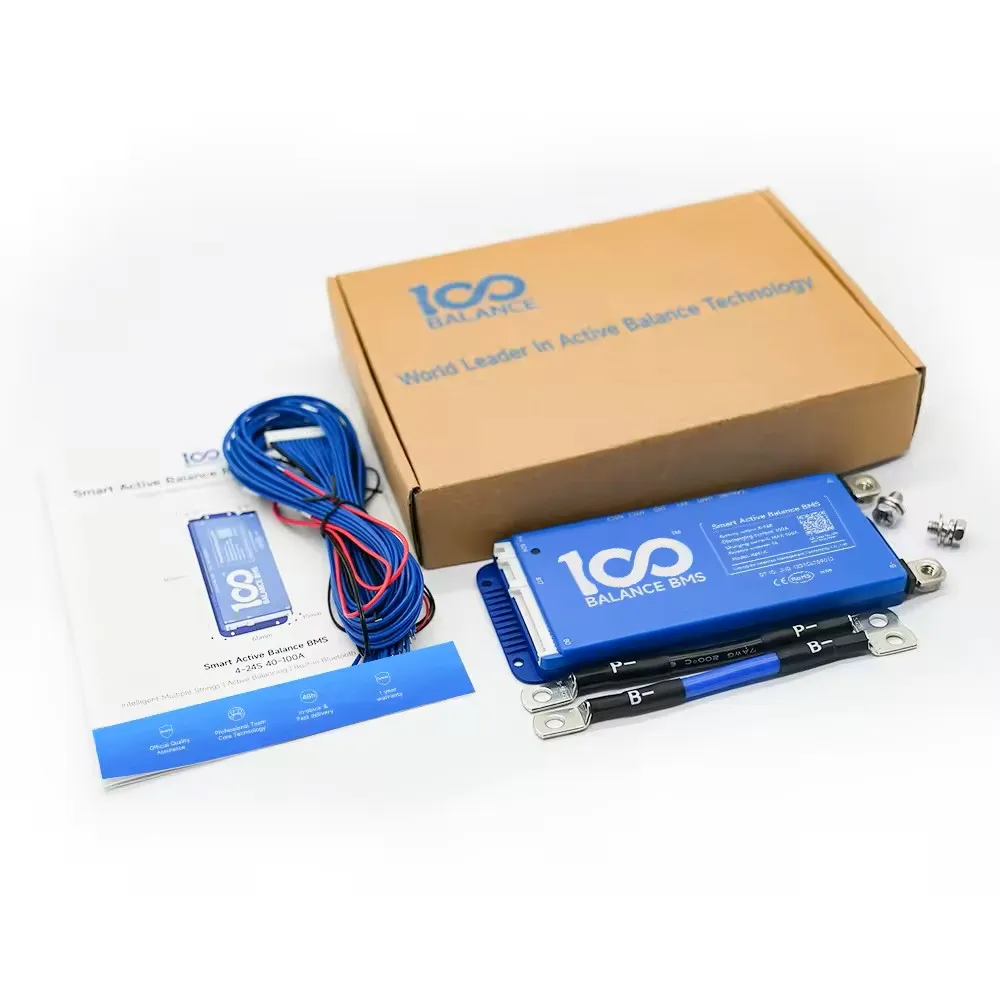

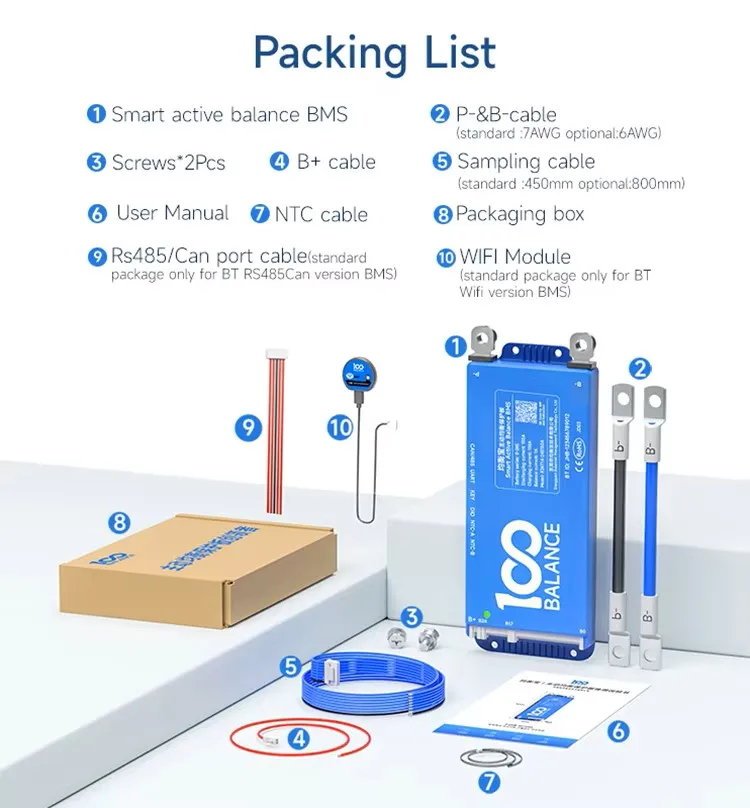

Packing & Delivery
