Main Parameter | ||||||||
Cell Technology | Lithium-iron Phosphate (CATL LiFePO4) | |||||||
Nominal Energy | 5.1Kwh | 10.2kwh | 12.28kwh | 15.46kwh | ||||
Usable Energy | 5.0kwh | 10kWh | 12.03kWh | 15.15kh | ||||
Round-Trip Efficiency | 98% | |||||||

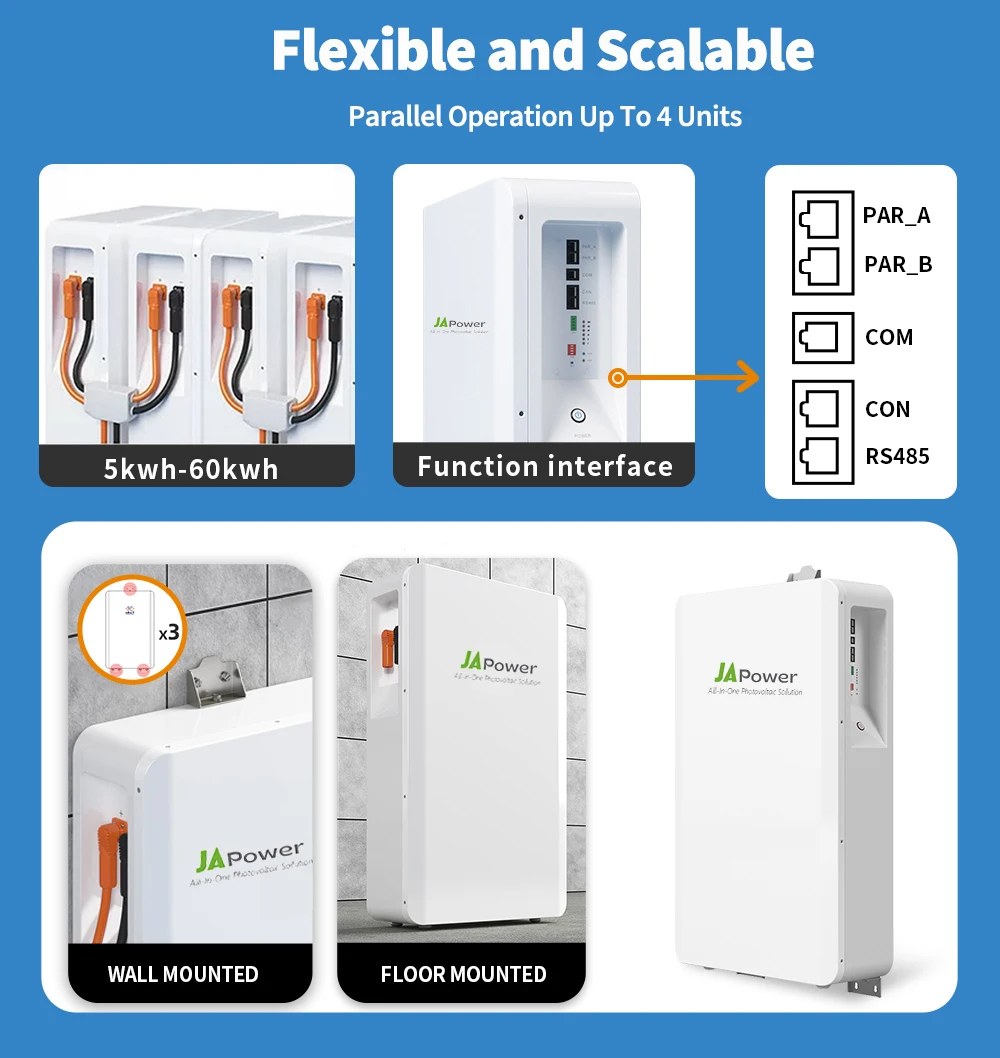

Scalability | Max.4 Modules in Parallel(Max.60kwwh) | |||||||

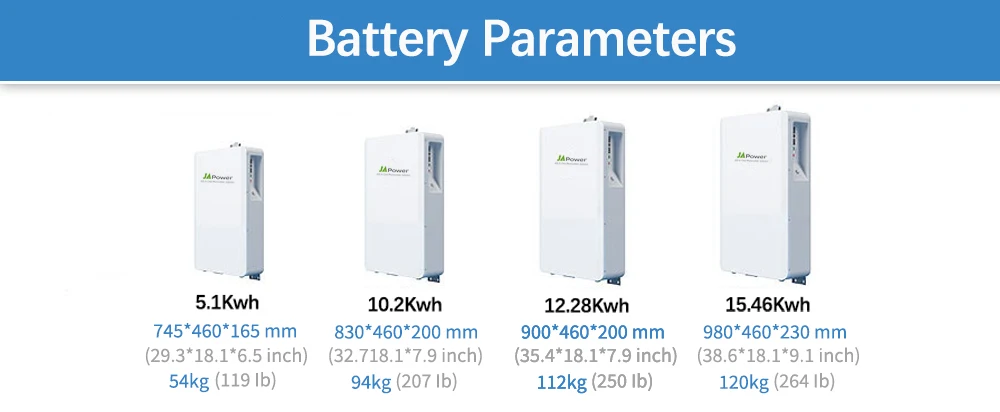

Dimensions(L/W/H) | 745*460*165mm | 830*460*200mm | 900*460*200mm | 980*460*230mm | ||||
Weight | 54kg | 94kg | 112kg | 120kg | ||||

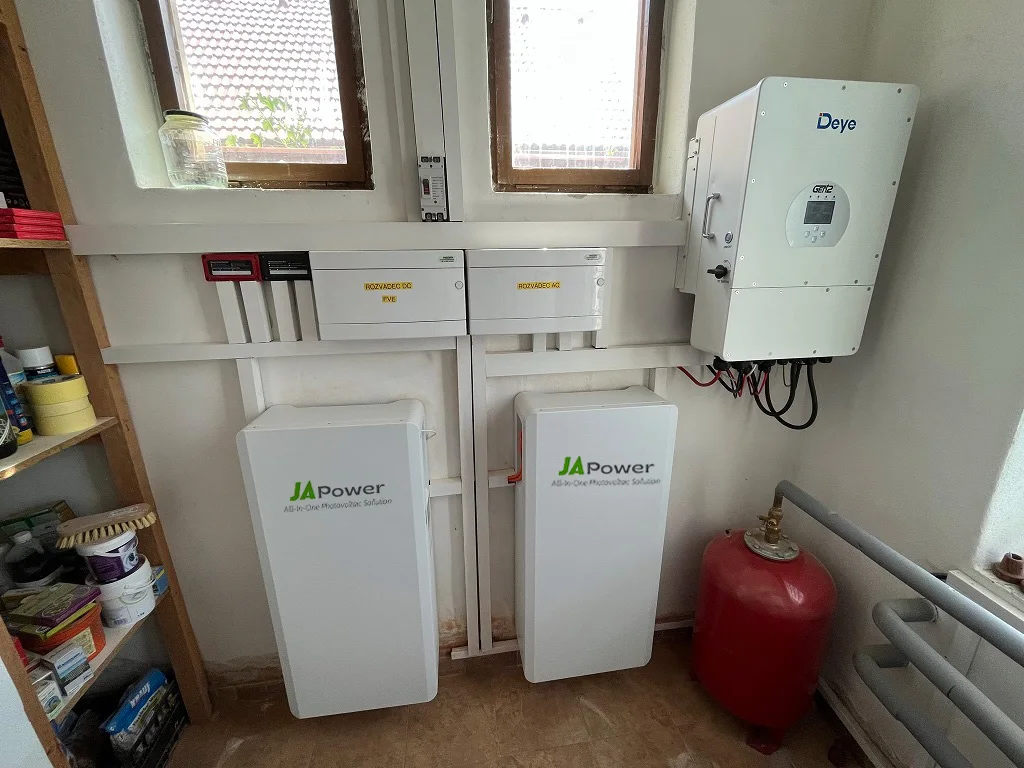

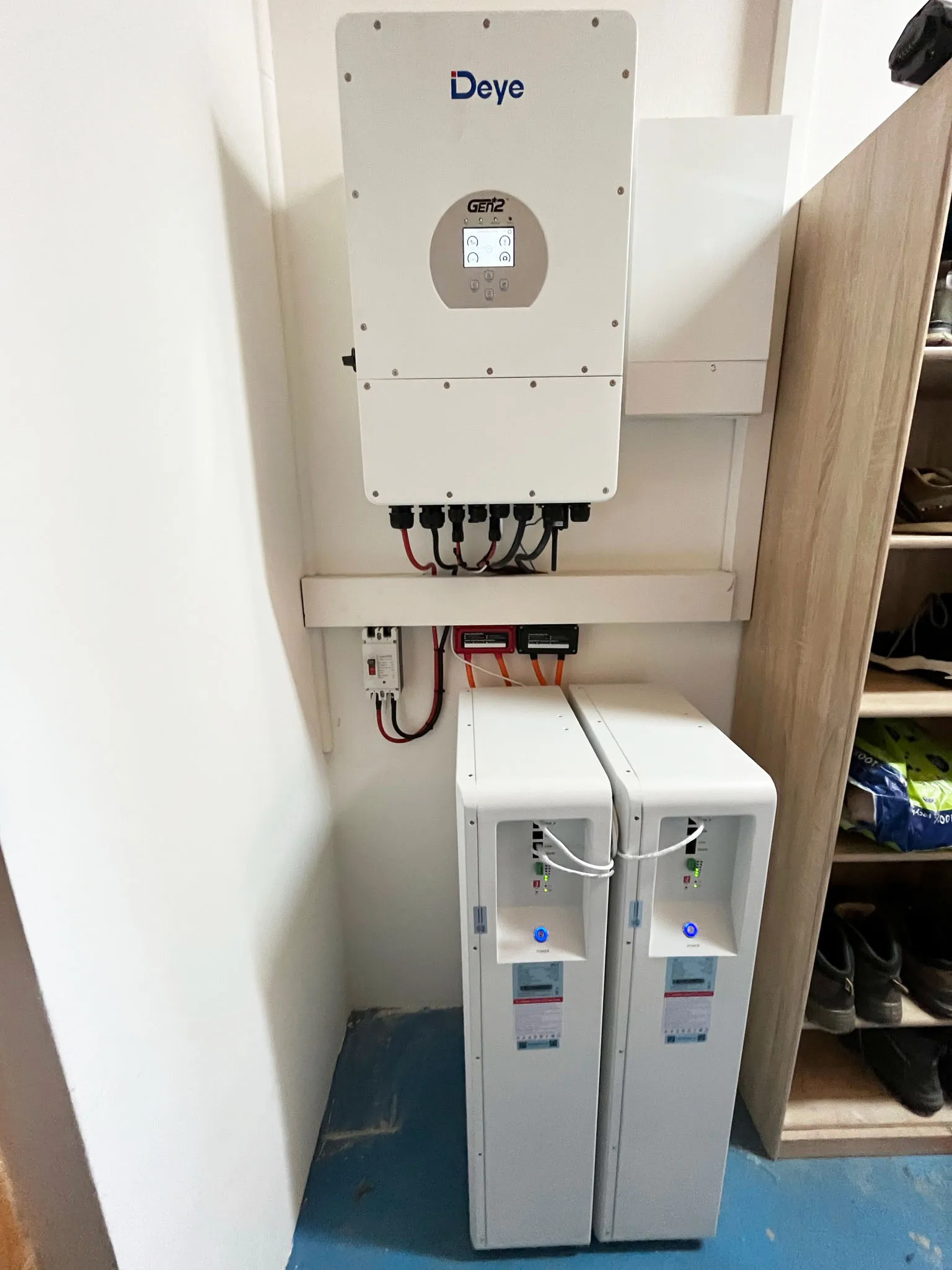

Installation | Standing/Wall-Mounting | Standing | ||||||
Warranty | 5 Years | |||||||
Certification | CE/UN38.3 | |||||||
Electrical Parameter | ||||||||
Nominal Voltage | 51.2V | |||||||
Nominal Capacity | 100Ah | 200Ah | 240Ah | 302Ah | ||||
Max. Charge Current | 100A | 150A | 125A | 230A | ||||
Cont. Charge Curent | 50A | 100A | 100A | 200A | ||||
Max. Discharge Current | 100A | 150A | 100A | 230A | ||||
Cont. Discharge Current | 65A | 100A | 100A | 200A | ||||
Charge Voltage | 51.2V-54V | |||||||
Discharge Voltage | 45V-54V | |||||||
Cont. Discharge DC Power | 3000W | 5000W | 10000W | |||||
Max. Discharge DC Power | 5000W (More than 2 unites in Parallel) | 10000W (More than 2 unites in Parallel) | 30000W (More than 3 unites in Parallel) | |||||
General Parameter | ||||||||
Cycle Life | ≥6000 Times (80%DoD) | |||||||
Service Life | 10-15 Years | |||||||
Protection Rating | IP31 | |||||||
Communication | CAN 2.0/ RS485 | |||||||
Charge Temperature Range | 0°C~45°C | |||||||
Charge Temperature Range | -20°C~45°C | |||||||
StorageTemperature Range | 20°C~25°C(Below 85% relative humidity) | |||||||

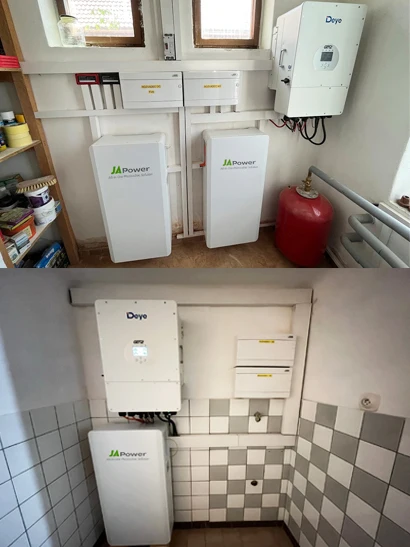

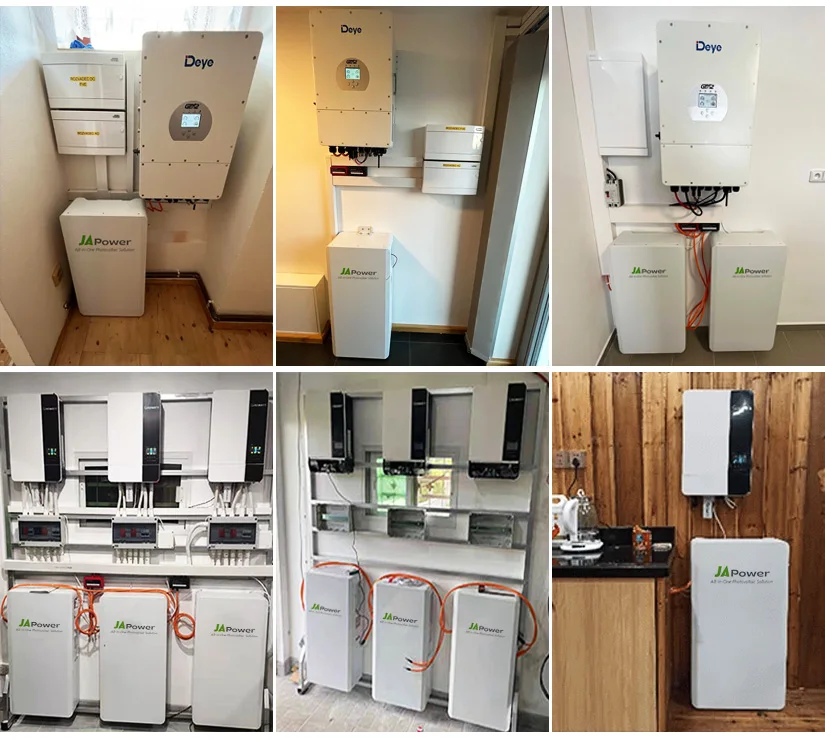

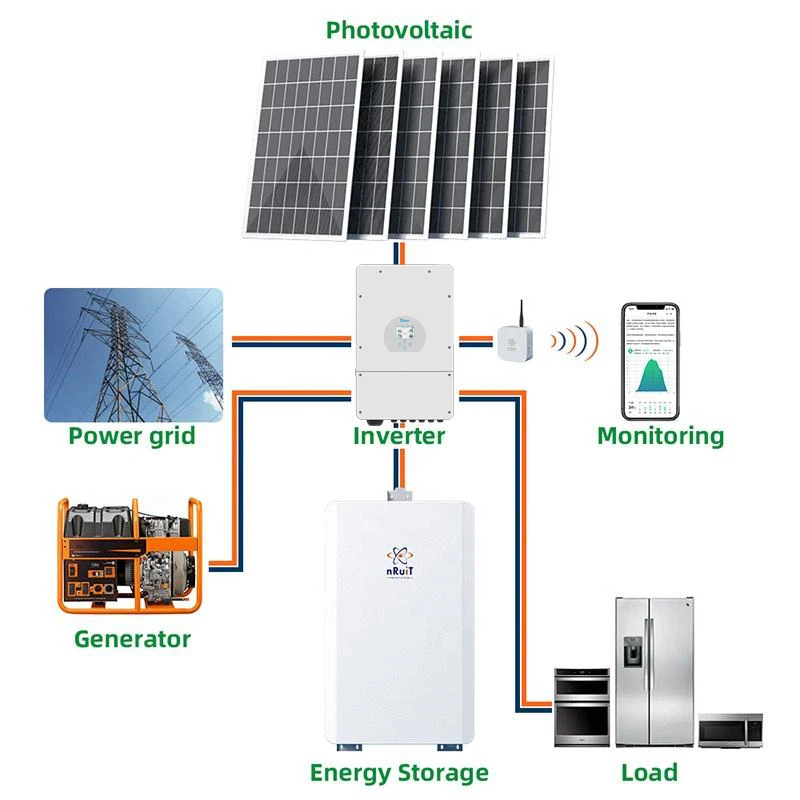

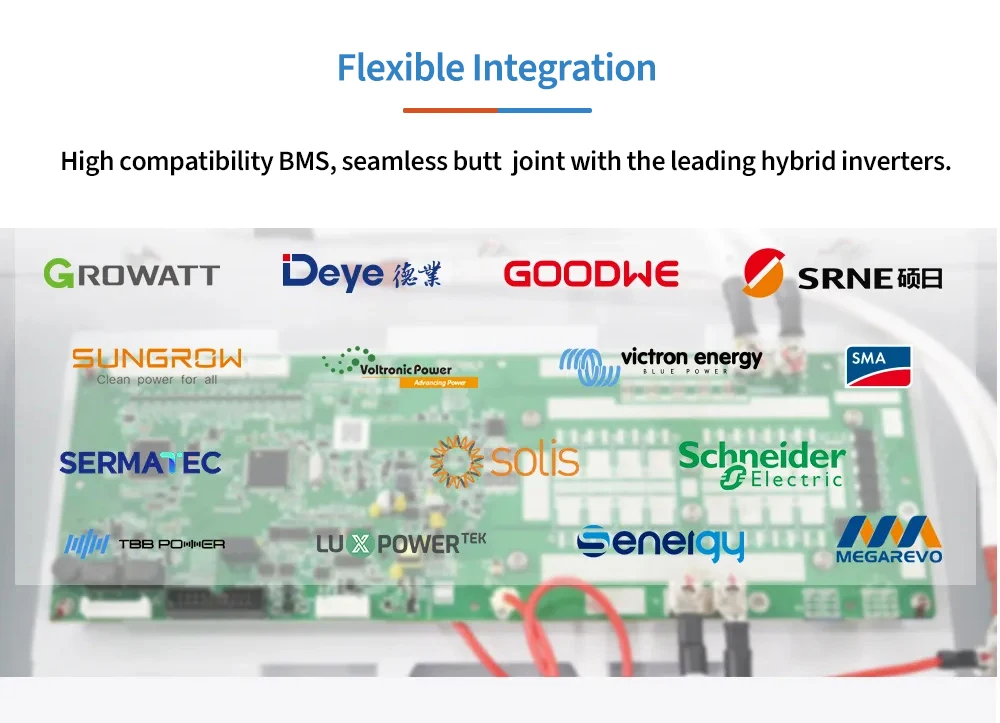

Compatible Inverters | Growatt, Deye, LuxPowerTek, SRNE, TBB POWER, Senergy, Megarevo |
