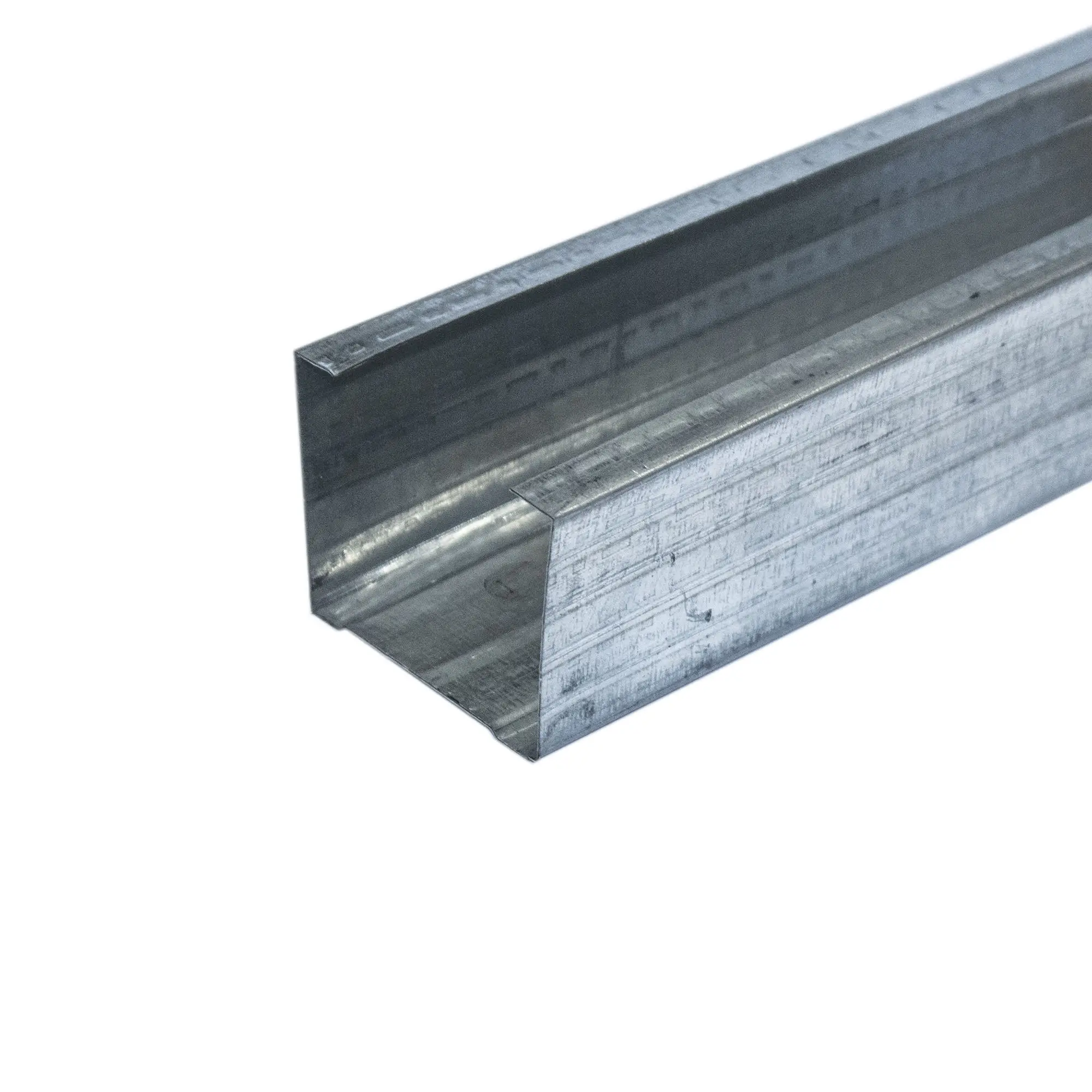

drywall u channel and metal studs steel roll steel C channel frame roll forming machine steel frame cu purlin machine
- Category: >>>
- Supplier: Cangzhou Guangchi Machinery Co. Ltd.
Share on (1601229826455):
Product Overview
Description
Product Overview

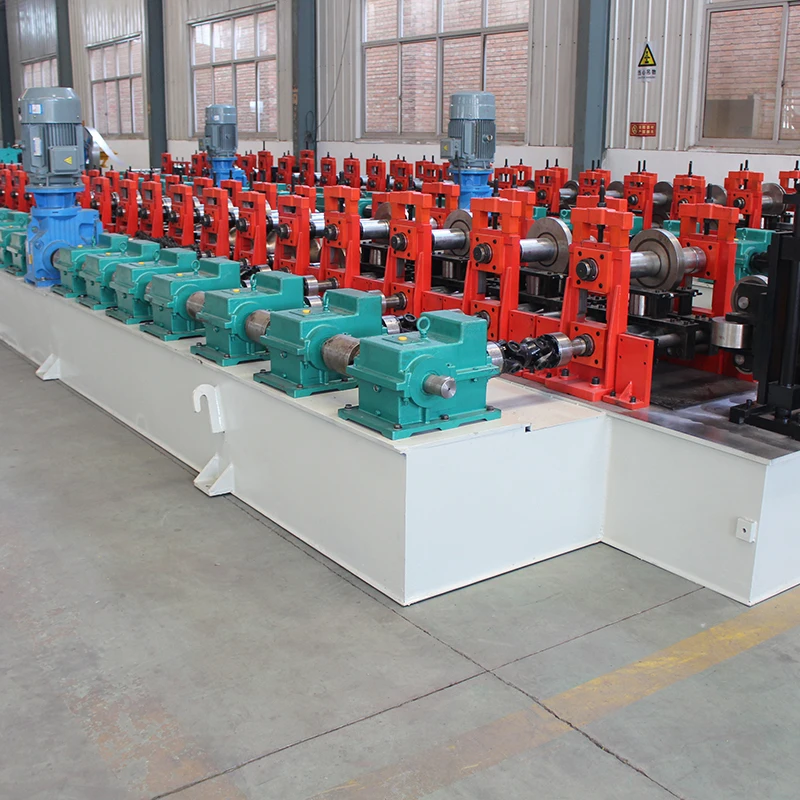

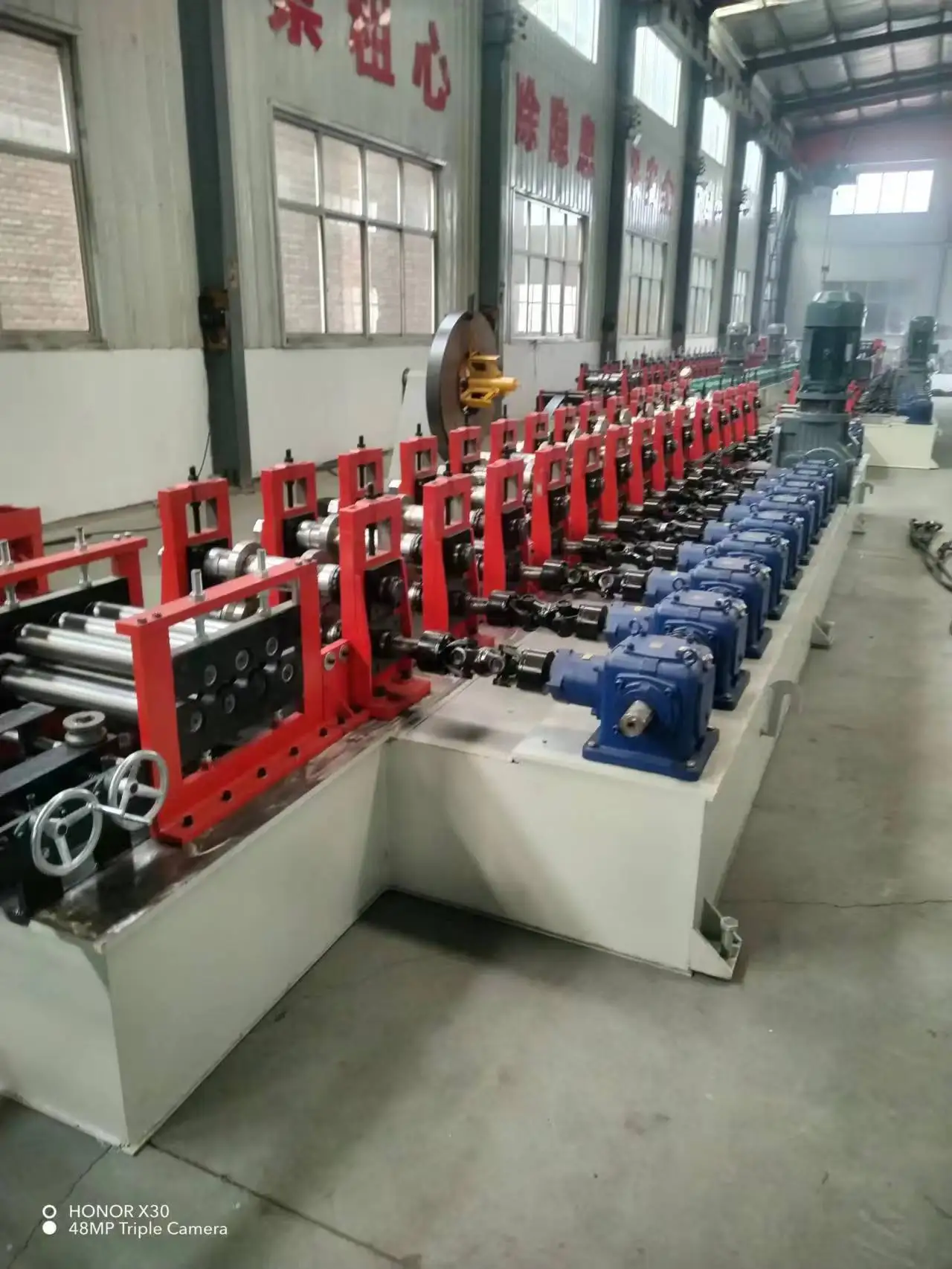

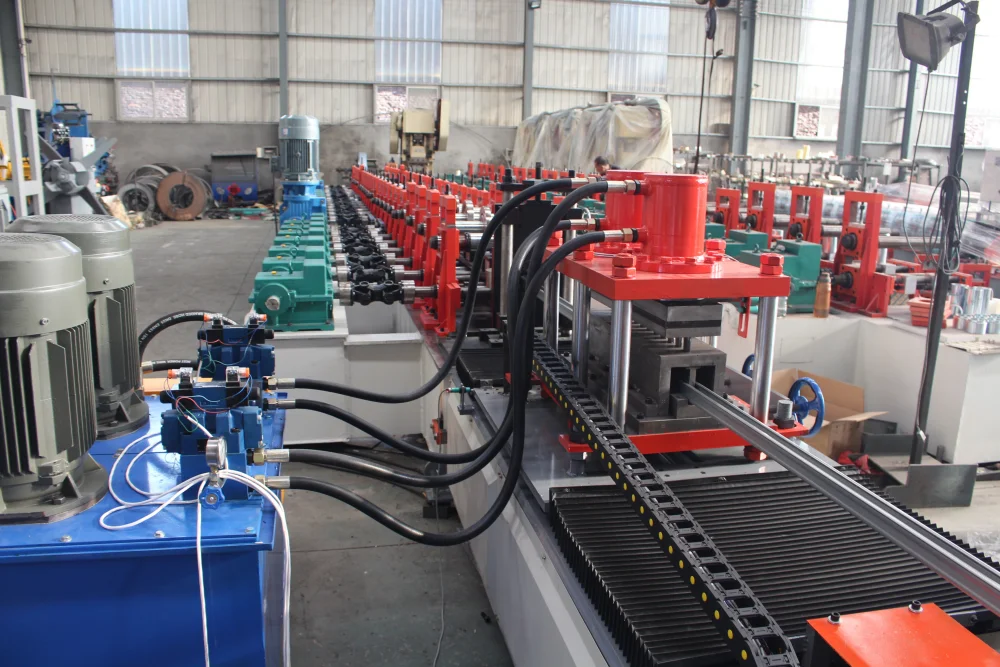

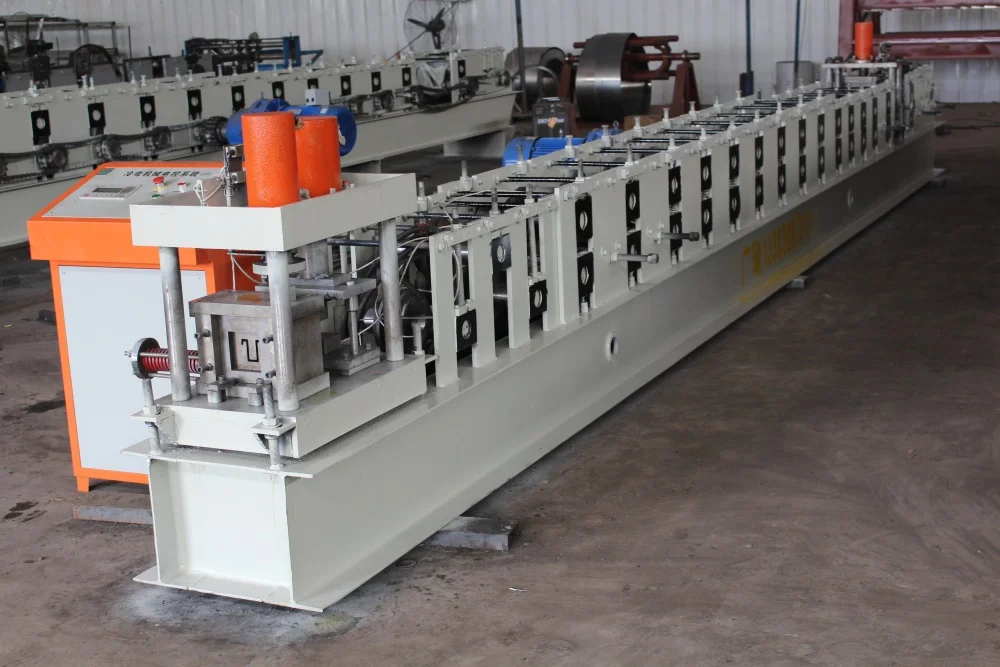

C Channel Steel Roll Forming Machine

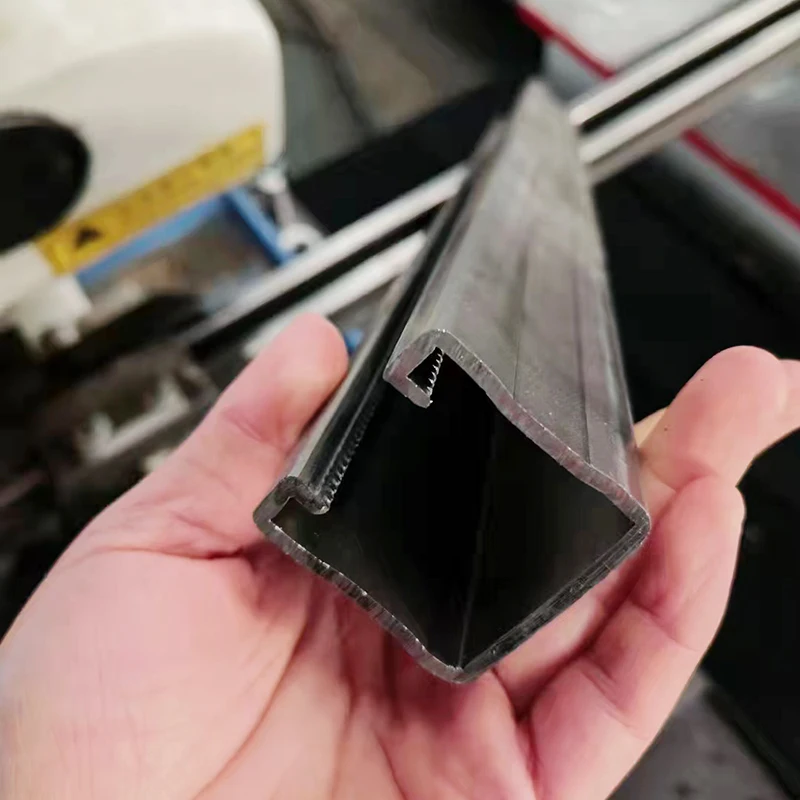

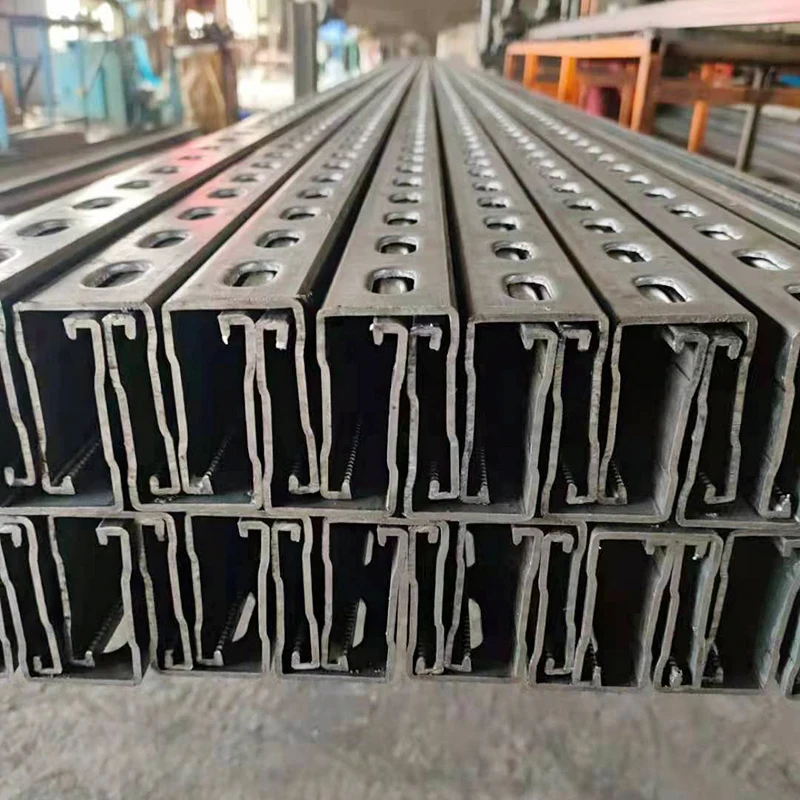

Solar photovoltaic bracket roll forming machine is a full automatic line to produce the solar photovoltaic bracket strut ,which is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation system. General materials include aluminum alloy, carbon steel and stainless steel. The products related to solar support system are made of carbon steel and stainless steel. The surface of carbon steel is hot-dip galvanized and will not rust after 30 years of outdoor use. The solar photovoltaic support system is characterized by no welding, no drilling, 100% adjustable and 100% reusable
Specification
Pv bracket C type steel equipment (gear box drive)
1. Shaft diameter 80mm, 40Cr tempering treatment;
2. Body plate thickness 25mm, fine milling,
3. Bearing 314NU;
1. Shaft diameter 80mm, 40Cr tempering treatment;
2. Body plate thickness 25mm, fine milling,
3. Bearing 314NU;
4. Reducer 22KW-K107(hard gear reducer) 1 set;

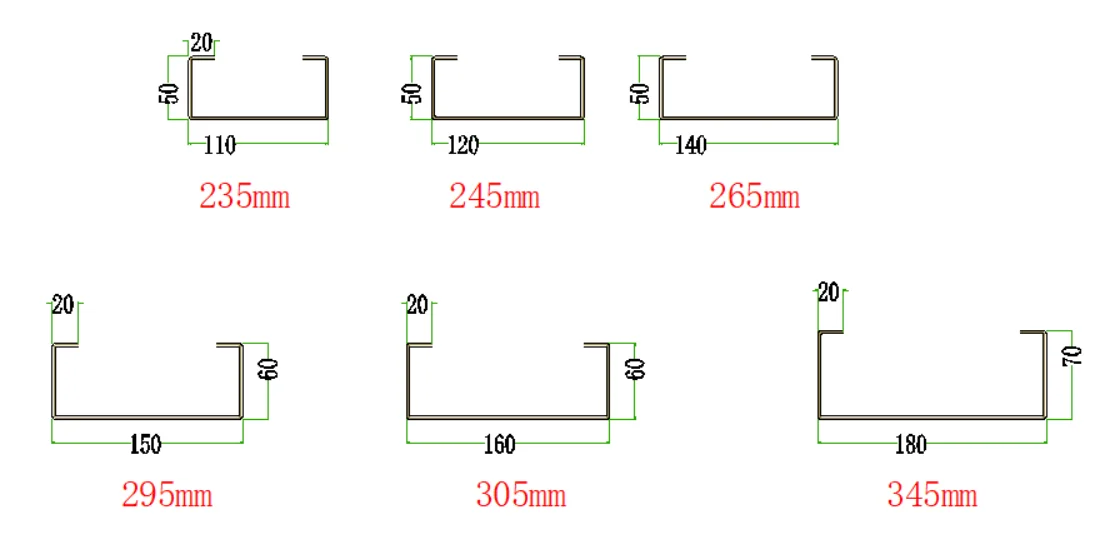

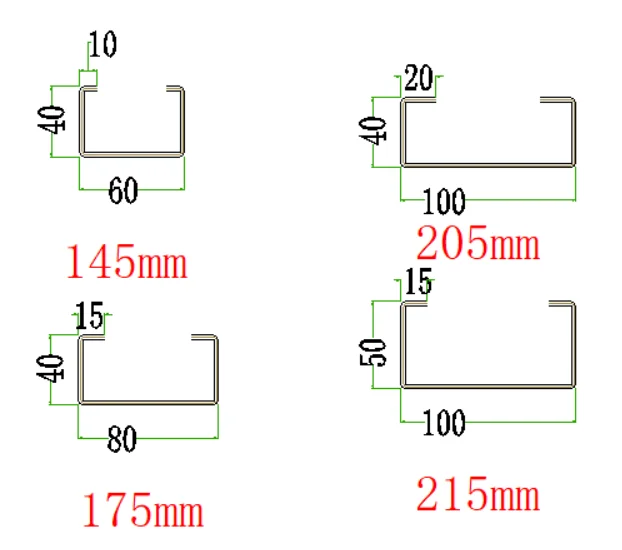

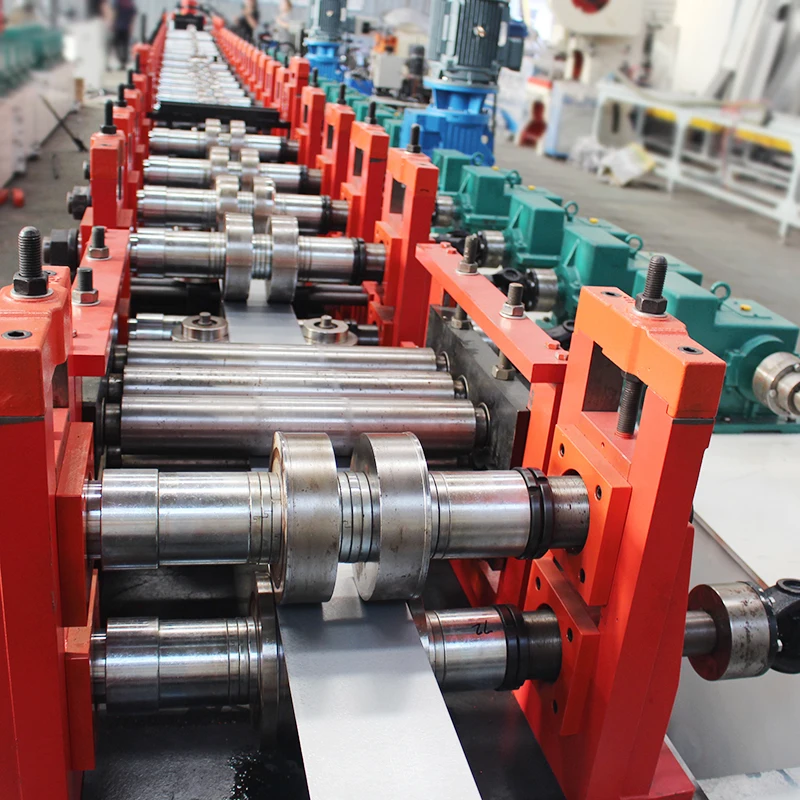

5. Press roll 14 rows forming. The production model is 60-120mmC steel
6. The power of the main engine is flat (upper 3, lower 4 axes);

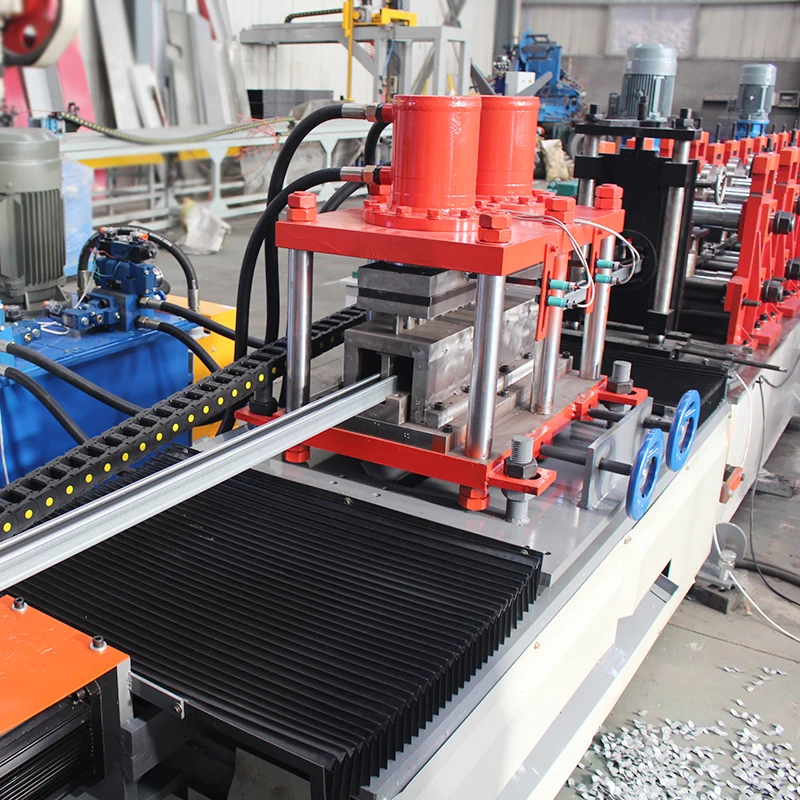

7. Cutting for: servo tracking non-stop hydraulic mold cutting; Equipped with hydraulic pump station 7.5KW, servo motor 3.8KW. With a random blade 1 set
9. Inverter PLC automatic control;
10. Roller material is Cr12 die steel, vacuum quenching; Refined car.
11. Correction axis: worm gear type;
12. Transmission mode: 170 gear box universal joint drive;
13. The main frame is welded with steel plate;
14. The weight of the machine is about 9T, the size is about 9X2X1.3m; The total weight of the unit is about 10 tons.
16. Randomly equipped with 6 meters passive receiving rack (no power).
5. Press roll 14 rows forming. The production model is 60-120mmC steel
6. The power of the main engine is flat (upper 3, lower 4 axes);
7. Cutting for: servo tracking non-stop hydraulic mold cutting; Equipped with hydraulic pump station 7.5KW, servo motor 3.8KW. With a random blade 1 set
9. Inverter PLC automatic control;
10. Roller material is Cr12 die steel, vacuum quenching; Refined car.
11. Correction axis: worm gear type;
12. Transmission mode: 170 gear box universal joint drive;
13. The main frame is welded with steel plate;
14. The weight of the machine is about 9T, the size is about 9X2X1.3m; The total weight of the unit is about 10 tons.
16. Randomly equipped with 6 meters passive receiving rack (no power).
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Shaft diameter | 80mm, 40Cr tempering treatment |
2 | plate thickness | 25mm |
3 | Bearing | 314NU |
4 | hydraulic pump station | 7.5KW |
5 | automatic control | PLC |
6 | Pressure plate thickness | 2-3mm |
7 | Engine displacement | 6750ml |
8 | Max. torque | 500N.m |
PRODUCT CONFIGURATION

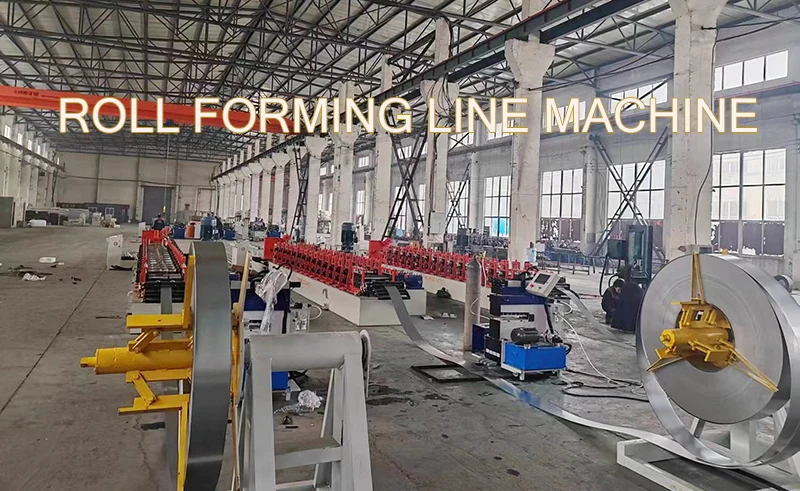

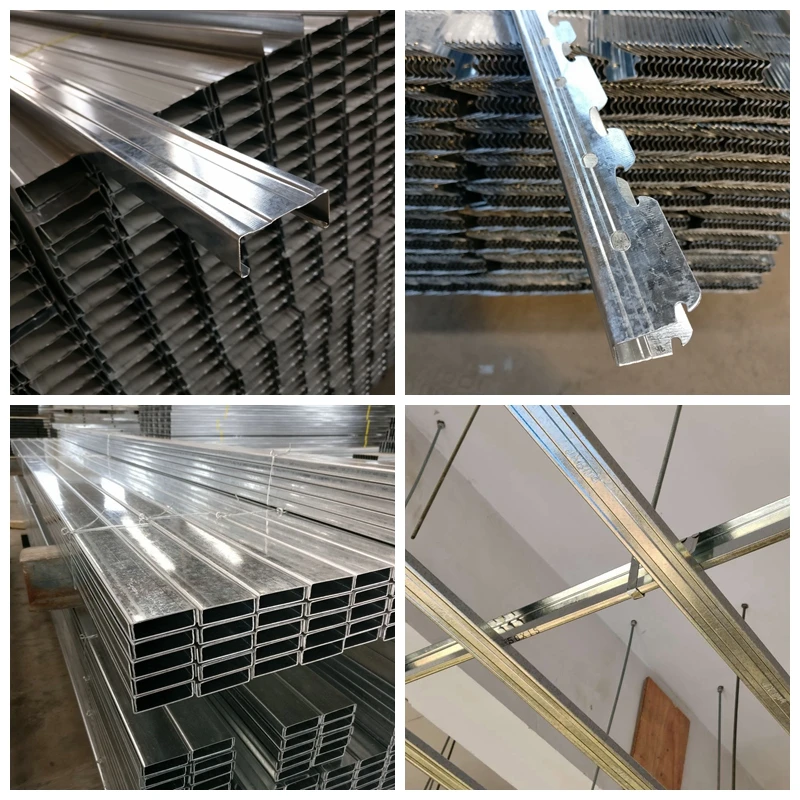

Successful Project
SIMILAR PRODUCTS

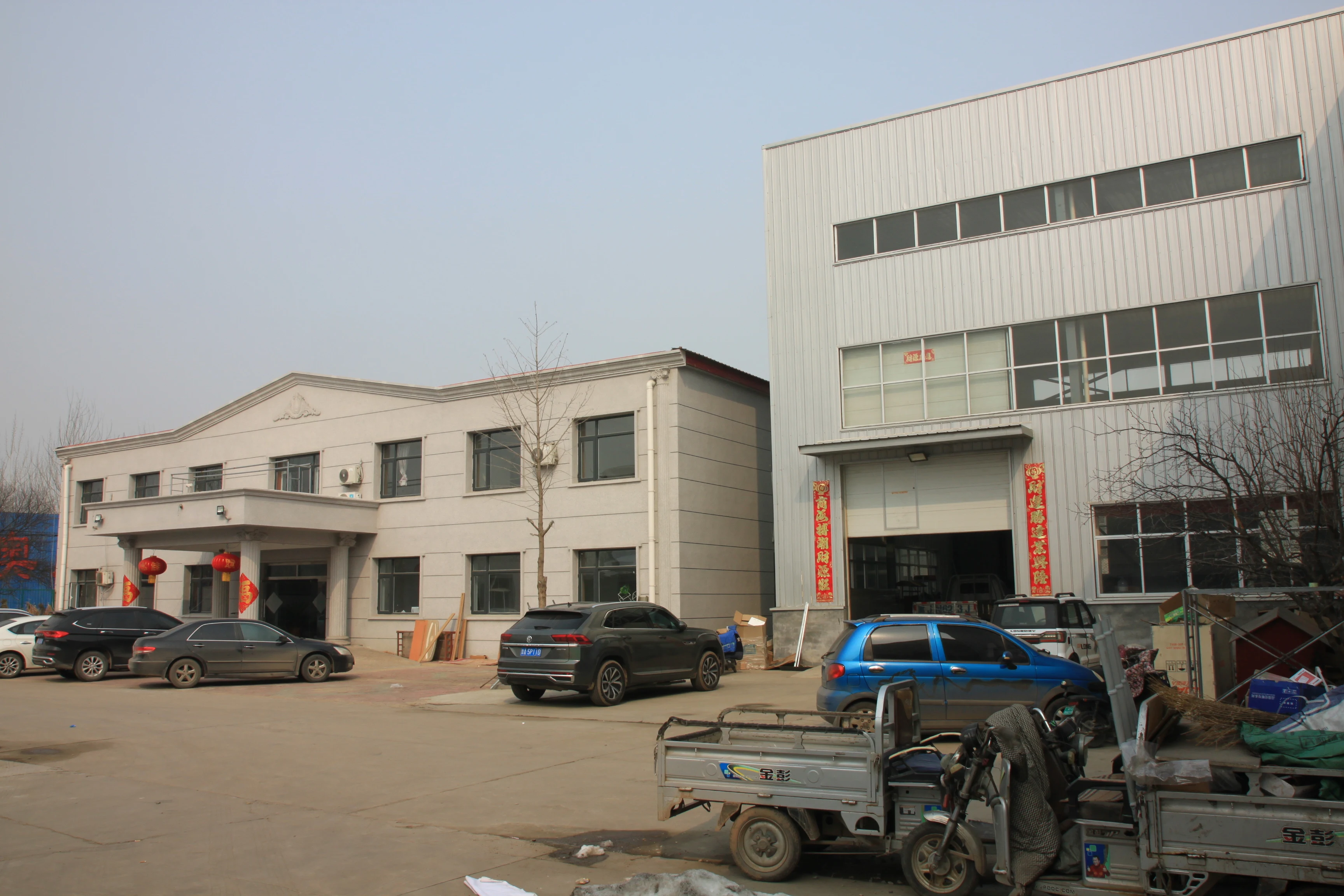

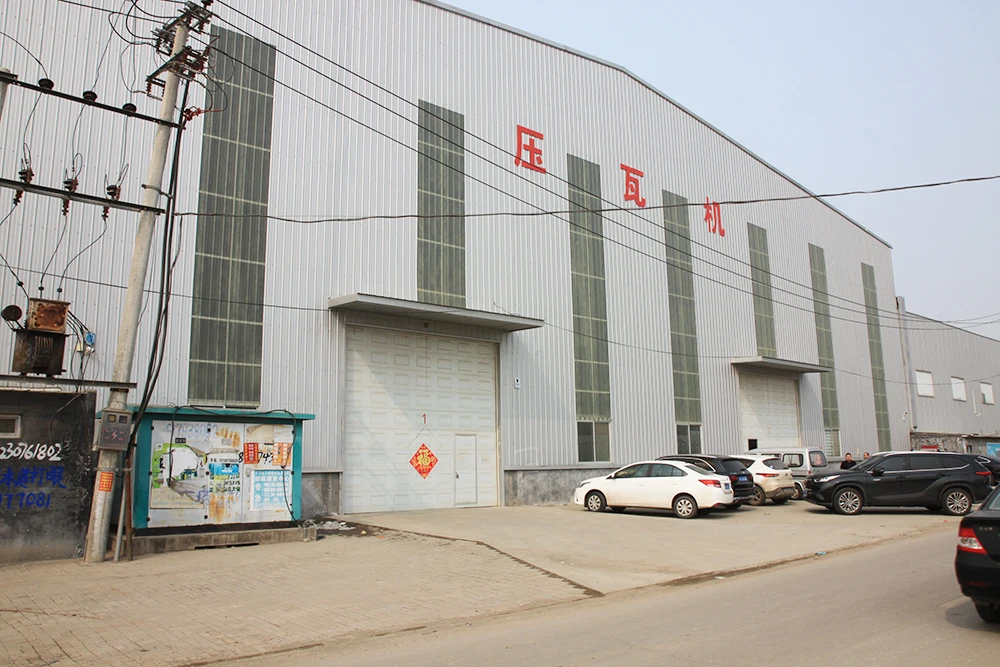

Company Profile
FAQ
A:- What is your payment term?
- 30% of the total payment should be paid as deposit ,the balanced should be paid after check the finished photos and videos well
,we supply test report.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- 24 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting
in lifetime.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting
in lifetime.
E:-Can you accept OEM?
- We can accept OEM
- 30% of the total payment should be paid as deposit ,the balanced should be paid after check the finished photos and videos well
,we supply test report.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- 24 months from time of loading by seller quality guarantee, life guarantee repair.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting
in lifetime.
Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the
quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting
in lifetime.
E:-Can you accept OEM?
- We can accept OEM
