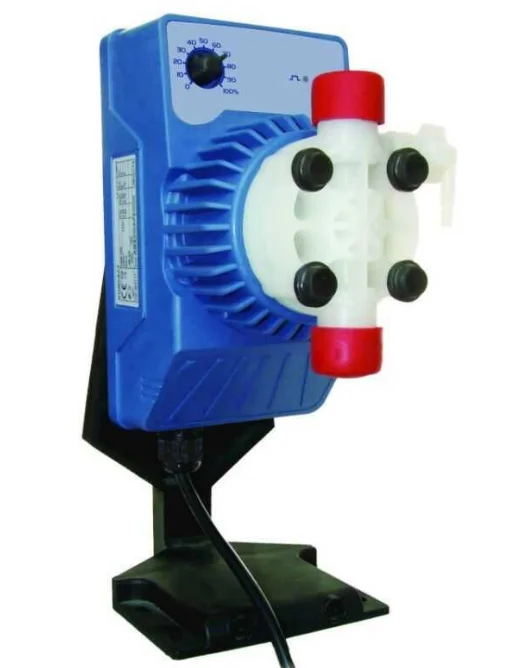

Electric original SEKO brand dosing pump metering pump
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1601229945119):
Product Overview
Description
SEKO dosing pump / chemical metering pump
Product Description
Specification
1. New design, tightness and long-life
2. Manual adjustment both of stroke length and frequency
3.Remote control is available
4. Accepting 4-20mA signal to adjust the frequency under remote control
5.Accepting pulse-frequency to adjust the frequency under remote control
6.Controlling the output achieved by programming to control the on/off time of output relay
7.The parameter of control panel can be locked
8. The pump will stop working and alarm at low liquid level
2. Manual adjustment both of stroke length and frequency
3.Remote control is available
4. Accepting 4-20mA signal to adjust the frequency under remote control
5.Accepting pulse-frequency to adjust the frequency under remote control
6.Controlling the output achieved by programming to control the on/off time of output relay
7.The parameter of control panel can be locked
8. The pump will stop working and alarm at low liquid level
AKS | analog | manual adjustable | ||||
AKL | manual adjustable, with liquid probe interfaces | |||||
APG | manual adjustable proportional flow rate: external analog signals (4-20mA) or external digital signal (water meter), with liquid probe interfaces | |||||
TPG | digital | manual adjustable proportional flow rate: external analog signals (4-20mA) or external digital signal (water meter), with liquid probe interfaces | ||||
TPR | manual adjustable, proportional flow rate: built-in PH/ORP monitor controller | |||||
Model | Pressure (Bar) | Flow Rate (L/H) | Connections In/Out(mm) | Max frequency (stroke/min) | Power (Watt) | GW (Kg) | Packing size L*W*H(mm) |
500 | 20 | 0.4 | 4 / 6 inhale 4 / 7discharge | 120 | 15 | 4.1 | 298*195*250 |
16 | 0.8 | ||||||
10 | 1.2 | ||||||
6 | 1.5 | ||||||
600 | 20 | 2.5 | 4 / 6 inhale 4 / 7discharge | 120 | 20 | 4.3 | |
18 | 3 | ||||||
14 | 4.2 | ||||||
8 | 7 | ||||||
603 | 12 | 4 | 4 / 6 | 160 | 20 | 4.3 | |
10 | 5 | ||||||
8 | 6 | ||||||
2 | 8 | ||||||
800 | 16 | 7 | 4 / 6 | 300 | 40 | 4.3 | |
10 | 10 | ||||||
5 | 15 | ||||||
1 | 18 | ||||||
803 | 5 | 20 | 8 / 12 | 300 | 40 | 4.3 | |
4 | 15 | ||||||
2 | 38 | ||||||
0.1 | 54 |
