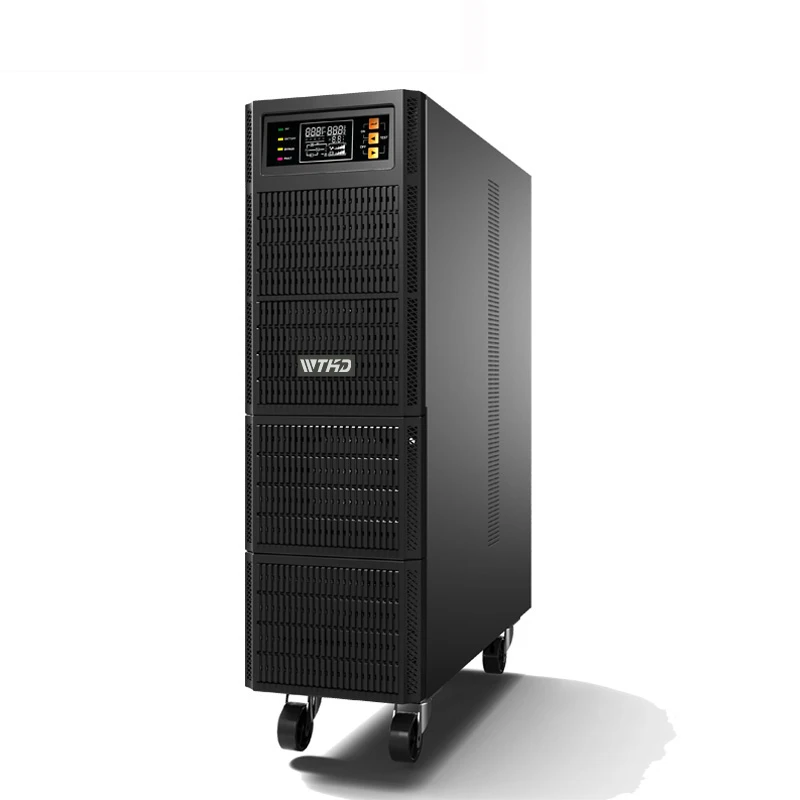

Long Backup Time Ups Single Phase Input And Output 220v High Frequency Online Ups 10kw 10kva Ups Power Supply
- Category: >>>
- Supplier: Shenzhen Weitu Hongda Industrial Co. Ltd.
Share on (1601229958825):
Product Overview
Description

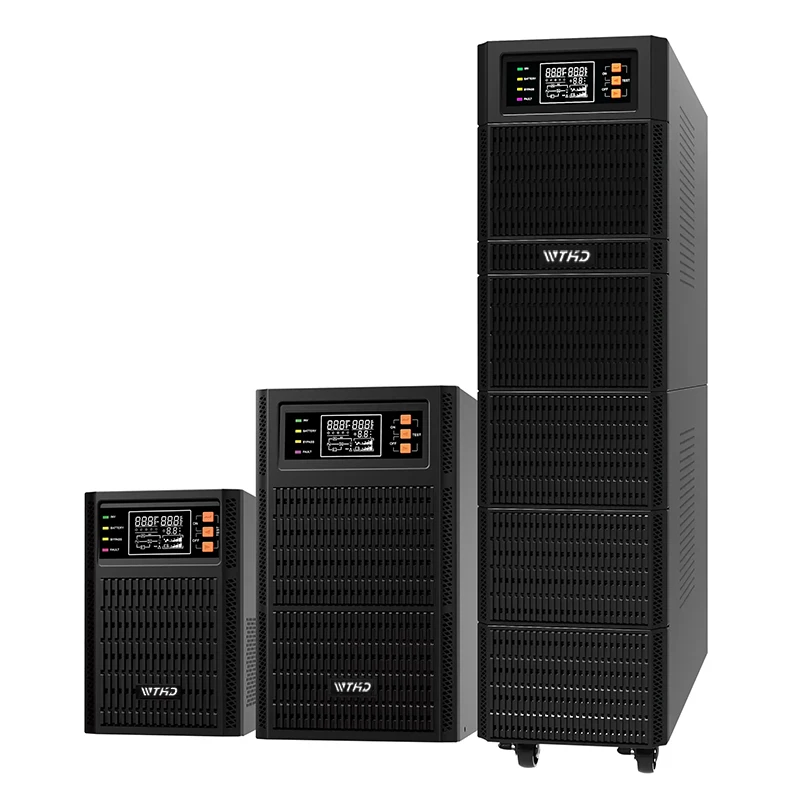

Model WTHD-U11 | C1K(S) | C2K(S) | C3K(S) | C6K(S) | C10K(S) | ||||||
Rated power (KVA/KW) | 1KVA/1000W | 2KVA/2000W | 3KVA/3000W | 6KVA/6000W | 10KVA/10000W | ||||||
Main Input | Phase | Single-phase (1L+N+PE) | |||||||||
Input Voltage (Vac) | 110/120/127/220/230/240 | ||||||||||
Voltage range | High voltage version : 85~300VAC ±5VAC Low voltage version : 55-145VAC ±3VAC | ||||||||||
Frequency range | 44Hz~56Hz or 54Hz~66Hz | ||||||||||
Bypass voltage | High voltage version : 115~285VAC×(1±3%) Low voltage version : 80~140VAC×(1±3%) | ||||||||||
Power factor | ≥0.99 | ||||||||||
Output | Phase | Single-phase（1L+N+PE） | |||||||||
Rated voltage | High voltage version :220/230/240VAC±2% Low voltage version :110/120/127VAC±2% | ||||||||||
Output frequency | 50/60Hz | ||||||||||
Power Factor | 1 | ||||||||||
(THDV%) | Sine wave THD <2% (linear load) THD<2% Sine wave THD <4% (nonlinear load) THD<4% | ||||||||||
Overload capacity | （Line Mode）：105～125% 1Min，125～150% 30 s , >150% 0.5ms （Battery Mode）：105～125% 1Min，125～150% 30 s , >150% 0.5ms | ||||||||||
Efficiency | Mains mode | 93% | 94% | 96% | |||||||
battery mode | 90% | 91% | 95% | ||||||||
Battery input | Battery voltage | 24V/36V | 48V/72V | 72V/96V | 192V/240V(option) | 192V/240V(option) | |||||
Battery capacity ×quantity | 12V/7AH ×2pcs/ External battery | 12V/7AH ×4pcs/ External battery | 12V/7AH ×6pcs/ External battery | 12V/7AH x16/20pcs/ External battery | 12V/7AH x16/20pcs/ External battery | ||||||
Charging current | Standard machine (battery built-in): 1A | ||||||||||
Long-term machine (external battery): 1~12A | |||||||||||
Communication and monitoring functions | RS232, Network monitoring card, dry contact, MODBUS monitoring card，optional | ||||||||||
Certification | EN/IEC 61000,EN/IEC 62040,GB/T4943.YD/T1095,TLC | ||||||||||
Shenzhen Weitu Hongda Industrial Co., Ltd. was established in 2015 with a registered capital of Capital 51 million. It is a national key high-tech enterprise and a specialized, Special new enterprise. We focus on new energy customization. Our products cover high-frequency UPS, industrial UPS, module UPS, EPS power supply, voltage regulator, solar inverter, etc. Outdoor energy storage, etc. Our products are widely used in data centers, medical Nursing, transportation and railways, the petrochemical industry, and other fields.
We can provide OEM and ODM customization services according to customers' requirements.
We look forward to your cooperation. Thank you!
We can provide OEM and ODM customization services according to customers' requirements.
We look forward to your cooperation. Thank you!
Q1: Are you a factory or a trading company?
A: We are a manufacturing factory, we focus on OEM and ODM
Q2: What kind of certification do you have?
---ISO9000, ISO14001, CE, ROHS, Thiel, etc.
Q3: Product coverage and industries:
---Industrial online UPS, high frequency online UPS,
Modular UPS 1kVA ~800kVA UPS for any industrial and application;
Q4: About the battery
Provide one-stop battery solutions; lead-acid and lithium batteries are available
Q5: Do you accept OEM/ODM?
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible;
Q6: About warranty
---The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and
models;
Q7: Can I participate in bidding projects?
We support large-scale project bidding, authorized manufacturing, project design and more
Q8: Are there overseas branches?
Currently, the Southeast Asia Division, the Eastern Europe Serbia Division, and the Middle East Division are set up.
Q2: What kind of certification do you have?
---ISO9000, ISO14001, CE, ROHS, Thiel, etc.
Q3: Product coverage and industries:
---Industrial online UPS, high frequency online UPS,
Modular UPS 1kVA ~800kVA UPS for any industrial and application;
Q4: About the battery
Provide one-stop battery solutions; lead-acid and lithium batteries are available
Q5: Do you accept OEM/ODM?
Yes, the entire series supports ODM/OEM, and the minimum order quantity is flexible;
Q6: About warranty
---The warranty period is 1 to 3 years, and the battery warranty is 1 to 3 years; differentiate between different products and
models;
Q7: Can I participate in bidding projects?
We support large-scale project bidding, authorized manufacturing, project design and more
Q8: Are there overseas branches?
Currently, the Southeast Asia Division, the Eastern Europe Serbia Division, and the Middle East Division are set up.
