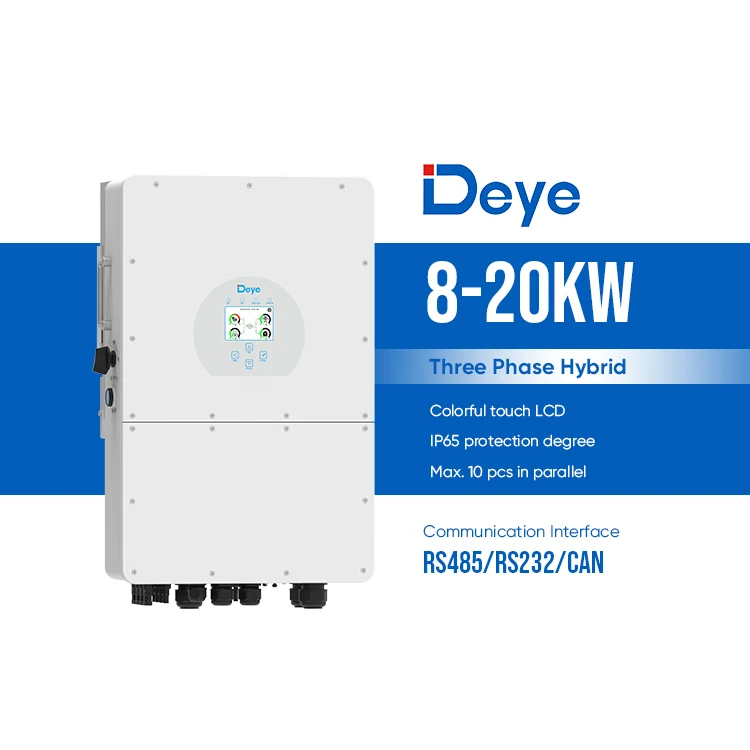

Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger
Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger

Deye Hybrid Solar Inverter three Phase 8kw pure sine wave inverter in built charger

Share on (1601230276318):


Price:$1,055.00 - $1,225.00

Quantity:


Product Overview

Description





SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.


Product Parameter


DEYE Three Phase Hybrid Inverter
SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported


Model
SUN-8K -SG01HP3-EU-AM2
SUN-10K -SG01HP3-EU-AM2
SUN-12K -SG01HP3-EU-AM2
SUN-15K -SG01HP3-EU-AM2
SUN-20K -SG01HP3-EU-AM2
Battery Input Data
Battery Type
Lithium-ion
Battery Voltage Range(V)
160-700
Max.Charging Current(A)
30
30
37
Max.Discharging Current(A)
30
30
37
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of battery input
1
PV String Input Data
Max DC Input Power（W）
10400
13000
15600
19500
26000
Max DC Input Voltage（V）
1000
Start-up Voltage（V）
180
MPPT Voltage Range（V）
150-850
Rated DC Input Voltage(V)
600
Max Input Short-Circuit
 Current（A）
30+30
39+30
39+39
Max Operating PV Input
Current（A）
20+20
26+20
26+26
No.of MPP Trackers/No.of String Per MPP Tracker
2/1+1
2/2+1
2/2+2
AC Input/Output Data
Rated AC Input/Output
Active Power（W）
8000
10000
12000
15000
20000
Max AC Input/Output
Apparent Power （VA）
8800
11000
13200
16500
22000
Peak Power (off-grid)（W）
1.5 times of rated power,10s
Rated AC Input/Output Current（A）
12.2/11.6
15.2/14.5
18.2/17.4
22.8/21.8
30.4/29
Max AC Input/Output Current（A）
13.4/12.8
16.7/16
20/19.2
25/24
33.4/31.9
Max Continuous AC Passthrough
 (grid to load)（A）
40
80
Rated Input/Output Voltage/Range(V)
220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form
3L+N+PE
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Total Current Harmonic
Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5%ln
Efficiency
Max Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
＞99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000m
Noise
≤ 55 dB(A)
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC III(AC)

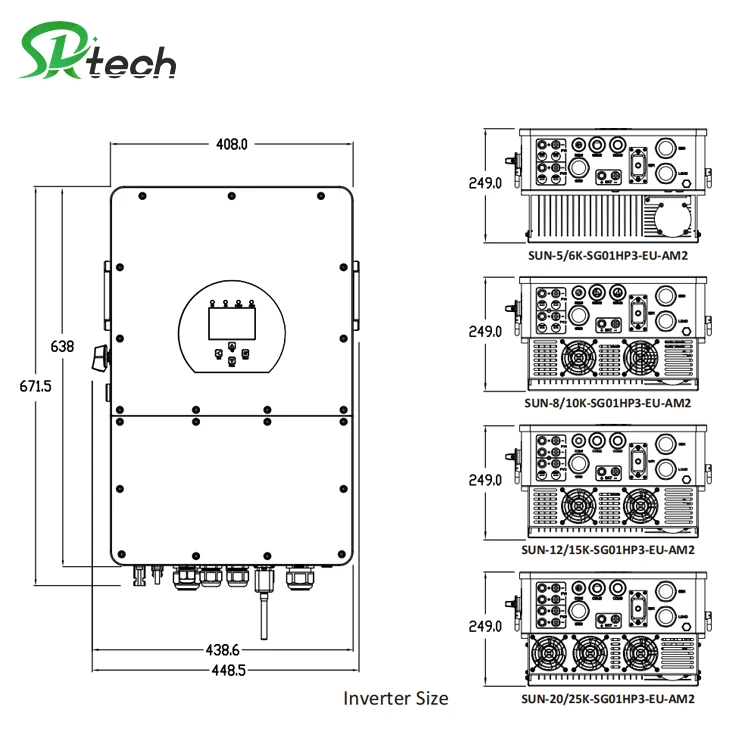

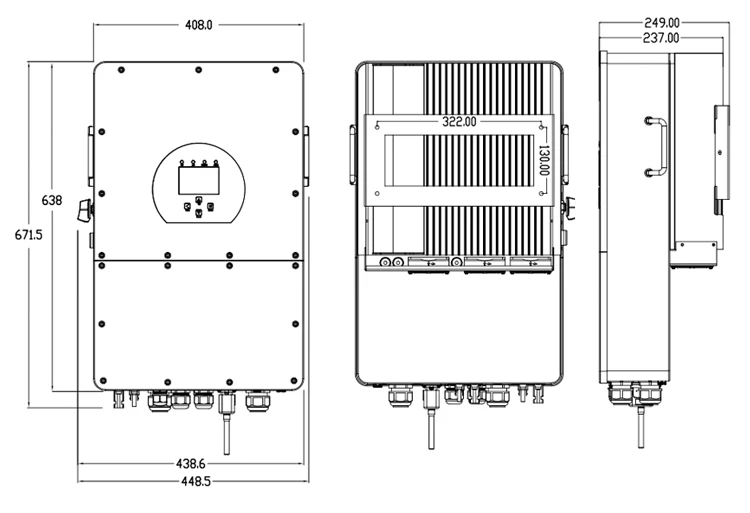

Cabinet size（W*H*D）[mm]
408*638*237（Excluding connectors and brackets）
Weight[kg]
30.5
Warranty
5 Years/10 Years，the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling
Intelligent air cooling
Grid Regulation
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


If you want to know more about Deye single-phase inverters, you can contact us, in addition, we have prepared a large number of Deye inverters in stock, if you have needs, we are happy to serve youIf you want to know more about Deye single-phase inverters, you can contact us, in addition, we have prepared a large number of Deye inverters in stock, if you have needs, we are happy to serve you.

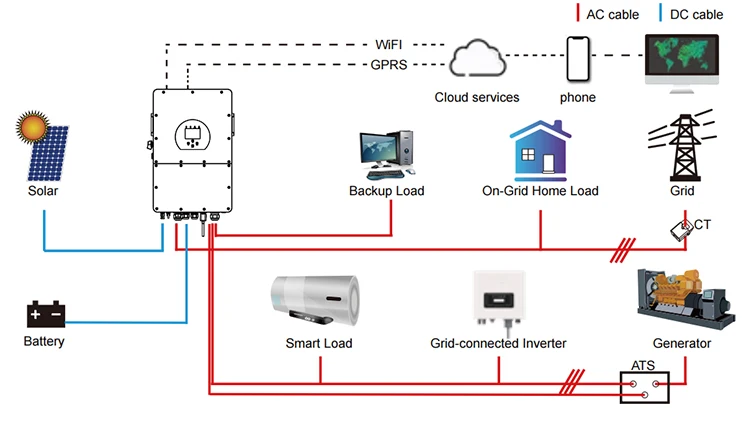

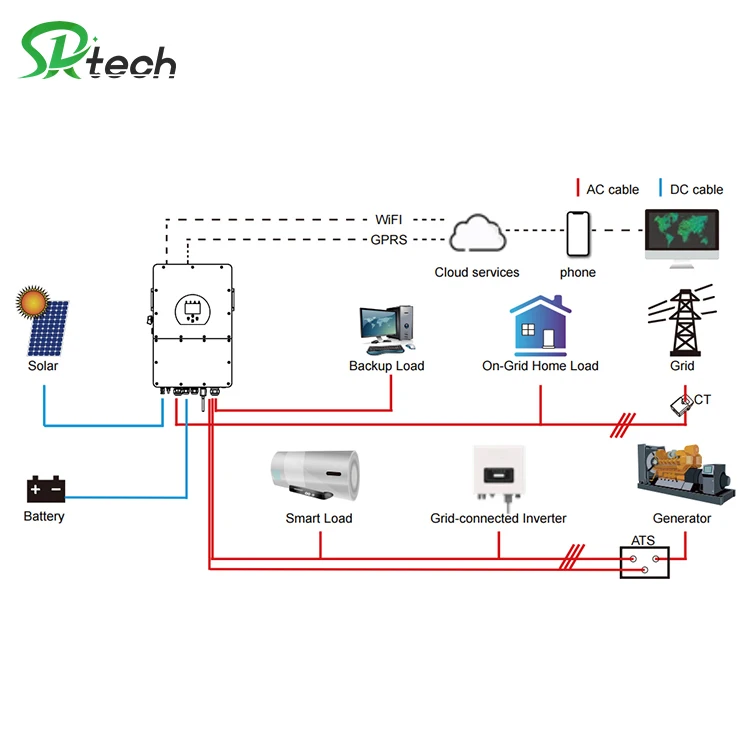

System Architecture




DEYE High Voltage Hybrid Inverter SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 10KW 20KW 25KW Three Phase Hybrid Solar Inverter

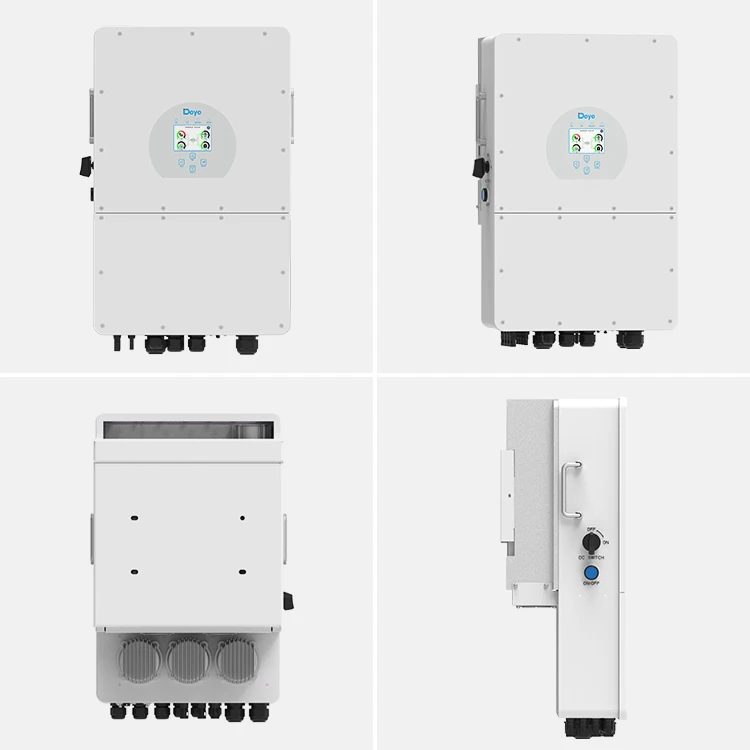

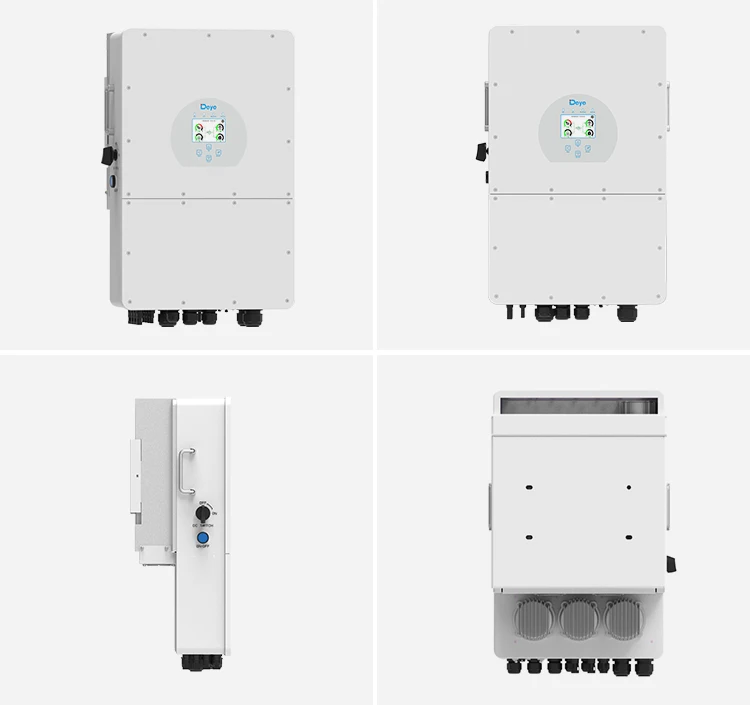

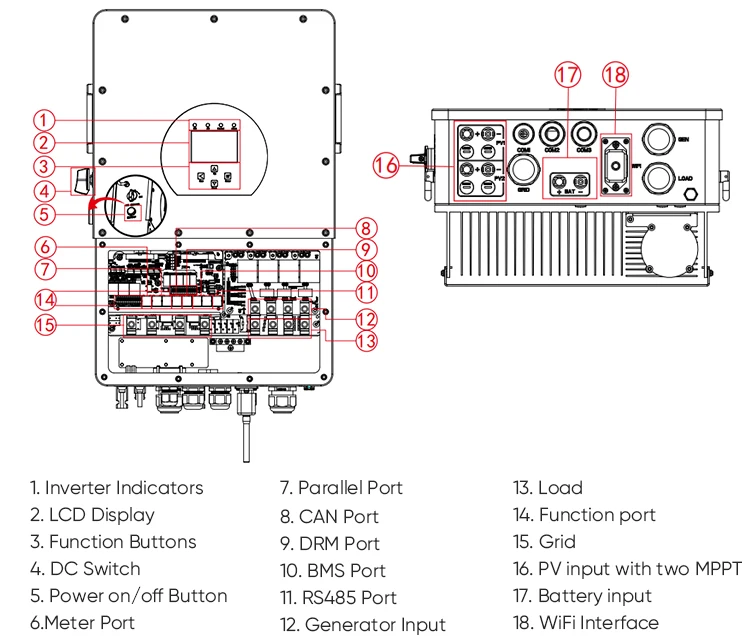

Product Details




advantage

Deye hybrid solar inverter SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2
* 100% unbalanced output, each phase
* AC couple to retrofifit existing solar system
* *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 50A
* High voltage battery, higher effificiency
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator

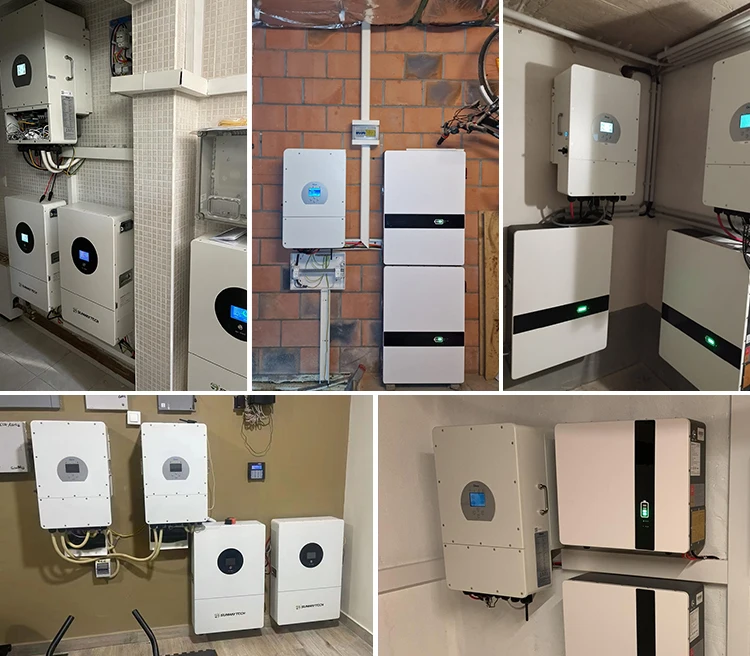

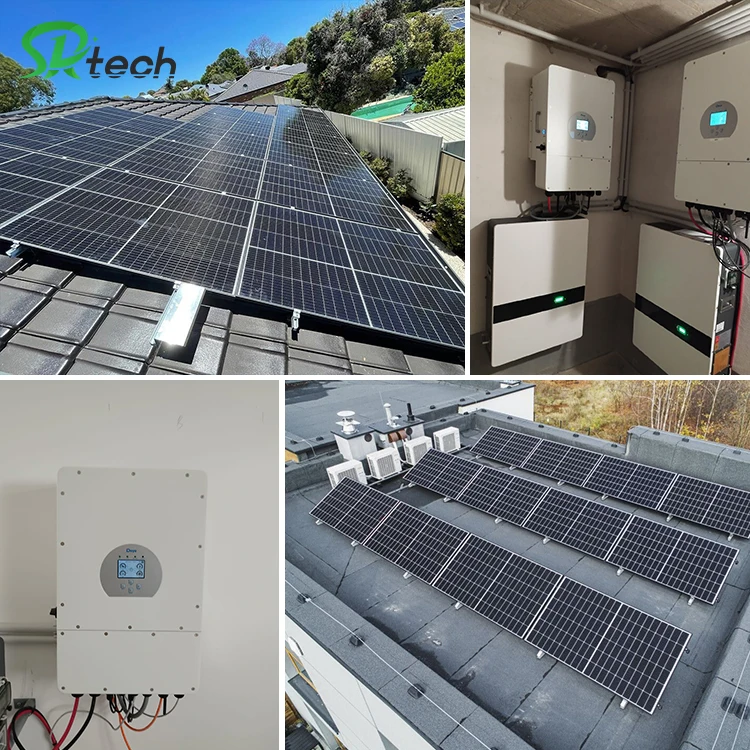

Project Case




Packaging&Shipping




Company Profile




S K Tech Co., Ltd.founded in 2020,is a professional manufacturer and exporter that are concerned with the design, development and production of Solar panels, solar energy systems, Solar Inverter, Lithium Ion Batteries, Solar street lights and solar pump systems, Wind Generators. SK TECH has adopted international advanced production equipment and integrated the first class manufacturing engineering and management system, dedicated to provide high performance solar modules with competitive cost.
If you have a demand for photovoltaic products, welcome to contact us.
