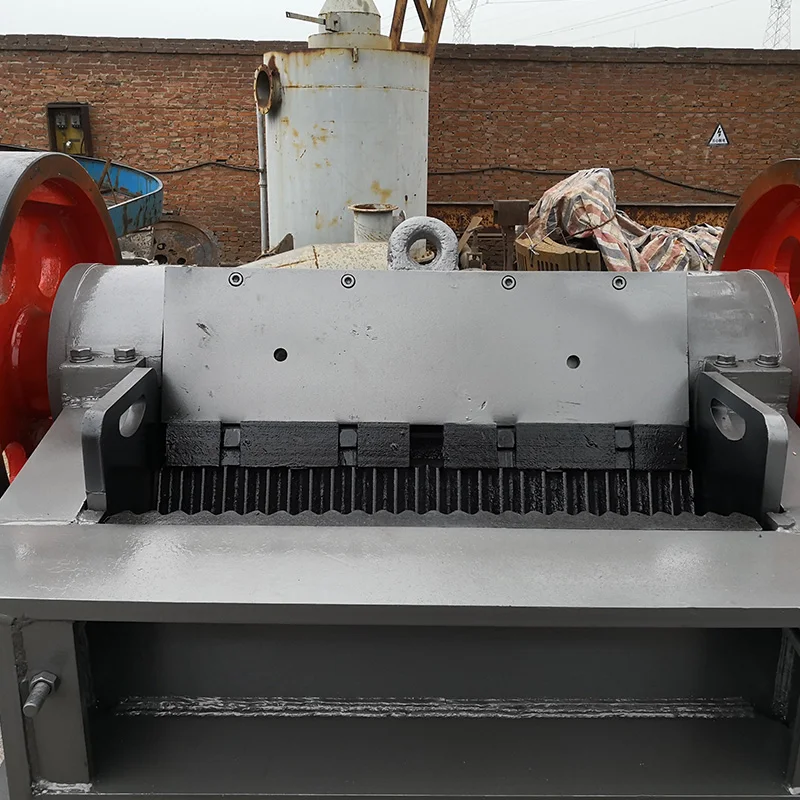

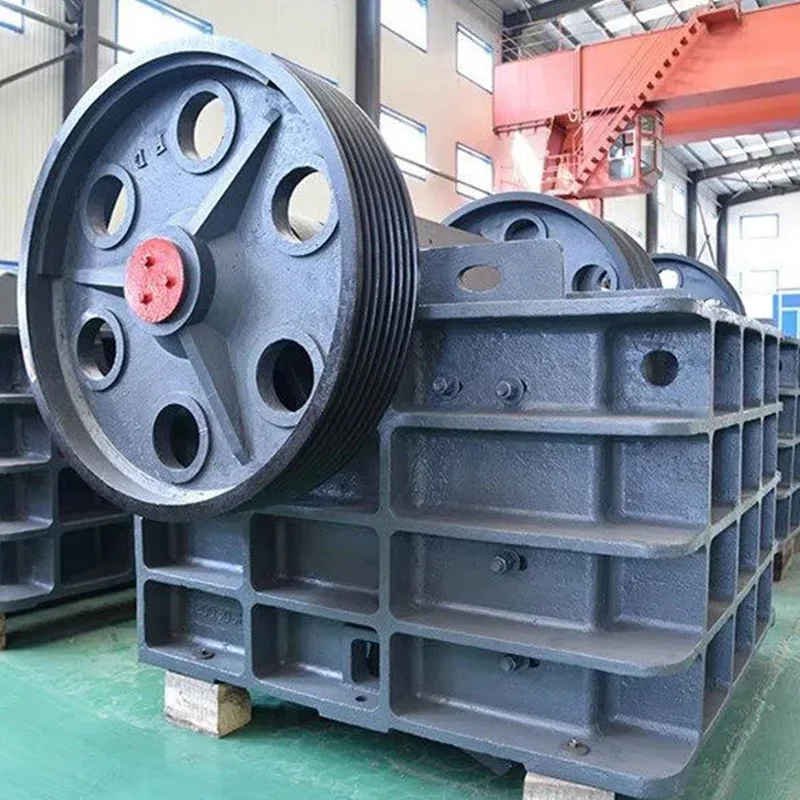

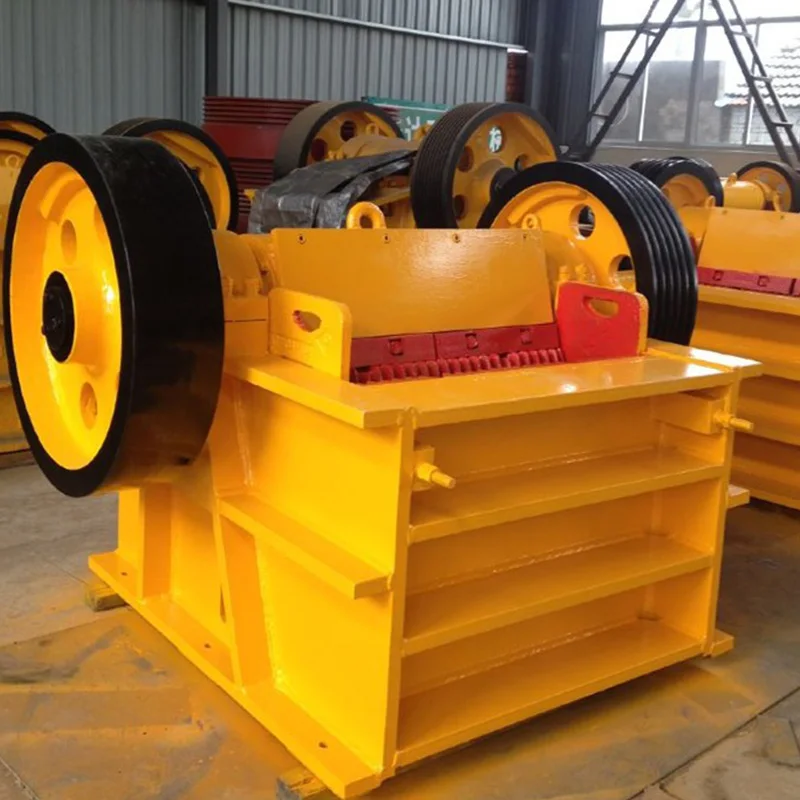

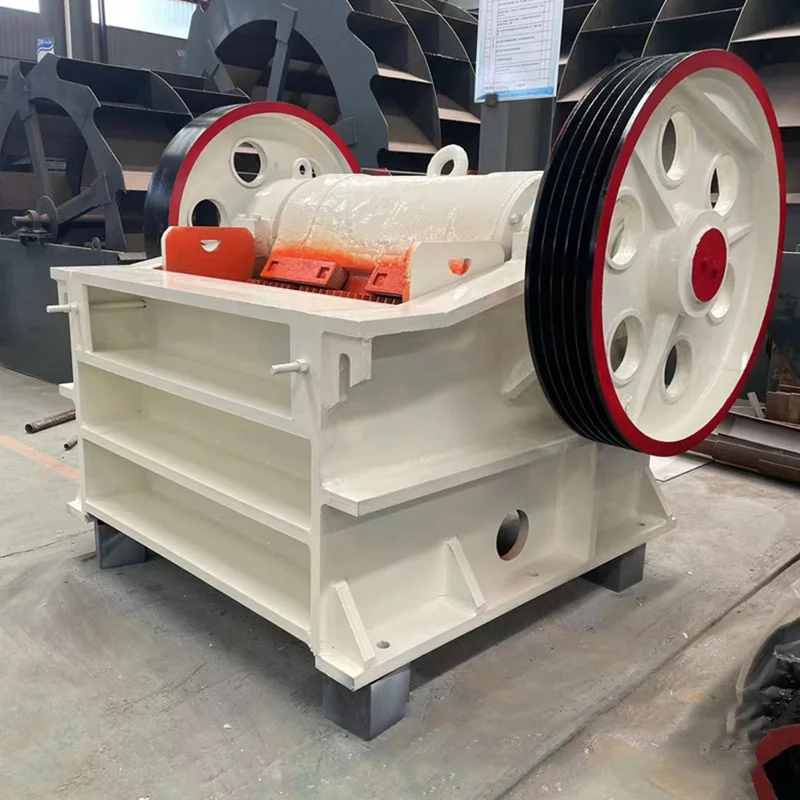

Fine Jaw crusher | ||||||||||||
Model | Max Input size (mm) | Output size (mm) | Motor power (kw) | Capacity (t/h) | Dimensions (mm) | Weight (t) | ||||||
PEX150×500 | 120 | 10-40 | 11 | 3-15 | 1050x1250x1030 | 2.5 | ||||||
PEX150×750 | 120 | 18-48 | 15 | 8-25 | 1220x1480x1180 | 3.7 | ||||||
PEX250×750 | 210 | 25-60 | 30 | 13-30 | 1550x1700x1330 | 5.3 | ||||||
PEX250×1000 | 210 | 25-60 | 30-37 | 16-50 | 1560x1950x1390 | 6.8 | ||||||
PEX250×1200 | 210 | 25-60 | 37-45 | 20-60 | 1900x2200x1450 | 8.5 | ||||||
PEX300×1300 | 250 | 20-90 | 55-75 | 30-100 | 1850x2400x1750 | 11.6 |
