Megger DLRO200 measures resistance test current from 0.1 u Ω to 1 Ω at high current 200 A digital micro ohmmeter
- Category: >>>
- Supplier: Nanjing Daoce Electronics Co. Ltd.Nanjing Ltd.
Share on (1601230383083):
Product Overview
Description
Product Description

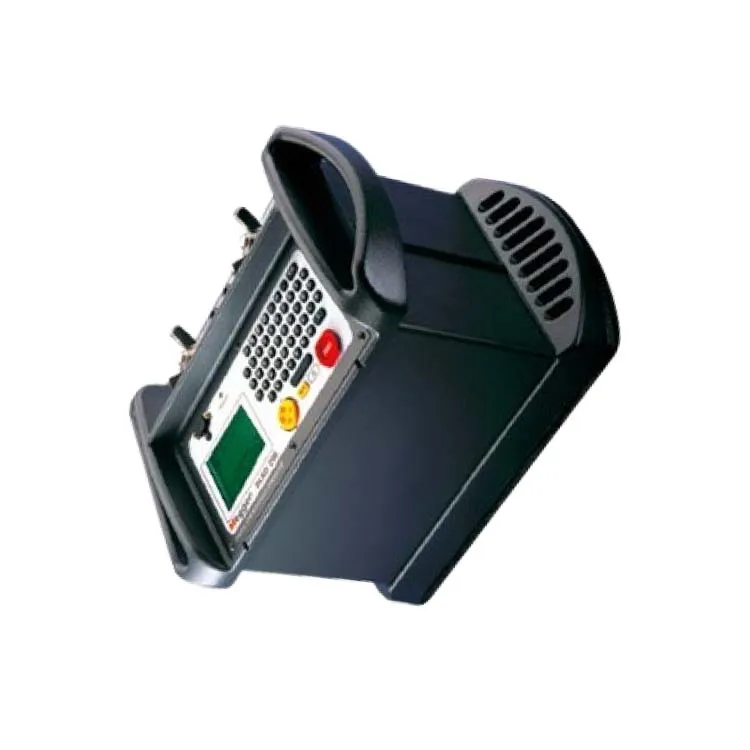

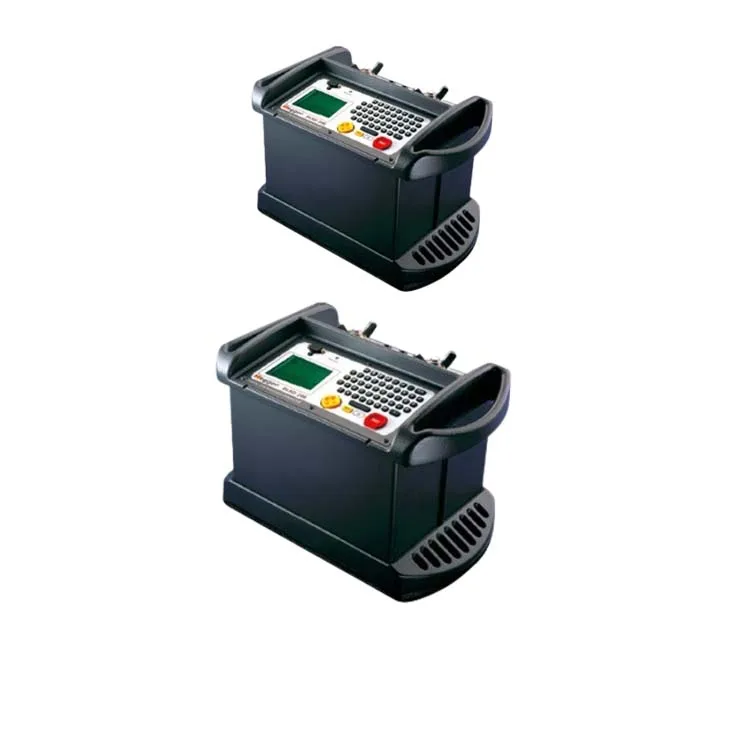

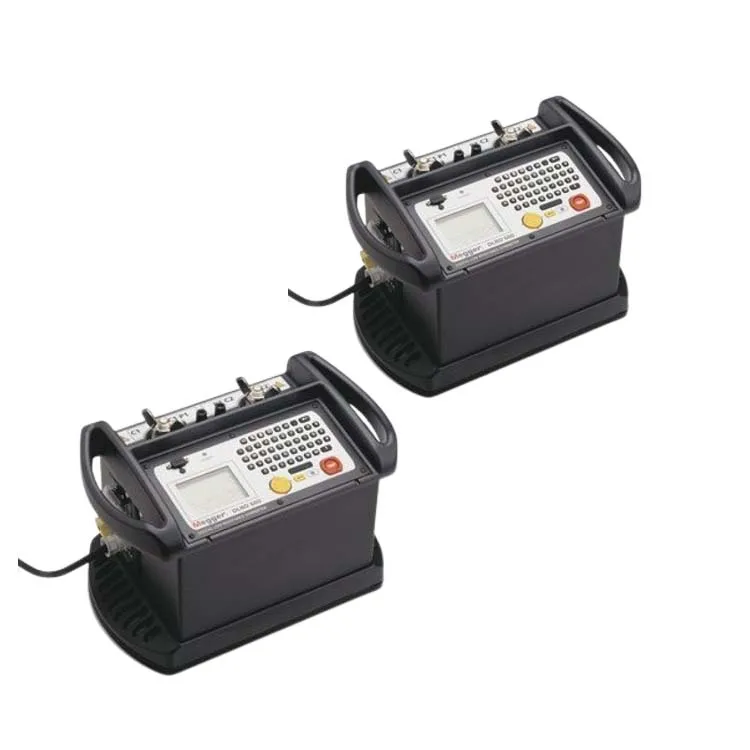

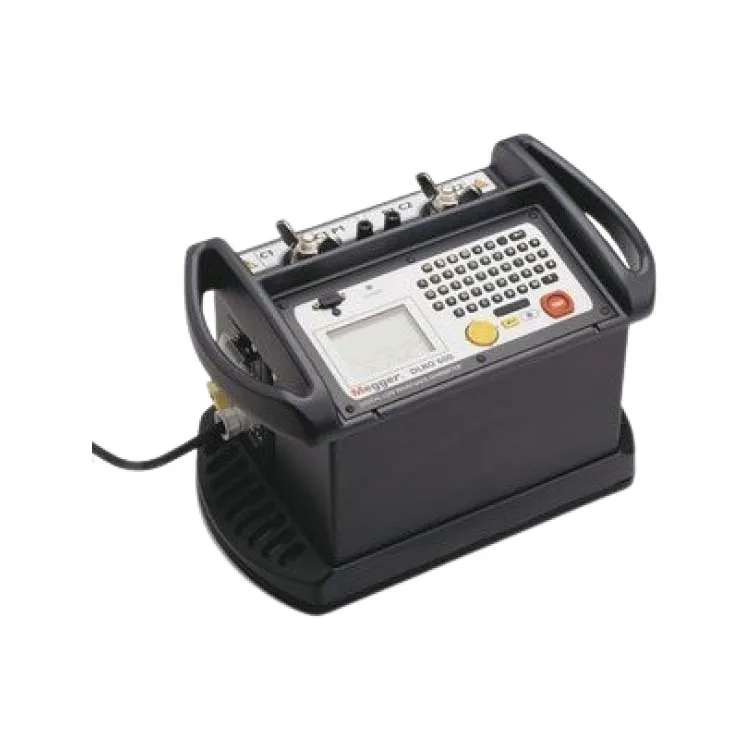

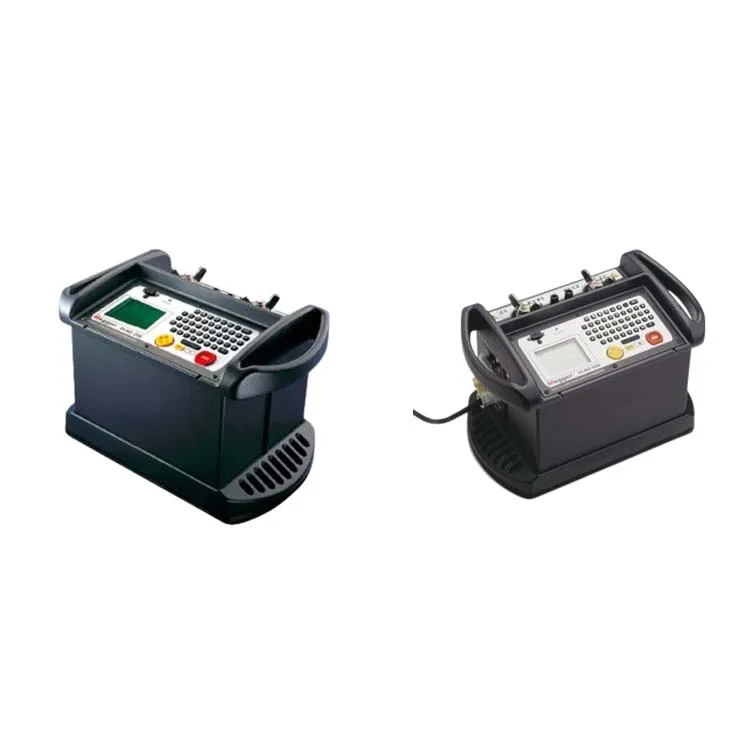

DLRO 200 Digital Microhmmeter
The Megger DLRO200 is a 200 A micro-ohmmeter that measures resistances between 0.1 µΩ and 1 Ω at high currents. This versatile
instrument can provide test currents from 10 amps up to 200 amps DC subject to the load resistance and supply voltage. The DLRO200
also uses a four-terminal measurement technique to cancel the resistance of the test leads from the measurement.
The unique design of the DLRO200 allows the weight and size to be kept to a minimum - the instrument weighs less than 15 kg. This
small size makes the DLRO200 equally at home in the workshop, on the production floor, or in the field, and its high current
capability and compact design make it suitable for testing circuit breaker contacts, switch contacts, busbar joints, and other
applications where high current is needed.
A large LCD screen provides all the information needed to perform a test; all test parameters and measurement results are
displayed. What's more, 300 sets of results may be stored in the DLRO200's on-board memory for later download to a PC or it can be
output directly to a printer via the RS232 port. You may also add notes to any stored result by using the on-board alphanumeric
keypad, thereby making later identification of results straightforward. Additionally, this keypad allows you to set the test
current directly by typing in the value required. The DLRO200 will then check the continuity of the test circuit and will quickly
ramp the test current up to the desired level. The keyboard is also used to set upper and lower limits for the result and to
prevent the use of excessive currents by setting an upper limit to the allowable test current.
Specification
Brand | Megger |
Name | Digital Microhmmeter |
Model | DLRO 200 |
Small and weighs less than 15 kg(33 lbs) | Smooth, continuous applied currenteliminates magnetic transients capable ofinductively tripping breaker controls (115 V version) |
Test currents from 10 A to 200 A d.c. | Data storage and communication RS-232 port |
0.1 μQ best resolution | Max output current (DC) 200 A |
On board memory for up to 300 test results and notes | Power source Mains |
RS232 port to download stored results orfor real time output to a printer | Safety features IEC61010-1 |
Supplied complete with 5m(16.4 ft.) testleads and download software | Memo field 160 characters max. |
