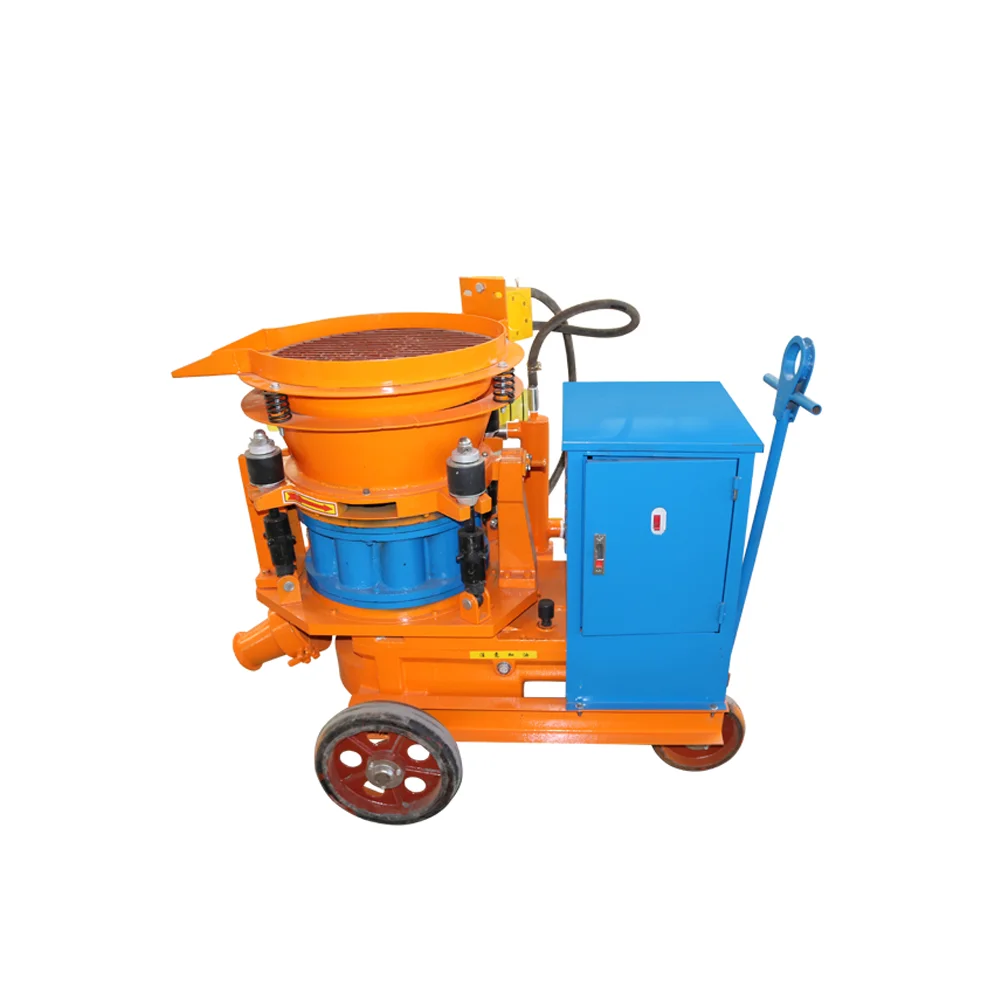

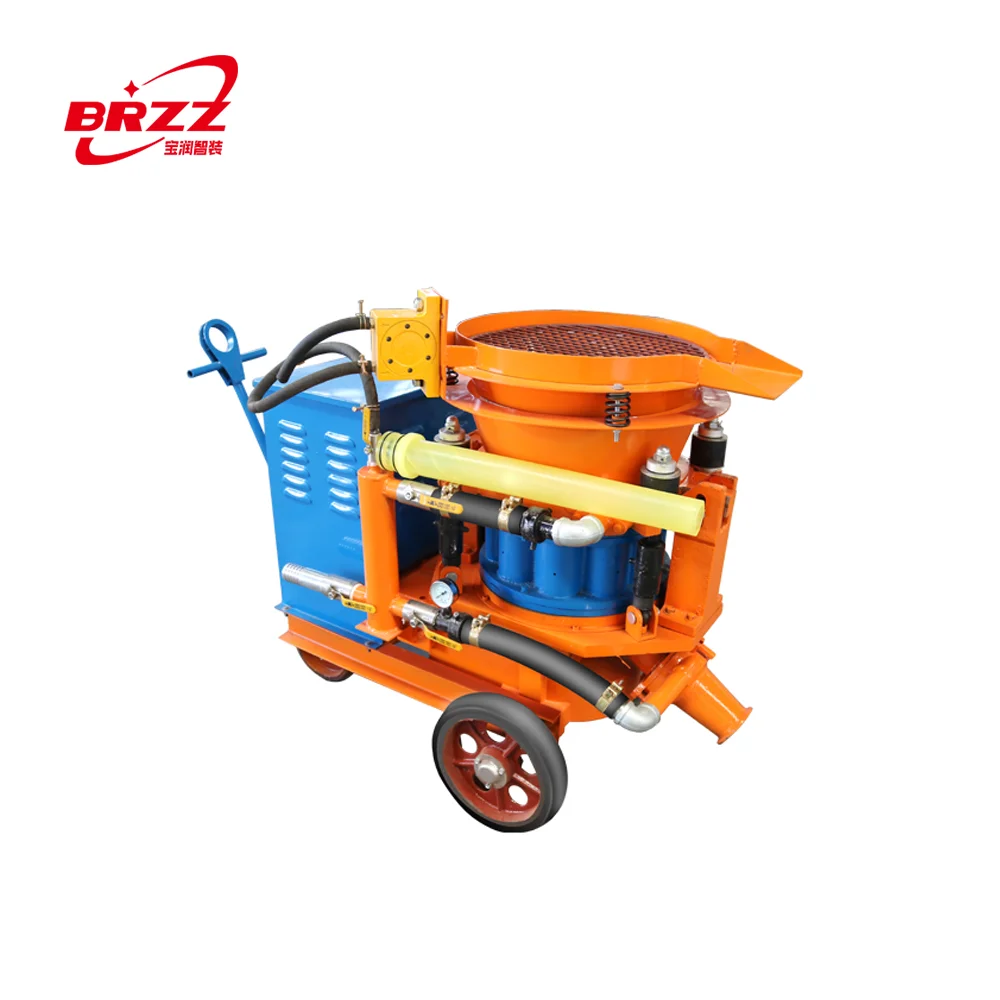

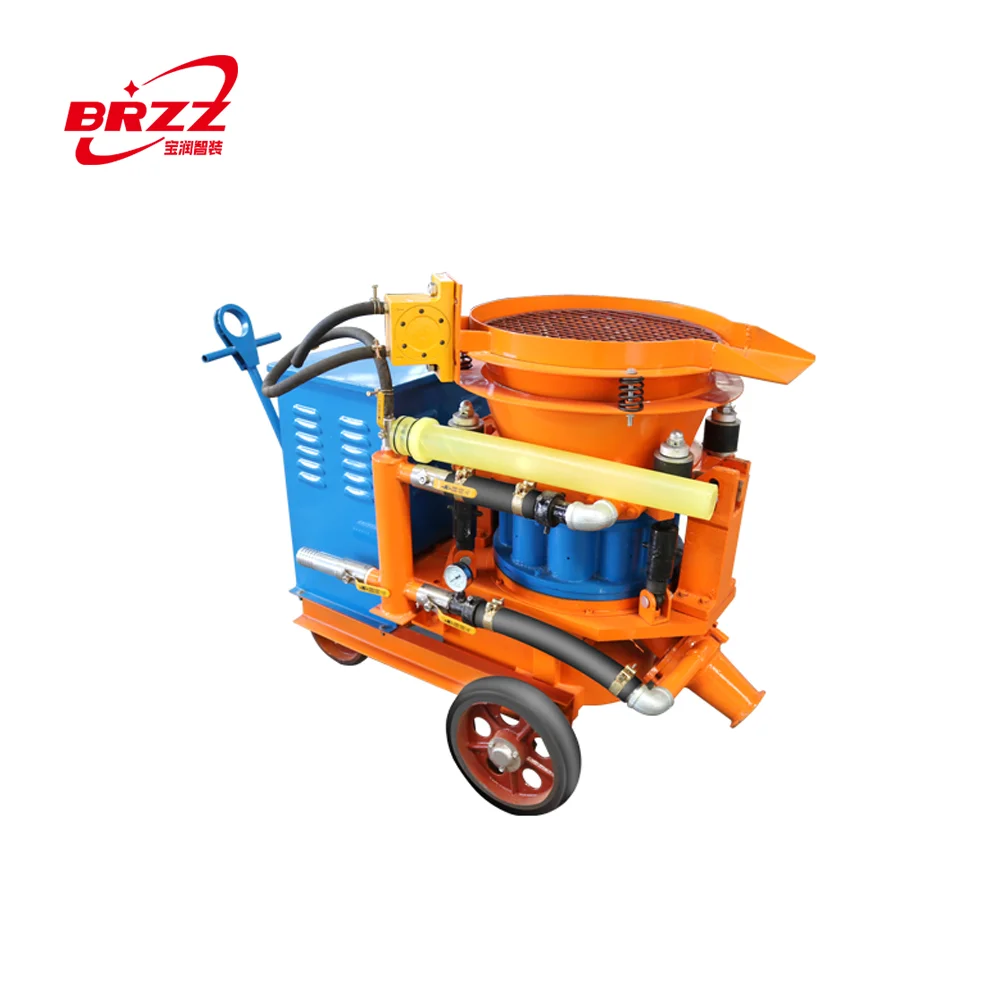

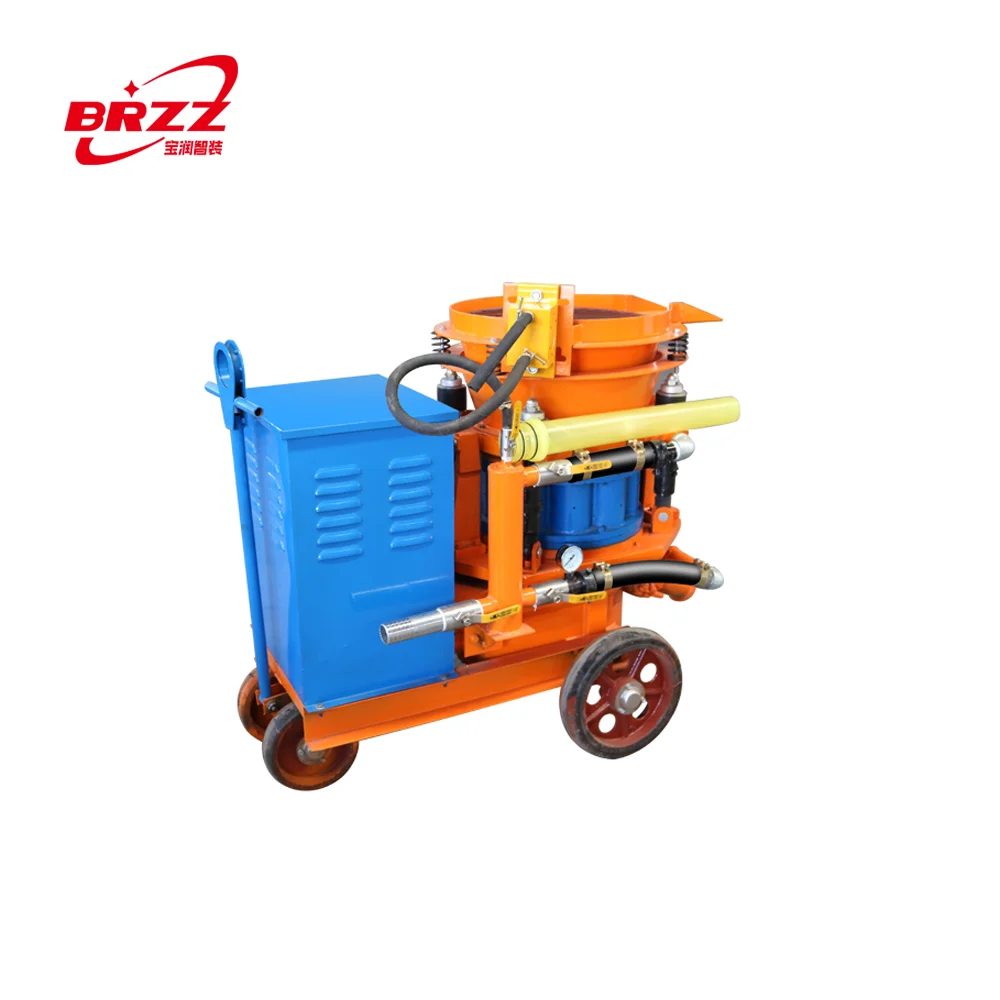

New Design PZ Diesel Concrete Dry Spray Pump

Product Overview

Description

New Design PZ Diesel  Concrete Dry Spray Pump



Product Description:



This is a kind of wet type special wet spraying machine  , it has many obvious advantages such as simple

structure, easy to operate and convenient after sales service and very long service life etc.



Advantages:



in particular, its top rate of discharge from the jet (up to 30 m/s),which enables perfect consolidation

of the concrete mixture and high strength of the sprayed concrete.





Another important feature is the long distance transfer,which enables the application of concrete mixture

at hard to access places (up to 200 m horizontally and 20 m vertically).

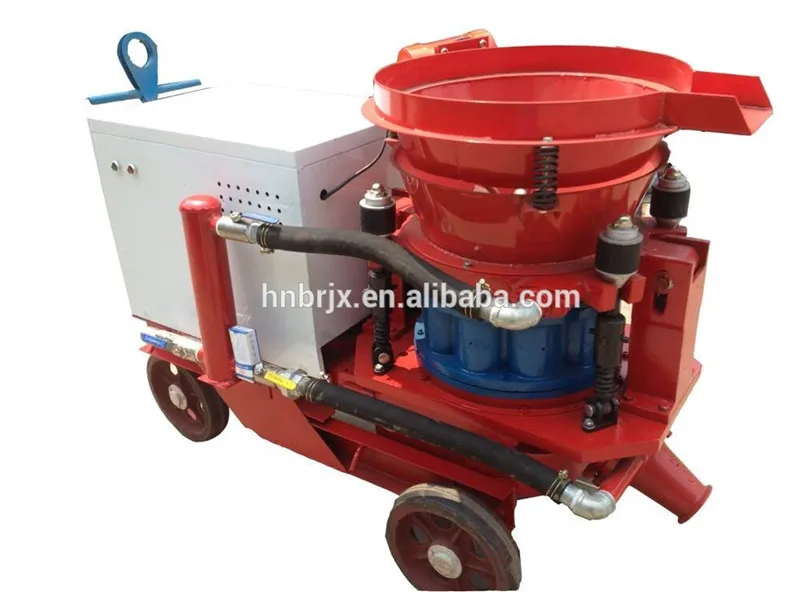

Pls check photo



Technical Parameters:

Type	PZ-5	PZ-6	PZ-7	ZSP-7
Production Capacity	5m³/hour	6m³/hour	7m³/hour	7m³/hour
Concrete Mixture Ratio	1:4-5	1:4-5	1:4-5	1:4-5
Water Cement Ratio	≤0.4	≤0.4	≤0.4	≤0.6
Maximum Conveying Distance	200m	200m	200m	300mm
Maximum Aggregate Size	φ20mm	φ20mm	φ20mm	φ20mm
Nozzle Diameter	φ51mm	φ51mm	φ64mm	φ64mm
Operation Wind Pressure	0.3-0.5 MPa	0.3-0.5 MPa	0.3-0.5 MPa	0.3-0.5 MPa
Air Consumption	7-8m³/min	7-8m³/min	10m³/min	10-12 m³/min
Filling Height	1.1m	1.1m	1.2m	1.2m
Power of Motor	5.5KW	5.5KW	7.5KW	7.5KW
Voltage	380V	380V	380V	380V
Overall Dimensions	1300*750* 1180mm	1300*750* 1180mm	1520*750* 1200mm	2100*900* 1200mm
Total Weight	600 kg	600kg	850kg	1000kg







7.5KW





Factory show









Packing show



What can we do for you?

1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
