WITROY hybrid solar inverter 8w 8000W deye 48V mppt controller 12v to 220v power inverter for home
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1601230443263):
Product Overview
Description
Product Overview

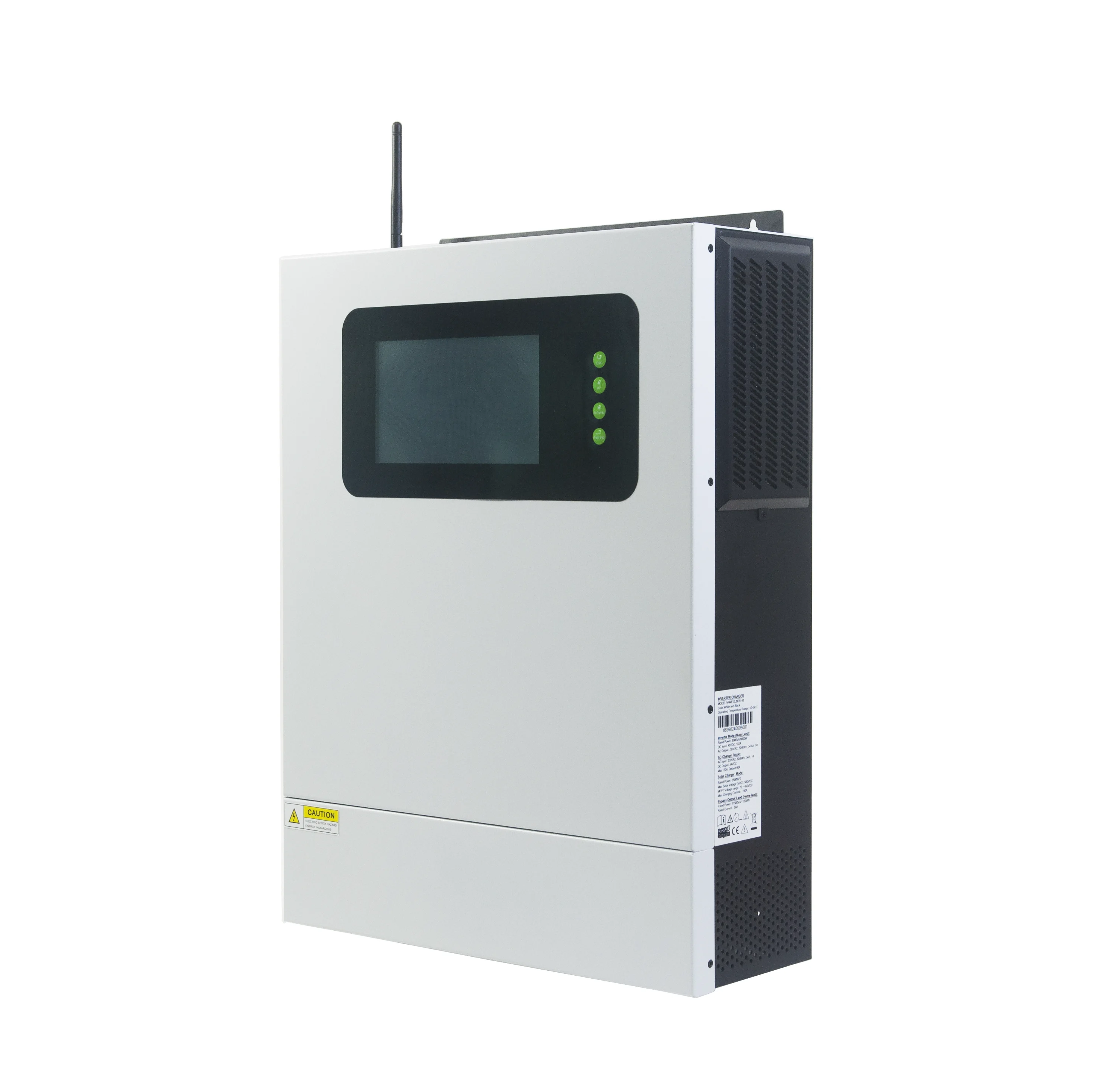

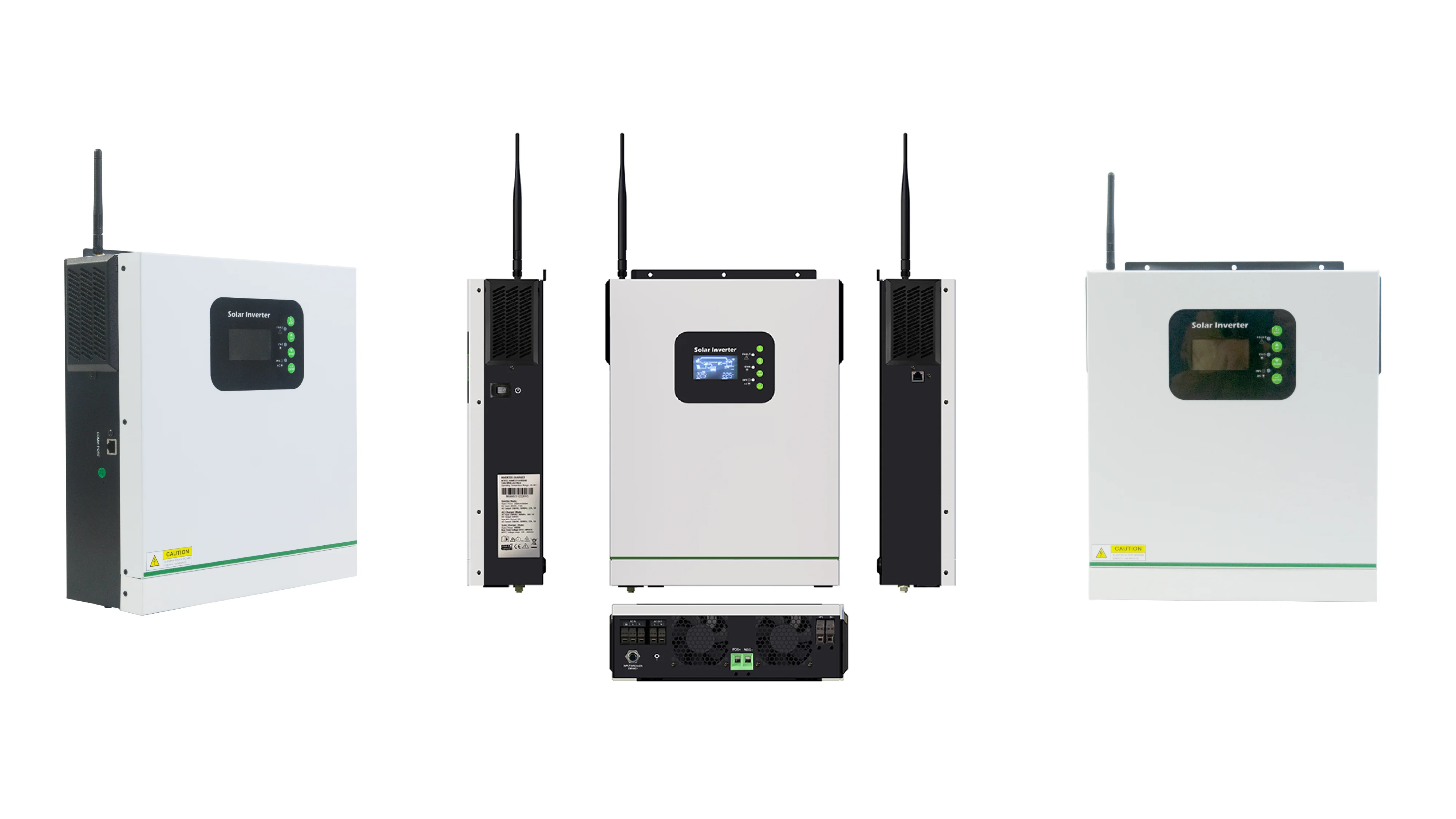

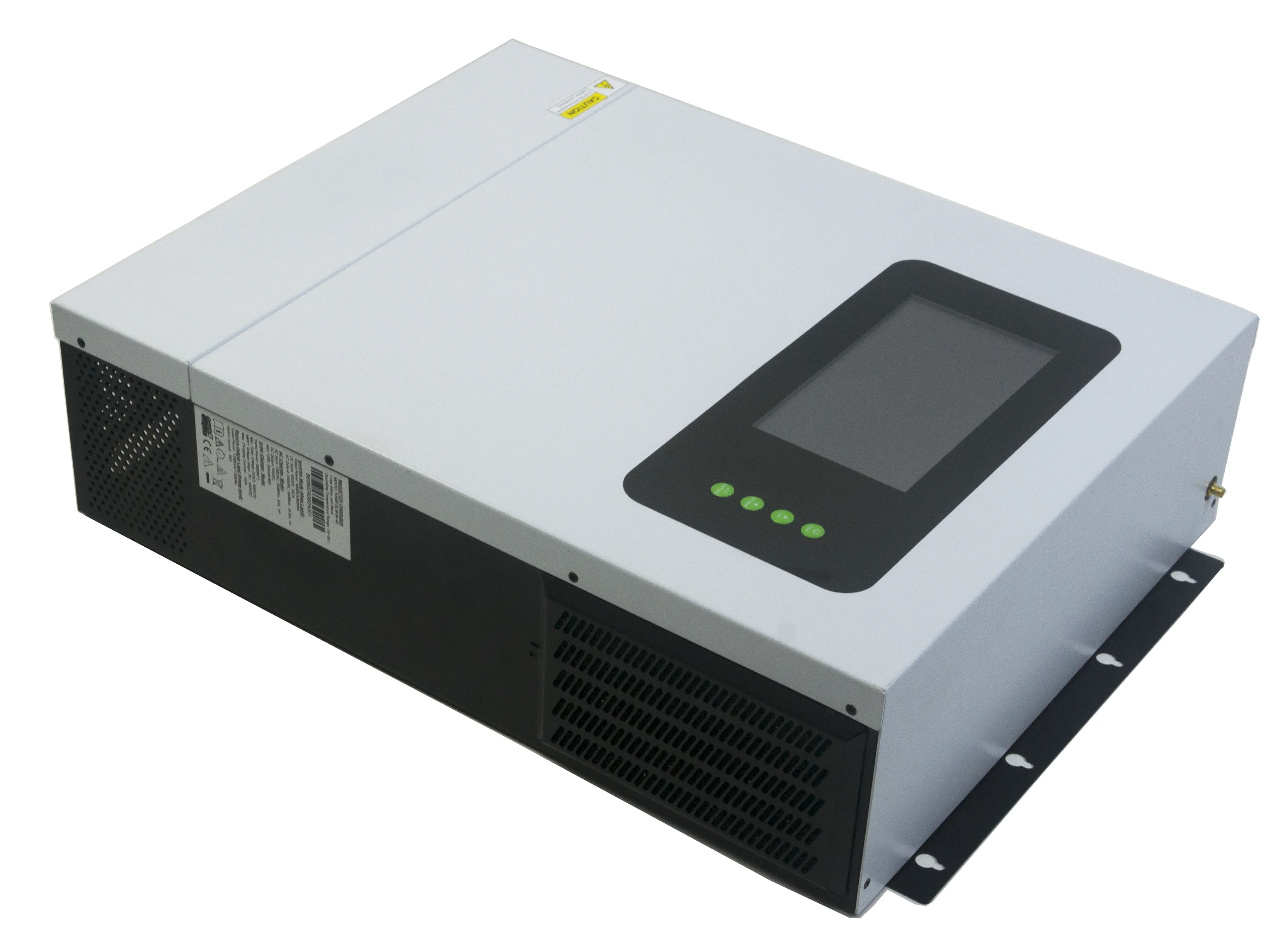

WITROY 48V 8KW 8000W Hybrid Solar Inverter

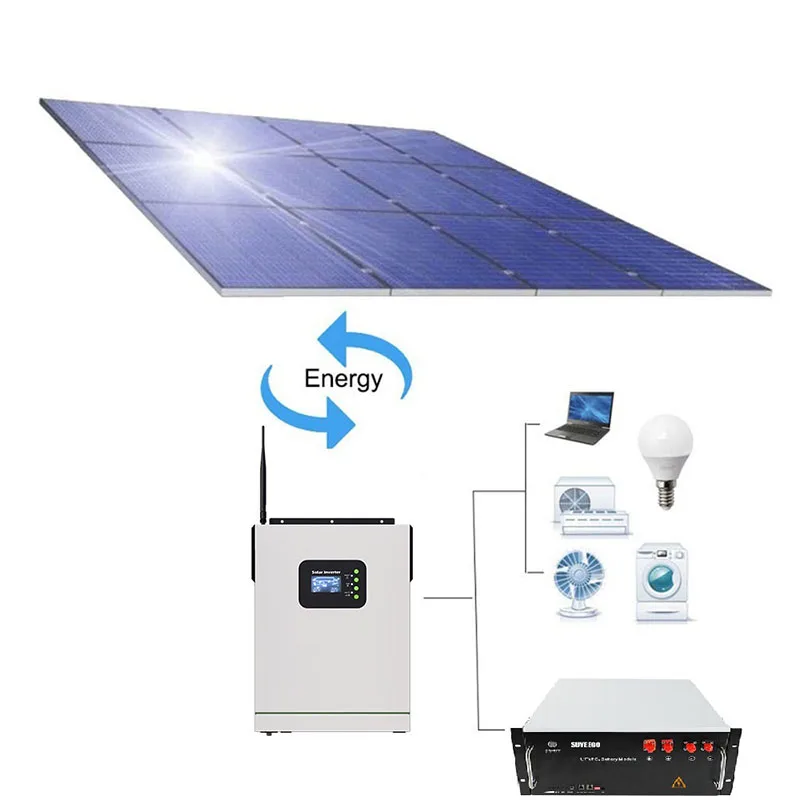

This is a multi-function inverterlcharger,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority,and acceptable input voltage based on different applications.
FEATURES AT A GLANCE
Products Specification
Model | SL8KW-48 | |
AC Input | ||
Nominal AC Input Voltage/Waveform | 230Vac/Sinusoidal (utility or generator) | |
AC Input Range | 90~280Vac(Appliances)；170Vac~280Vac(UPS) | |
Max AC Input Voltage | 300Vac | |
Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | |
AC Input Frequency Range | 40~65±1Hz; (>42 or <63±1Hz comeback) | |
Max Bypass Current | 50A | |
Transfer Time | 15ms typical (UPS) | |
25ms typical (Appliances) | ||
Inverter Output | ||
Rated Output Power | 8KVA/8KW | |
Working without Battery | Yes | |
Num. of Output Ports | 2 | |
Dry Contactor Function | Yes | |
Output Voltage Waveform | Pure Sine Wave | |
Output Voltage | 220/230/240 Vac ± 5% | |
Output Frequency | 50Hz/60Hz ±1 Hz | |
Peak Efficiency | 94% | |
Overload Protection | 5s@≥150% load; 10s@110%~150% load | |
Surge Capacity | 2* rated power for 5 seconds | |
Nominal Battery Input Voltage | 48Vdc | |
Cold Start Voltage | 46.0Vdc | |
Low voltage Cut-off | 42Vdc | |
High voltage Cut-off | 63Vdc | |
No Load Power Consumption | <70W@48VDC | |
Battery Charging | ||
AC Charging Current (Max) | 120Amp (@VI/P=230Vac) | |
PV Charging Current (Max) | 150Amp | |
Total Charging Current (Max) | 150Amp | |
Charging Algorithm | 3-Step | |
Bulk Charging Voltage--Flooded Battery | 58.4Vdc | |
Bulk Charging Voltage--AGM / Gel Battery | 56.4Vdc | |
Floating Charging Voltage | 54Vdc | |
MPPT Input | ||
Num.Of Independent MPPT Tracker | 2 | |
Max. PV Array Power | 10000W | |
PV Array MPPT Voltage Range | 60~450Vdc | |
Max. PV Array Open Circuit Voltage | 500Vdc | |
Communication | ||
BMS Communication | PYLON or PACE Protocol RS485 | |
WiFi/APP | RJ45 PORT for connection, optional | |
Other information | ||
Safety Certification | CE | |
Operating Temperature Range | -10°C to 50°C | |
Storage temperature | -15°C~ 60°C | |
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Enclosure | IP21 | |
Dimension (D*W*H), mm | 138x390x500 | |
Net Weight, kg | 18 | |

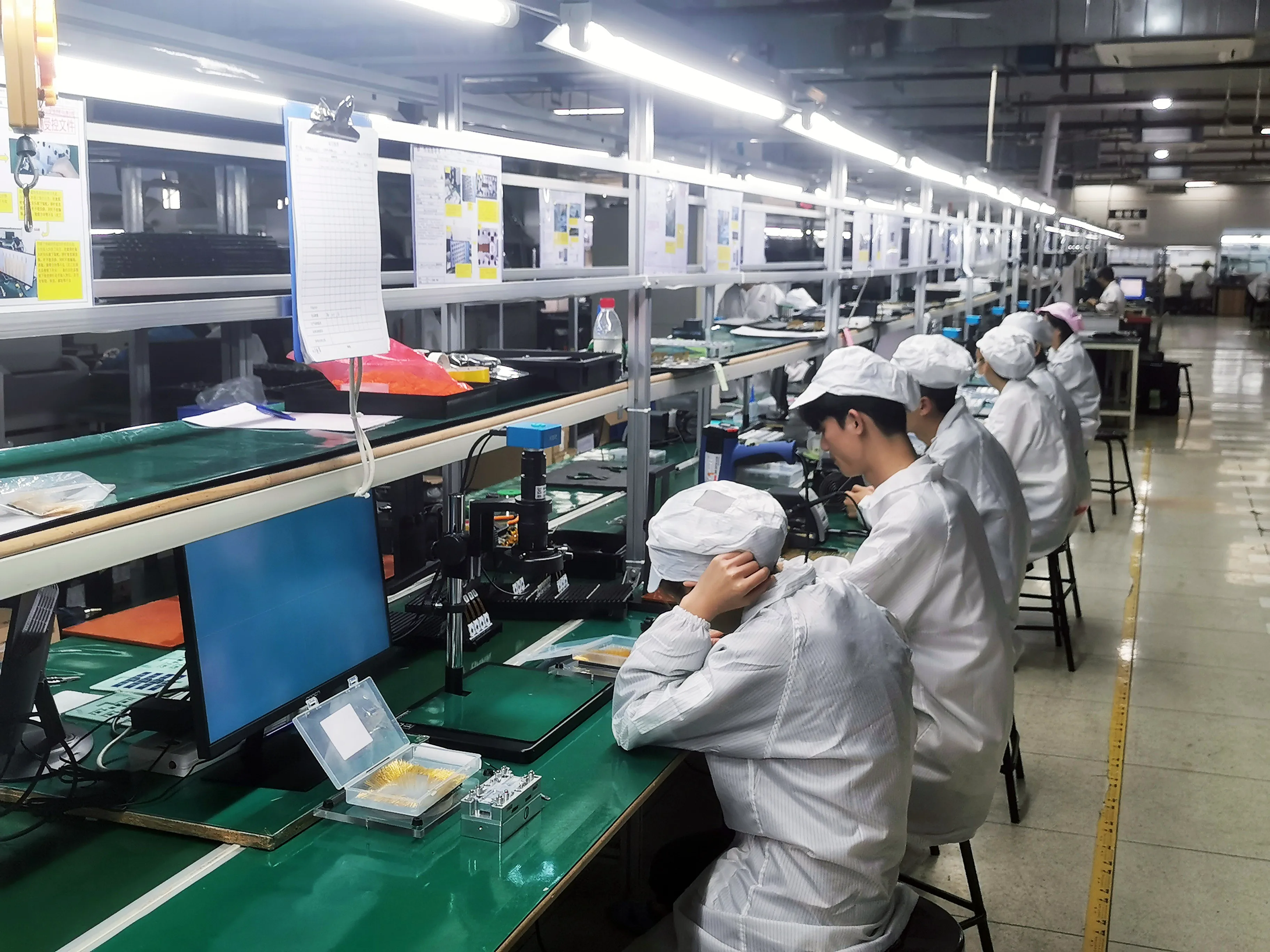

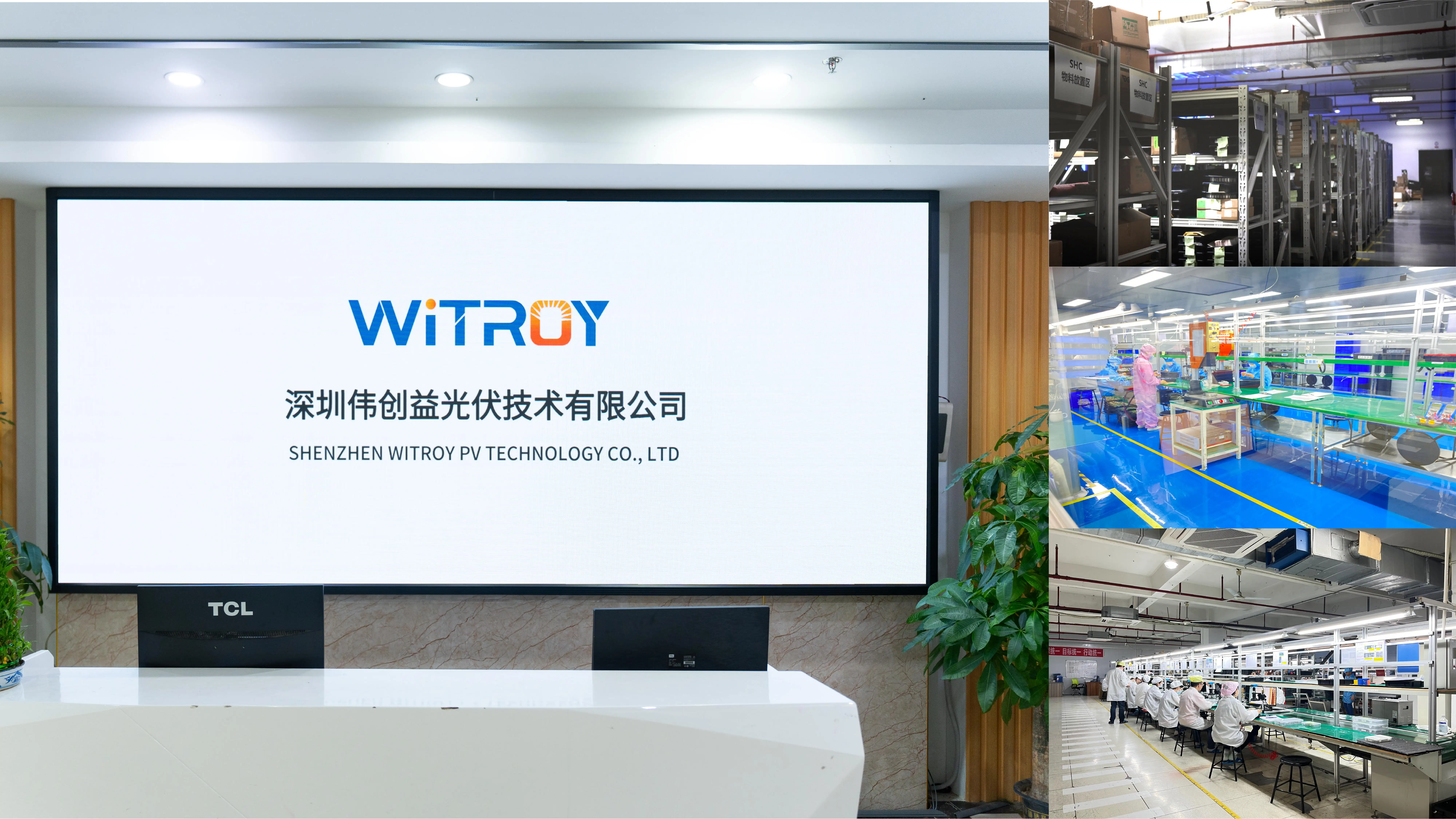

Company Profile
Shenzhen Witroy PV Technology Co,Ltd. is an international ODM/OEM manufacturing enterprise specializing in industrial, new energy, medical, industrial control, and high-end consumer power supplies. We create a comprehensive product supply chain system for our customers, offering tailored products as well as standard product lines to meet specific process requirements. Our team members come from Fortune 500 companies or well-known domestic and international brands, with over 15 years of experience in providing one-stop services for product design, supply chain systems, and product manufacturing solutions.
We are always committed to the refined management of customer products, providing customers with more valuable product optimization solutions and cost solutions. Currently, our main products include UPS, inverters, charging piles, new energy vehicles, smart controllers, medical power supplies, PCBA processing, finished assembly, testing,and other services.

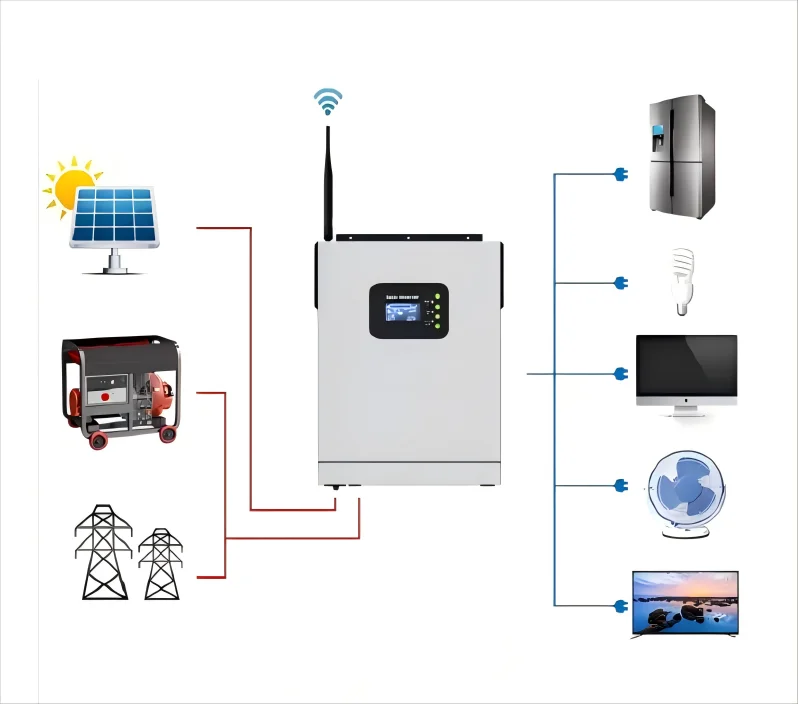

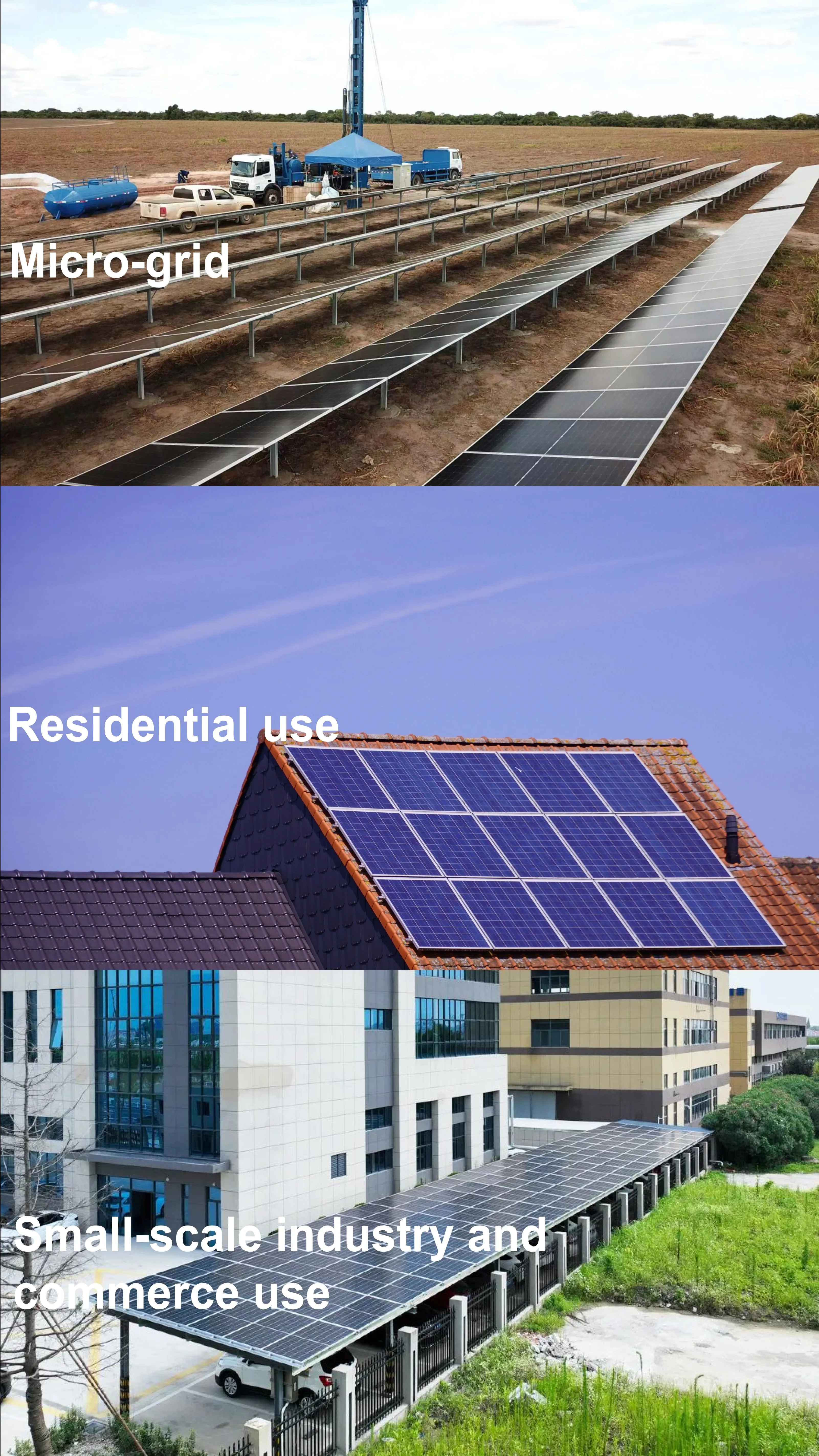

Application scenarios
FAQ
Q1:Who are we?
A1:WITROY is an international ODM/OEM manufacturing enterprise specializing in industrial, new energy, medical, industrial control, and high-end consumer power supplies
Q2: How can we guarantee quality?
A2:Our company always has pre-production samples before mass production, and always carries out final inspection before shipment
to ensure that every link is rigorous and professional.
Q3:What can you buy from us?
A3:Off Grid Inverter(Customizable), Portable Power Station(Customizable), Micro Inverter(Customizable), UPS(Customizable), Solar
Pump Inverter(Customizable).
Q4: Why should you buy from us not from other suppliers?
A4: We have a professional technical team, rich experience in foreign trade and high quality products to meet diverse needs.
Q5: what services can we provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD, EUR, CAD, AUD, HKD, CNY; Accepted Payment Type:
T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
Q2: How can we guarantee quality?
A2:Our company always has pre-production samples before mass production, and always carries out final inspection before shipment
to ensure that every link is rigorous and professional.
Q3:What can you buy from us?
A3:Off Grid Inverter(Customizable), Portable Power Station(Customizable), Micro Inverter(Customizable), UPS(Customizable), Solar
Pump Inverter(Customizable).
Q4: Why should you buy from us not from other suppliers?
A4: We have a professional technical team, rich experience in foreign trade and high quality products to meet diverse needs.
Q5: what services can we provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD, EUR, CAD, AUD, HKD, CNY; Accepted Payment Type:
T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
